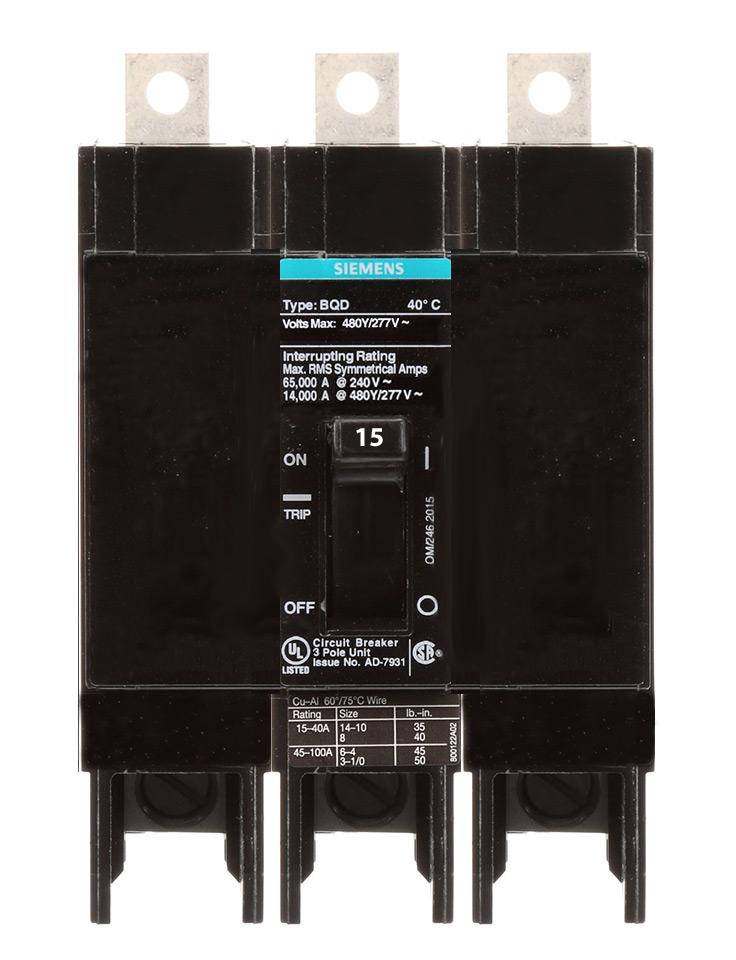

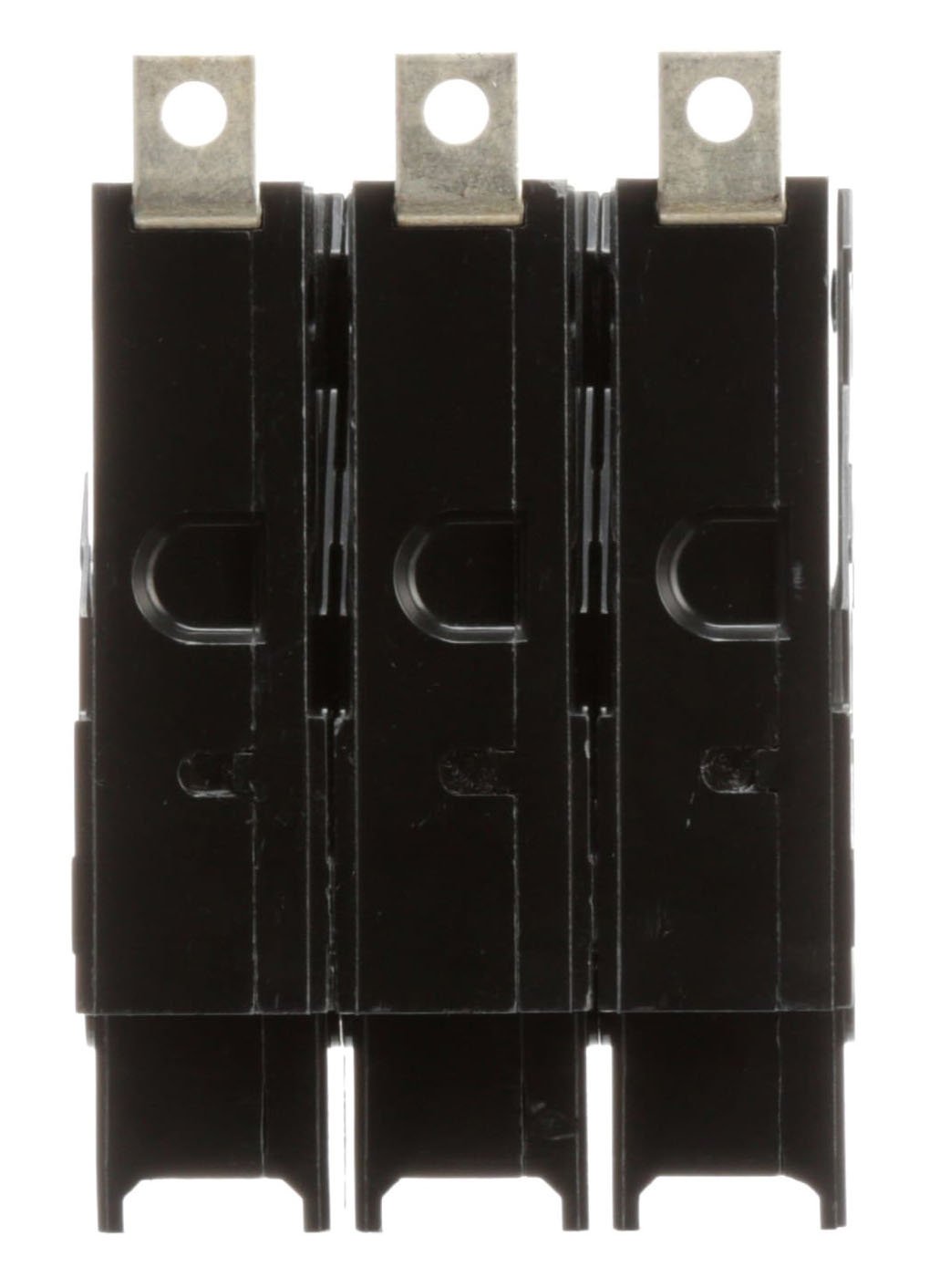

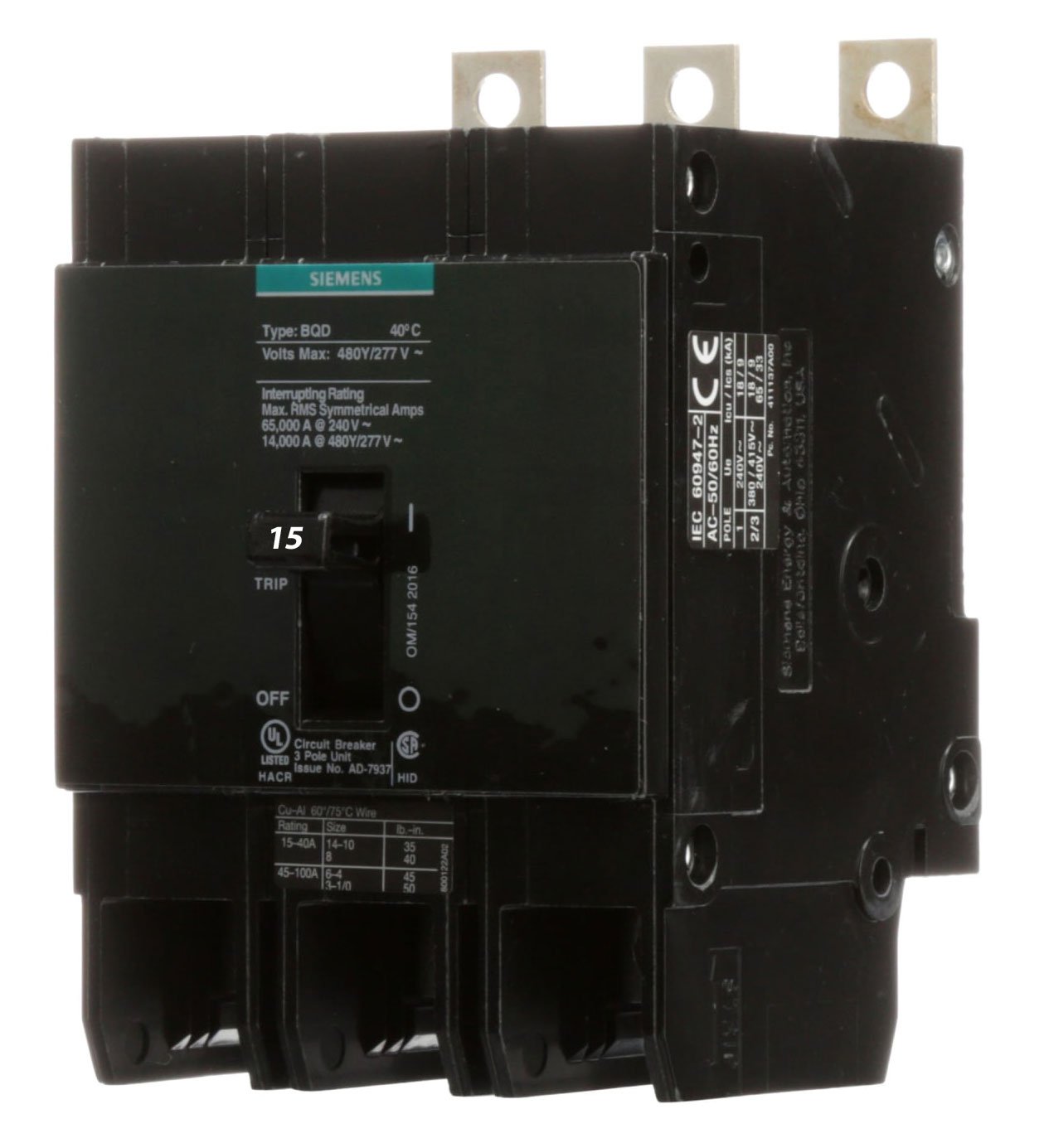

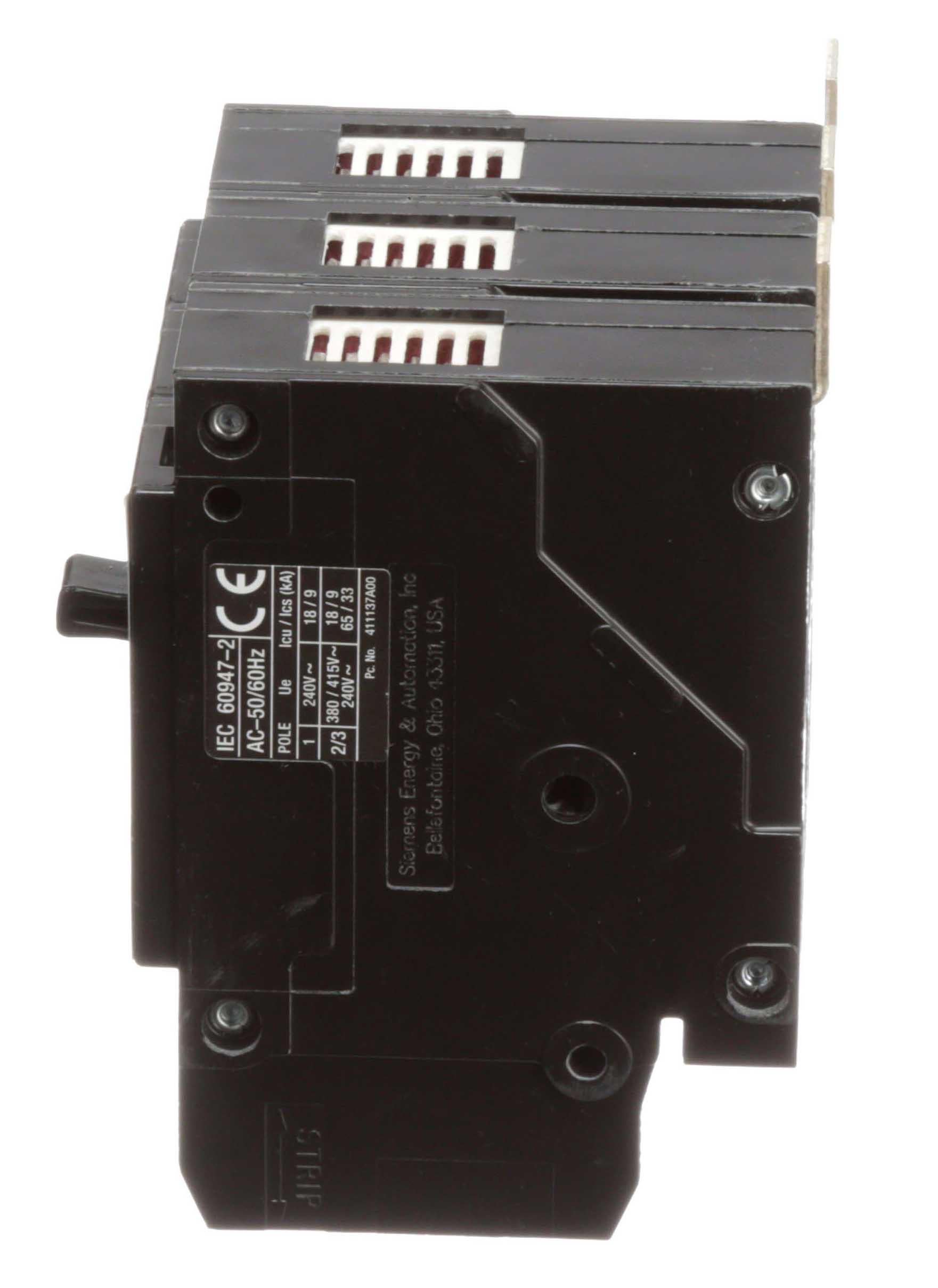

Siemens BQD315 - Molded Case Breaker 15A 480V 3-Pole

Price
Regular price $173.42
Regular price $1,352.00 Sale price $173.42
Save $1,178.58
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD315 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A current rating and a 480V AC voltage rating, housed within a compact, bolt-on design measuring 3 in x 4.49 in x 4.49 in and weighing 0.278 lb. The breaker is constructed with a thermal-magnetic trip unit providing both long-time and instantaneous trip functions, and it complies with UL 521 and CSA-C22.2 standards. It is engineered for a 14kA interrupting capacity at 480V and is typically applied within Siemens P1 panelboards for commercial and light industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Frame Size: 100A/BQD
  • Poles: 3
  • AIC Rating: 14kA @ 480V AC
  • Phase: 3
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Dimensions: 3 in H x 4.49 in W x 4.49 in D
  • Weight: 0.278 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Protection Functions: Long Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Standards & Certification: UL 521, CSA-C22.2
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277342
  • GTIN: 00783643277342
