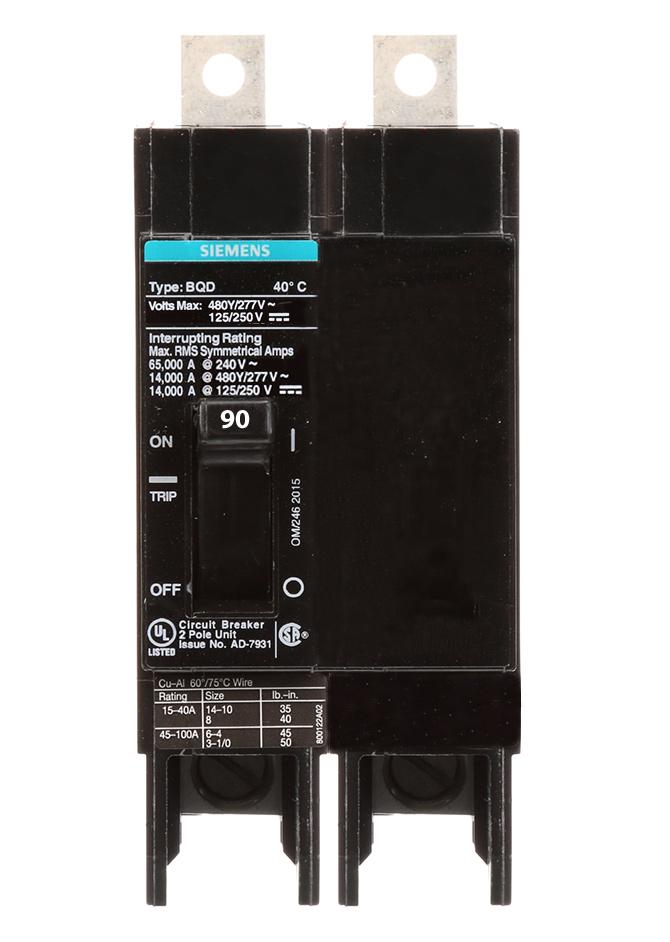

Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole
Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole

Siemens BQD290 - Molded Case Circuit Breaker 90A 480V 2-Pole

Siemens
Price
Save $1,394.32
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQD290 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 90A current rating and a 480V AC voltage rating, housed within a compact, durable enclosure measuring 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) and weighing 1.179 lb. The breaker is certified to CSA-C22.2 and UL 518 standards and utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection. Its bolt-on connection and compatibility with Siemens P1 panelboards make it suitable for a wide range of single-phase power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 90A
  • Dimensions: 2 in x 4.49 in x 4.49 in (50.8mm x 114mm x 114mm)
  • Standards & Certification: CSA-C22.2, UL 518
  • Applications: Industrial and Commercial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Breaker Type: Standard
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • Family: BQD Series
  • Country of Origin: Mexico
  • Weight: 1.179 lb


Product Identification
  • UPC: 783643277328
  • GTIN: 00783643277328
