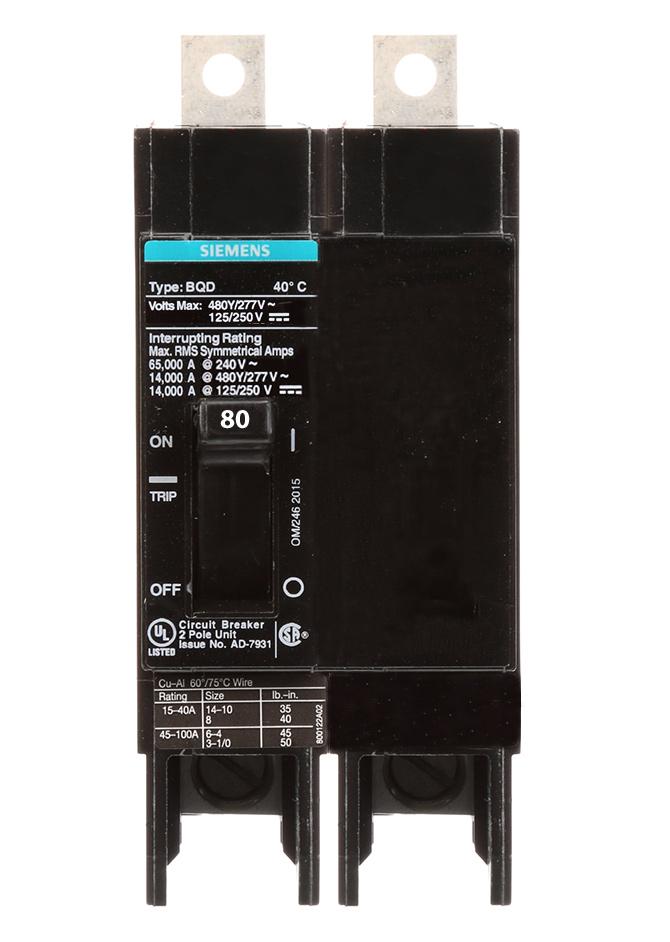

Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole
Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole

Siemens BQD280 - Molded Case Circuit Breaker 80A 480V 2-Pole

Siemens
Price
Save $1,380.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQD280 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A at 480V AC in a single-phase configuration with a 14kA interrupting capacity at its rated voltage. The compact, two-pole breaker measures 2" x 4.49" x 4.49" (50.8 x 114 x 114 mm), weighs 1.131 lb, and utilizes a bolt-on connection with lug terminals for secure installation in Siemens P1 panelboards. It is certified to CSA-C22.2 and UL 517 standards and operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F), making it suitable for a variety of demanding applications including motor control centers, distribution panels, and industrial machinery.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 80A
  • Dimensions: 2 in x 4.49 in x 4.49 in (50.8 mm x 114 mm x 114 mm)
  • Standards: CSA-C22.2, UL 517
  • Applications: Industrial & Commercial Distribution, Motor Control, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • Poles: 2
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Breaker Type: Standard
  • AIC rating: 14kA @ 480V
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 1.131 lb
  • Certification: CSA-C22.2, UL 517
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277311
  • GTIN: 00783643277311
