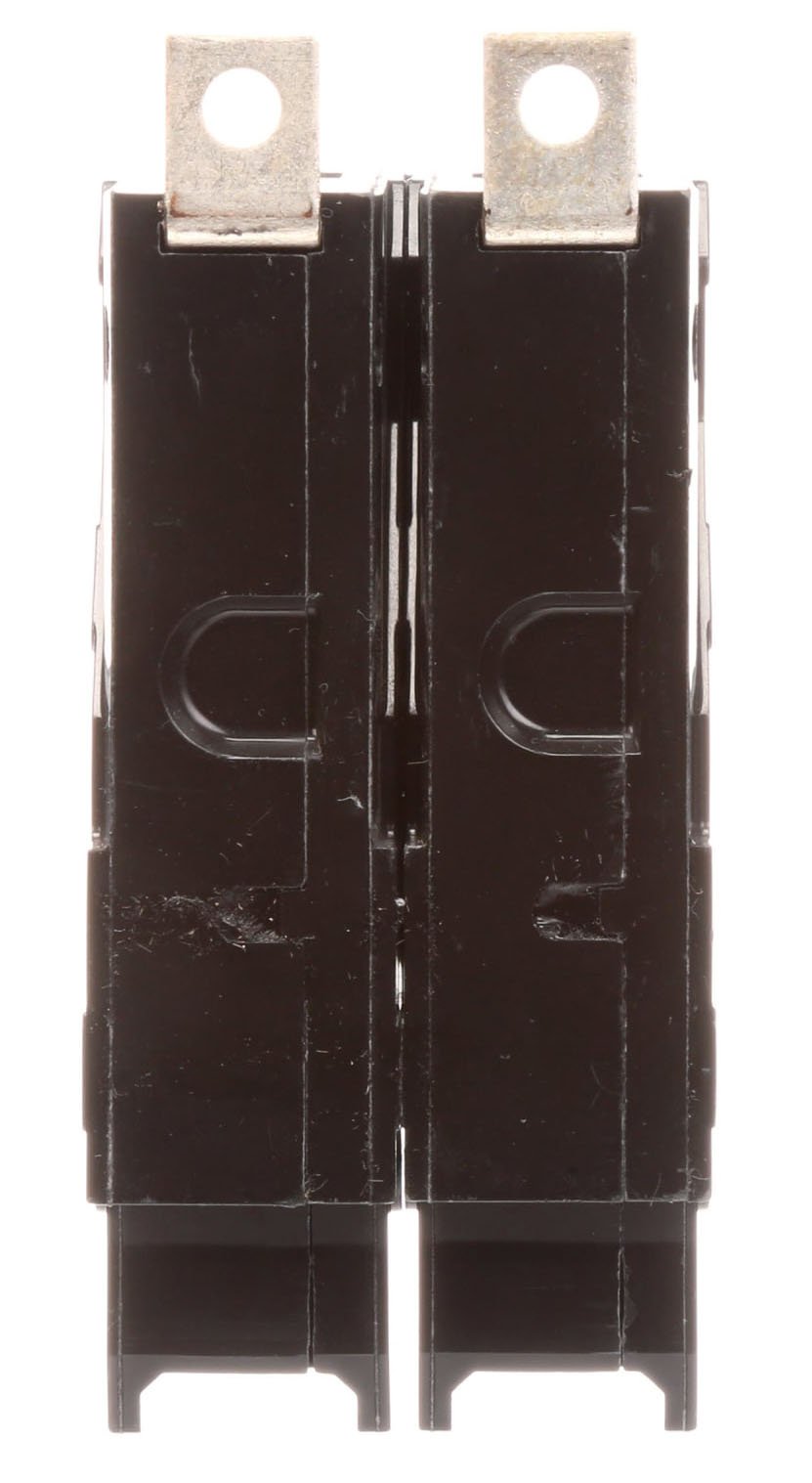

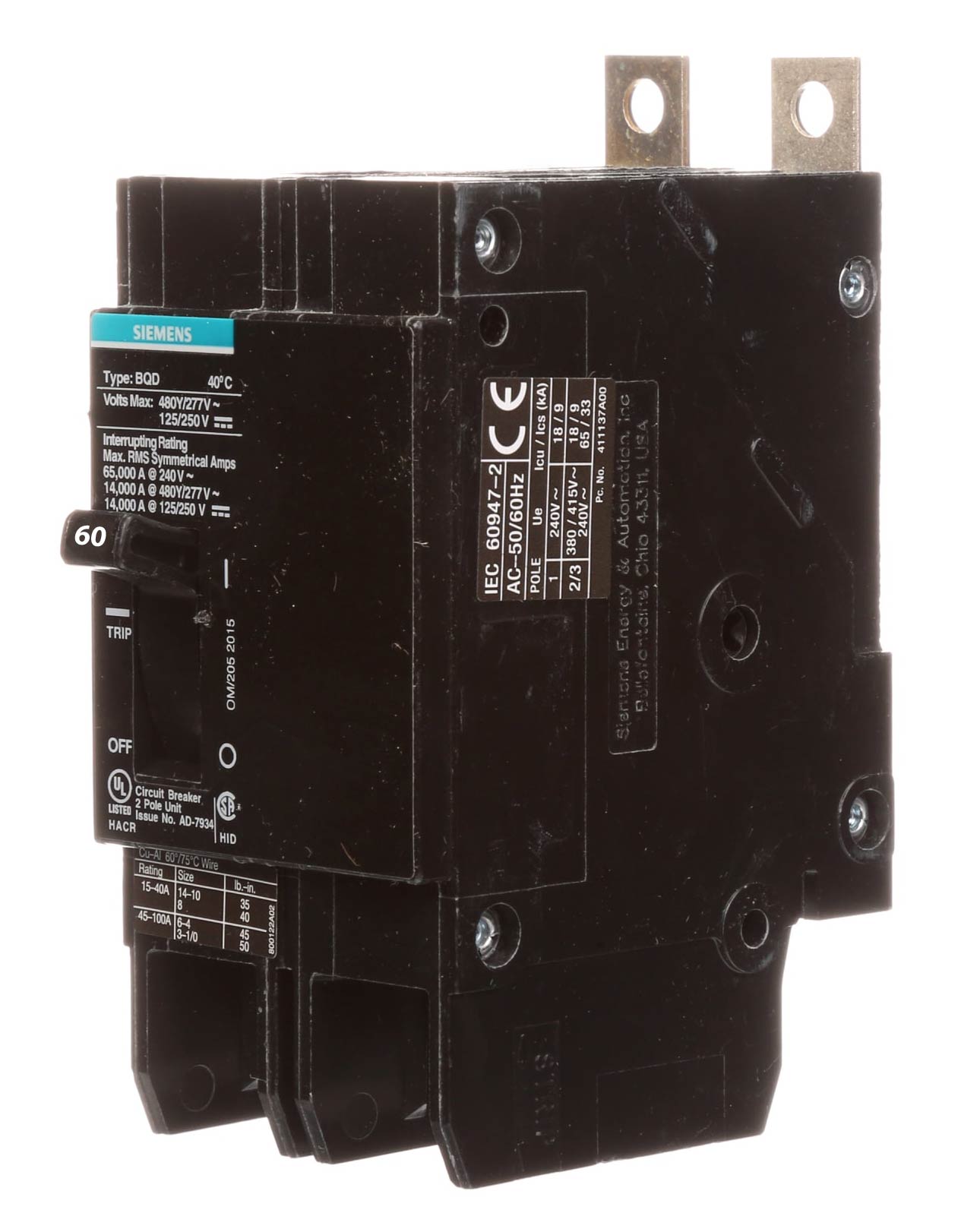

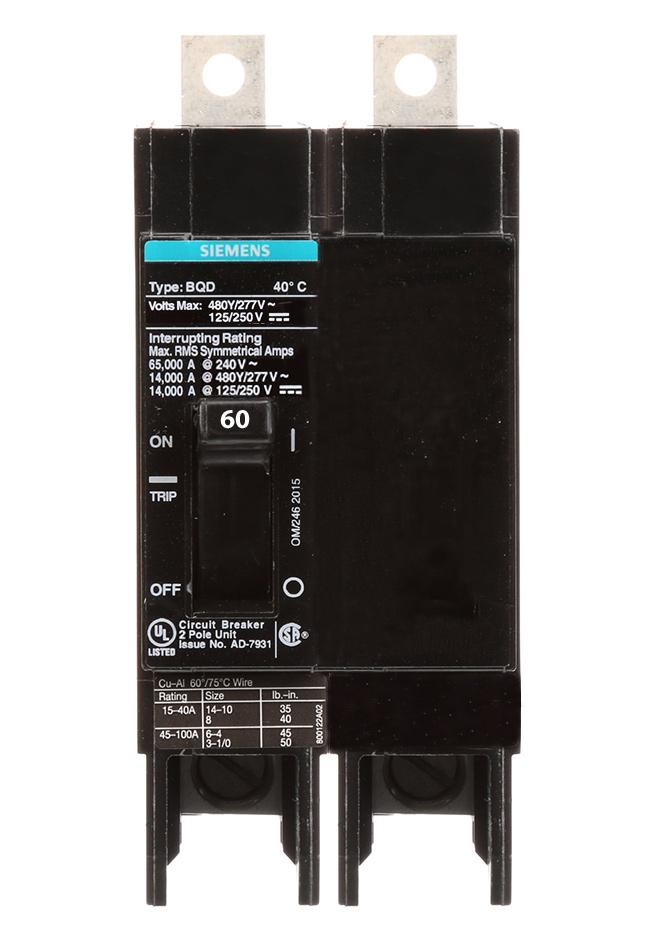

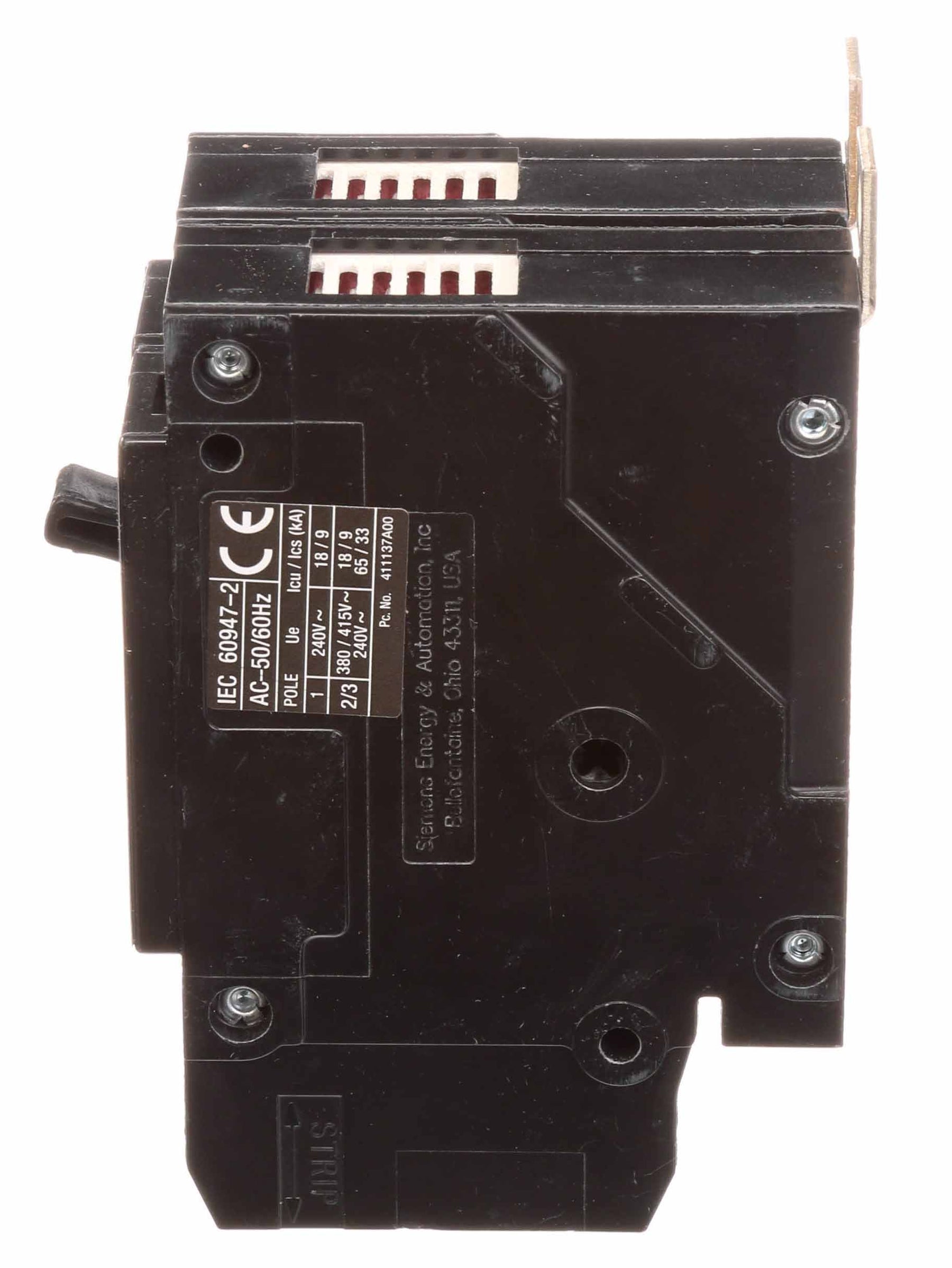

Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole
Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole

Siemens BQD260 - Molded Case Circuit Breaker 60A 480V 2-Pole

Siemens
Price
Save $672.15
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQD260 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact, durable enclosure measuring 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) and weighing 1.199 lb. The breaker is constructed for bolt-on connection with lug terminals and offers thermal-magnetic protection with long-time and instantaneous (LI) trip functions, ensuring compliance with UL 515 and CSA C22.2 standards. Its 14kA interrupting rating at 480V makes it suitable for safeguarding feeders and branch circuits within Siemens P1 panelboards and similar single-phase applications, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 2 in x 4.49 in x 4.49 in (50.8mm x 114mm x 114mm)
  • Standards: UL 515, CSA C22.2
  • Applications: Industrial/Commercial Feeder & Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • Certification: CSA-C22.2, UL 515
  • Family: BQD Series
  • Weight: 1.199 lb


Product Identification
  • UPC: 783643277298
  • GTIN: 00783643277298
