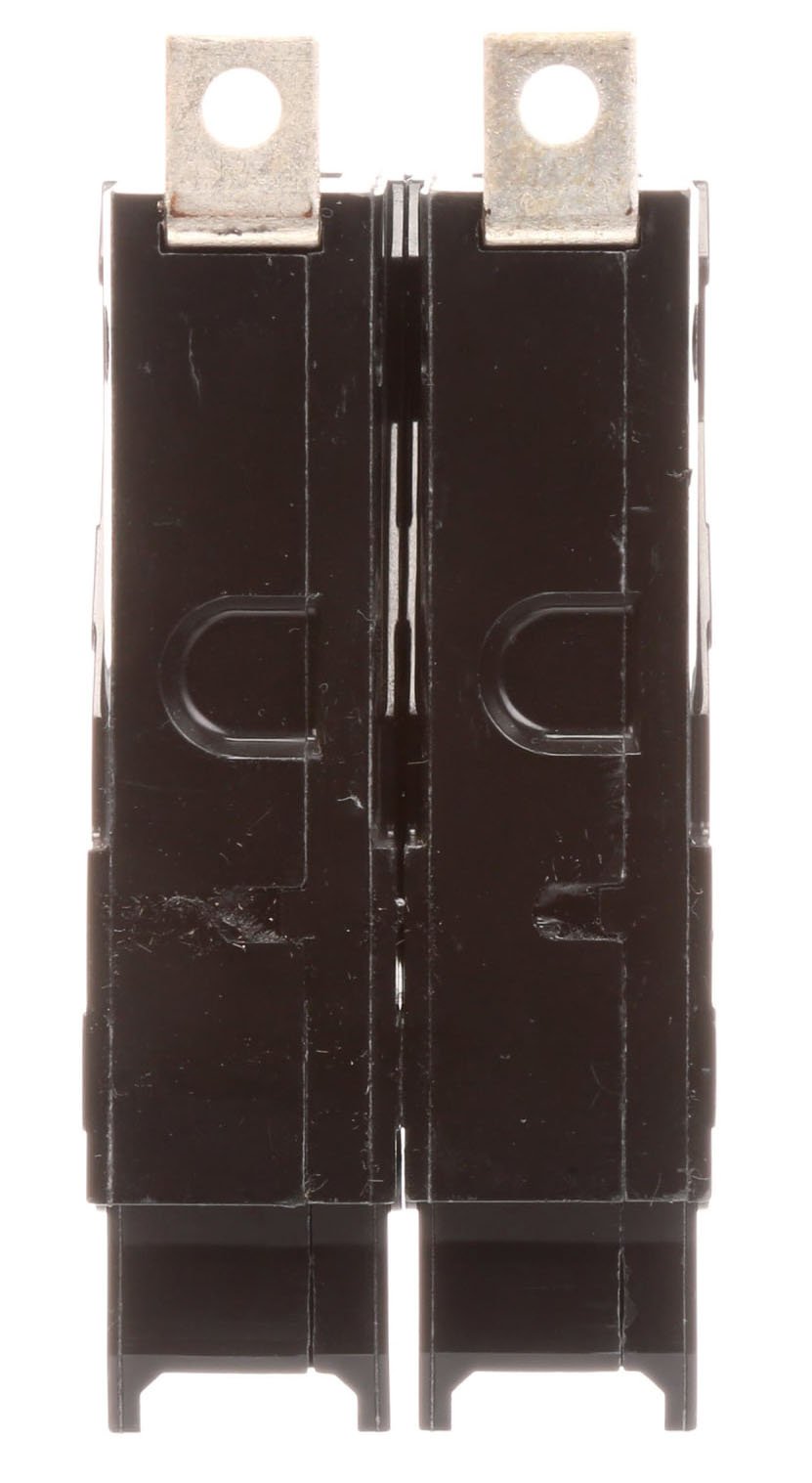

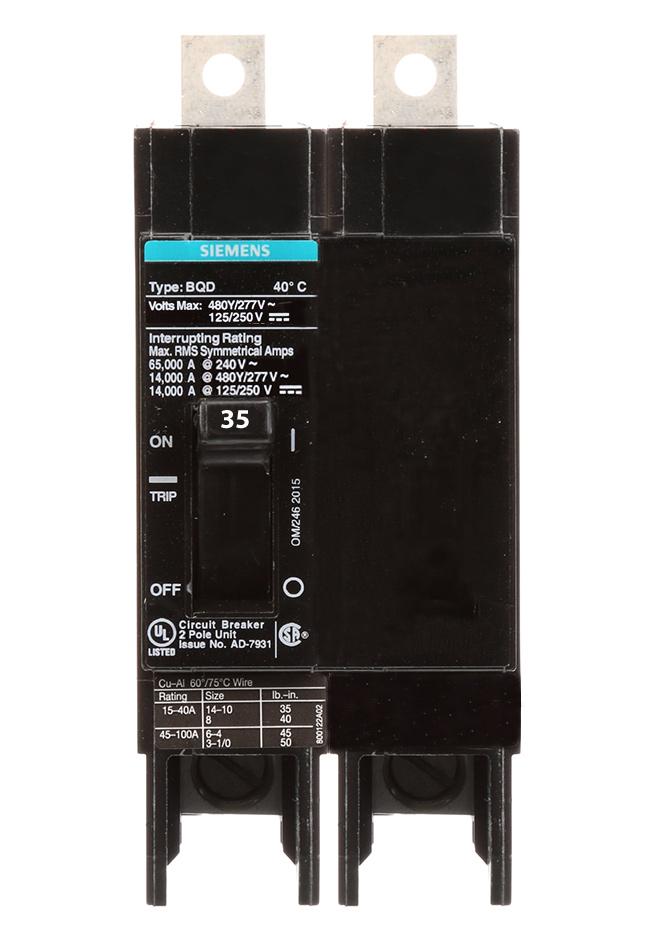

Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole
Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole

Siemens BQD235 - Molded Case Circuit Breaker, 35A 480V 2-Pole

Siemens
Price
Save $545.14
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQD235 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 35A current rating and a 480V AC voltage rating, housed in a compact, durable enclosure measuring 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) and weighing 1.1 lb. The breaker is constructed for bolt-on connection with lug terminals and offers thermal-magnetic protection with long-time and instantaneous (LI) trip functions, ensuring compliance with UL 511 and CSA C22.2 standards. Its 14kA interrupting capacity at 480V makes it suitable for installation in Siemens P1 panelboards to safeguard branch circuits in a wide operating temperature range from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 2 in x 4.49 in x 4.49 in (50.8mm x 114mm x 114mm)
  • Standards: UL 511, CSA C22.2
  • Applications: Branch circuit protection in industrial/commercial panels
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Breaker Type: Standard
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • Certification: UL 511, CSA C22.2
  • Family: BQD Series
  • Weight: 1.1 lb


Product Identification
  • UPC: 783643277250
  • GTIN: 00783643277250
