Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole
Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole

Siemens BQD230 - Molded Case Breaker, 30A 480V 2-Pole

Siemens
Price
Save $673.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

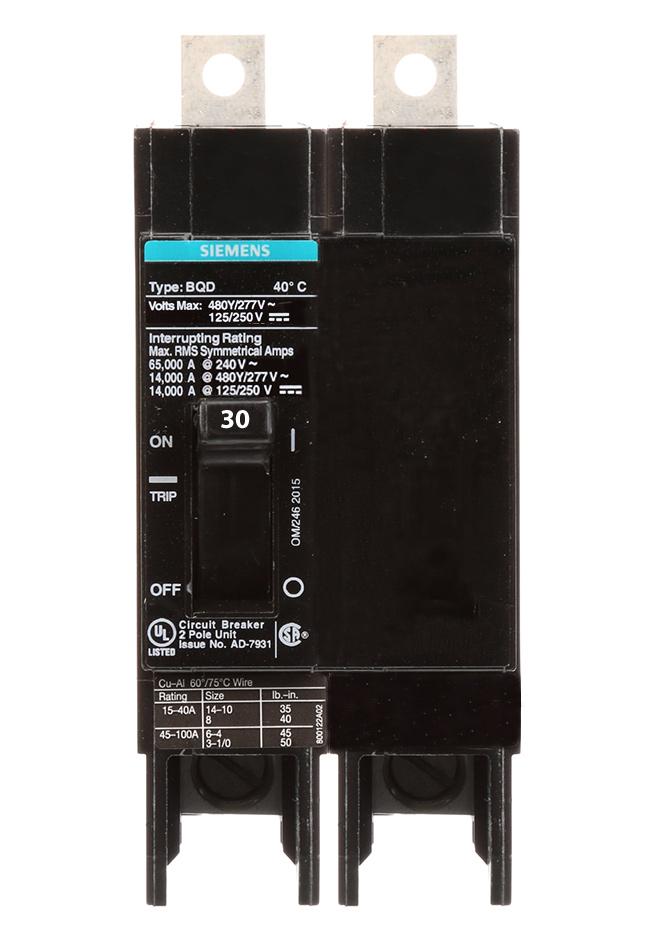

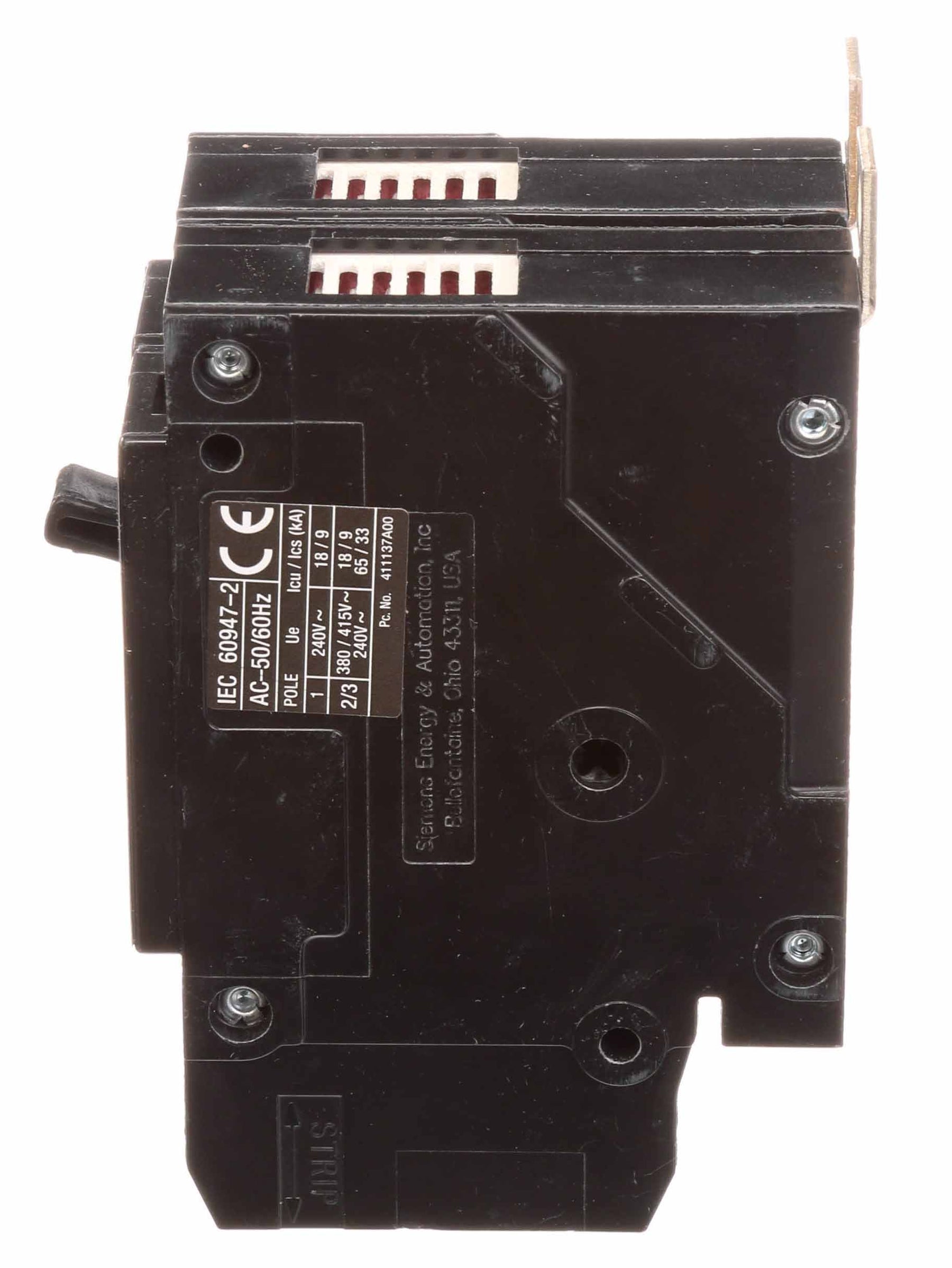

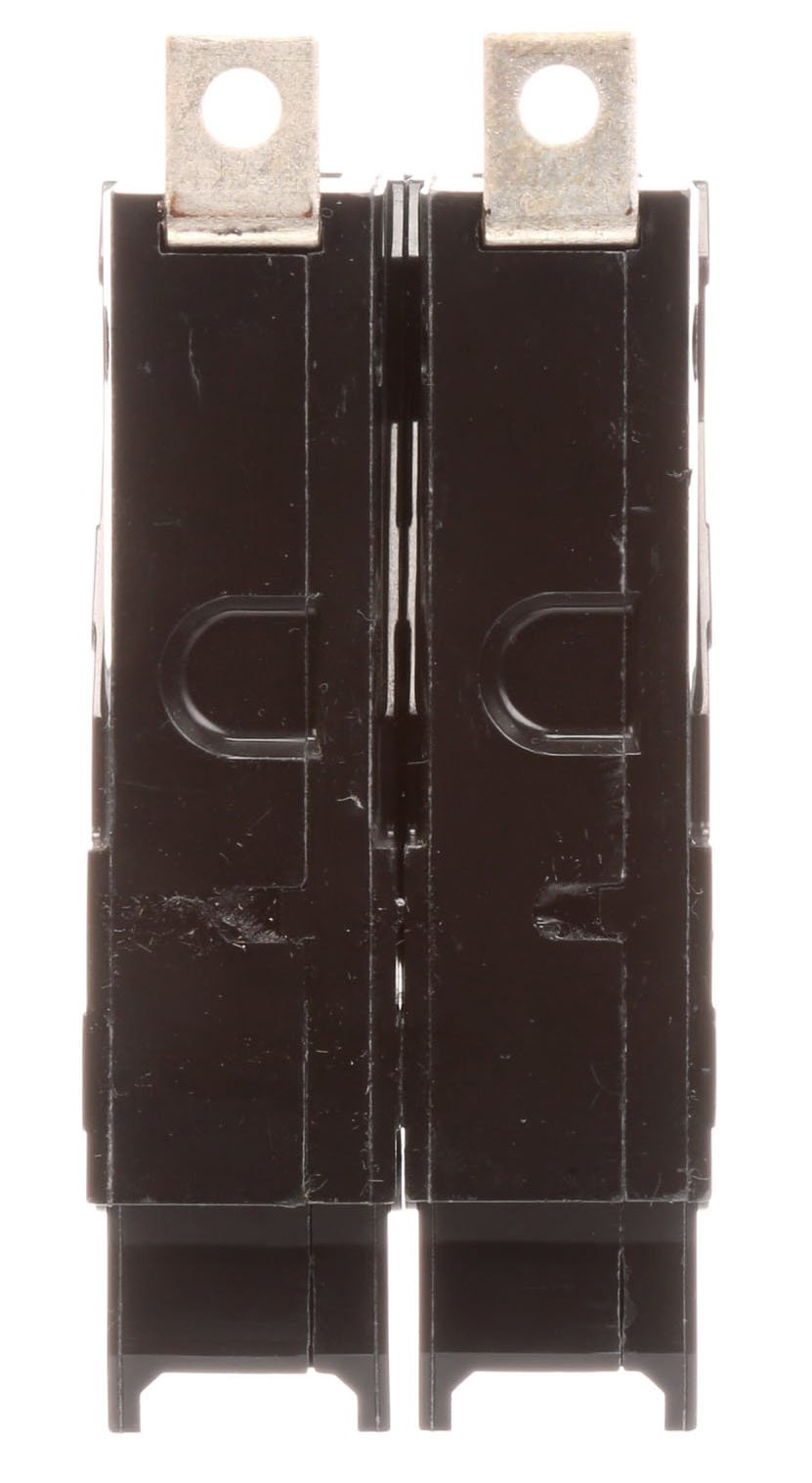

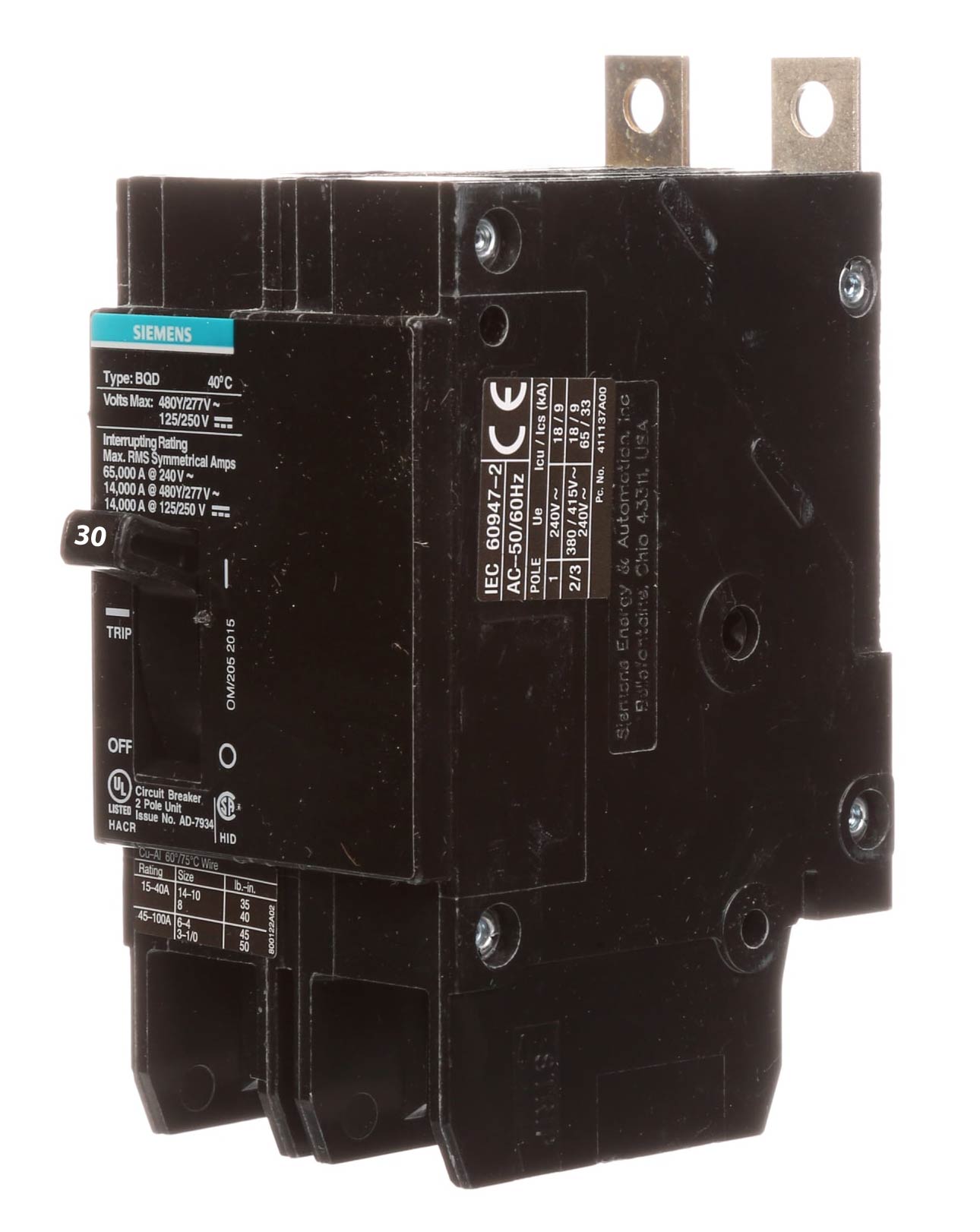

Siemens BQD230 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) bolt-on unit weighing 1.1 lb. The breaker is constructed with a thermal-magnetic trip mechanism providing both long-time and instantaneous (LI) protection, and it complies with CSA-C22.2 and UL 509 standards. Its 14kA interrupting rating at 480V makes it suitable for safeguarding branch circuits in Siemens P1 panelboards and similar single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Frame Size: 100A/BQD
  • Poles: 2
  • AIC Rating: 14kA @ 480V
  • Phase: 1
  • Connection: Bolt-on, Lug Terminal
  • Functions: LI (Long-Time & Instantaneous Trip)
  • Standards & Certification: CSA-C22.2, UL 509
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Dimensions: 2 in H x 4.49 in W x 4.49 in D (50.8mm x 114mm x 114mm)
  • Weight: 1.1 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size / Wire Range: Min: 12 AWG (Al), 14 AWG (Cu); Max: 6 AWG
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277243
  • GTIN: 00783643277243
