Siemens
Price
Save $676.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

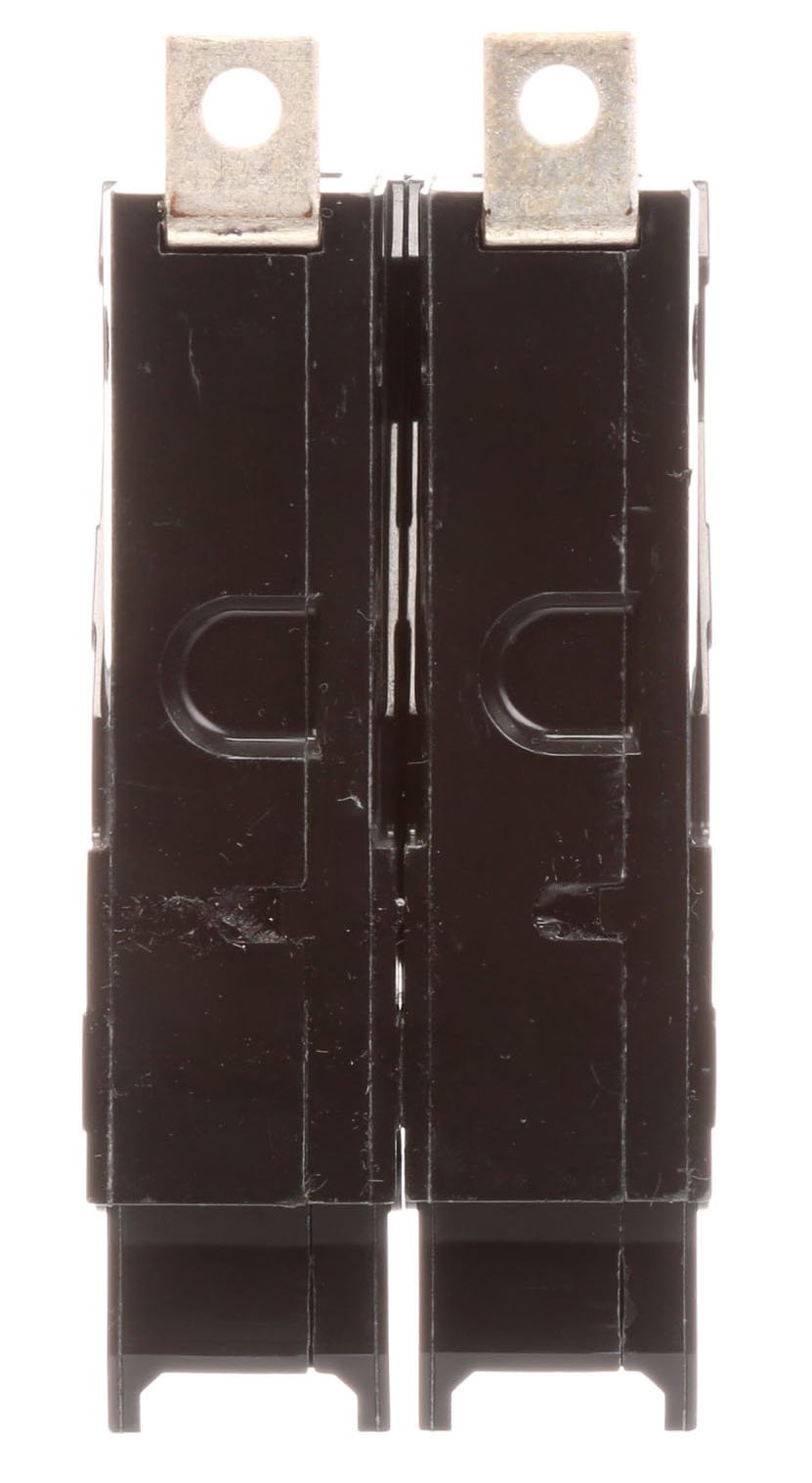

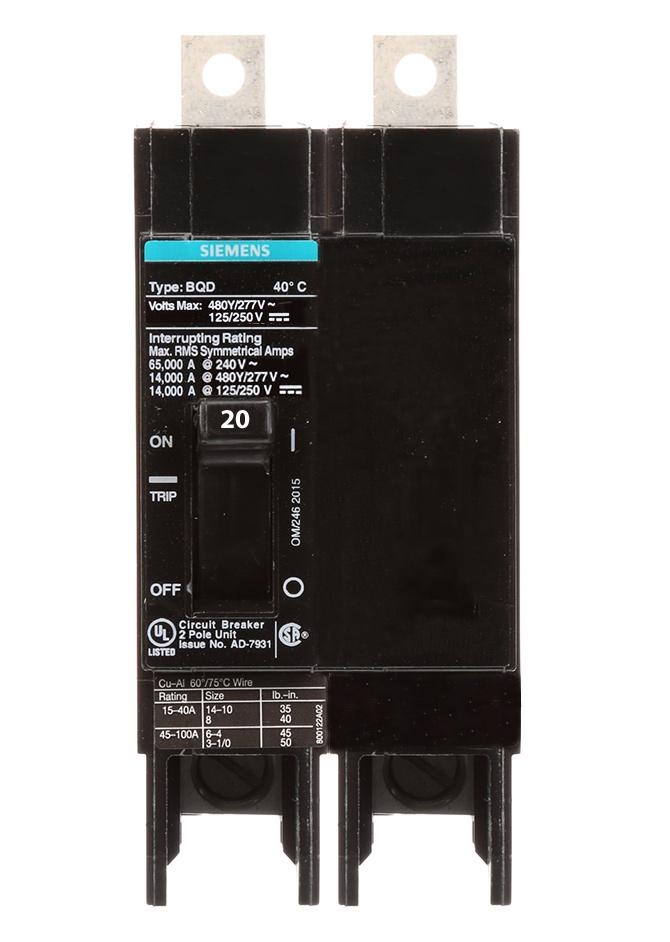

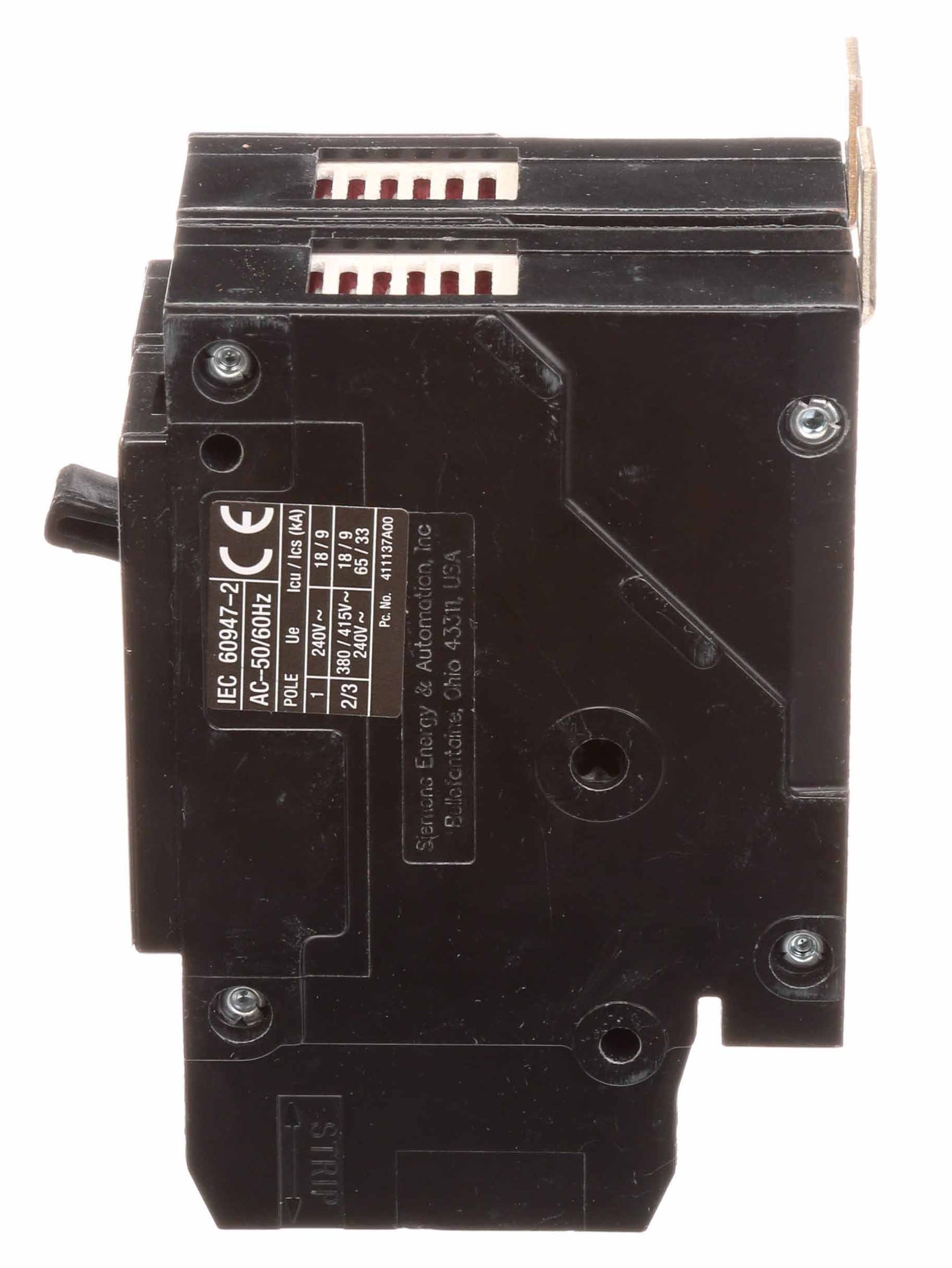

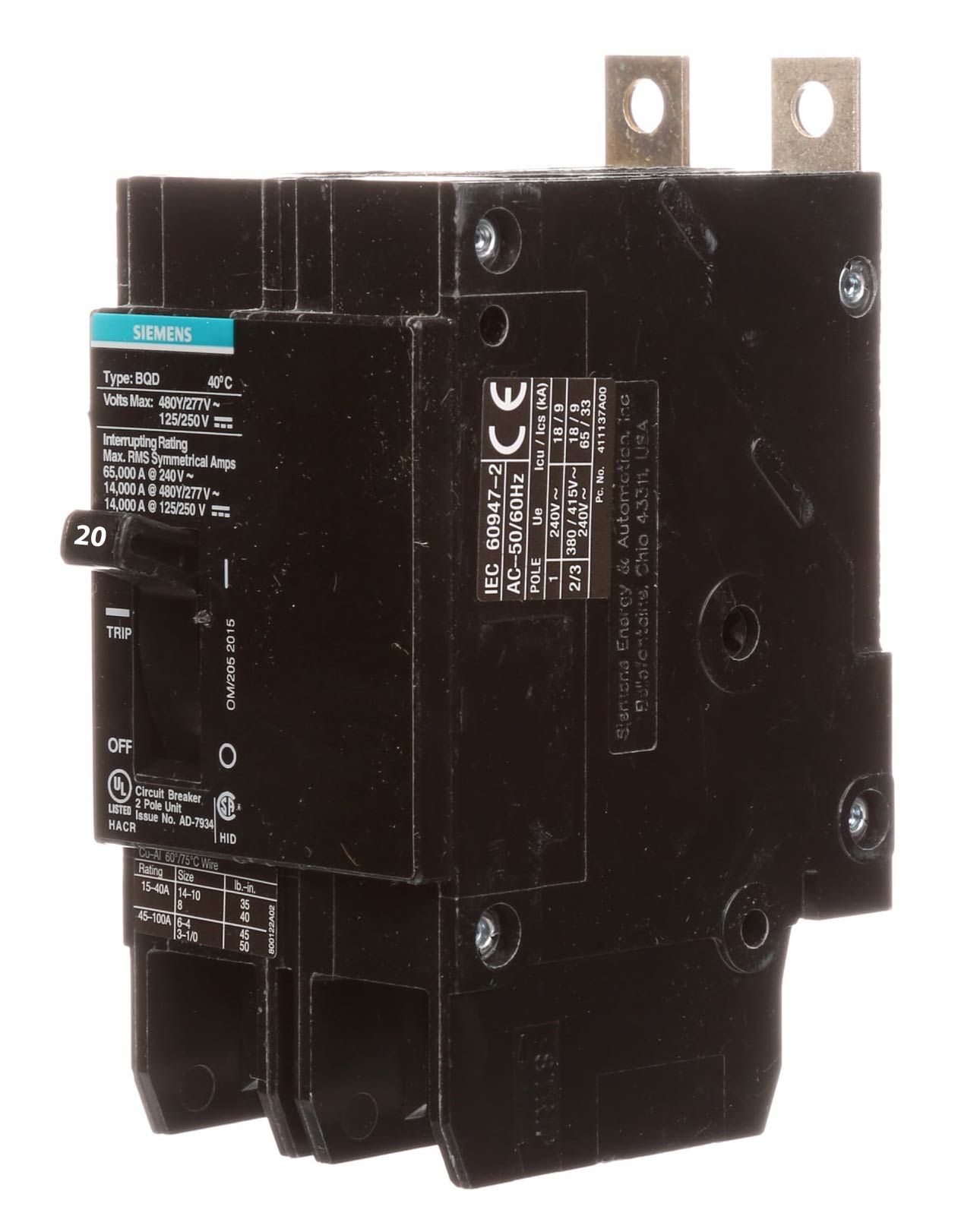

Siemens BQD220 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) bolt-on frame with a weight of 0.8 lb. This thermal-magnetic breaker is constructed for compliance with CSA-C22.2 and UL 506 standards and operates effectively within a temperature range of -25°C to 70°C. Its typical application is for branch circuit protection within Siemens P1 panelboards, offering a 14kA interrupting capacity at 480V for single-phase systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip (LI - Long-Time and Instantaneous)
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Frame Size: 100A/BQD
  • Poles: 2
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 1
  • Dimensions: 2 in H x 4.49 in W x 4.49 in D (50.8mm x 114mm x 114mm)
  • Weight: 0.8 lb
  • Wire Size Range: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 6 AWG
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA-C22.2, UL 506
  • Panel Compatibility: Siemens P1 Panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277229
  • GTIN: 00783643277229
