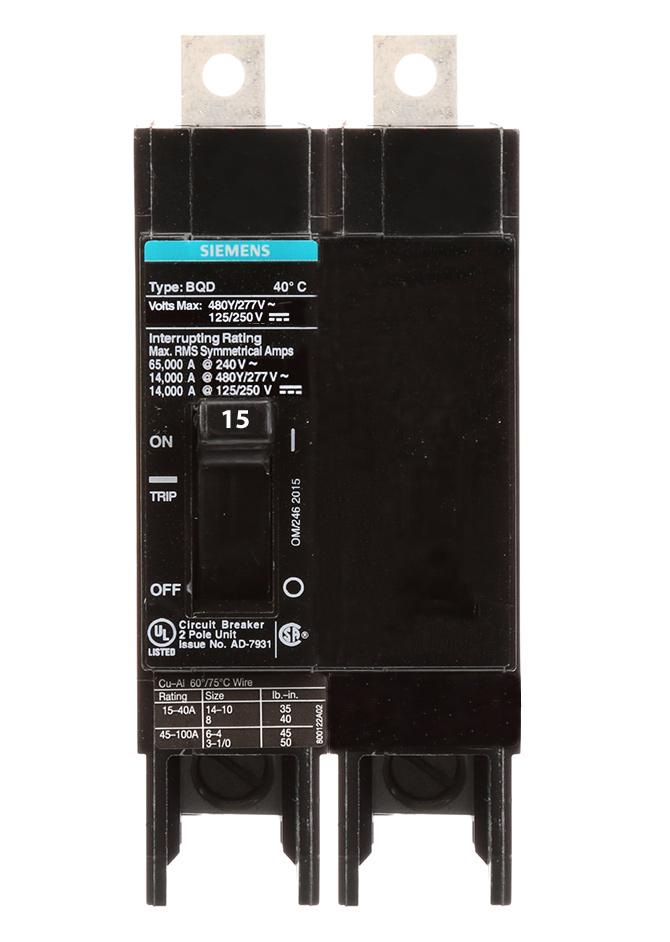

Siemens BQD215 - Molded Case Breaker 15A 480V 2-Pole

Price
Regular price $103.01
Regular price $765.00 Sale price $103.01
Save $661.99
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD215 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It is rated for 15A at 480V AC in a single-phase configuration and features a compact, bolt-on design with dimensions of 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) and a weight of 1.1 lb. The breaker is constructed with lug terminals, complies with CSA-C22.2 and UL 505 standards, and is engineered for operation in temperatures from -25°C to 70°C. Its thermal-magnetic trip unit provides combined long-time and instantaneous (LI) protection with an interrupting capacity of 14kA at 480V, making it suitable for use in Siemens P1 panelboards and similar applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Frame Size: 100A/BQD
  • Poles: 2
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • AIC Rating: 14kA @ 480V
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Dimensions: 2 in H x 4.49 in W x 4.49 in D (50.8mm x 114mm x 114mm)
  • Weight: 1.1 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA-C22.2, UL 505
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277212
  • GTIN: 00783643277212
  • Family: BQD Series
