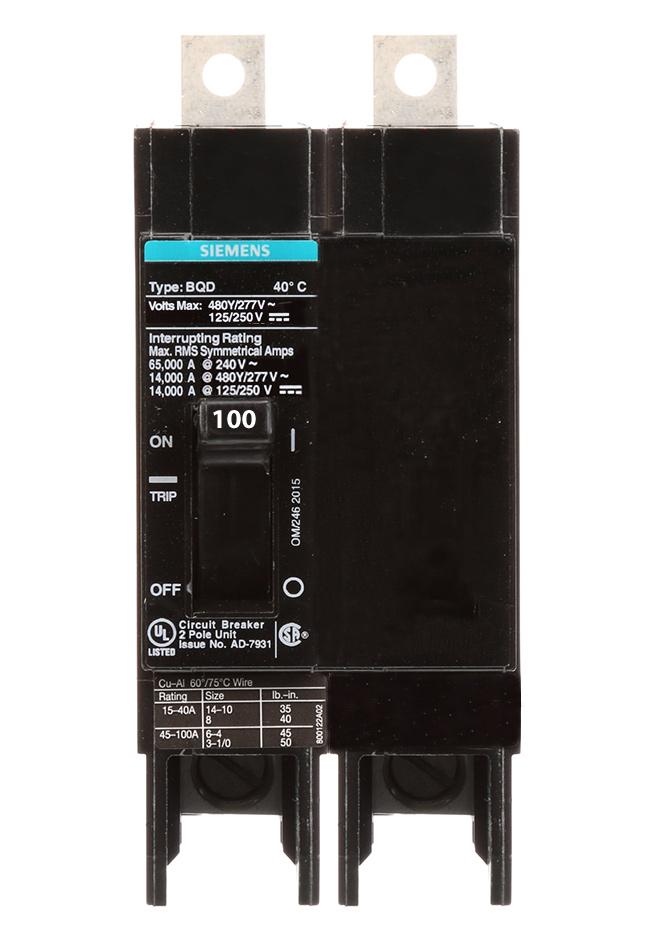

Siemens BQD2100 - Molded Case Circuit Breaker 100A 480V 2-Pole

Price
Regular price $116.90
Regular price $1,537.00 Sale price $116.90
Save $1,420.10
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD2100 is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It provides a 100A current rating and 480V voltage rating with a 14kA interrupting capacity, housed in a compact 2" x 4.49" x 4.49" (50.8mm x 114mm x 114mm) bolt-on unit weighing 1.1 lb. The breaker features thermal-magnetic protection with long-time and instantaneous (LI) trip functions and is constructed for operation in temperatures from -25°C to 70°C. It complies with CSA-C22.2 and UL 504 standards and is typically applied in Siemens P1 panelboards for branch circuit protection in single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 2 in H x 4.49 in W x 4.49 in D (50.8 mm x 114 mm x 114 mm)
  • Standards & Certification: CSA-C22.2, UL 504
  • Applications: Industrial/Commercial Branch Circuit Protection in Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Breaker Type: Standard
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • Family: BQD Series
  • Weight: 1.1 lb


Product Identification
  • UPC: 783643277335
  • GTIN: 00783643277335
