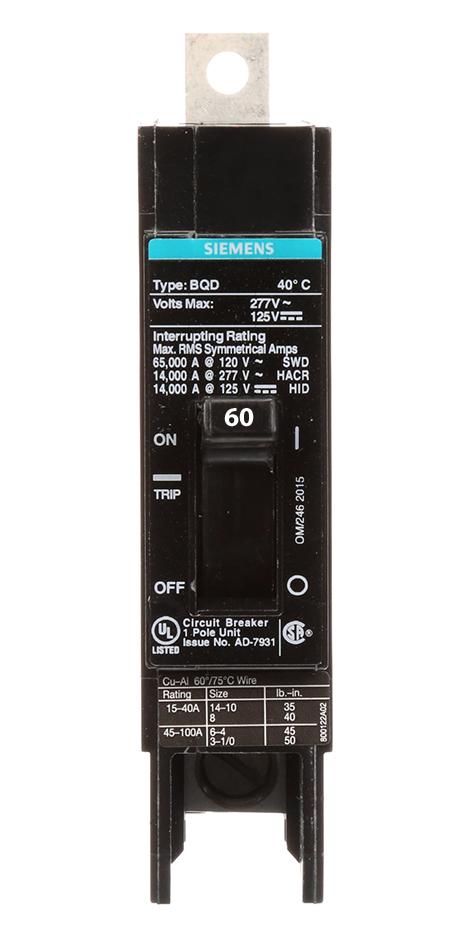

Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V
Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V

Siemens BQD160 - Molded Case Circuit Breaker 60A 1P 277V

Siemens
Price
Save $296.14
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQD160 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 277V AC voltage rating, housed within a compact, bolt-on frame measuring 1" x 4.49" x 4.49" (25.4mm x 114mm x 114mm) and weighing 0.549 lb. The breaker is constructed for compliance with CSA-C22.2 and UL 499 standards and operates within a temperature range of -25°C to 70°C. Its typical application is within Siemens P1 panelboards for commercial and light industrial distribution.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker Type with LI (Long-Time and Instantaneous) Trip Functions
  • Voltage Rating: 277V AC
  • Current Rating: 60A
  • Frame Size: 100A/BQD
  • AIC Rating: 14kA @ 277V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM/Wire Size: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 6 AWG
  • Dimensions: 1 in x 4.49 in x 4.49 in (25.4mm x 114mm x 114mm)
  • Weight: 0.549 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA-C22.2, UL 499
  • Panel Type: Siemens P1 Panelboards
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277168
  • GTIN: 00783643277168
