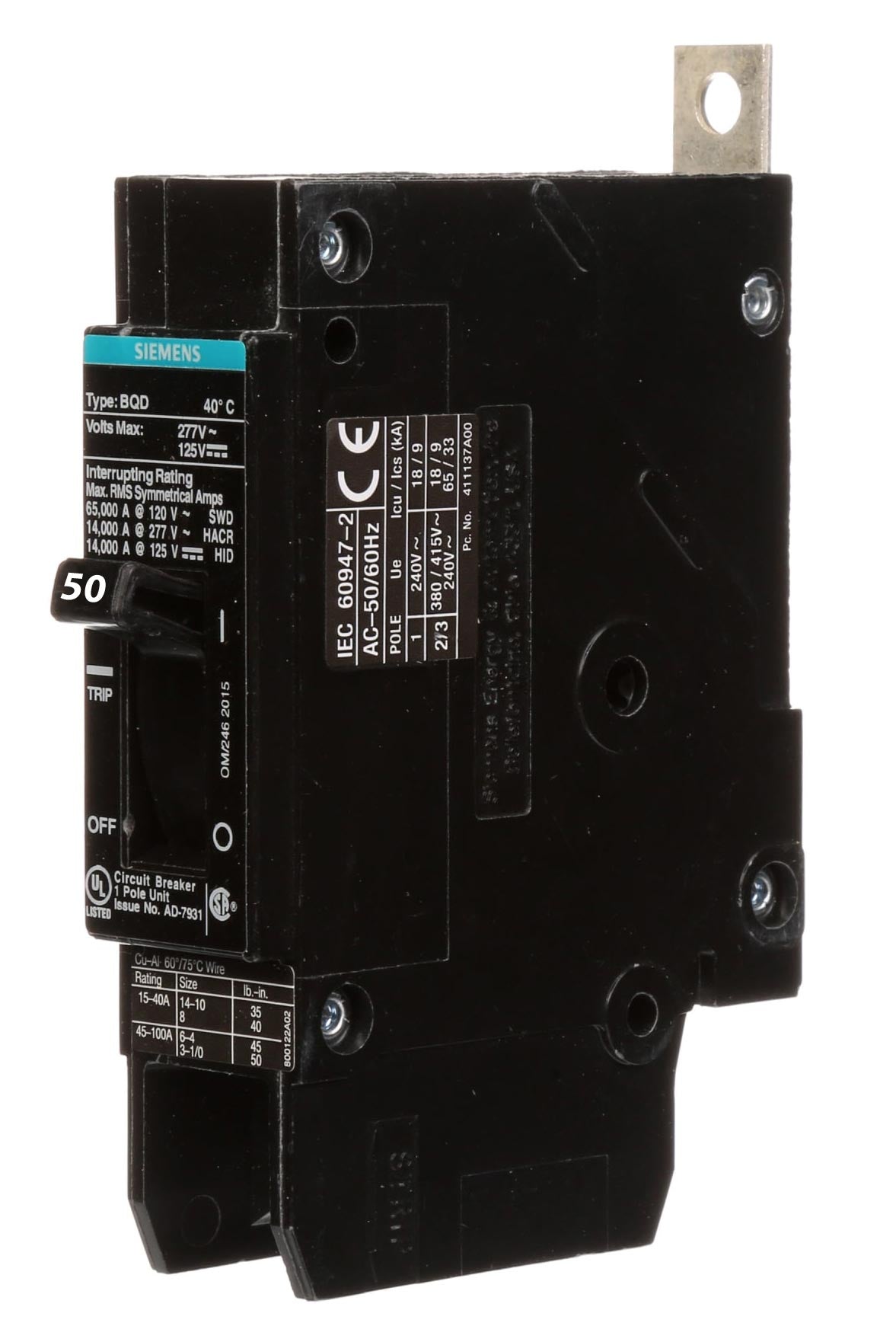

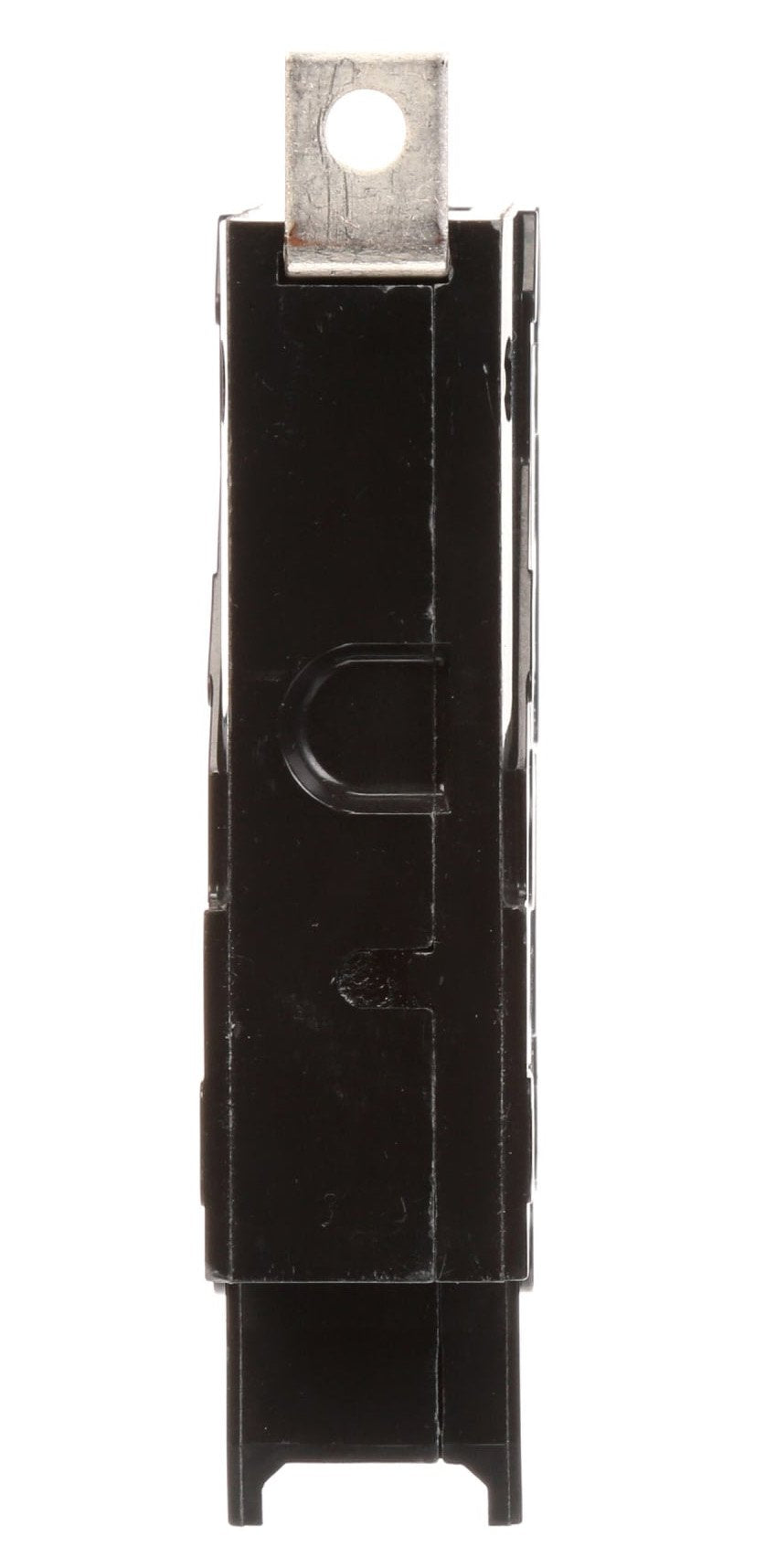

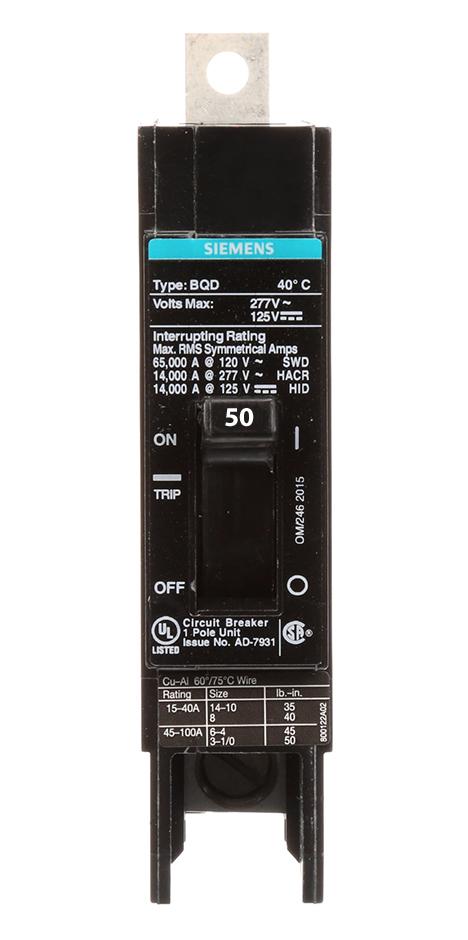

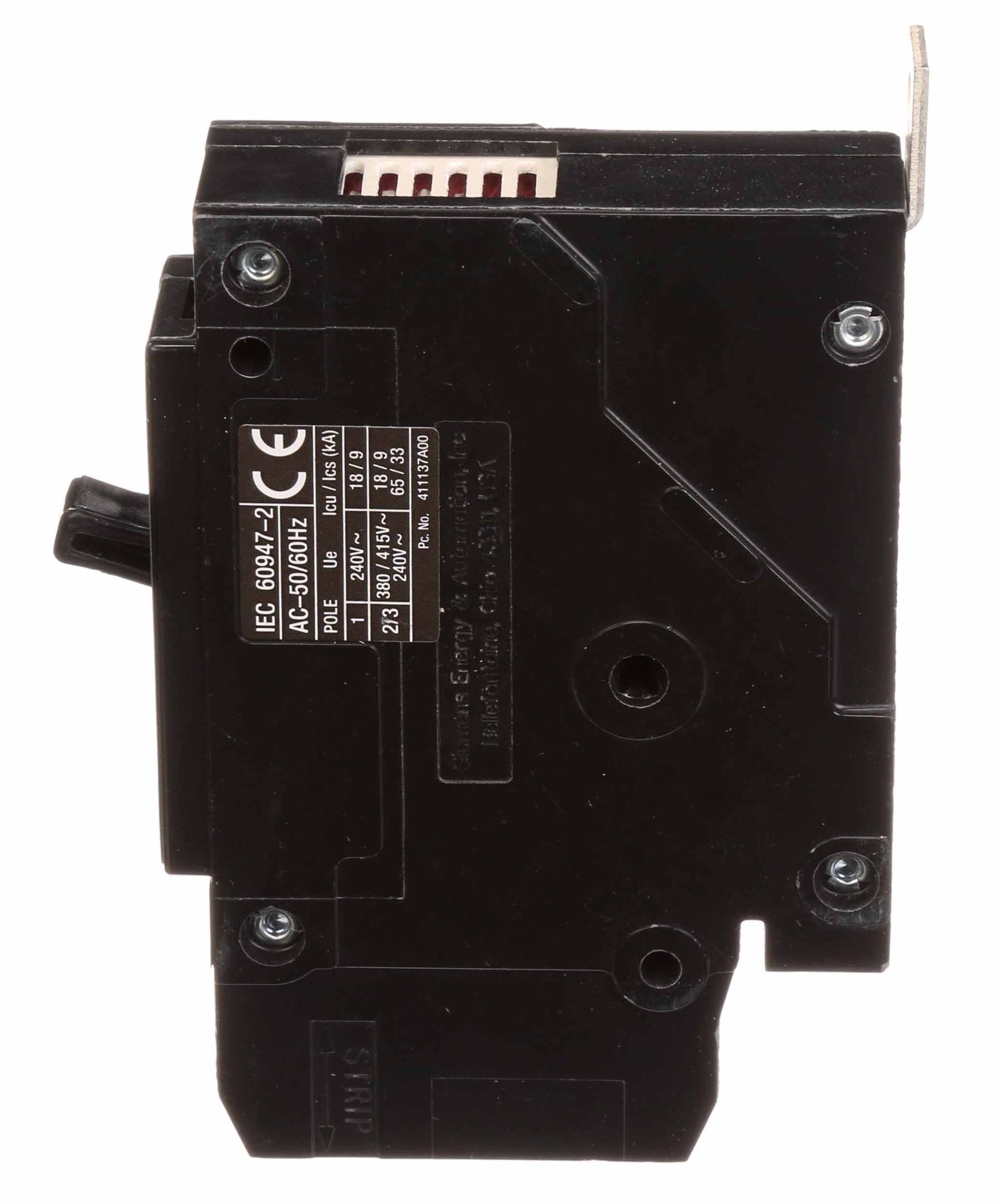

Siemens BQD150 - Molded Case Breaker 50A 277V 1-Pole

Price
Regular price $48.86
Regular price $319.00 Sale price $48.86
Save $270.14
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD150 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 50A current rating and a 277V AC voltage rating, housed within a compact, bolt-on configuration measuring 1" x 4.49" x 4.49" (25.4 mm x 114 mm x 114 mm) and weighing 0.56 lb. This thermal-magnetic breaker complies with UL 498 and CSA C22.2 standards and is engineered for operation in temperatures from -25°C to 70°C. Its typical application is within single-phase circuits of Siemens P1 panelboards, offering 14kA interrupting capacity for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 277V AC
  • Current Rating: 50A
  • Dimensions: 1 in x 4.49 in x 4.49 in (25.4 mm x 114 mm x 114 mm)
  • Standards: UL 498, CSA C22.2
  • Applications: Branch circuit protection in Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC Rating: 14kA @ 277V
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 100A/BQD
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C
  • Terminal Connection: Lug
  • MCM Size: Wire Range 6 AWG to 12 AWG (Al) / 14 AWG (Cu)
  • Certification: UL 498, CSA C22.2
  • Family: BQD Series
  • Weight: 0.56 lb


Product Identification
  • UPC: 078364327715
  • GTIN: 00783643277151
