Siemens
Price
Save $192.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

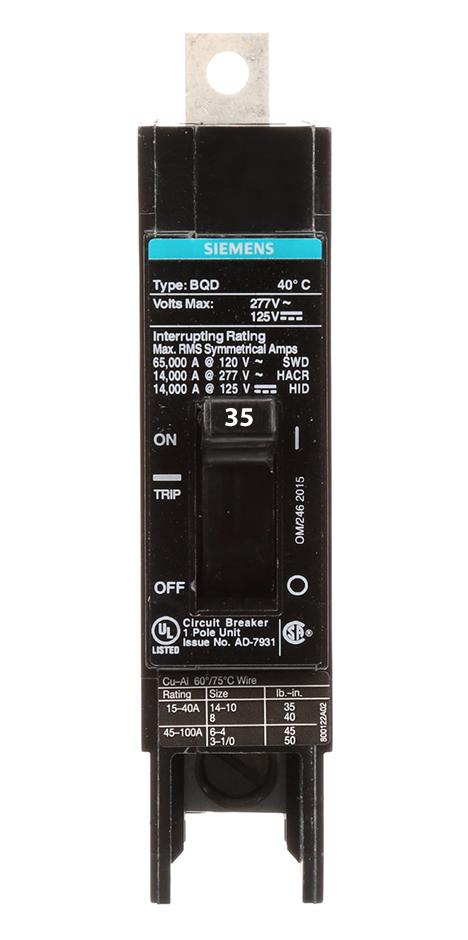

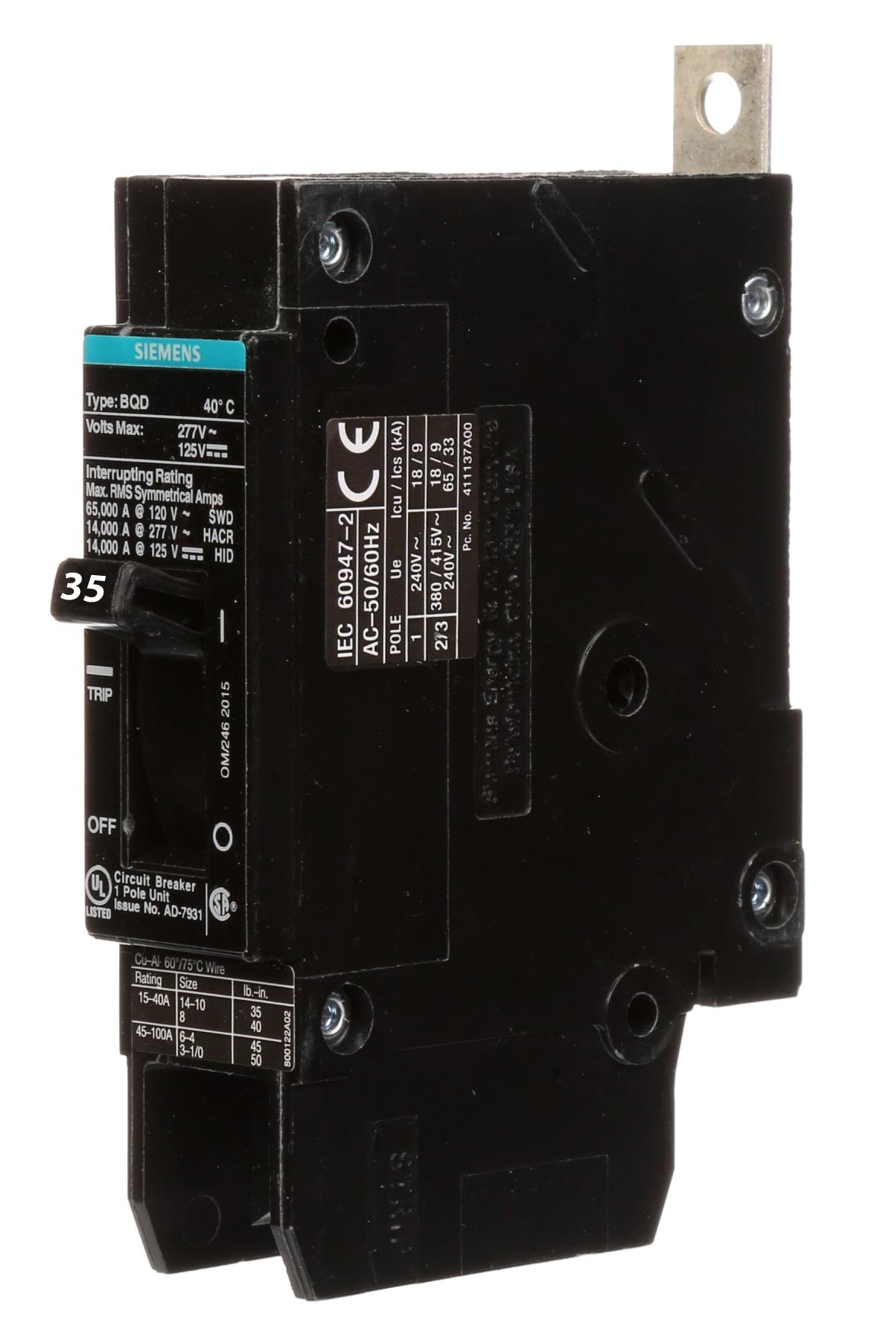

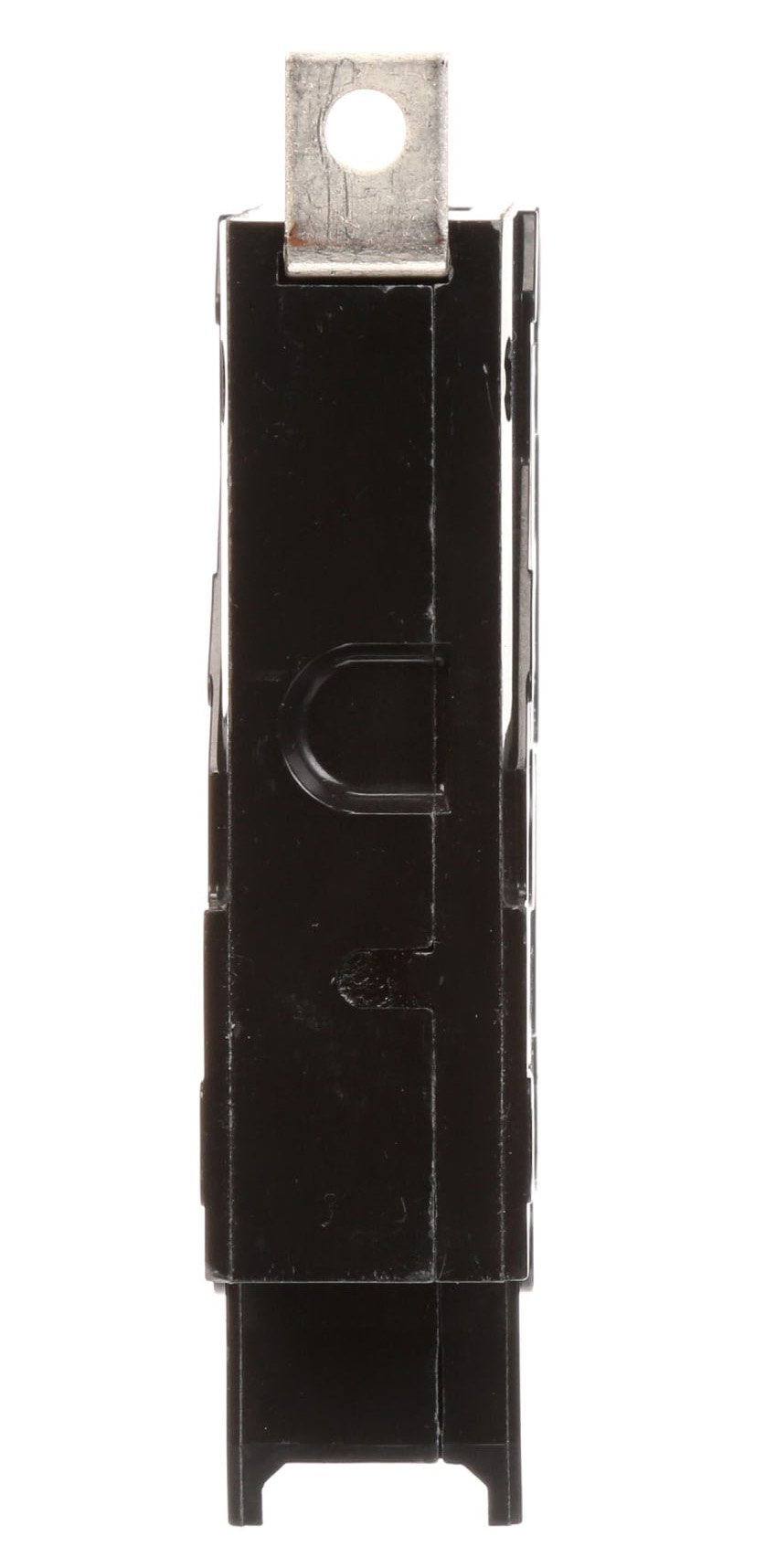

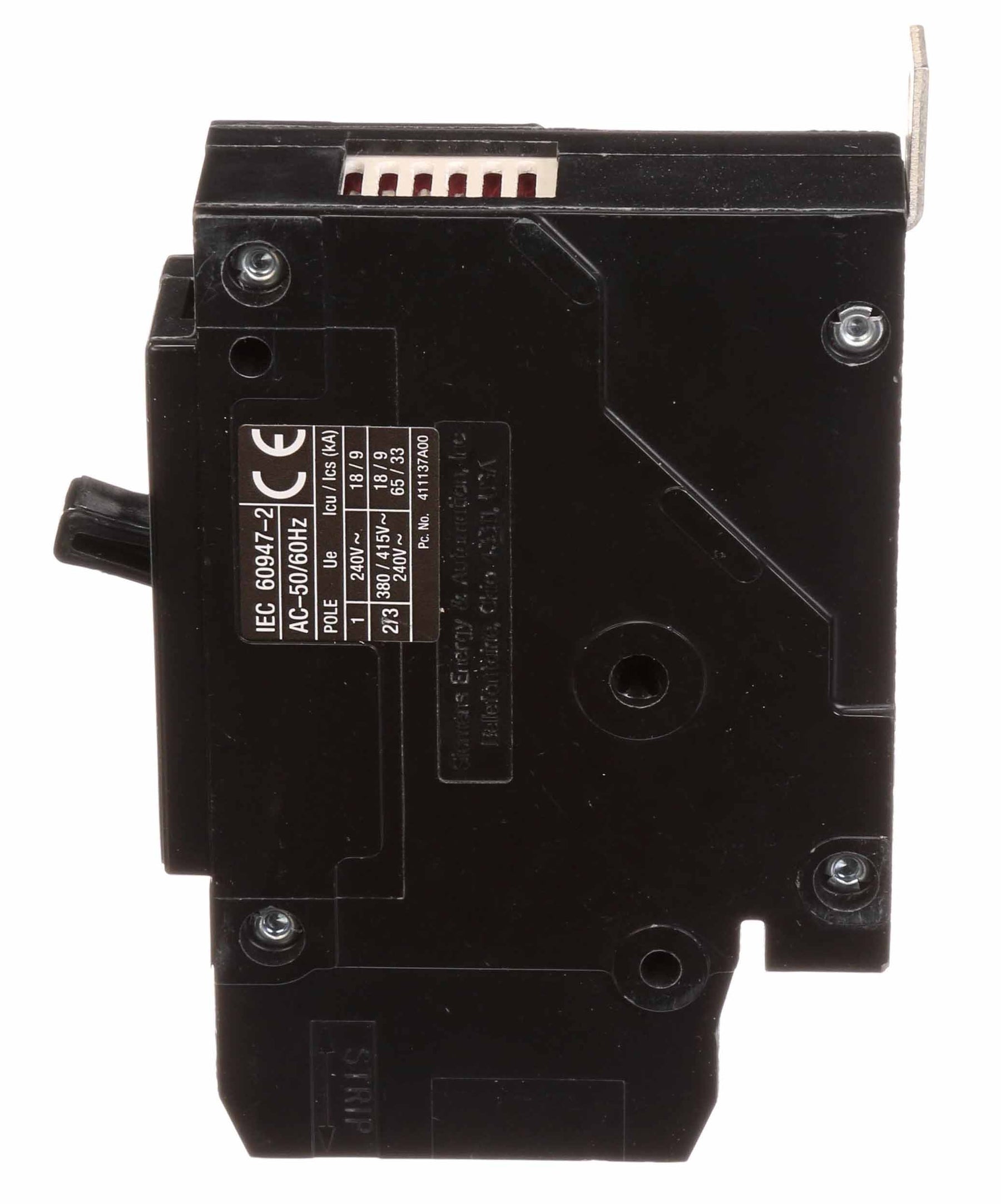

Siemens BQD135 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 35A current rating and a 277V AC voltage rating, housed within a compact 1" x 4.49" x 4.49" (25.4mm x 114mm x 114mm) bolt-on frame. The breaker is constructed with thermal-magnetic trip technology for both long-time and instantaneous protection, ensuring compliance with UL 495 and CSA C22.2 standards. Its 14kA interrupting rating at 277V and lug-style terminals make it suitable for installation in Siemens P1 panelboards for lighting and appliance branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 277V AC
  • Current Rating: 35A
  • Frame Size: 100A/BQD
  • Poles: 1
  • AIC Rating: 14kA @ 277V
  • Connection: Bolt-on, Lug Terminal
  • Functions: Long Time and Instantaneous Trip
  • Phase: 1
  • Standards & Certification: UL 495, CSA C22.2
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 1 in x 4.49 in x 4.49 in (25.4mm x 114mm x 114mm)
  • Weight: 0.549 lb
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277120
  • GTIN: 00783643277120
