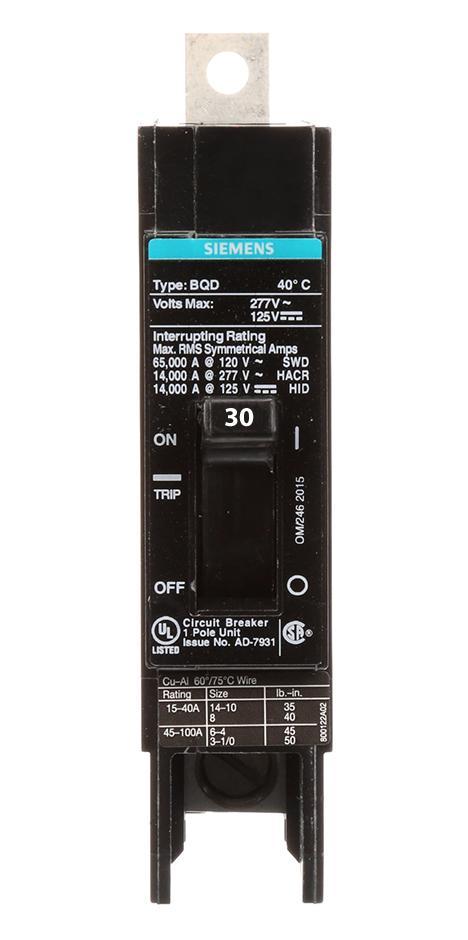

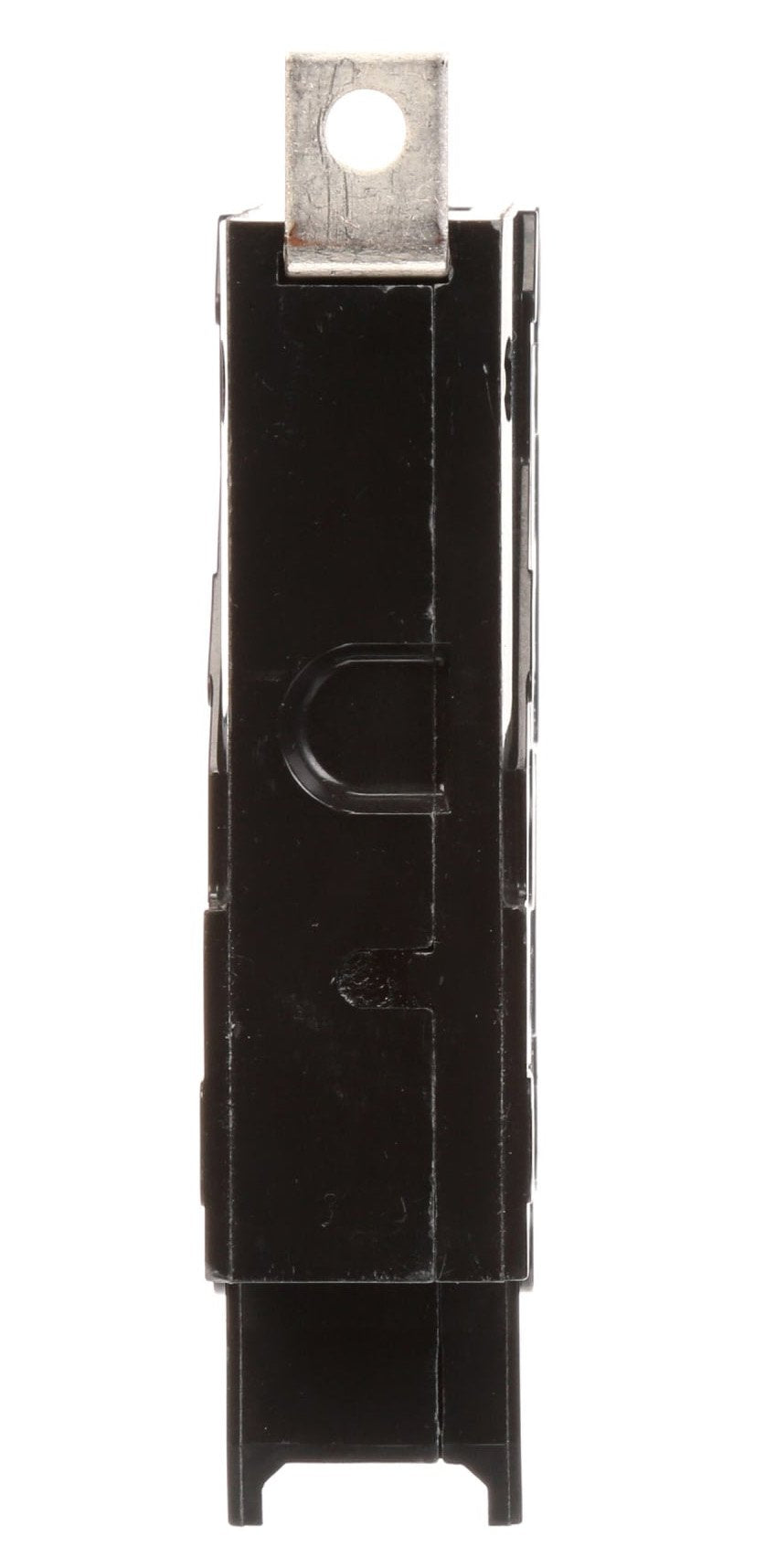

Siemens BQD130 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase industrial and commercial electrical systems. It features a 30A current rating and a 277V AC voltage rating, housed within a compact 1" x 4.49" x 4.49" (25.4mm x 114mm x 114mm) bolt-on frame with a weight of 0.589 lb. This thermal-magnetic breaker, compliant with CSA-C22.2 and UL 494 standards, offers LI (Long-time and Instantaneous) trip functions and a 14kA interrupting capacity at 277V for robust system protection. Its lug terminals accommodate wire sizes from 6 AWG to 12 AWG (Al) or 14 AWG (Cu), making it suitable for installation in Siemens P1 panelboards across various applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 277V AC
  • Current Rating: 30A
  • Frame Size: 100A/BQD
  • Poles: 1
  • Phase: 1
  • AIC Rating: 14kA @ 277V
  • Functions: LI (Long-Time & Instantaneous Trip)
  • Connection: Bolt-on, Lug Terminal
  • Wire Size Range (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Dimensions: 1 in x 4.49 in x 4.49 in (25.4mm x 114mm x 114mm)
  • Weight: 0.589 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA-C22.2, UL 494
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Family: BQD Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277113
  • GTIN: 00783643277113
