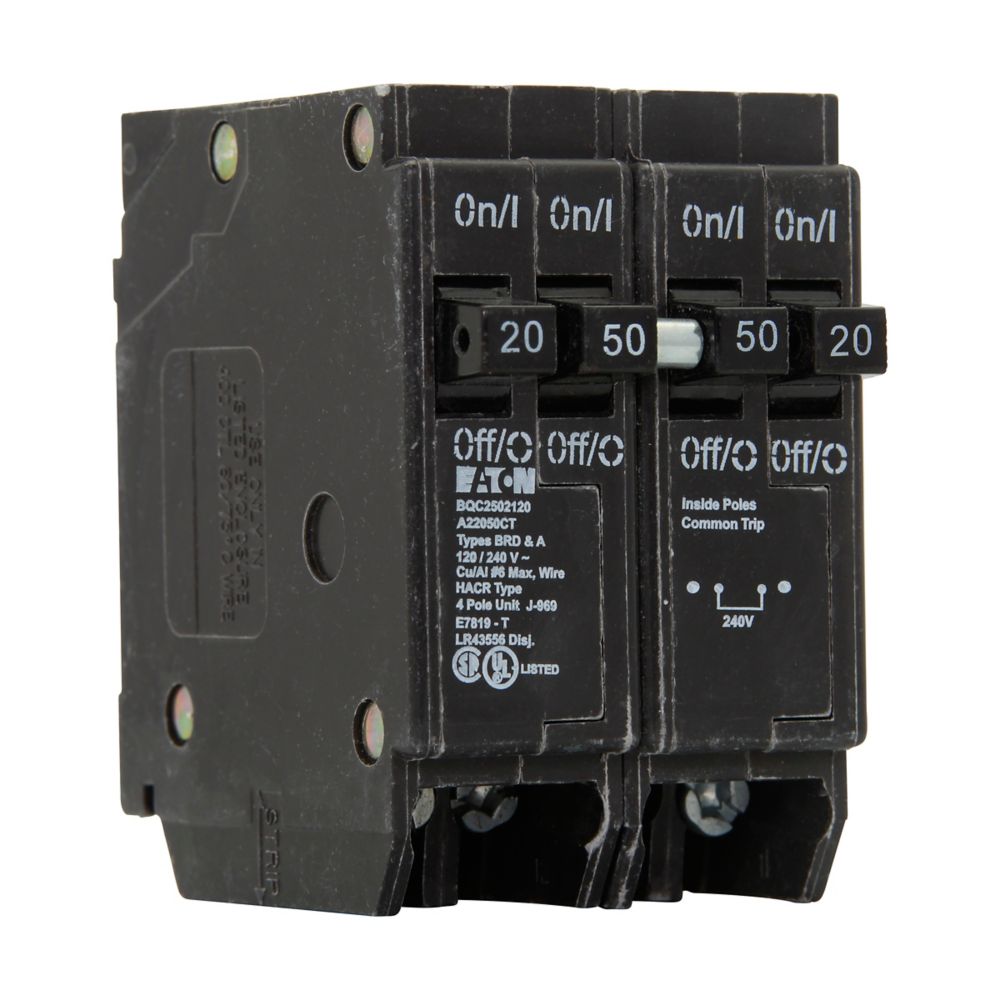

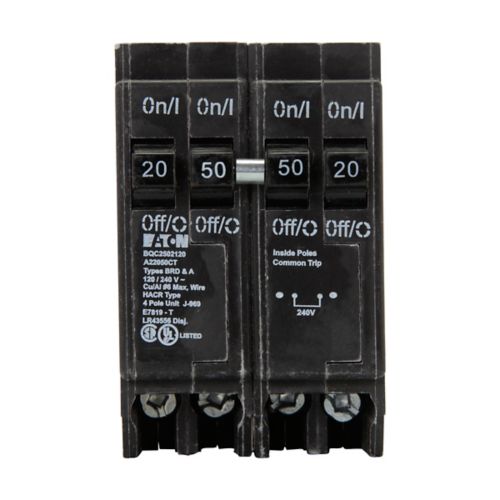

Cutler Hammer BQC2502120 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 50A current rating and a 240V AC voltage rating for single-phase applications, with a 10kA interrupting capacity at 240V. The compact, plug-in unit measures 3" x 3" x 2" (LxHxW) and weighs 0.9 lb, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection functions. It is UL 489 listed and HACR rated, ensuring compliance with key safety standards for use in heating, air conditioning, and refrigeration equipment, as well as general power distribution panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker (BQC), Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Dimensions: 3 in x 3 in x 2 in (Length/Depth x Height x Width)
  • Standards: UL Listed, HACR Rated, Complies with UL 489 and Federal Spec W-C410
  • Applications: Industrial & Commercial Power Distribution, HVAC/R Equipment Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • AIC rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Terminal Connection: Lug
  • Wire Size: AWG 14 to AWG 4, Copper or Aluminum
  • Certification: UL 489, Federal Specifications Classification W-C410
  • Family: BQ Series
  • Country of Origin: United States
  • Weight: 0.9 lb


Product Identification
  • UPC: 786676371827
  • GTIN: 00786676371827
