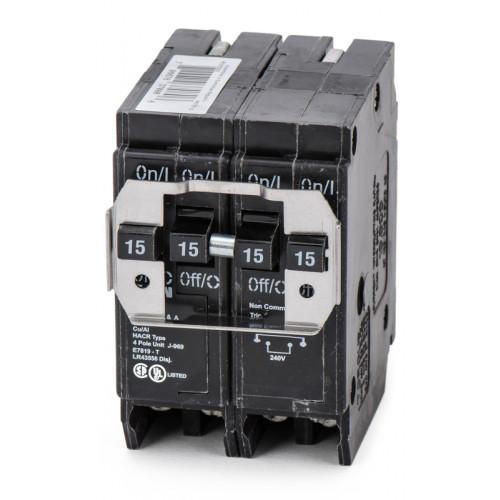

Eaton Cutler Hammer BQC215230 - 2-Pole 30A Circuit Breaker (10kA AIC)
Eaton Cutler Hammer BQC215230 - 2-Pole 30A Circuit Breaker (10kA AIC)

Eaton Cutler Hammer BQC215230 - 2-Pole 30A Circuit Breaker (10kA AIC)

Cutler Hammer
Price
Save $407.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer BQC215230 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 30A current rating and a 240V AC voltage rating, with a compact plug-in configuration measuring 3" x 3" x 2" (L/D x H x W) and a weight of 0.9 lb. The breaker is constructed with a thermal-magnetic trip unit providing both long-time and instantaneous (LI) protection, and it complies with UL 489 and HACR standards for safety. Its 10kA interrupting rating at 240V and lug terminals compatible with AWG 14 to 4 Cu/Al wire make it suitable for a range of commercial and light industrial panelboard applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 3 in x 3 in x 2 in (Length/Depth x Height x Width)
  • Standards: HACR Rated, UL Listed, UL 489, Federal Specifications Classification W-C380
  • Applications: Commercial and Light Industrial Panelboards
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Terminal Connection: Lug
  • Wire Size: AWG 14 to AWG 4, Cu/Al
  • Weight: 0.9 lb
  • Family: BQ Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676006002
  • GTIN: 00786676006002
