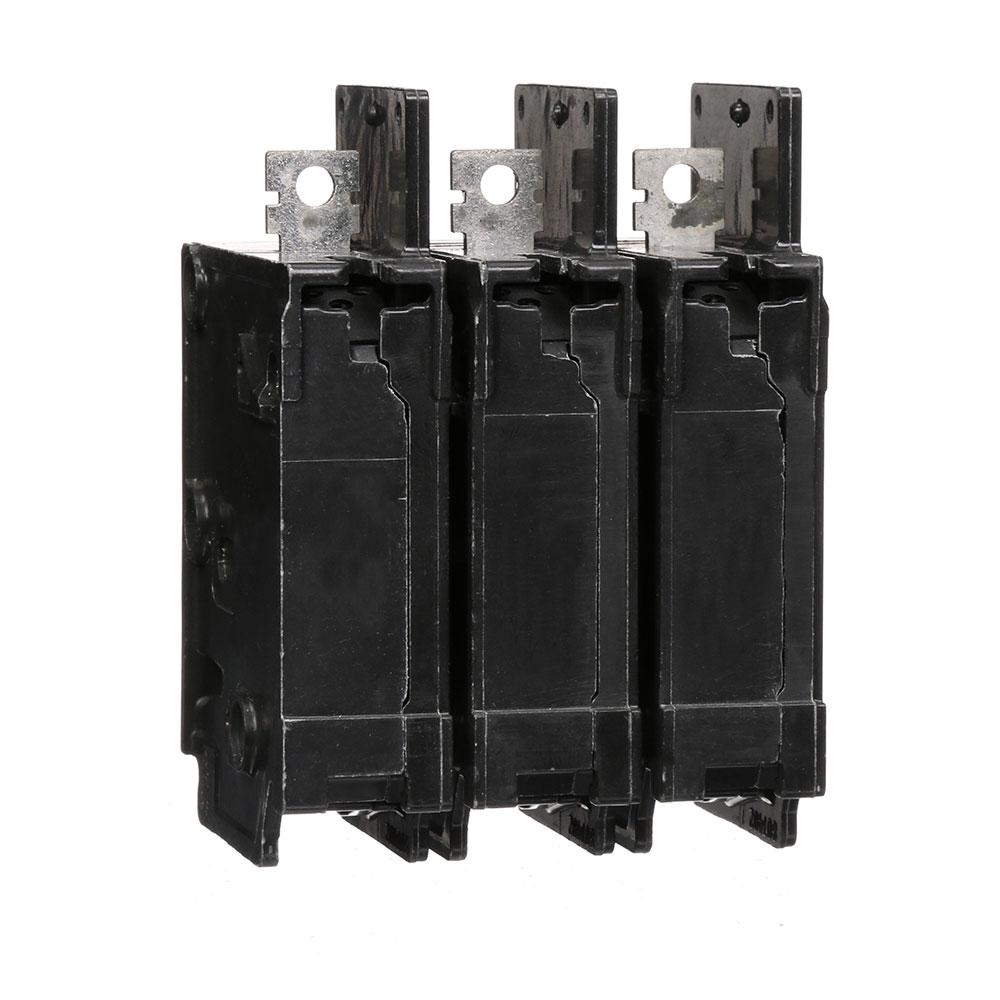

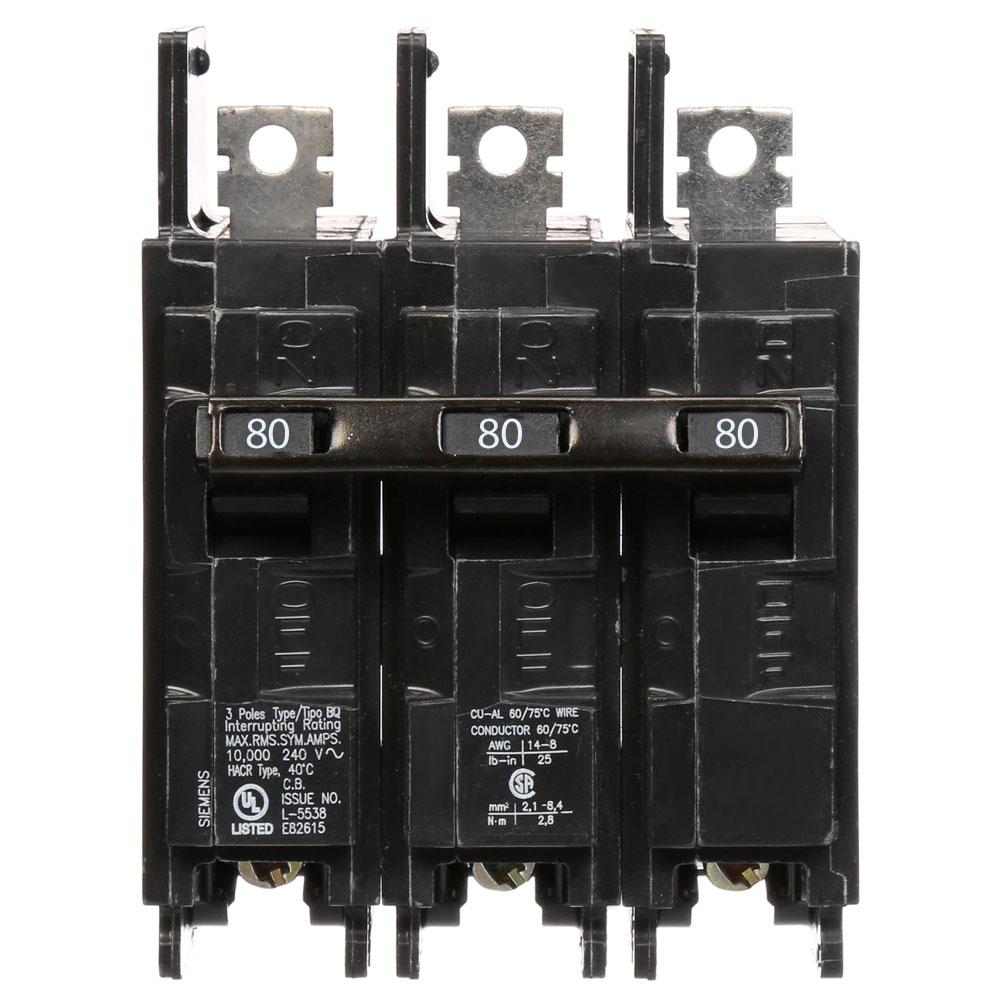

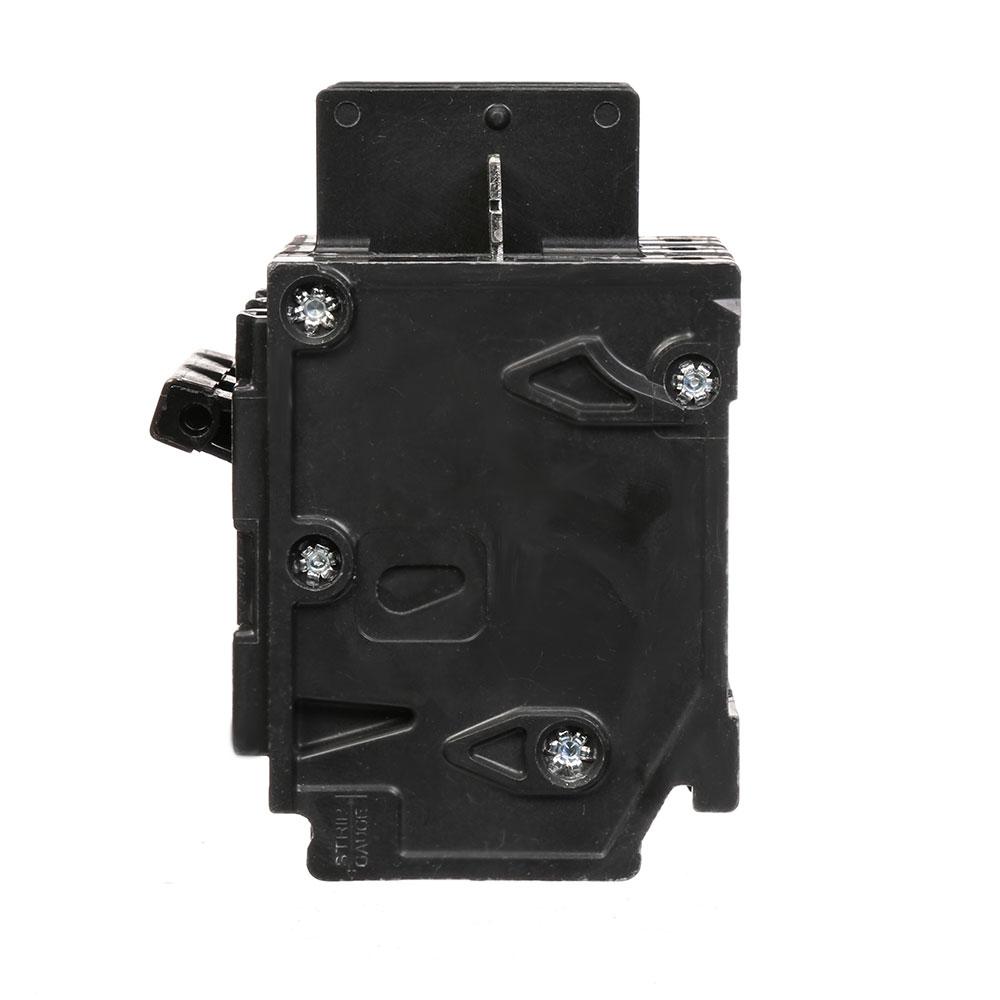

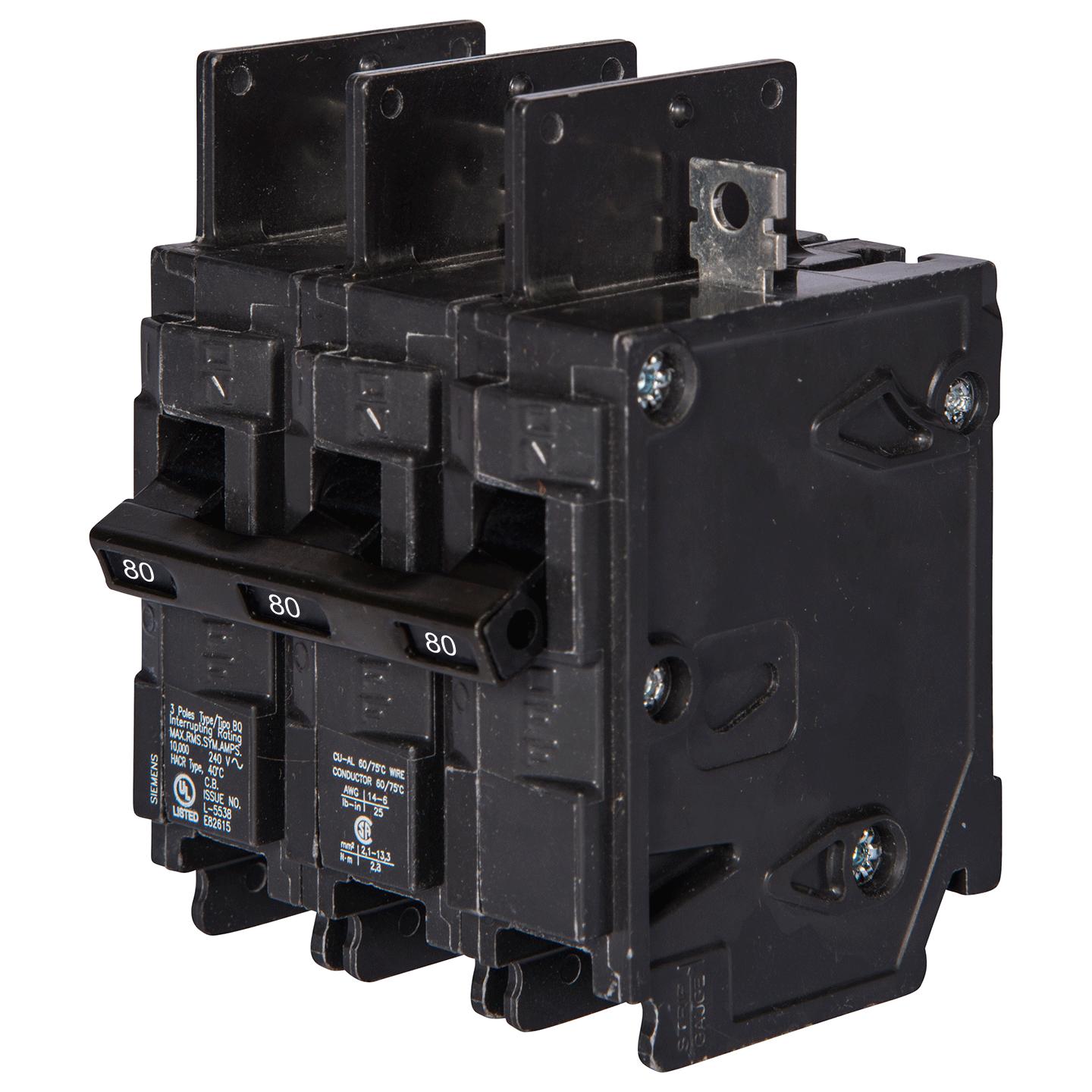

Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V
Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V

Siemens BQ3B080 - Molded Case Circuit Breaker, 80A 3P 240V

Siemens
Price
Save $855.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQ3B080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features an 80A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 100 x 70 x 70 mm (3.937 x 2.756 x 2.756 inches) and weighing 1.058 lb. This thermal-magnetic breaker is HACR rated and UL Listed/CSA certified, ensuring compliance with industry safety standards for use in Siemens panelboards and compatible industrial enclosures.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 80A
  • Frame Size: 125A/BQ
  • AIC Rating: 10kA @ 240V
  • Poles: 3
  • Connection: Bolt-on with Lug Terminal
  • Phase: 3
  • Wire Size Compatibility (MCM): Minimum 2 AWG (Al) / 4 AWG (Cu), Maximum 1/0 AWG
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 100 x 70 x 70 mm (3.937 x 2.756 x 2.756 inches)
  • Weight: 1.058 lb
  • Standards & Certification: UL Listed, CSA, HACR Rated
  • Breaker Type: Standard
  • Panel Type: Siemens Panelboards
  • Country of Origin: Mexico
  • Family: BQ Series


Product Identification
  • UPC: 783643161283
  • GTIN: 00783643161283
