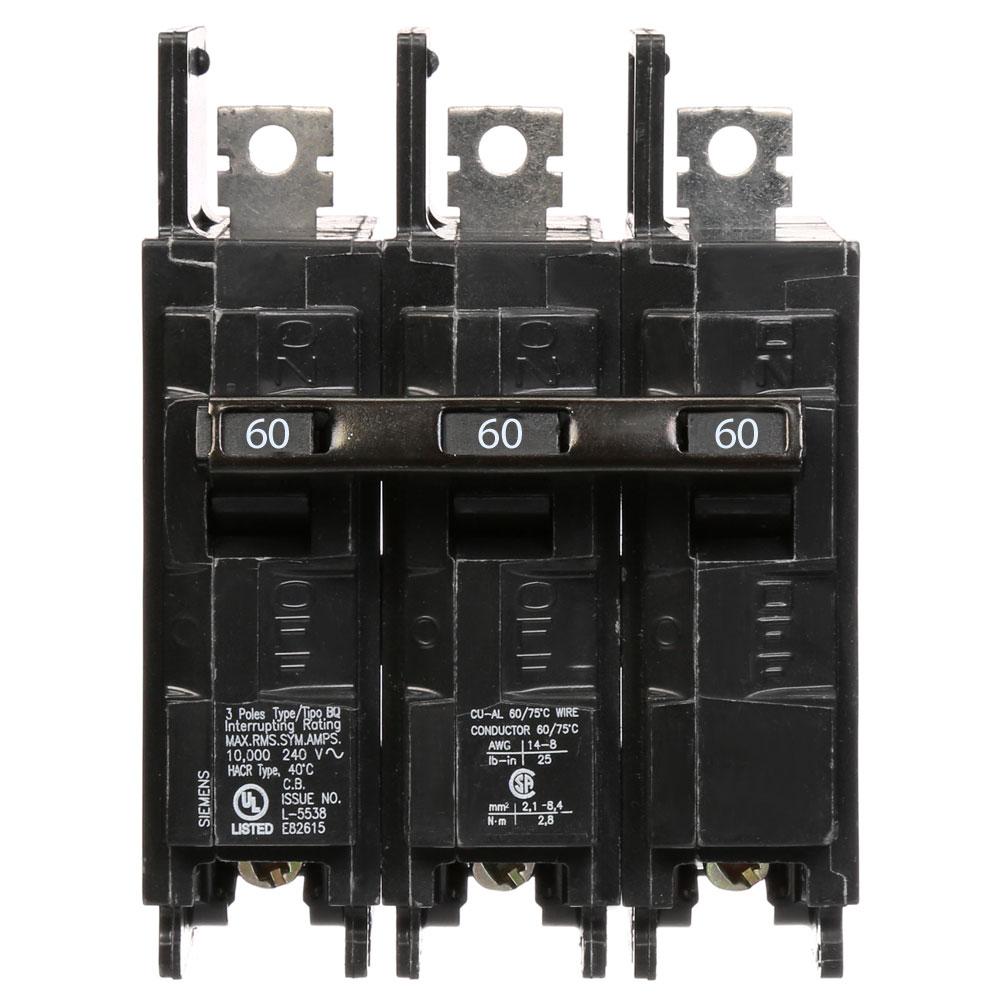

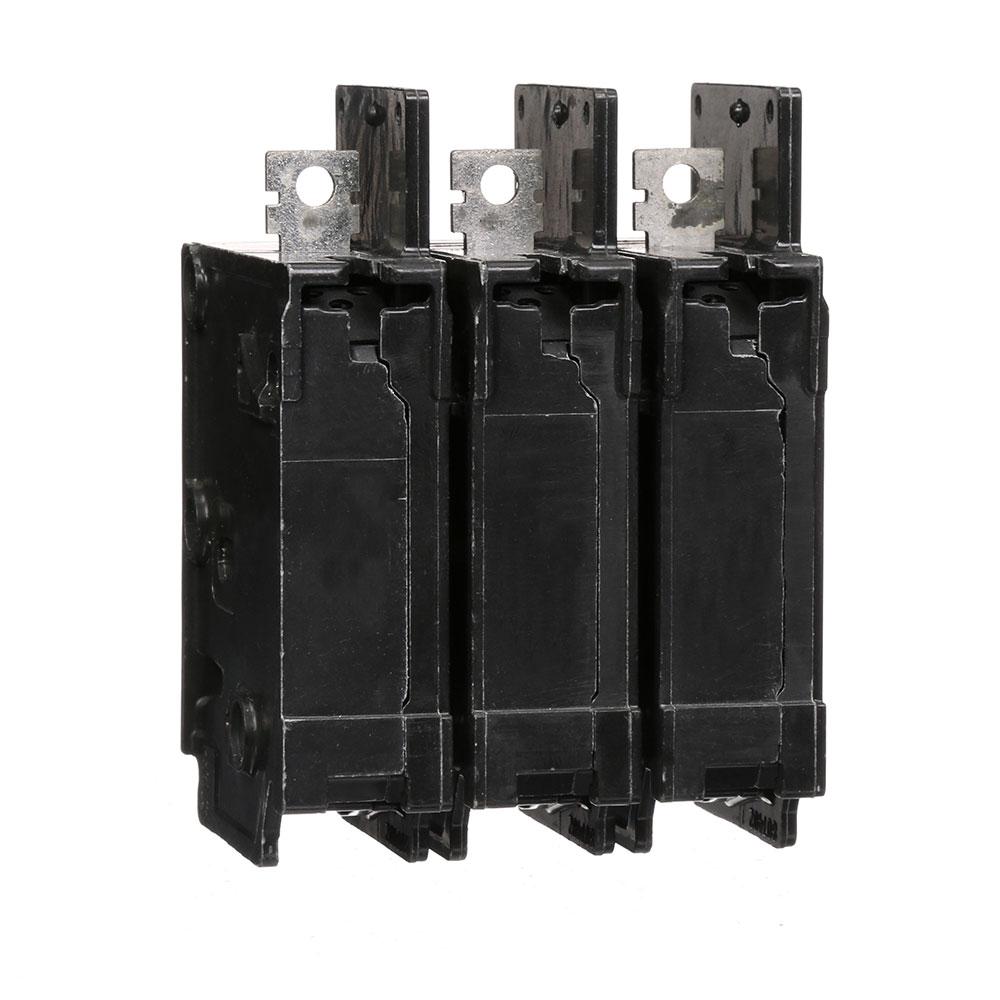

Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)
Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)

Siemens BQ3B060 - Molded Case Circuit Breaker, 60A 3P (10kA AIC)

Siemens
Price
Save $617
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQ3B060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 60A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563" x 3.00" x 3.972" (65.1mm x 76.2mm x 100.9mm) and weighing 1.014 lb. The breaker is constructed with a thermal-magnetic trip unit for combined long-time and instantaneous protection, is HACR rated and UL Listed/CSA certified, and is typically applied within Siemens panelboards for commercial and light industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Frame Size: 125A/BQ
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Protection Functions: Long Time and Instantaneous Trip
  • Phase: 3
  • Panel Type: Siemens Panelboards
  • Standards & Certification: UL Listed, CSA, HACR Rated
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" x 3.00" x 3.972" (65.1mm x 76.2mm x 100.9mm)
  • Weight: 1.014 lb
  • Wire Size Range (MCM): Min 2 AWG (Al) / 4 AWG (Cu), Max 1/0 AWG
  • Family: BQ Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643102637
  • GTIN: 00783643102637
