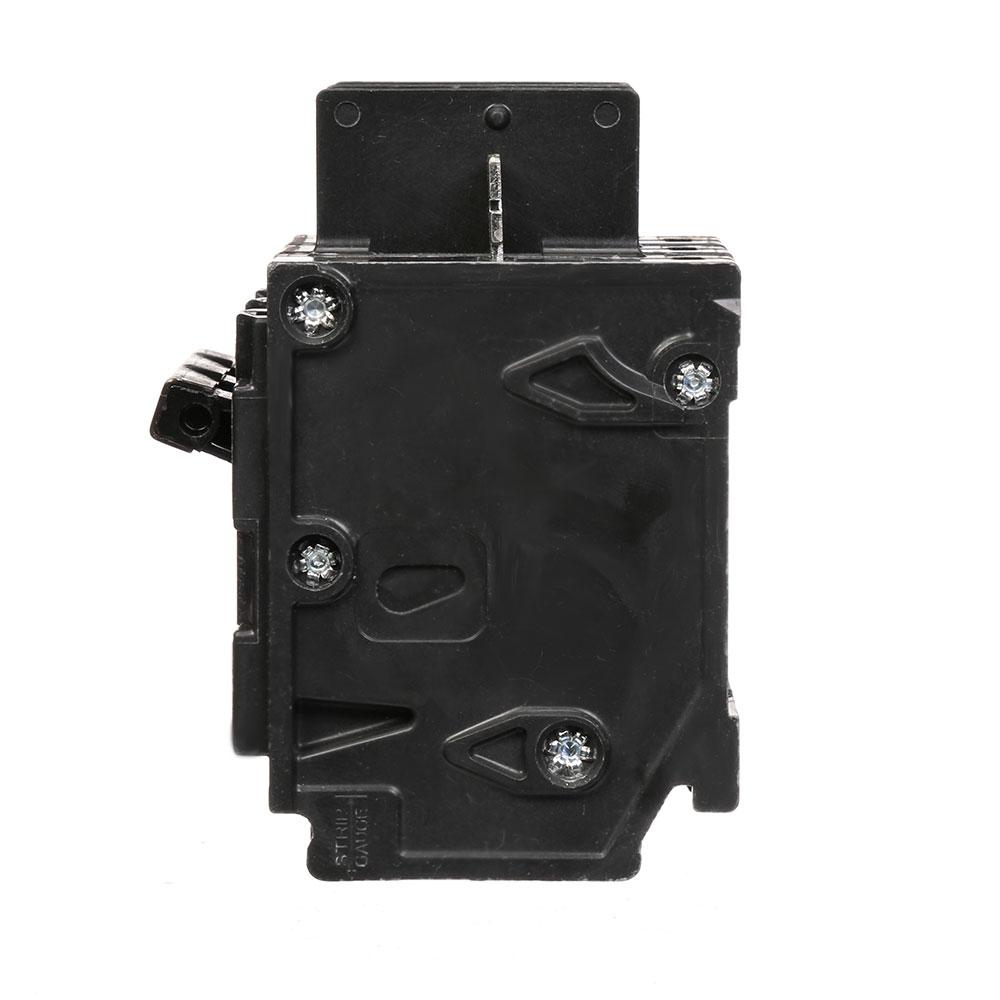

Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V
Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V

Siemens BQ3B030 - Molded Case Circuit Breaker 30A 3P 240V

Siemens
Price
Save $618.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQ3B030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563" x 3.00" x 3.972" (65.1mm x 76.2mm x 100.9mm) and weighing 1.014 lb. This thermal-magnetic breaker is HACR rated and UL Listed/CSA certified for safety, ensuring compliance with industry standards for use in Siemens panelboards and similar industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Frame Size: 125A/BQ
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 3
  • Standards & Certification: UL Listed, CSA, HACR Rated
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" x 3.00" x 3.972" (65.1mm x 76.2mm x 100.9mm)
  • Weight: 1.014 lb
  • Wire Size Range (MCM): Minimum 2 AWG (Al) / 4 AWG (Cu), Maximum 1/0 AWG
  • Panel Type: Siemens Panelboards
  • Breaker Type: Standard
  • Country of Origin: Mexico
  • Family: BQ Series


Product Identification
  • UPC: 783643102606
  • GTIN: 00783643102606
