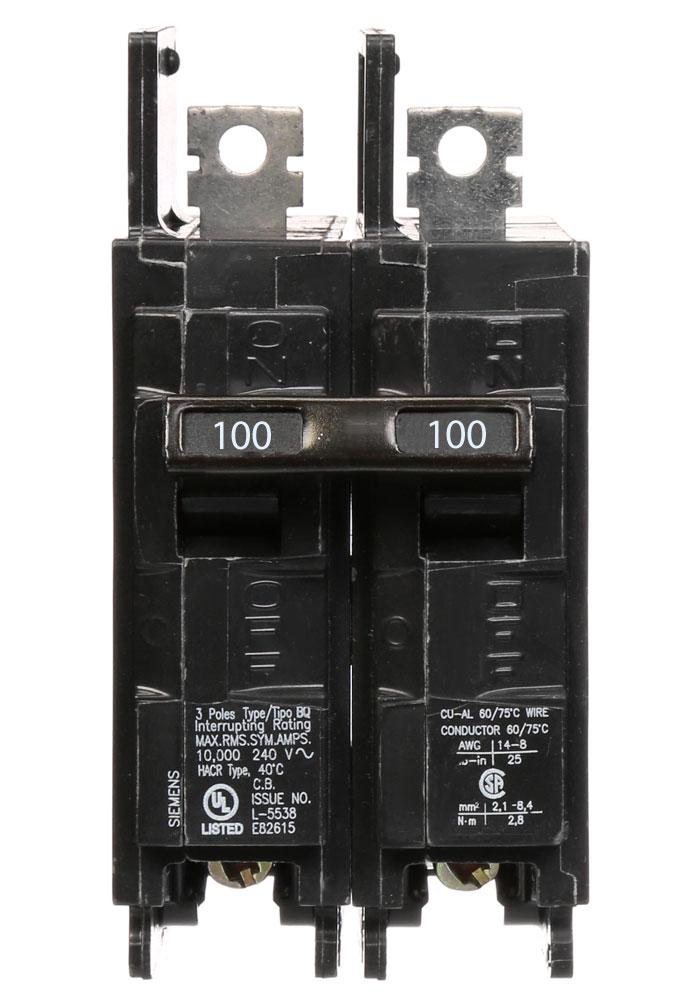

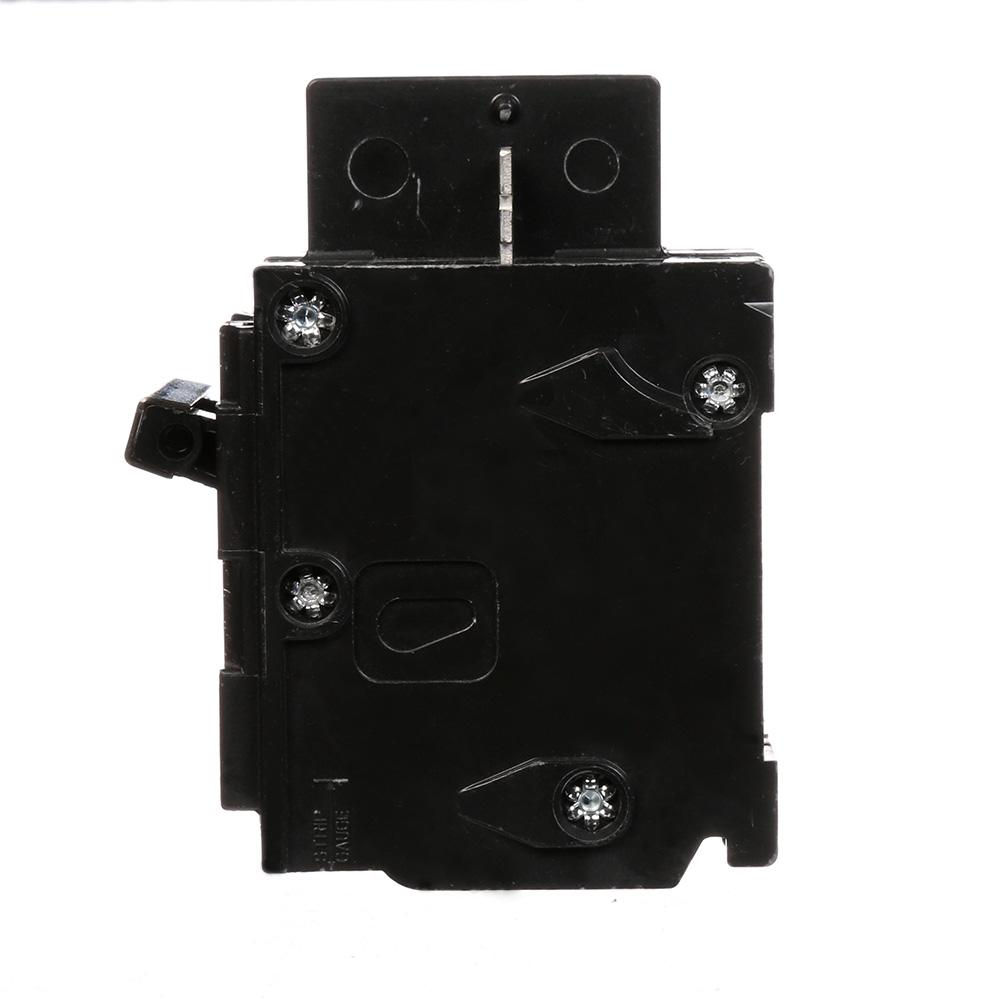

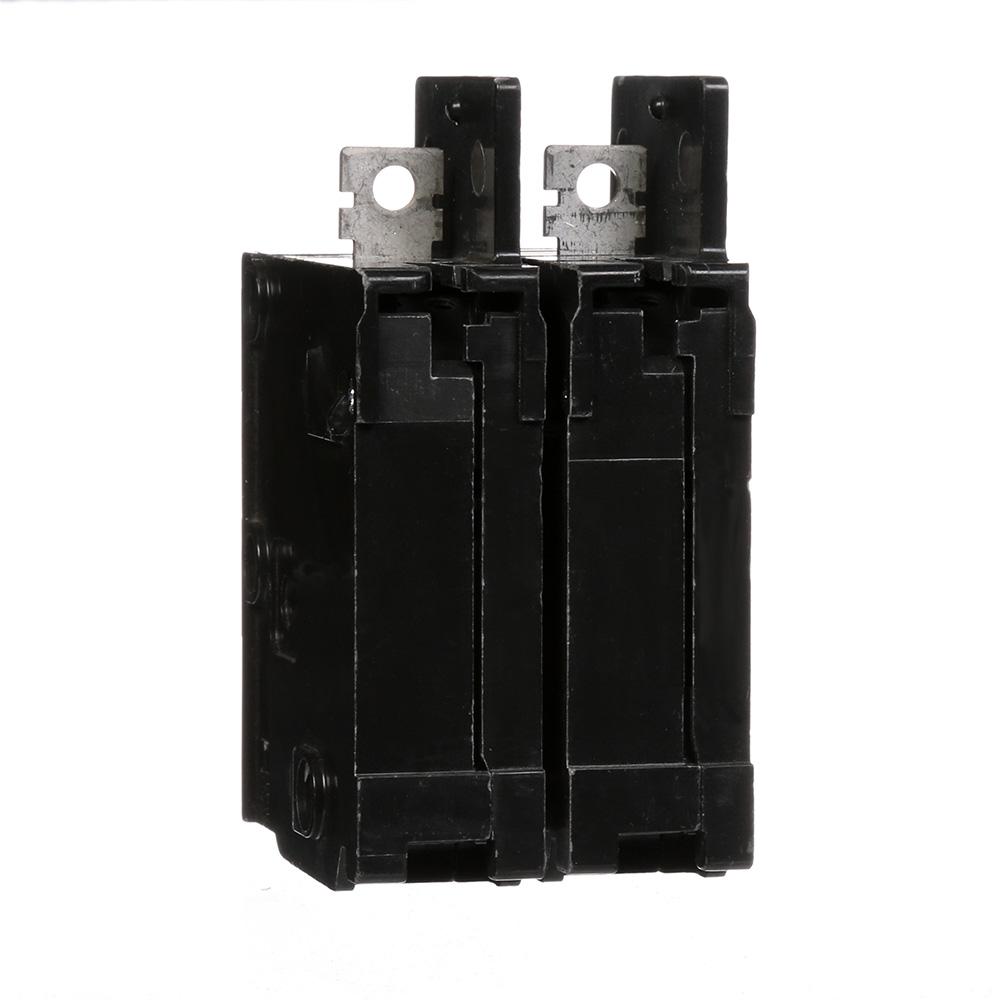

Siemens BQ2B100 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 100A current rating and a 120/240V voltage rating, housed within a compact, bolt-on configuration measuring 12.598 x 4.331 x 3.543 inches and weighing 0.639 lb. This thermal magnetic breaker is constructed for durability with a temperature rating of -25°C to 70°C and offers 10kA interrupting capacity at 240V, ensuring compliance with UL, CSA, and HACR standards. Its typical applications include protection for feeders and branch circuits within Siemens panelboards, utilizing lug terminals that accommodate wire sizes from 6 AWG to 12 AWG (Al) or 14 AWG (Cu).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120/240V AC
  • Current Rating: 100A
  • Dimensions: 12.598" x 4.331" x 3.543" (320mm x 110mm x 90mm)
  • Standards: UL Listed, CSA Certified, HACR Rated
  • Applications: Feeder and Branch Circuit Protection in Siemens Panelboards
  • Switch Type: Standard
  • Configuration: Bolt-on
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 125A/BQ
  • Breaker Type: Standard
  • Panel Type: Siemens Panelboards
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Certification: UL, CSA, HACR
  • Family: BQ Series
  • Country of Origin: Mexico
  • Weight: 0.639 lb


Product Identification
  • UPC: 783643102484
  • GTIN: 00783643102484
