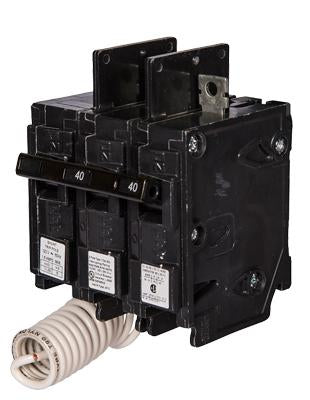

Siemens BQ2B06000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 240V AC voltage rating, housed within a compact 125A frame with dimensions of 2.571" x 3.00" x 3.736" and a weight of 0.926 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, a bolt-on connection with lug terminals, and a non-interchangeable 120V shunt trip mechanism for remote tripping capability. It complies with UL, CSA, and HACR standards, offering a 10kA interrupting rating at 240V and an operational temperature range of -25°C to 70°C. This unit is typically applied in Siemens panelboards for branch circuit protection, compatible with wire sizes from 8 AWG to 2 AWG for aluminum and up to 4 AWG for copper.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker with Thermal-Magnetic Protection and Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 2.571" H x 3.00" W x 3.736" D
  • Standards: UL Listed, CSA Certified, HACR Rated
  • Applications: Industrial and Commercial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Coil Voltage Maximum: 120V (Shunt Trip)
  • Temp Rating: -25°C to 70°C
  • Shipping Dimensions: 2.571" x 3.00" x 3.736"
  • Phase: 1
  • Voltage: 240V
  • Amperage: 60A
  • AIC rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BQ
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens Panelboards
  • Breaker Type: Shunt Trip
  • Control Voltage Minimum: 120V (Shunt Trip)
  • Control Voltage Maximum: 120V (Shunt Trip)
  • MCM Size: Min. 8 AWG, Max. 2 AWG (Al) / 4 AWG (Cu)
  • Terminal Connection: Lug
  • Certification: CSA, HACR, UL


Product Identification
  • UPC: 783643237766
  • GTIN: 00783643237766
