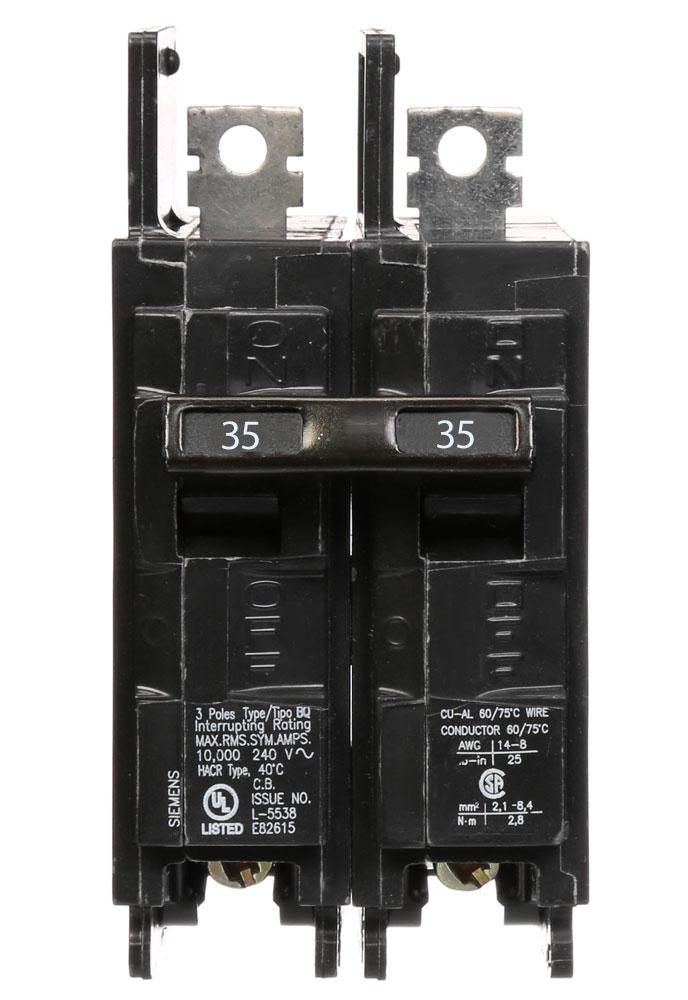

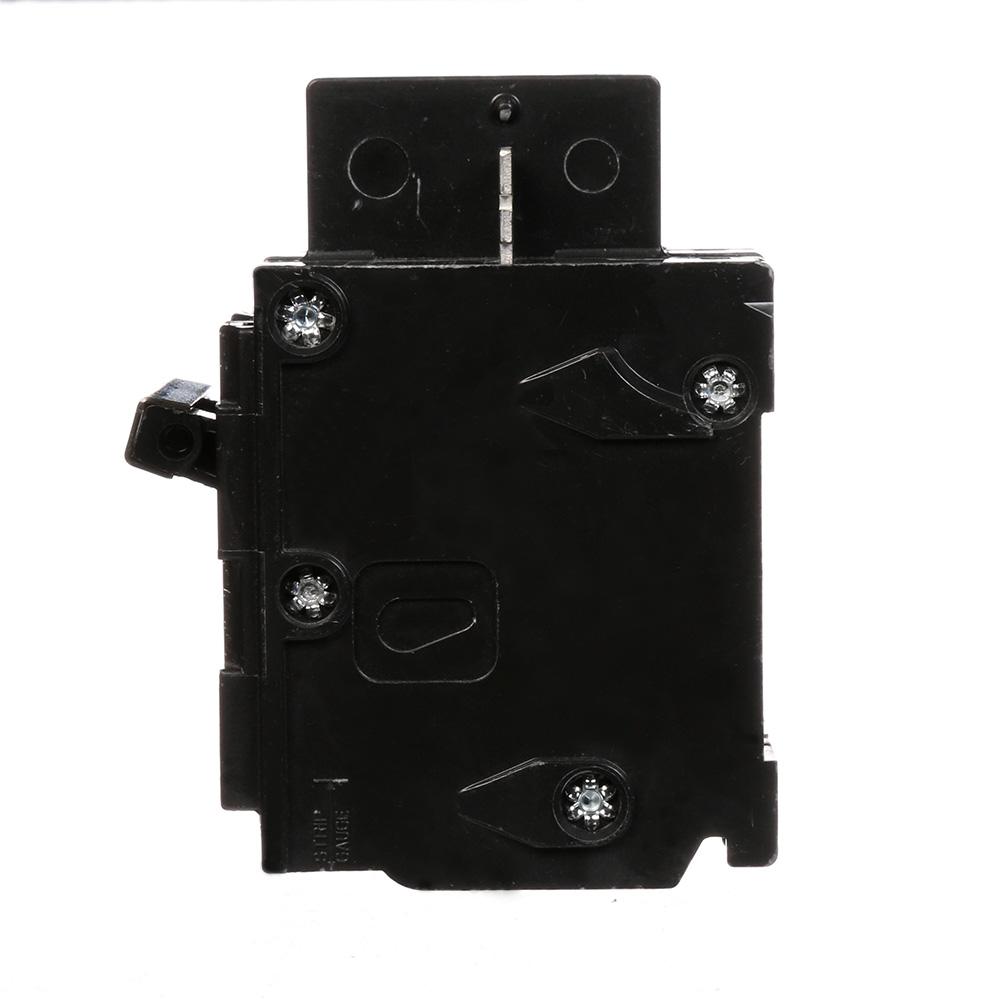

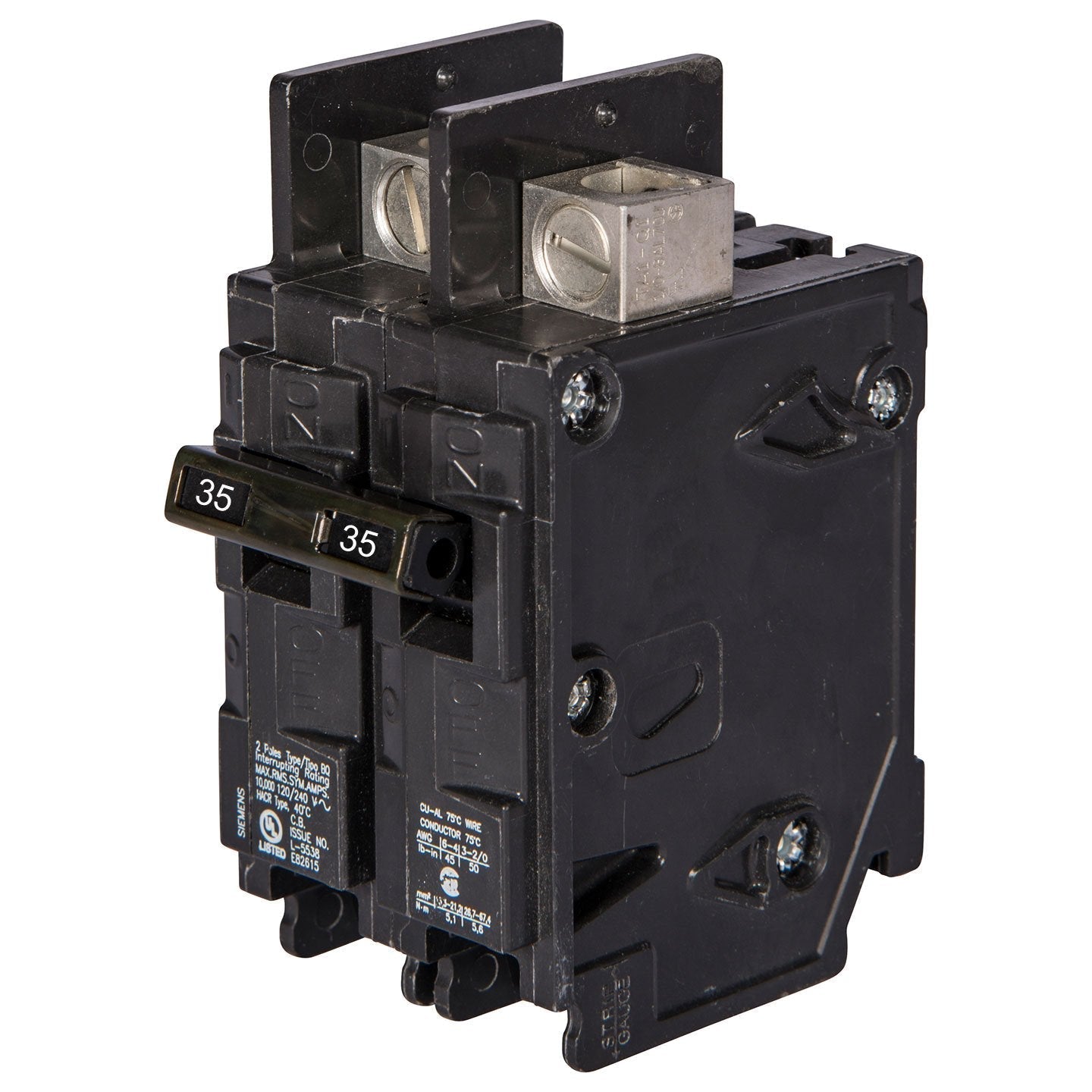

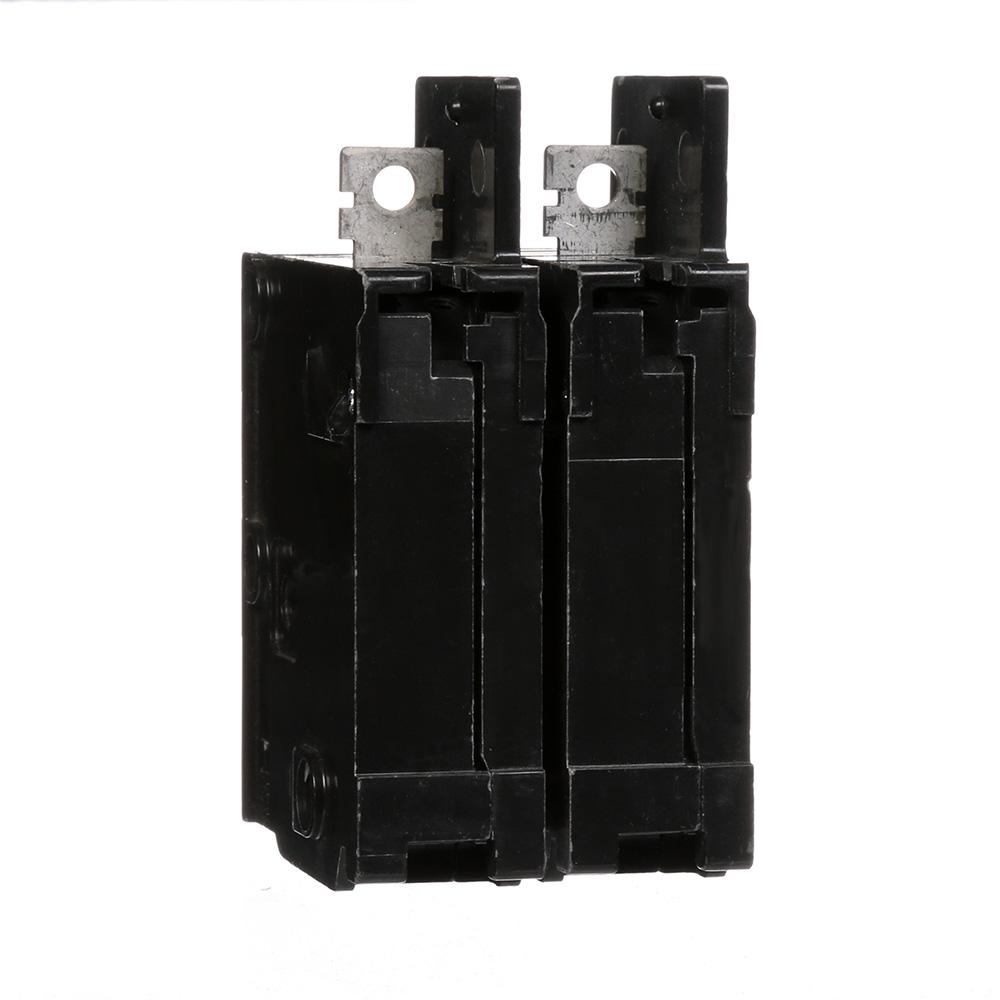

Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole
Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole

Siemens BQ2B035 - Molded Case Circuit Breaker 35A 2-Pole

Siemens
Price
Save $124.43
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQ2B035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 35A current rating and a 120/240V voltage rating, housed within a compact, bolt-on frame measuring 3.937 x 2.756 x 1.969 inches and weighing 0.551 lb. This thermal magnetic breaker is constructed for durability with lug terminals, supports wire sizes from 6 to 12 AWG, and operates across a temperature range of -25°C to 70°C. It complies with key industry standards, being UL Listed, CSA certified, and HACR rated with an interrupting capacity of 10kA at 240V, making it suitable for installation in Siemens panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type, BQ Series
  • Voltage Rating: 120/240V AC
  • Current Rating: 35A
  • Dimensions: 3.937 x 2.756 x 1.969 inch (100 x 70 x 50 mm)
  • Weight: 0.551 lb
  • Standards: UL Listed, CSA, HACR Rated
  • Applications: Siemens Panelboards, Commercial & Light Industrial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/BQ
  • Breaker Type: Standard
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG
  • Certification: CSA, HACR, UL
  • Panel Type: Siemens Panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643161207
  • GTIN: 00783643161207
