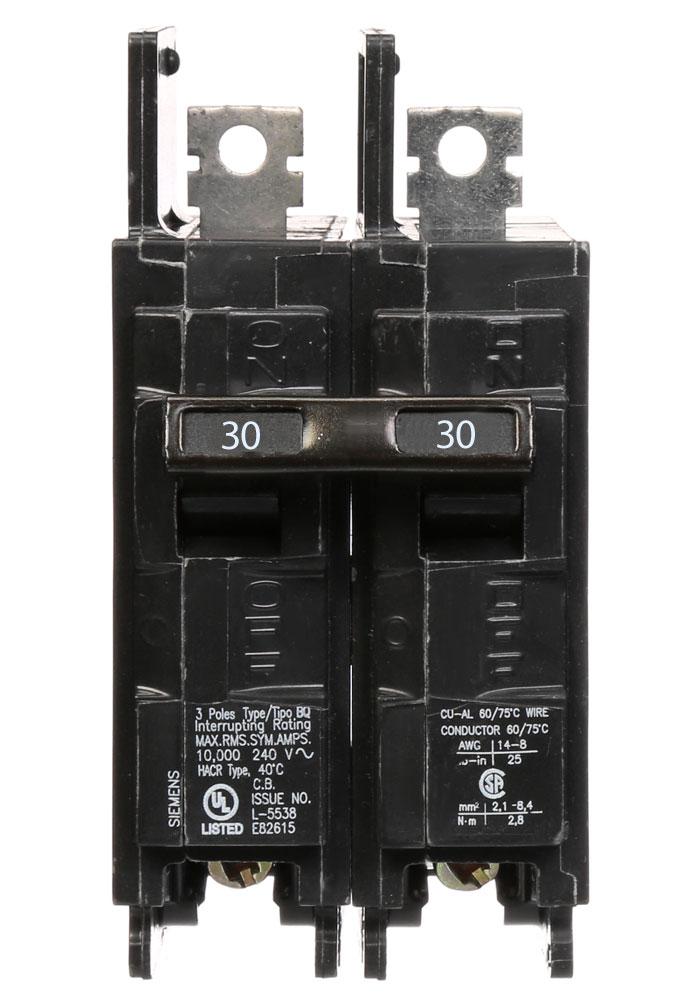

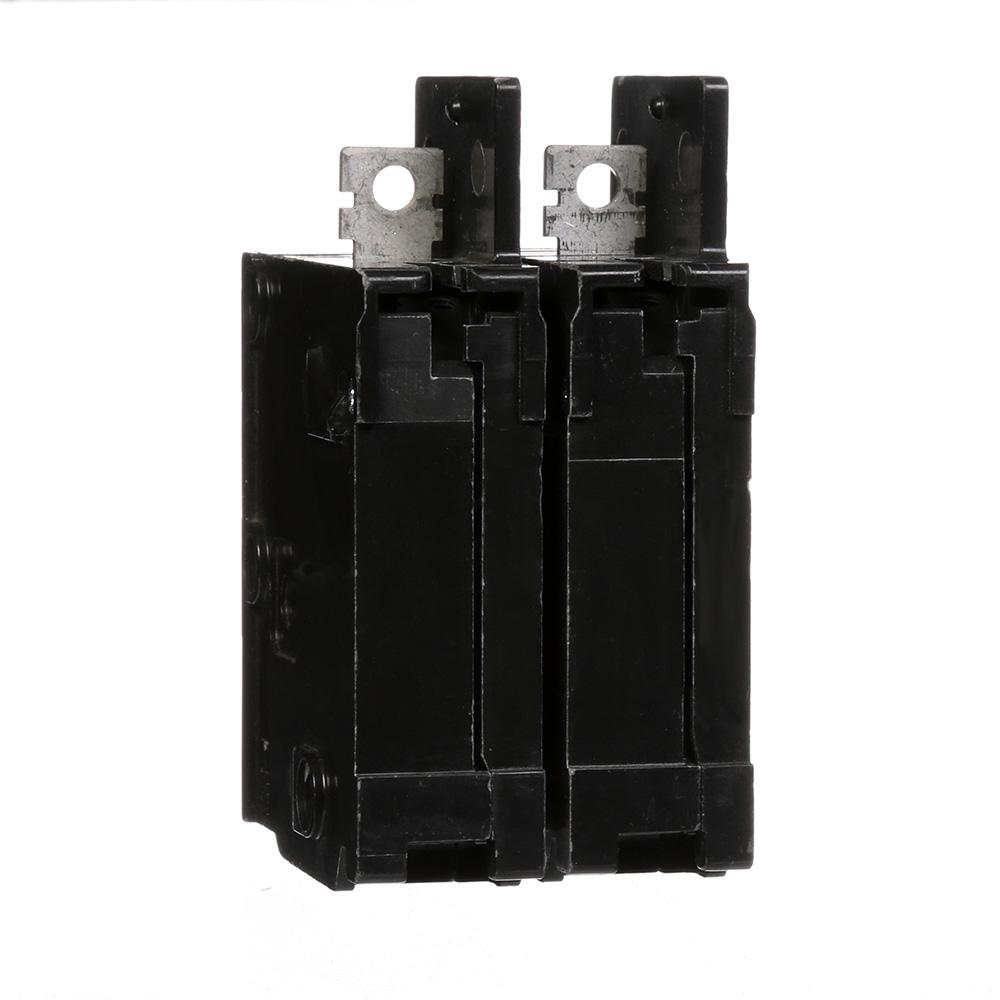

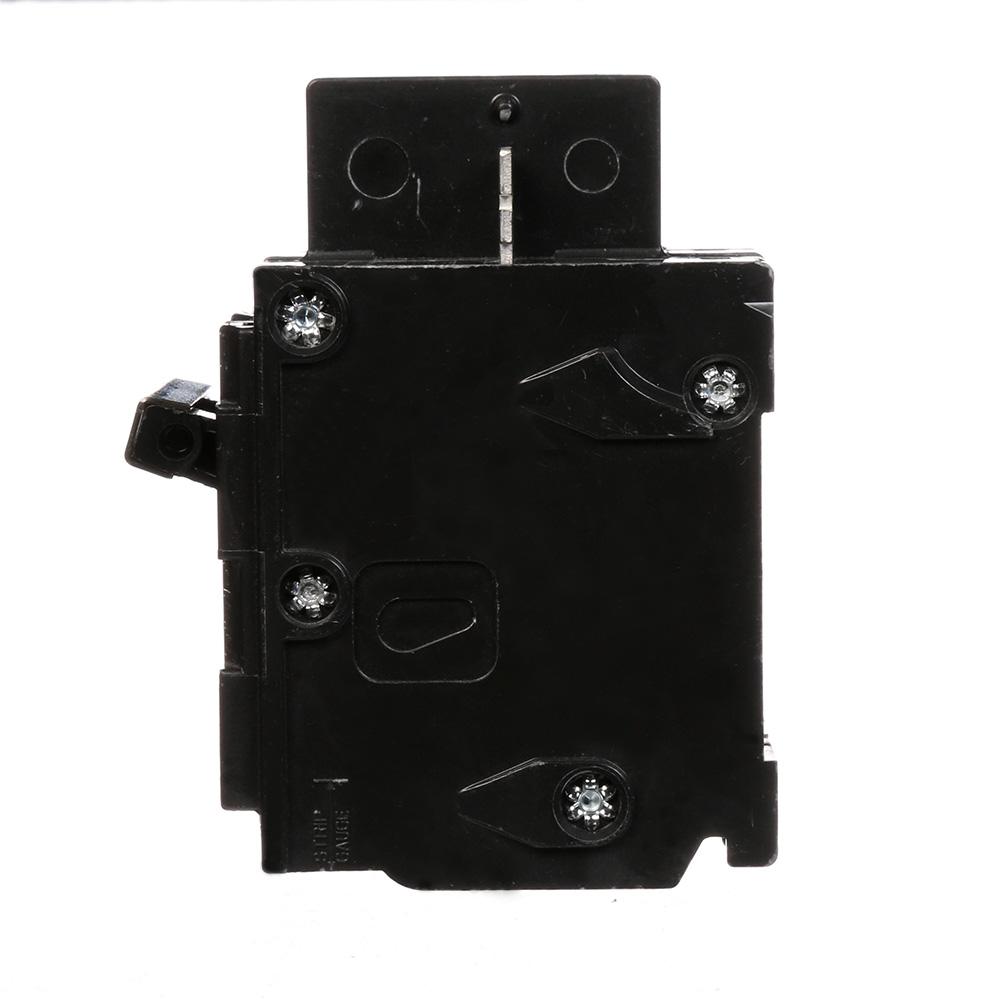

Siemens BQ2B030 - Molded Case Circuit Breaker 30A 2-Pole

Price
Regular price $29.18
Regular price $224.00 Sale price $29.18
Save $194.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQ2B030 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 30A current rating and a 120/240V voltage rating, housed within a compact, bolt-on frame measuring 2.571" x 2.00" x 3.736" and weighing 0.617 lb. This thermal-magnetic breaker offers both long-time and instantaneous trip (LI) functions, is HACR rated and UL/CSA certified for safety, and provides a 10kA interrupting capacity at 240V. It is constructed for operation in temperatures from -25°C to 70°C and is typically installed in Siemens panelboards for commercial and light industrial branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120/240V AC
  • Current Rating: 30A
  • Dimensions: 2.571" H x 2.00" W x 3.736" D (65.3mm x 50.8mm x 94.9mm)
  • Standards: UL Listed, CSA Certified, HACR Rated
  • Applications: Branch Circuit Protection in Siemens Panelboards
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 125A/BQ
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size: Wire Range 6 AWG to 12 AWG (Al) / 14 AWG (Cu)
  • Panel Type: Siemens Panelboards
  • Certification: CSA, HACR, UL
  • Weight: 0.617 lb


Product Identification
  • UPC: 783643102422
  • GTIN: 00783643102422
