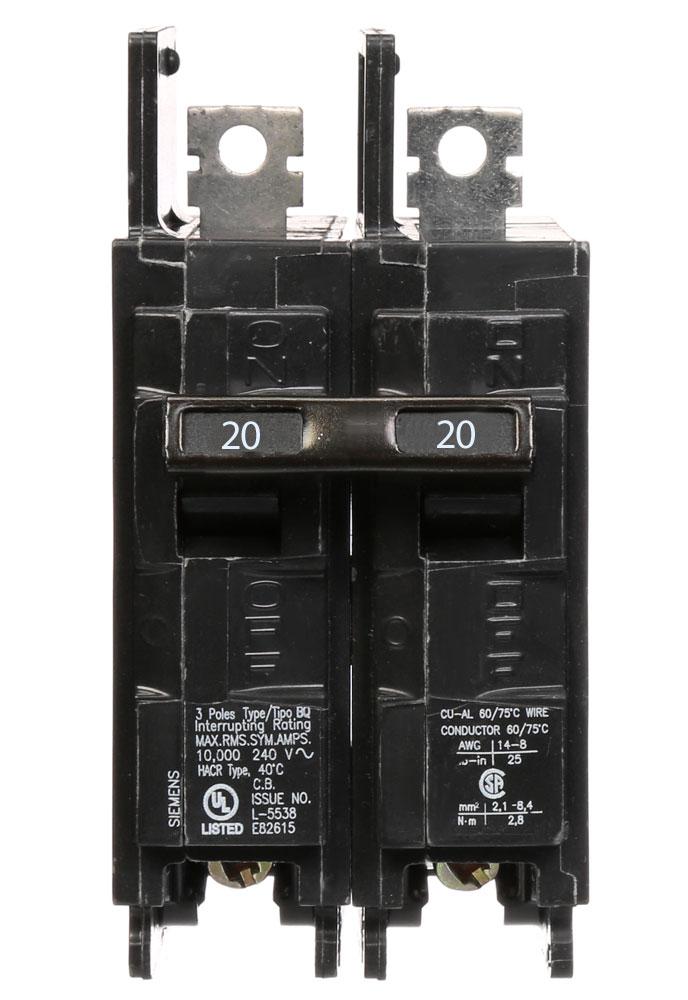

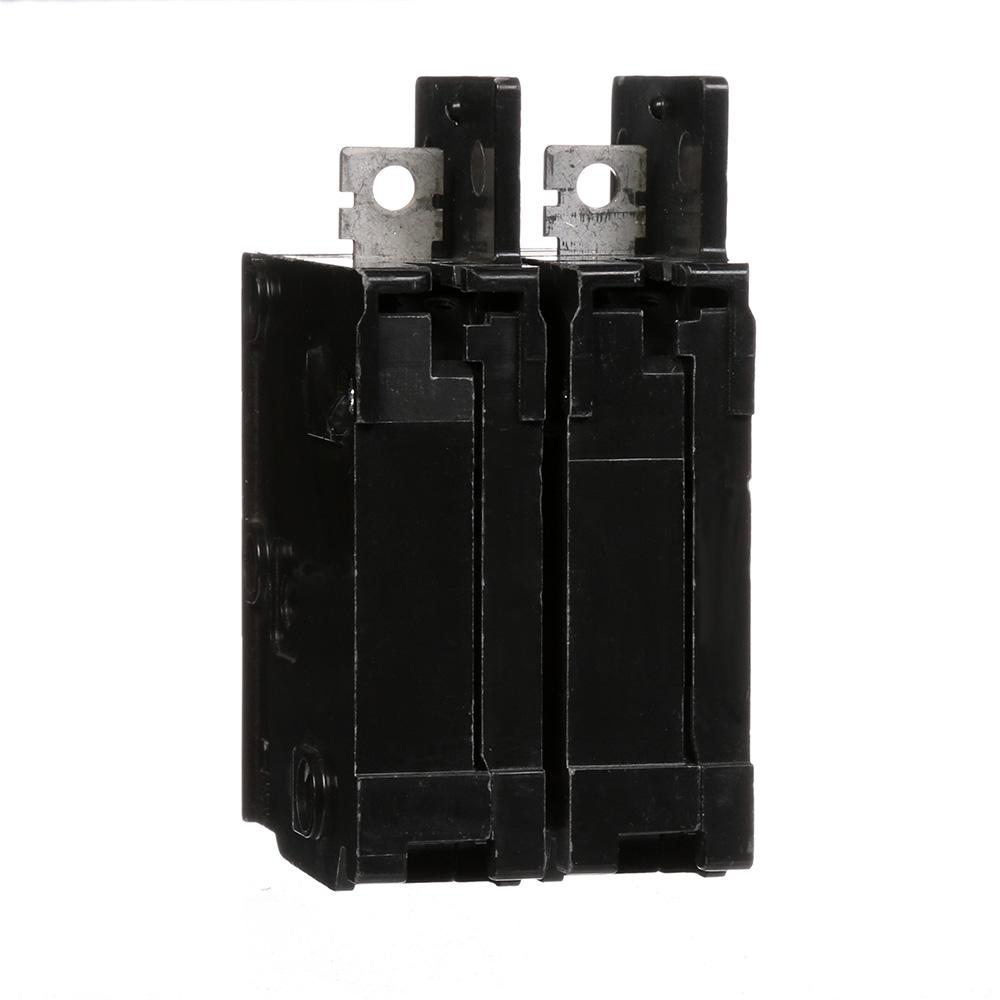

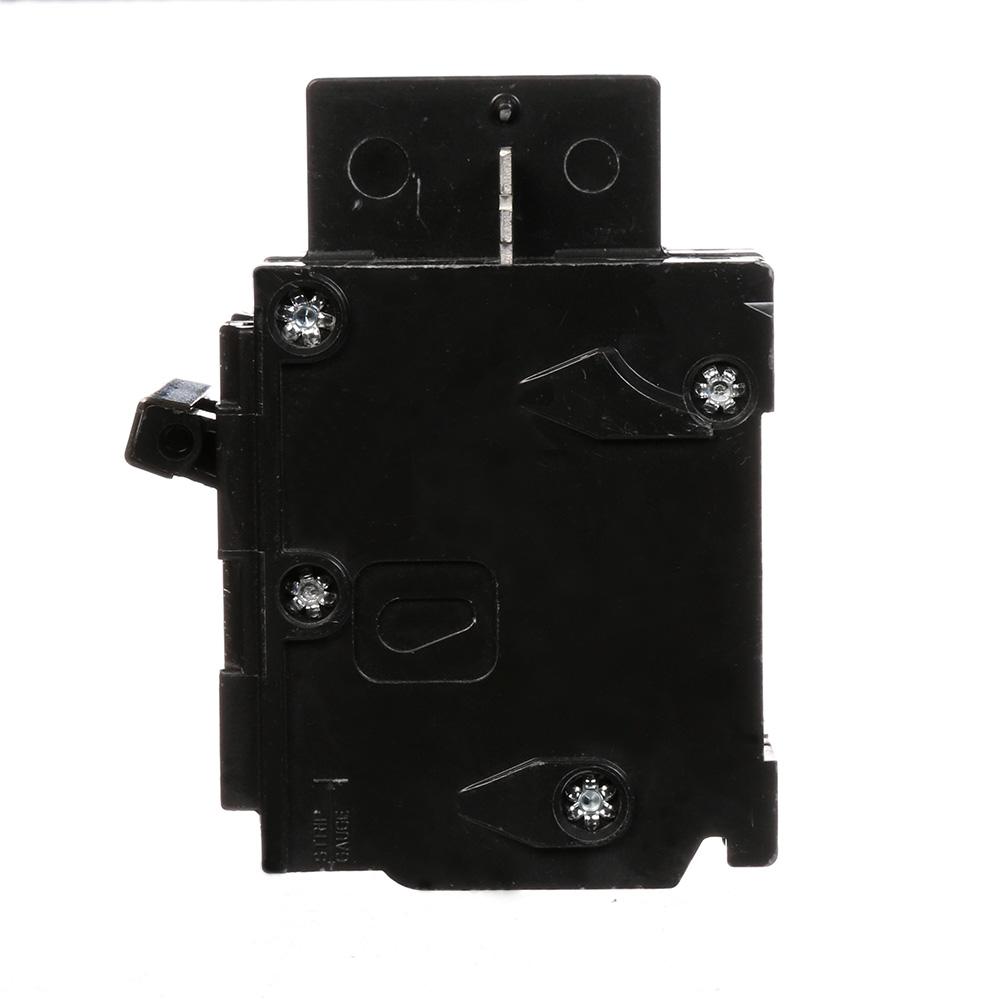

Siemens BQ2B020 - Molded Case Circuit Breaker 20A 2-Pole

Price
Regular price $30.39
Regular price $224.00 Sale price $30.39
Save $193.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQ2B020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120/240V voltage rating, housed within a compact, bolt-on design measuring 2.571" x 2.00" x 3.736" and weighing 0.617 lb. The breaker is constructed with thermal-magnetic trip protection for both long-time and instantaneous (LI) fault conditions, ensuring compliance with key industry standards including UL, CSA, and HACR. Its 10kA AIC rating at 240V and operating temperature range of -25°C to 70°C make it suitable for use in Siemens panelboards and various commercial or light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 20A
  • Frame Size: 125A/BQ
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Panel Type: Siemens Panelboards
  • Standards & Certification: UL Listed, CSA, HACR Rated
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.571" H x 2.00" W x 3.736" D
  • Weight: 0.617 lb
  • Wire Size (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Breaker Type: Standard
  • Family: BQ Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643102415
  • GTIN: 00783643102415
