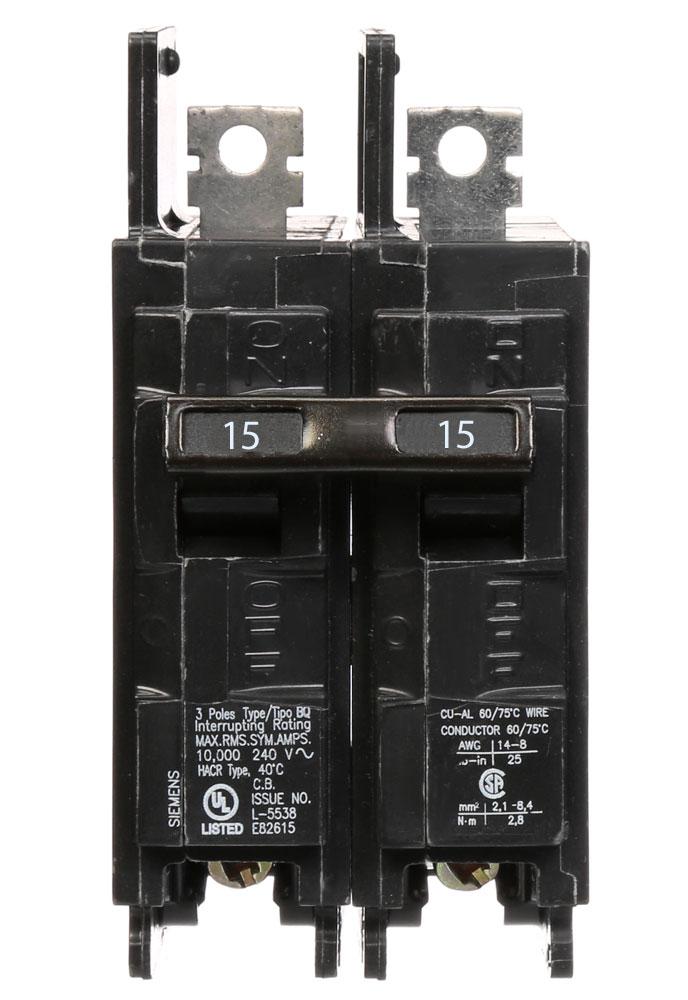

Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole

Siemens BQ2B015 - Molded Case Circuit Breaker 15A 2-Pole

Siemens
Price
Save $193.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BQ2B015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 120/240V voltage rating, housed within a compact 125A frame with dimensions of 3.937 x 2.756 x 1.969 inches and a weight of 0.617 lb. This thermal-magnetic breaker utilizes a long-time and instantaneous (LI) trip function with a 10kA interrupting capacity at 240V, and it is constructed for bolt-on connection with lug terminals compatible with wire sizes from 6 to 12 AWG. It complies with key industry standards, being UL Listed, CSA Certified, and HACR Rated for safety, and operates reliably within a temperature range of -25°C to 70°C. The breaker is typically applied in Siemens panelboards for the protection of branch circuits in commercial and light industrial settings.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120/240V AC
  • Current Rating: 15A
  • Frame Size: 125A/BQ
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Phase: 1
  • Connection: Bolt-on, Lug Terminal
  • Wire Size (MCM): Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 6 AWG
  • Dimensions: 3.937" H x 2.756" W x 1.969" D (100mm x 70mm x 50mm)
  • Weight: 0.617 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated
  • Panel Type: Siemens Panelboards
  • Breaker Type: Standard
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643102408
  • GTIN: 00783643102408
