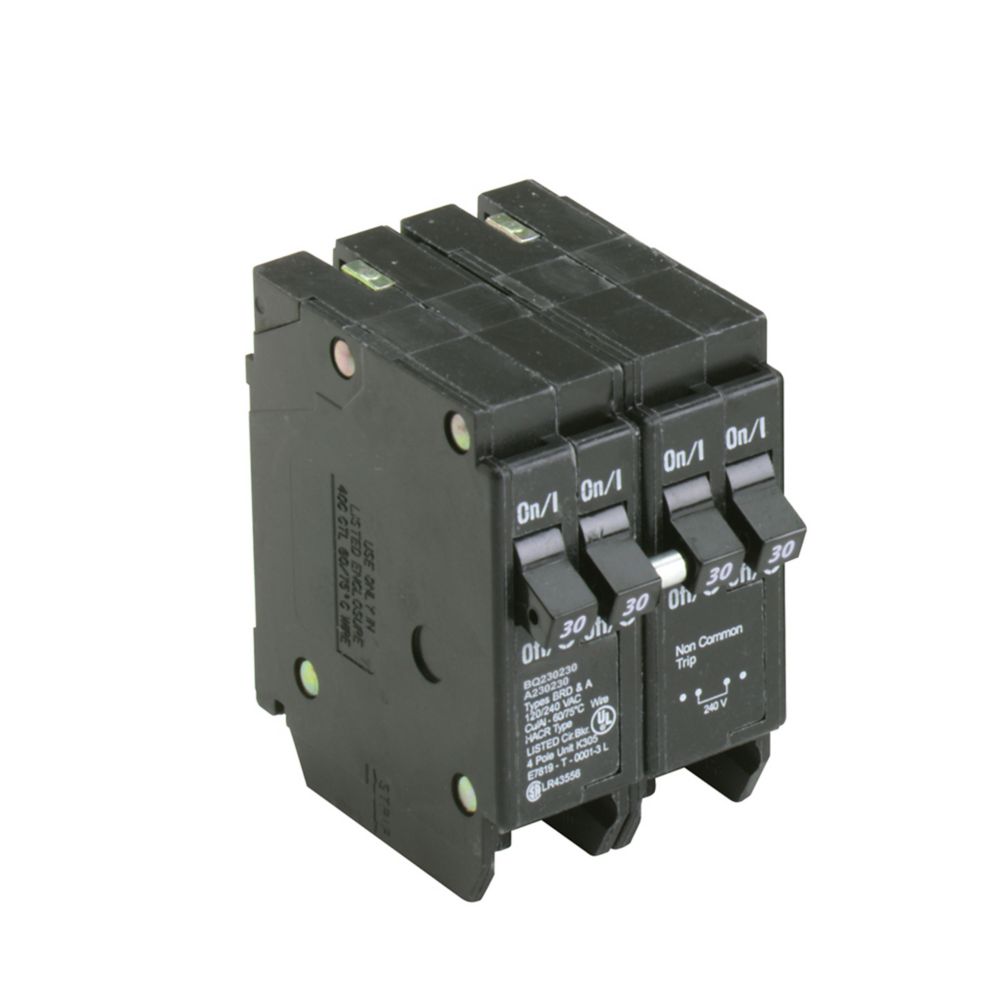

Cutler Hammer BQ230230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Cutler Hammer BQ230230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)

Cutler Hammer BQ230230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)

Cutler Hammer
Price
Save $347.07
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BQ230230 is a two-pole molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for 240V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 30A continuous current rating and a 10kA interrupting capacity at 240V AC, housed in a compact, thermally-magnetic protective unit measuring 1.4"D x 3.1"H x 3.2"W and weighing 2.5 lb with lug-style feed-thru connections. This breaker is UL 489 listed, CSA certified, and HACR rated for heating, air conditioning, and refrigeration equipment, ensuring compliance with industry safety standards for a wide range of single-phase electrical distribution applications.

Key Features & Specifications
  • Type: BQ Series, Molded Case, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) trip functions
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 1.4 in (Depth) x 3.1 in (Height) x 3.2 in (Width)
  • Standards: UL Listed (UL 489), CSA Certified, HACR Rated, Federal Specifications Classification W-C375
  • Applications: Overcurrent protection for single-phase branch circuits in Type BR loadcenters
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 1
  • AIC rating: 10kA @ 240V AC
  • Connection: Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Panel Type: Type BR Loadcenters
  • Breaker Type: Molded Case
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Lug
  • Phase Connection: Single-Phase
  • Standards: CSA, HACR, UL
  • Weight: 2.5 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676371001
  • GTIN: 00786676371001
