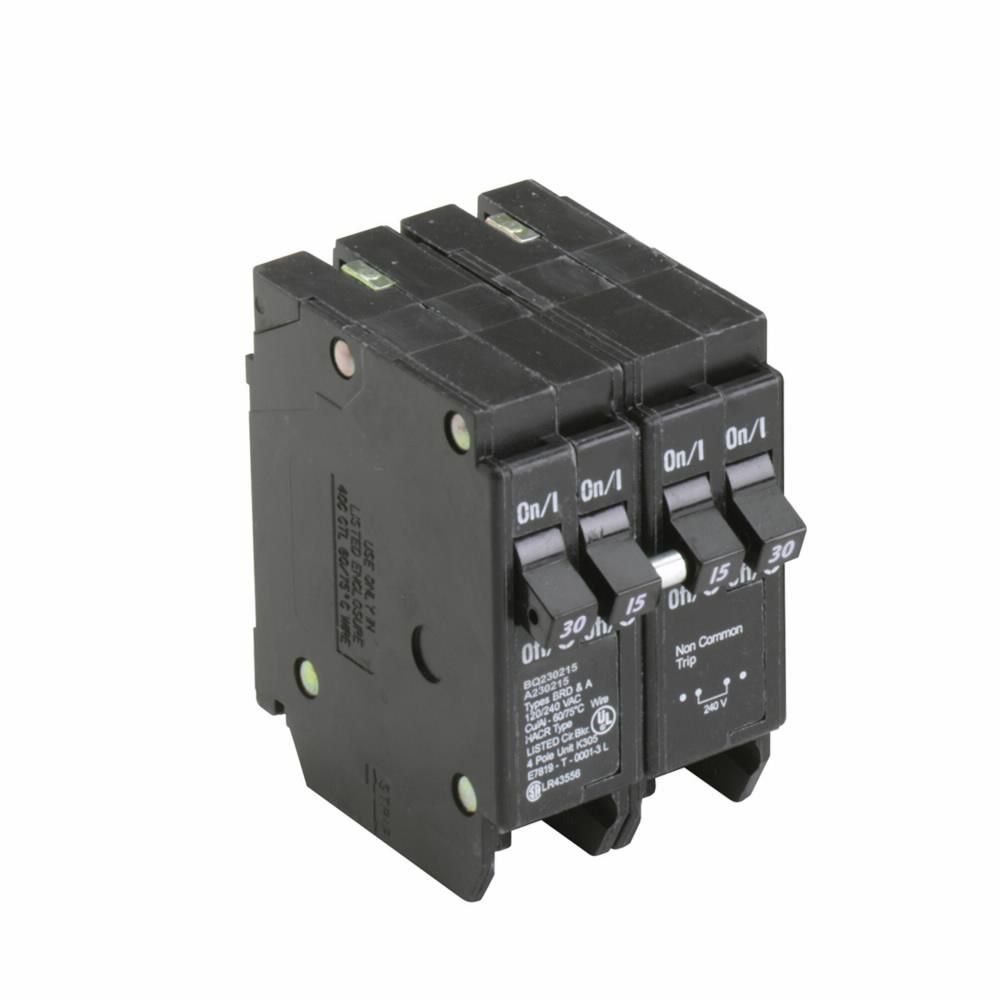

Cutler-Hammer BQ230215 - 2-Pole Circuit Breaker 30A 240V
Cutler-Hammer BQ230215 - 2-Pole Circuit Breaker 30A 240V

Cutler-Hammer BQ230215 - 2-Pole Circuit Breaker 30A 240V

Cutler Hammer
Price
Save $109.70
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer BQ230215 is a two-pole molded case circuit breaker designed to provide reliable overcurrent protection for 240V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 30A continuous current rating and a 10kA interrupting capacity at 240V AC, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection against overloads and short circuits. The compact unit measures 3" x 3" x 2" (LxHxW), weighs 0.9 lb, and is constructed with lug-style terminals compatible with copper or aluminum conductors from AWG 14 to AWG 4. It is fully compliant with industry standards including UL 489 and CSA certification, and is HACR-rated for heating, air conditioning, and refrigeration equipment applications.

Key Features & Specifications
  • Type: Two-pole, molded case, thermal-magnetic circuit breaker with feed-thru connection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 3 in (Depth) x 3 in (Height) x 2 in (Width)
  • Standards: UL Listed (UL 489), CSA Certified, HACR Rated, meets Federal Spec W-C393
  • Applications: Overcurrent protection for 240V branch circuits in Type BR loadcenters
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Amperage: 30A
  • AIC Rating: 10kA @ 240V AC
  • Connection: Feed-Thru Lug Terminal
  • Poles: 2
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Type BR Loadcenters
  • Breaker Type: Molded Case
  • Wire Size: AWG 14 to AWG 4 (Copper or Aluminum)
  • Certification: UL 489, CSA
  • Terminal Connection: Lug
  • Standards: UL 489, CSA, HACR
  • Family: BQ Series
  • Country of Origin: Dominican Republic
  • Weight: 0.9 lb


Product Identification
  • UPC: 786676004565
  • GTIN: 00786676004565
