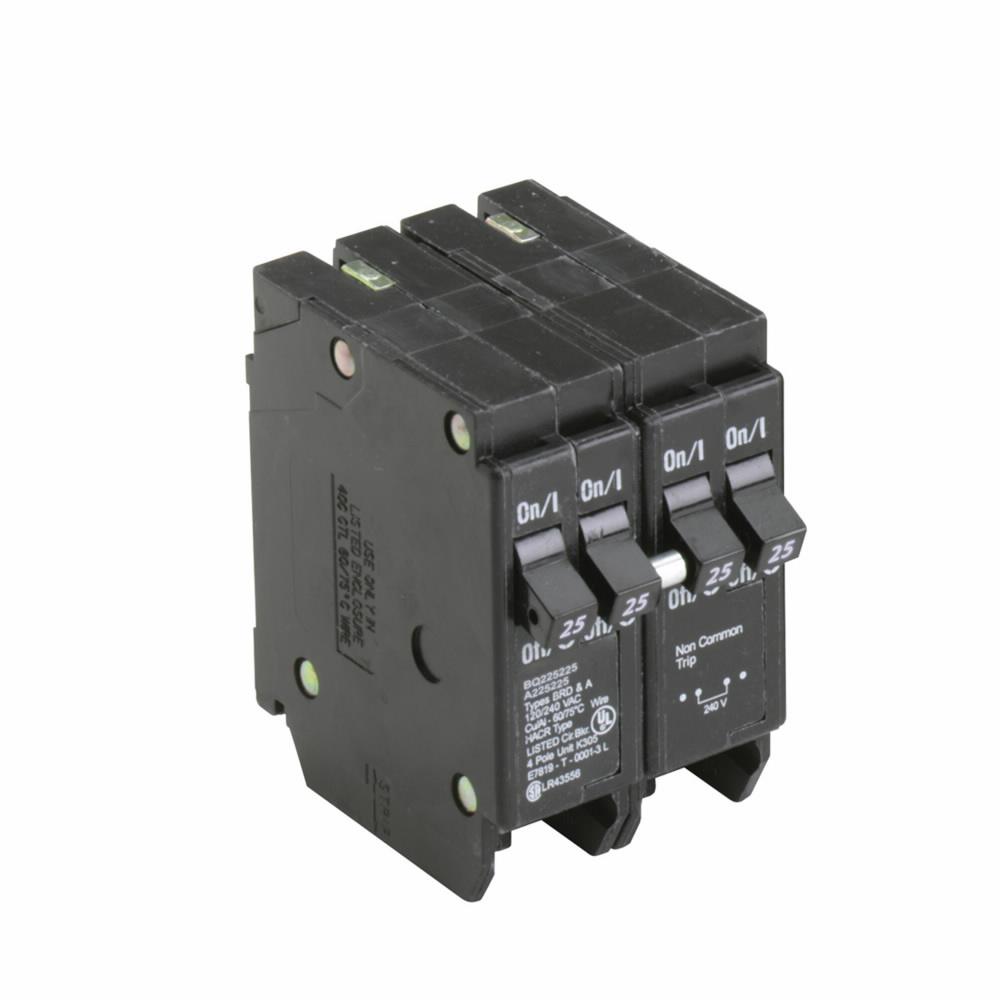

Cutler-Hammer BQ225225 - 2-Pole Circuit Breaker 25A 240V
Cutler-Hammer BQ225225 - 2-Pole Circuit Breaker 25A 240V

Cutler-Hammer BQ225225 - 2-Pole Circuit Breaker 25A 240V

Cutler Hammer
Price
Save $353.13
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer BQ225225 is a 2-pole molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for 240V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 25A continuous current rating and a 10kA interrupting capacity at 240V, utilizing a thermal-magnetic trip unit for both long-time delay and instantaneous protection functions. The compact, feed-thru lug-connection breaker measures 3" x 3" x 2" (LxHxW) and is constructed to accept copper or aluminum conductors from #14 to #4 AWG. This unit is fully compliant with UL 489 and CSA standards, is HACR rated for HVAC equipment, and meets Federal Specification W-C389, ensuring suitability for a wide range of panelboard and loadcenter installations.

Key Features & Specifications
  • Type: 2-Pole Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 3 in (Depth) x 3 in (Height) x 2 in (Width)
  • Standards: UL Listed, CSA Certified, HACR Rated, Meets Federal Spec W-C389
  • Applications: Type BR Loadcenters, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 1
  • AIC Rating: 10kA @ 240V AC
  • Connection: Lug
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Type BR Loadcenters
  • Breaker Type: Molded Case
  • Wire Size: 14 AWG to 4 AWG, Copper or Aluminum
  • Certification: UL 489
  • Family: BQ Series
  • Weight: 0.75 lb


Product Identification
  • UPC: 786676370950
  • GTIN: 00786676370950
