Cutler Hammer BQ2252120 - 2-Pole Circuit Breaker 25A 240V (10kA AIC)
Cutler Hammer BQ2252120 - 2-Pole Circuit Breaker 25A 240V (10kA AIC)

Cutler Hammer BQ2252120 - 2-Pole Circuit Breaker 25A 240V (10kA AIC)

Cutler Hammer
Price
Save $353.57
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

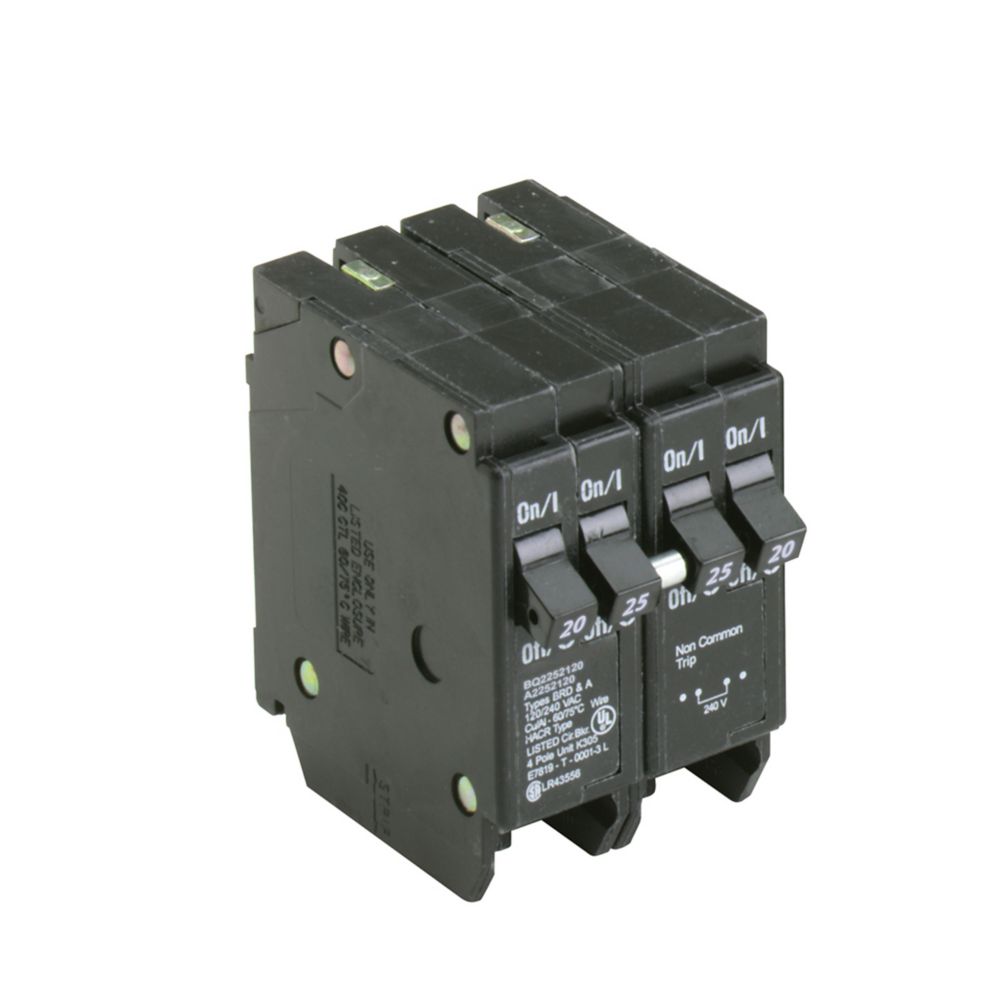

Cutler Hammer BQ2252120 is a two-pole molded case circuit breaker designed to provide reliable overcurrent protection for 240V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 25A continuous current rating and a 10kA interrupting capacity at 240V AC, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous response to overloads and short circuits. The compact unit measures 3" x 3" x 2" (L x H x W), weighs 0.9 lb, and is constructed with lug-style terminals compatible with copper or aluminum conductors from 14 AWG to 4 AWG. It is fully compliant with industry standards, including UL 489 and CSA certification, and is HACR-rated for heating, air conditioning, and refrigeration equipment. This feed-thru style breaker is commonly applied to protect dedicated appliance circuits, HVAC units, and other single-phase electrical loads.

Key Features & Specifications
  • Type: Two-pole, molded case, thermal-magnetic circuit breaker with long-time and instantaneous trip functions
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 3 in (Length/Depth) x 3 in (Height) x 2 in (Width)
  • Standards: UL Listed (UL 489), CSA Certified, HACR Rated, meets Federal Spec W-C388
  • Applications: Protection for branch circuits in Type BR loadcenters, commonly for appliances and HVAC equipment
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 1
  • AIC rating: 10kA @ 240V AC
  • Connection: Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Type BR Loadcenters
  • Breaker Type: Molded Case
  • Wire Size: 14 AWG to 4 AWG, Copper or Aluminum
  • Certification: UL 489, Federal Specifications Classification W-C388
  • Weight: 0.9 lb
  • Family: BQ Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676005036
  • GTIN: 00786676005036
