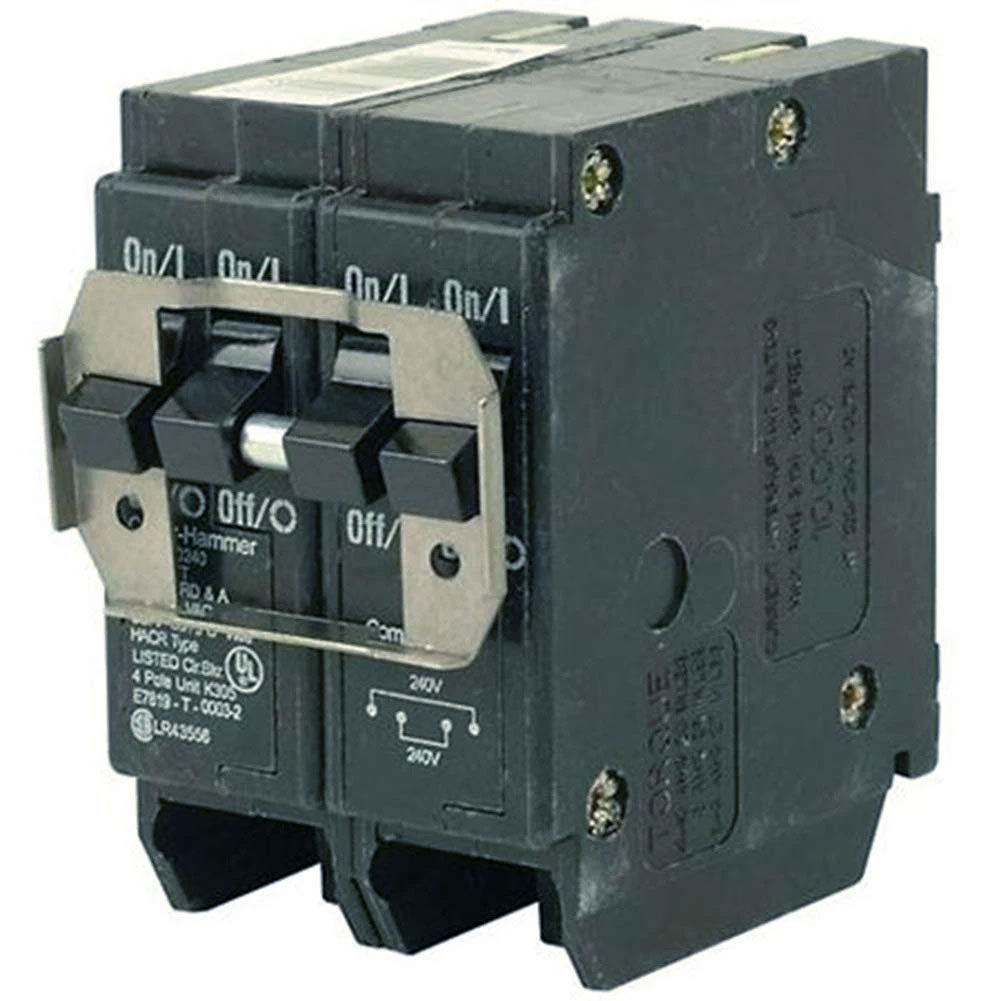

Cutler-Hammer BQ215215 - 2-Pole Circuit Breaker 15A 240V
Cutler-Hammer BQ215215 - 2-Pole Circuit Breaker 15A 240V

Cutler-Hammer BQ215215 - 2-Pole Circuit Breaker 15A 240V

Cutler Hammer
Price
Save $126.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer BQ215215 is a 2-pole molded case circuit breaker designed to provide reliable overcurrent protection for 240V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 15A thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions, ensuring protection against both overloads and short circuits with an interrupting capacity of 10kA at 240V. The compact, feed-thru unit with lug terminals measures 3" x 3" x 2" (L x H x W), weighs 0.9 lb, and accepts wire sizes from 14 to 4 AWG for aluminum or copper conductors. This breaker is fully compliant with industry standards, including UL 489 and CSA certification, and meets Federal Specification W-C375. It is engineered for dependable performance in applications such as appliance circuits, lighting panels, and HVAC equipment.

Key Features & Specifications
  • Type: BQ Series, 2-Pole Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Dimensions: 3 in (Length/Depth) x 3 in (Height) x 2 in (Width)
  • Standards: UL Listed, CSA Certified, HACR Rated
  • Applications: Type BR Loadcenters, Residential & Light Commercial Branch Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Wire Size: 14 To 4 AWG (Aluminum/Copper)
  • Panel Type: Type BR Loadcenters
  • Weight: 0.9 lb


Product Identification
  • UPC: 786676370707
  • GTIN: 00786676370707
