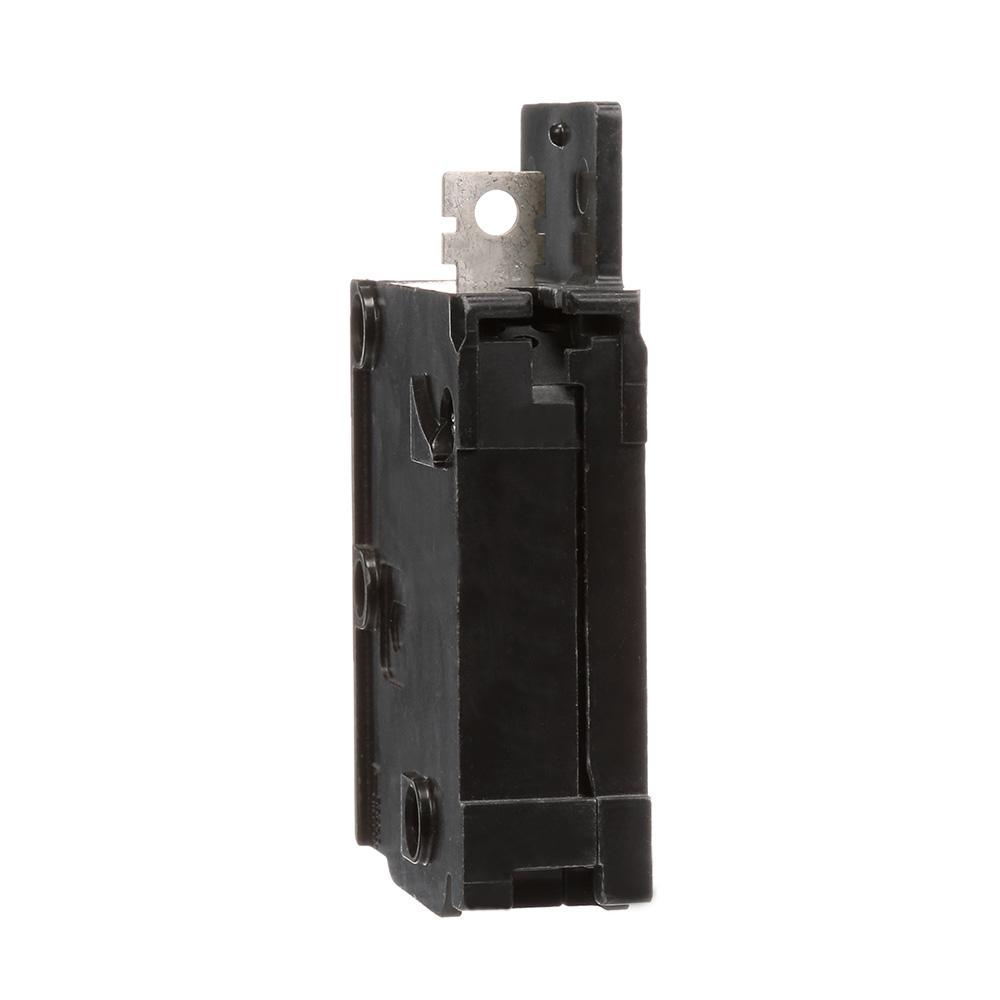

Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)
Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)

Siemens BQ1B035 - Molded Case Circuit Breaker 35A 1P (10kA AIC)

Siemens
Price
Save $51.30
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

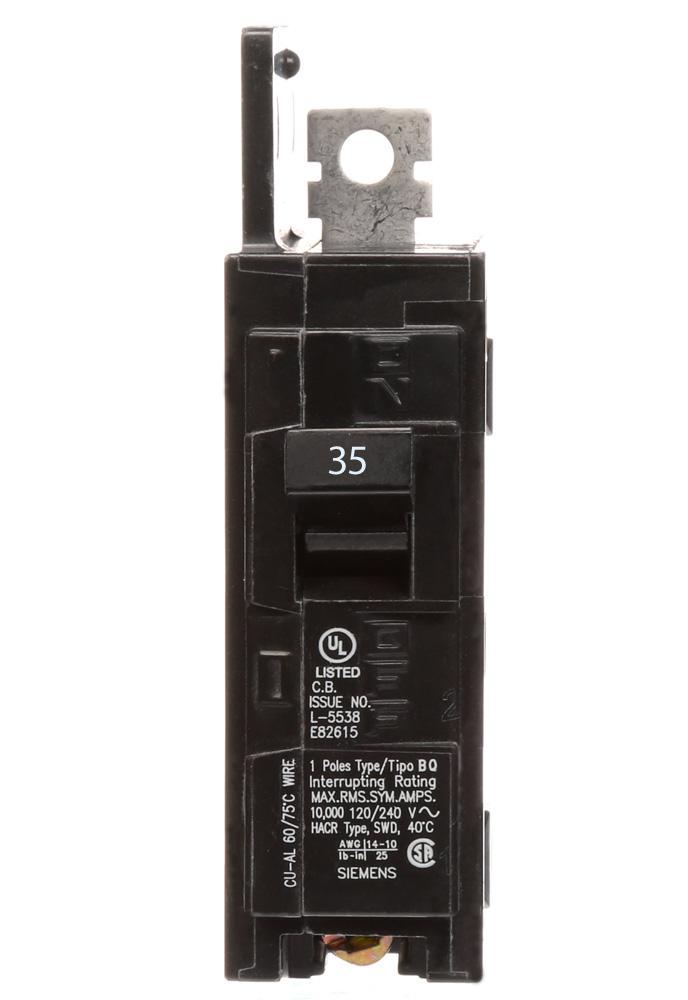

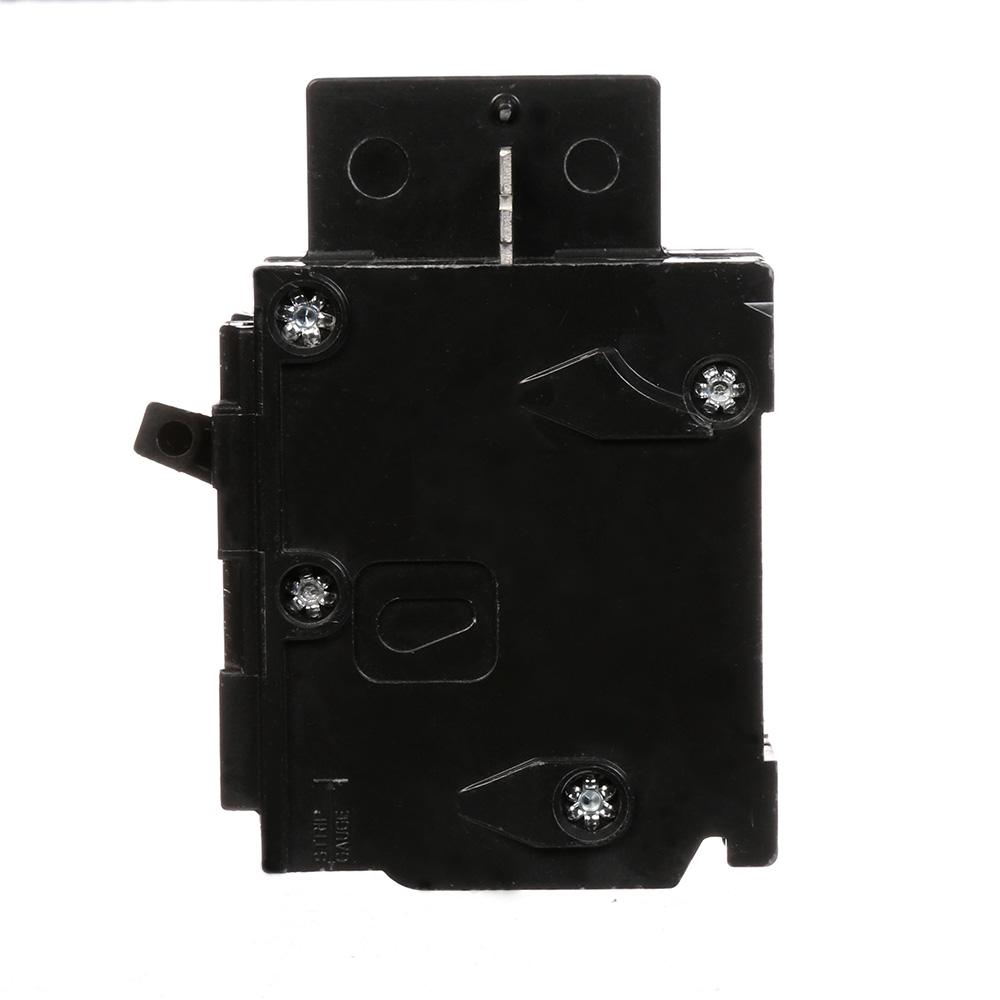

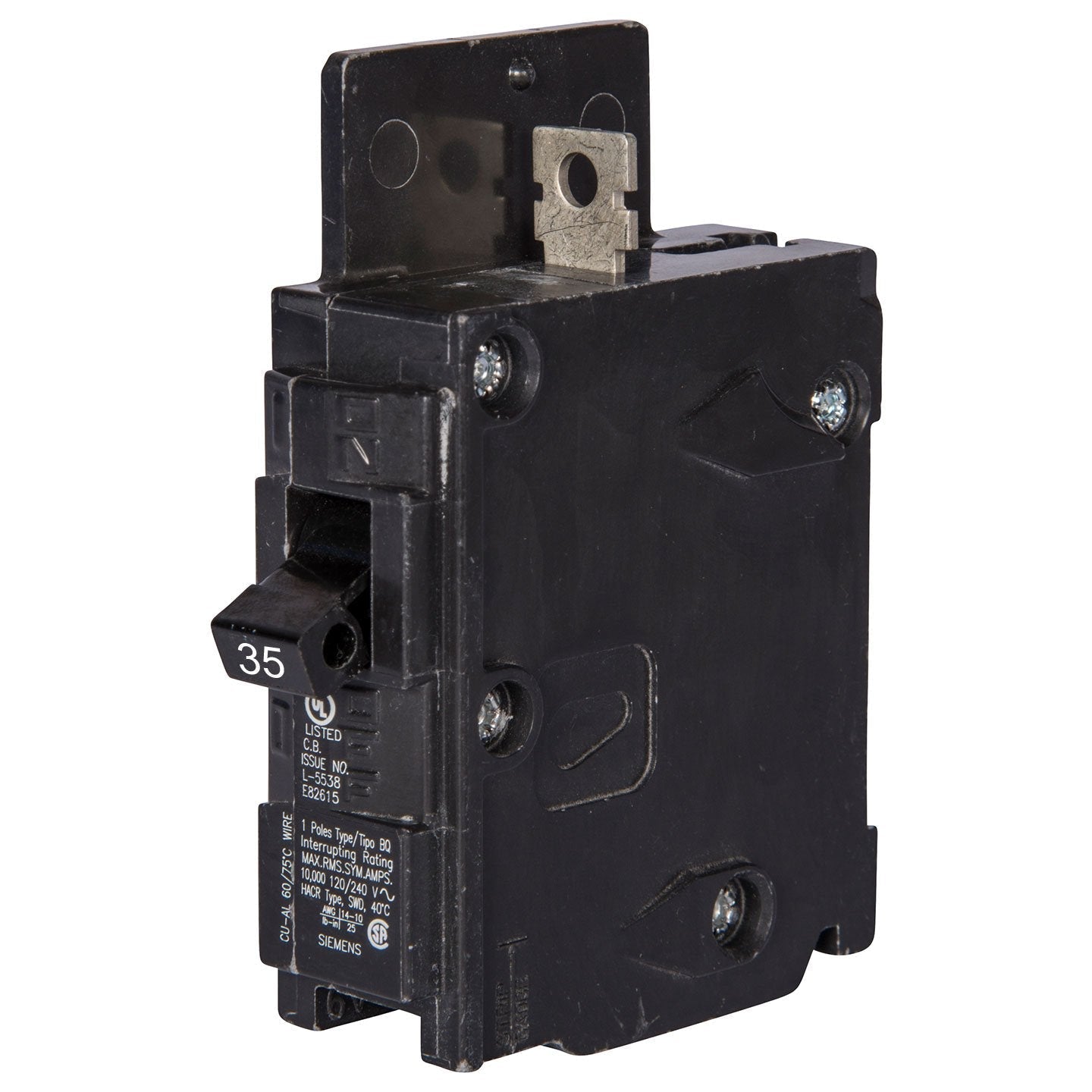

Siemens BQ1B035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 35A current rating and a 120V voltage rating, housed within a compact 125A/BQ frame measuring 3.937 x 2.756 x 0.787 inches and weighing 0.198 lb. This thermal-magnetic breaker, with its LI (Long-time and Instantaneous) tripping functions and 10kA interrupting rating at 120V, is CSA certified, HACR rated, and UL listed for safety compliance. It is engineered for bolt-on installation in Siemens panelboards, accommodating wire sizes from a minimum of 12 AWG (Al) or 14 AWG (Cu) to a maximum of 10 AWG via its lug terminals.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 120V AC
  • Current Rating: 35A
  • Dimensions: 3.937" H x 2.756" W x 0.787" D (100mm x 70mm x 20mm)
  • Standards: CSA Certified, HACR Rated, UL Listed
  • Applications: Overcurrent and short-circuit protection in Siemens Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole (1P)
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BQ
  • Breaker Type: Standard
  • Panel Type: Siemens Panelboards
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Mounting: Panel Mount
  • Certification: CSA, HACR, UL
  • Terminal Connection: Lug
  • Family: BQ Series
  • Weight: 0.198 lb


Product Identification
  • UPC: 783643161146
  • GTIN: 00783643161146
