Siemens
Price
Save $85.34
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

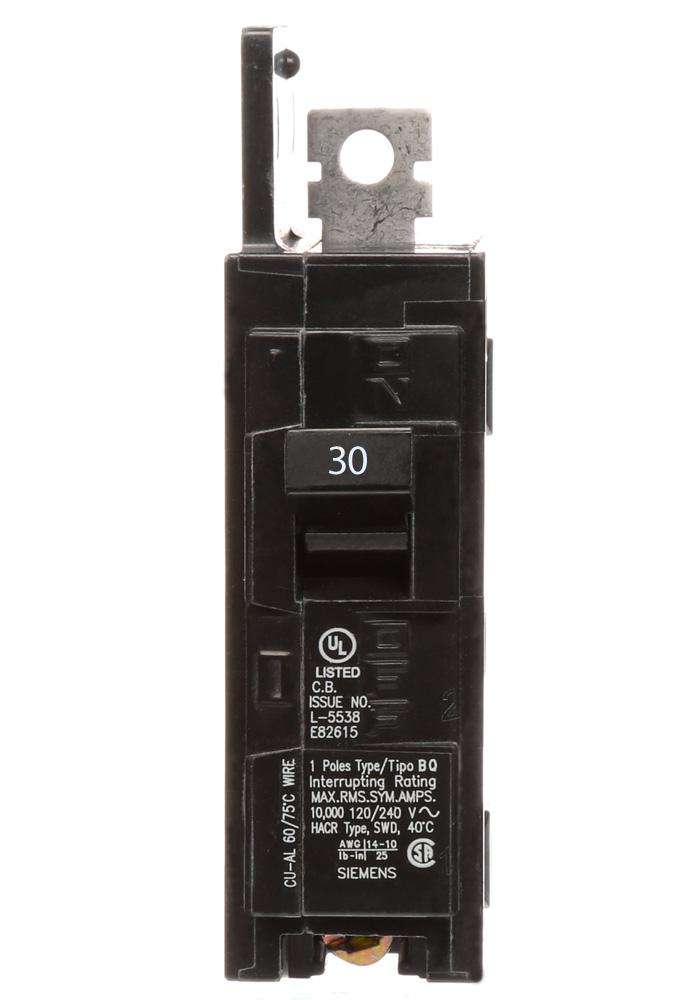

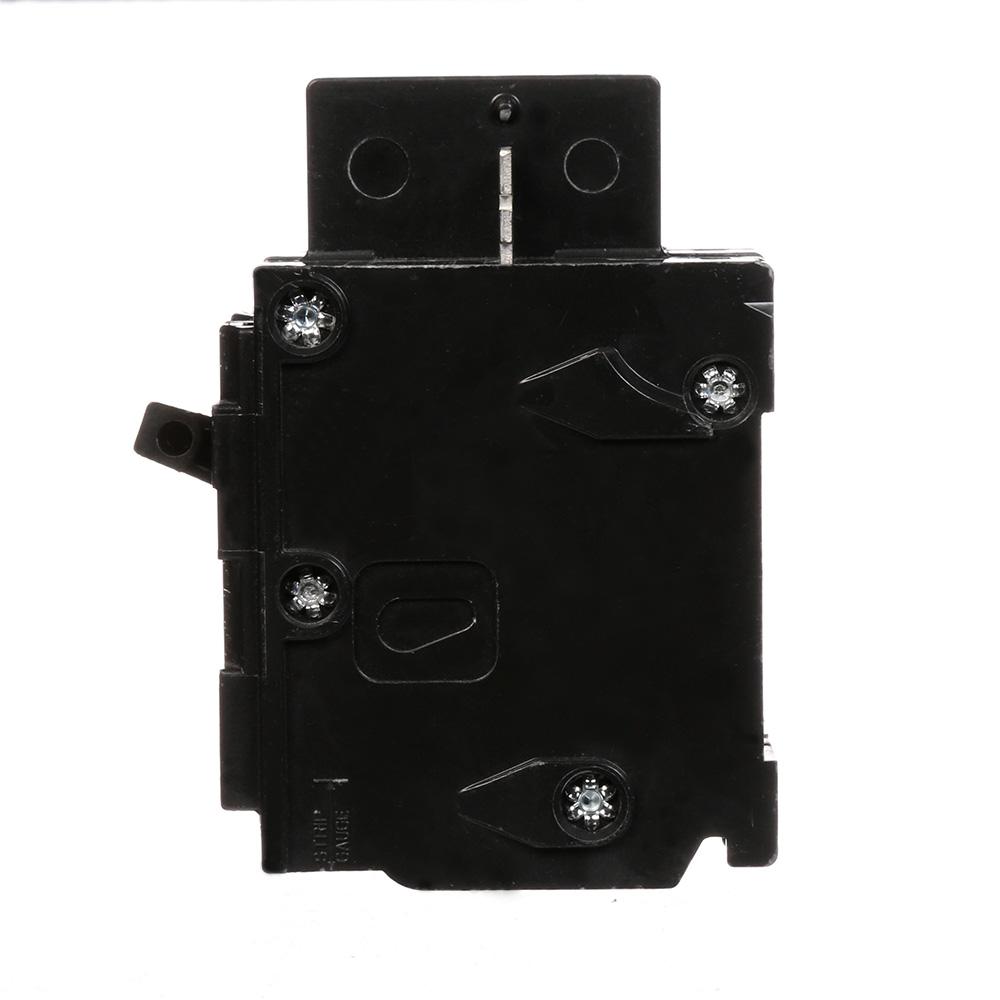

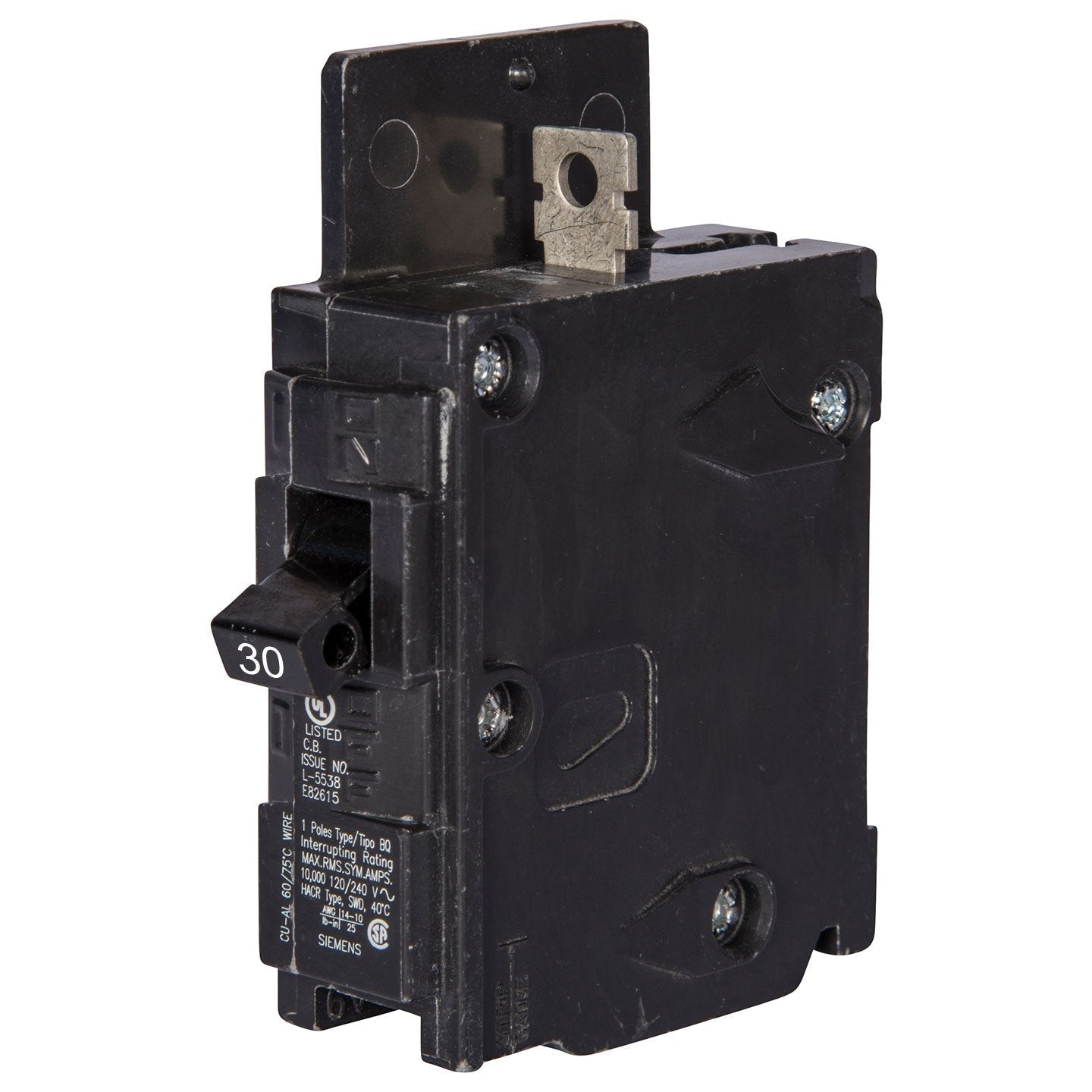

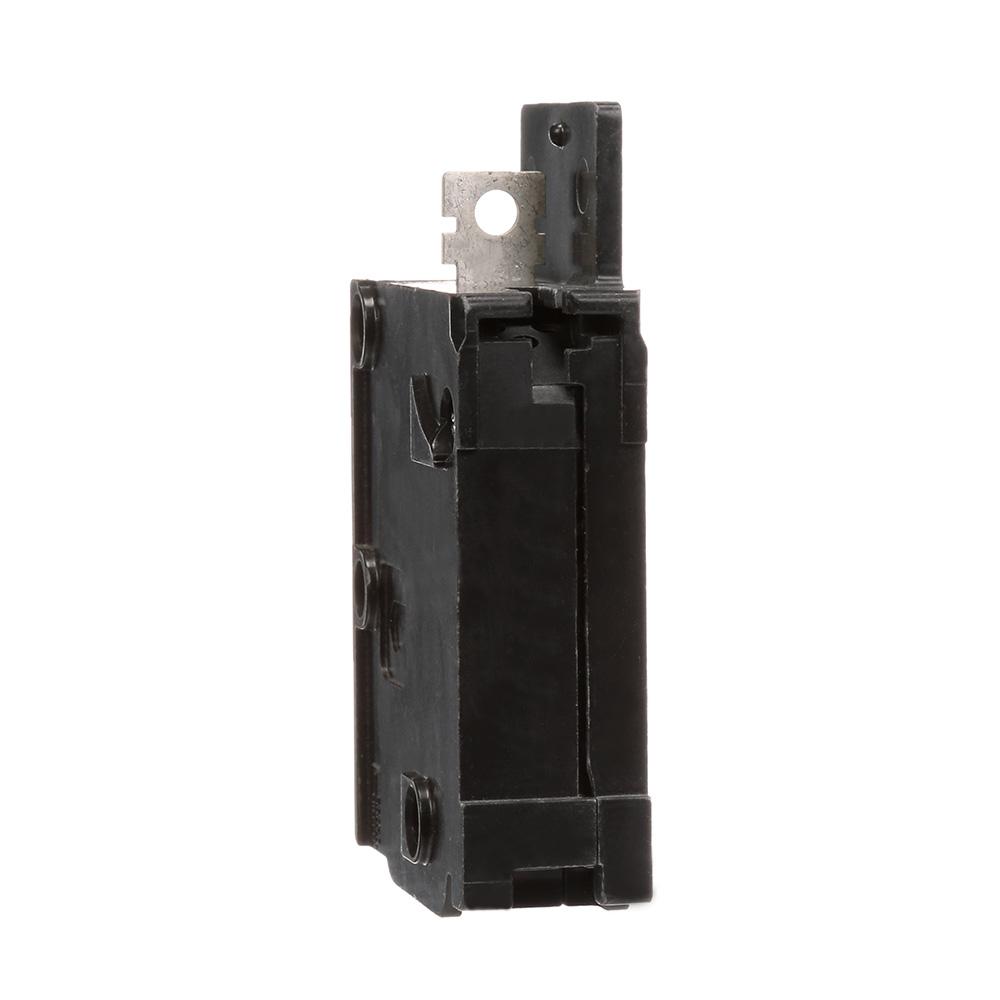

Siemens BQ1B030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120V voltage rating, housed within a compact 125A/BQ frame with dimensions of 3.937" x 2.756" x 0.787" and a weight of 0.331 lb. The breaker is CSA Certified, HACR Rated, and UL Listed, ensuring compliance with North American safety standards for use in Siemens panelboards and similar industrial and commercial distribution equipment.

Key Features & Specifications
  • Type: Molded Case, Standard, Thermal Magnetic Protection with LI (Long-Time and Instantaneous) Trip
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Frame Size: 125A/BQ
  • Poles: 1
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-on with Lug Terminal
  • Wire Size (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Standards & Certification: CSA Certified, HACR Rated, UL Listed
  • Panel Type: Siemens Panelboards
  • Dimensions: 3.937" H x 2.756" W x 0.787" D
  • Weight: 0.331 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643102347
  • GTIN: 00783643102347
  • Family: BQ Series
