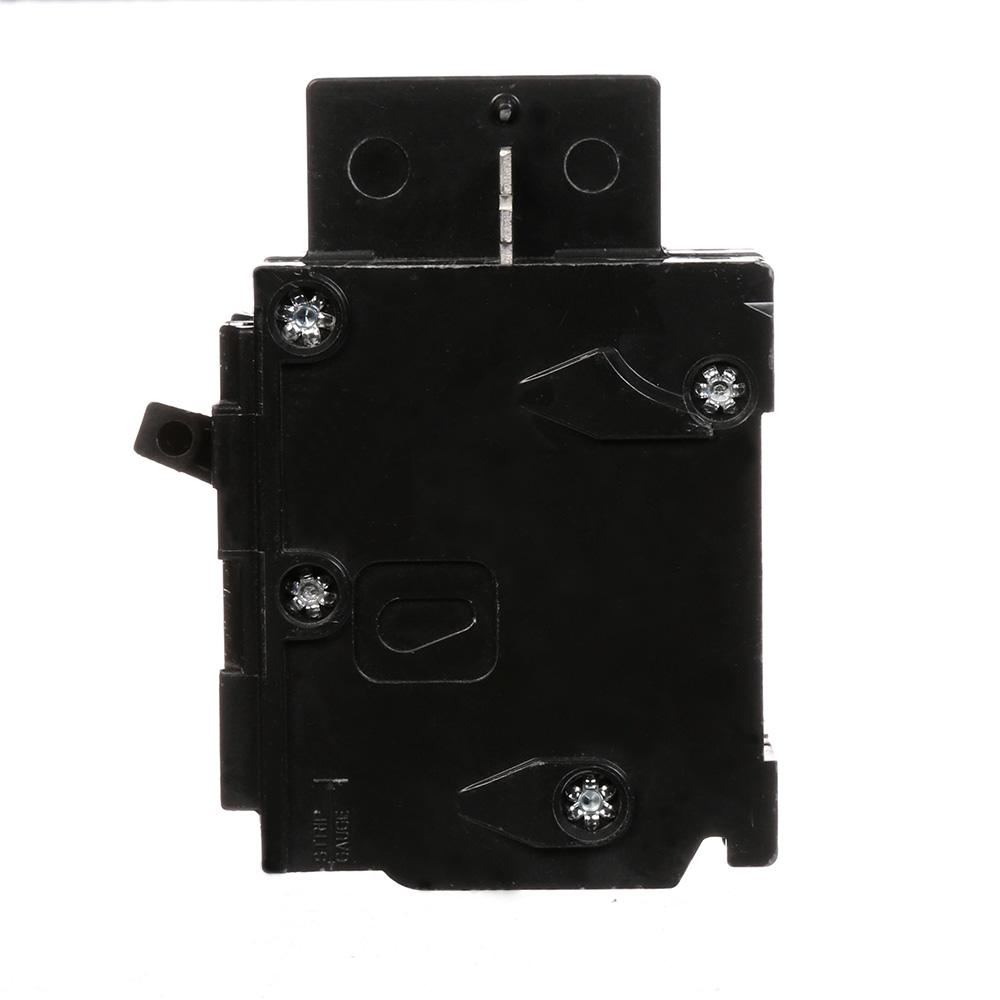

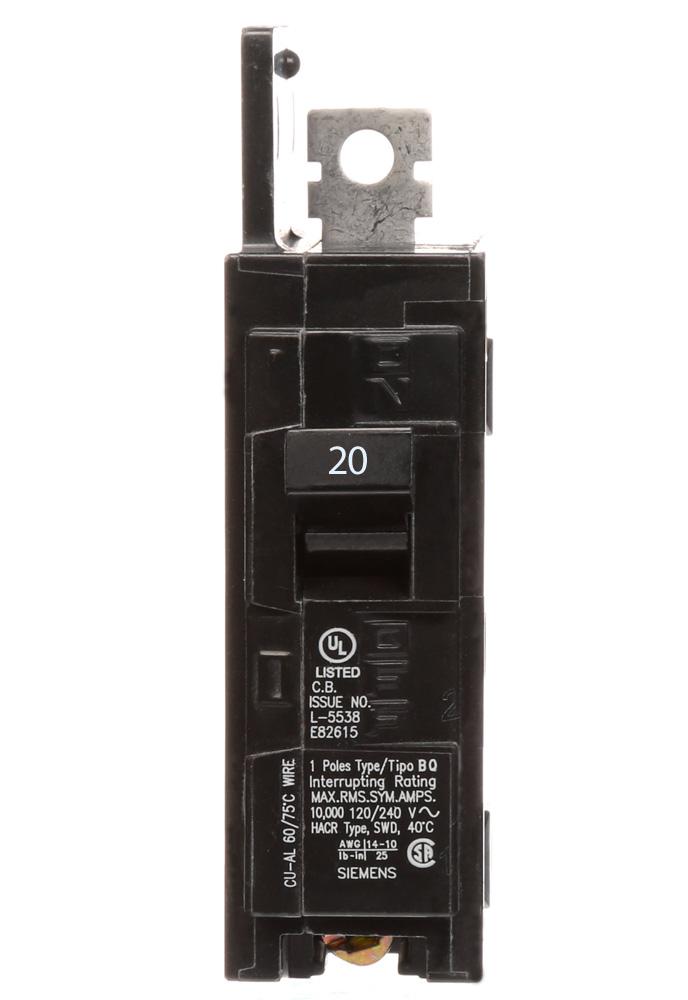

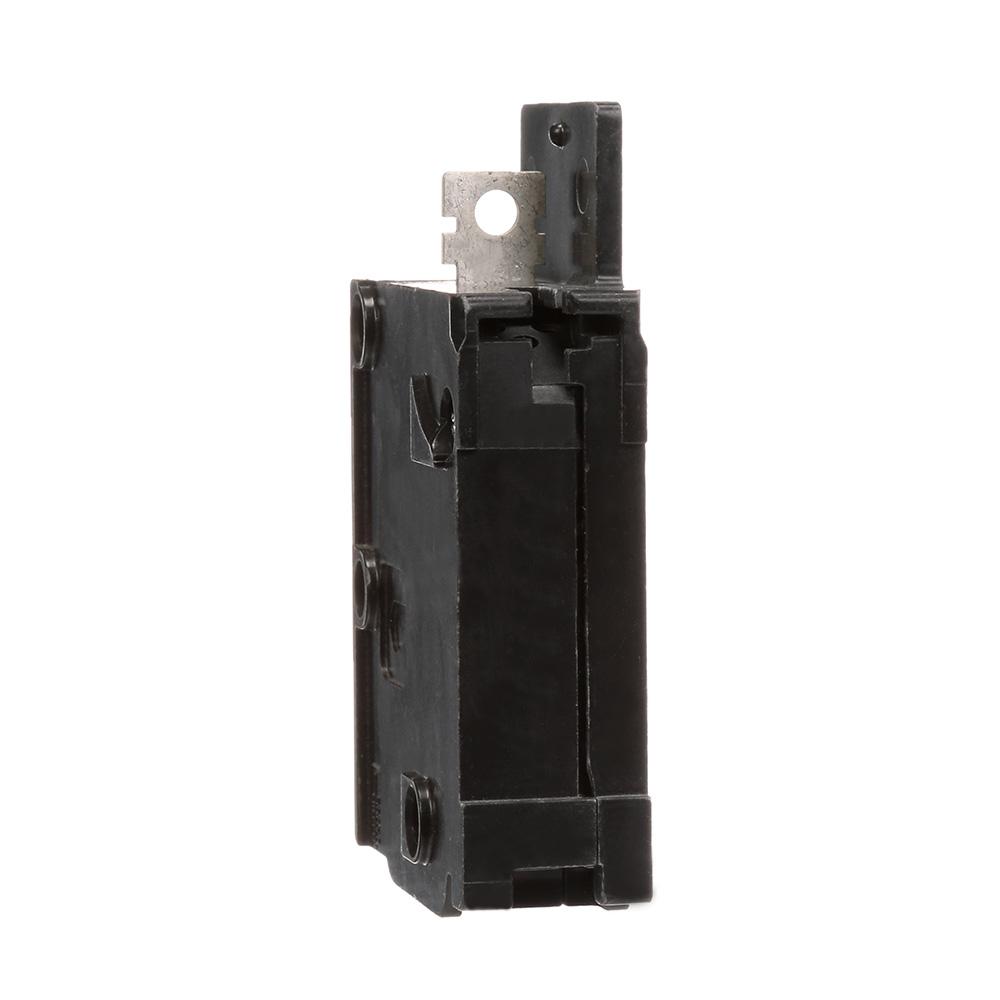

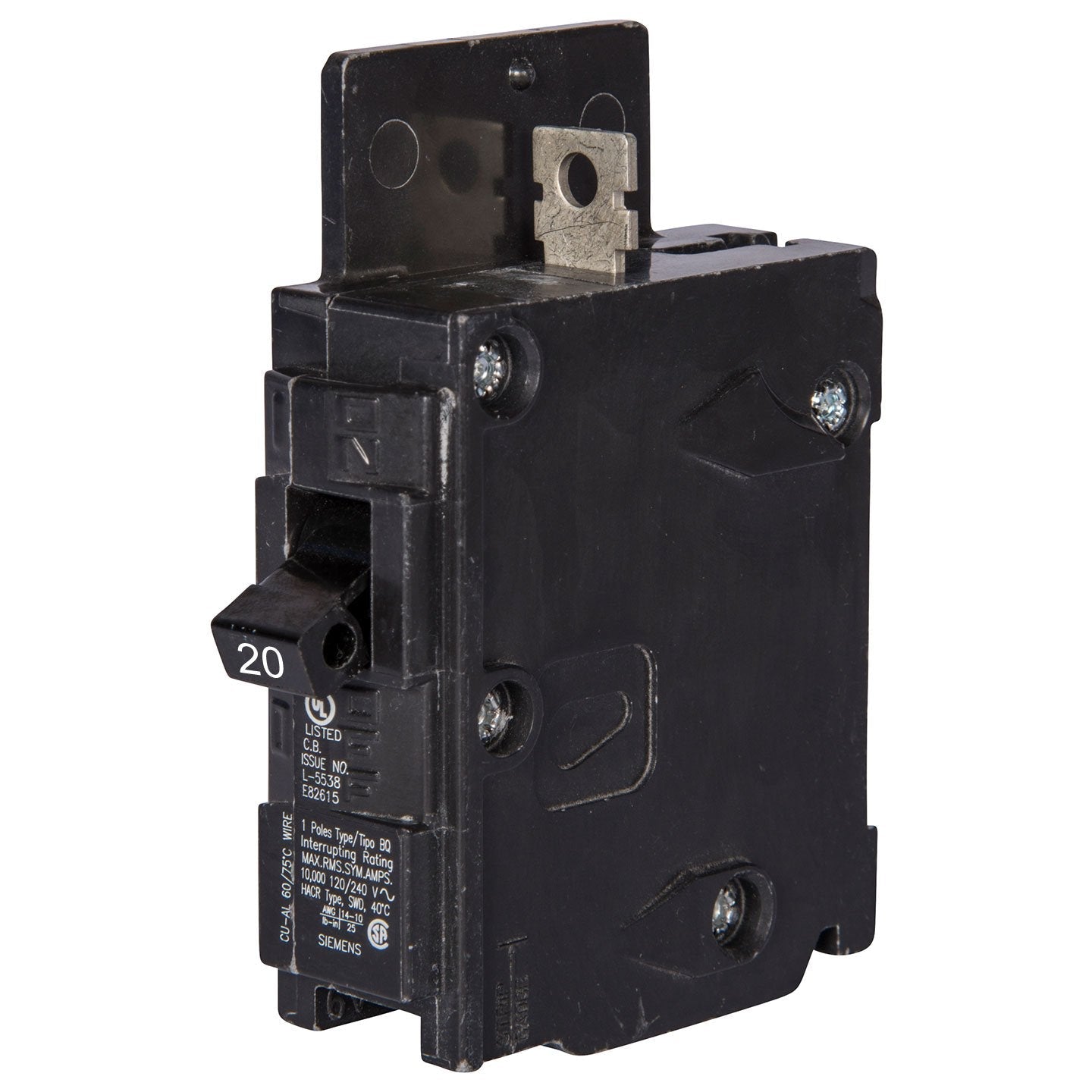

Siemens BQ1B020 - Molded Case Circuit Breaker, 20A 1-Pole

Price
Regular price $14.16
Regular price $99.50 Sale price $14.16
Save $85.34
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQ1B020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120V AC voltage rating, housed within a compact, bolt-on design measuring 2.571" x 1.00" x 3.736" and weighing 0.309 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection functions and is constructed for compatibility with Siemens panelboards. It complies with key industry standards, being CSA Certified, HACR Rated, and UL Listed, ensuring safe operation. Typical applications include residential and light commercial distribution panels, branch circuit protection, and HVAC equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Frame Size: 125A/BQ
  • Poles: 1
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous)
  • Protection: Thermal Magnetic
  • Panel Type: Siemens Panelboards
  • Standards: CSA Certified, HACR Rated, UL Listed
  • Certification: CSA, HACR, UL
  • Breaker Type: Standard
  • Dimensions: 2.571 x 1.00 x 3.736 inch
  • Weight: 0.309 lb
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Family: BQ Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643102323
  • GTIN: 00783643102323
