Square D BJA36125 - Molded Case Circuit Breaker 125A 600V 3P
Square D BJA36125 - Molded Case Circuit Breaker 125A 600V 3P

Square D BJA36125 - Molded Case Circuit Breaker 125A 600V 3P

Square D
Price
Save $4,404.85
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

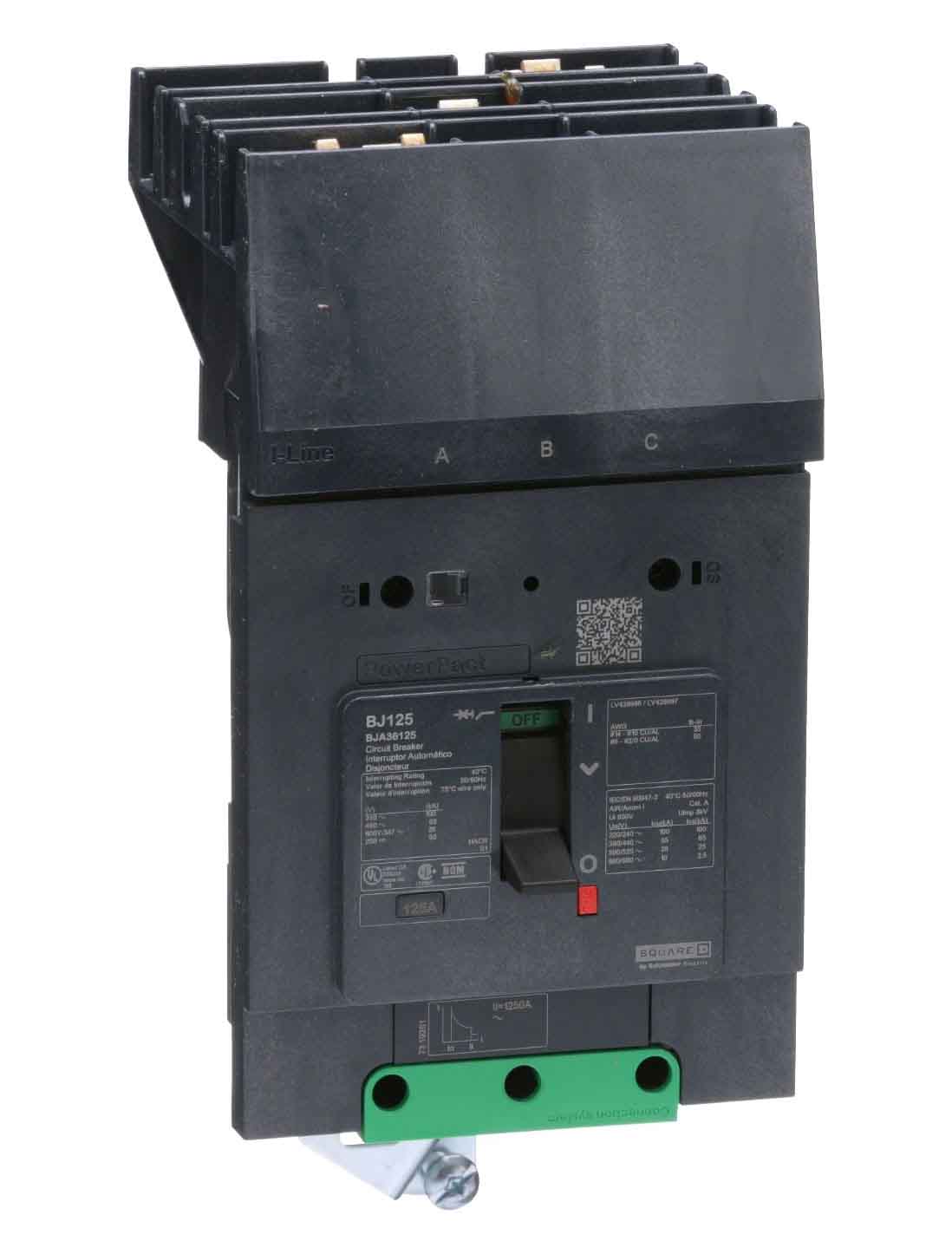

Square D BJA36125 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 125A current rating and a 600V AC voltage rating, with a compact physical footprint of 137 mm H x 81 mm W x 89 mm D and a weight of 4.3 lb. The breaker is constructed for robust performance, complying with key international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, and is rated for operation in temperatures from -25°C to 70°C. Its I-Line plug-in connection and thermal-magnetic trip unit with long-time and instantaneous functions make it suitable for installation in electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: BJA Series, Standard, Thermal-Magnetic Protection, Molded Case
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: 125A/BJ
  • AIC Rating: 65kA at 480V AC
  • Poles: 3
  • Phase Connection: 3-Phase, ABC
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Wire Size Range: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • MCM Size: 14 AWG Minimum, 2 AWG Maximum
  • Dimensions: 5.4 in (137 mm) H x 3.2 in (81 mm) W x 3.5 in (89 mm) D
  • Weight: 4.3 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Protection Functions: Long Time and Instantaneous Trip
  • Standards & Certification: UL 489, IEC 60947-2, IEC 60947-5-1, CSA C22.2 No. 5, GB 14048.2, NMX J-266, NEMA AB1, CCC, EAC, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481185952
