Schneider Electric
Price
Save $1,229.45
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

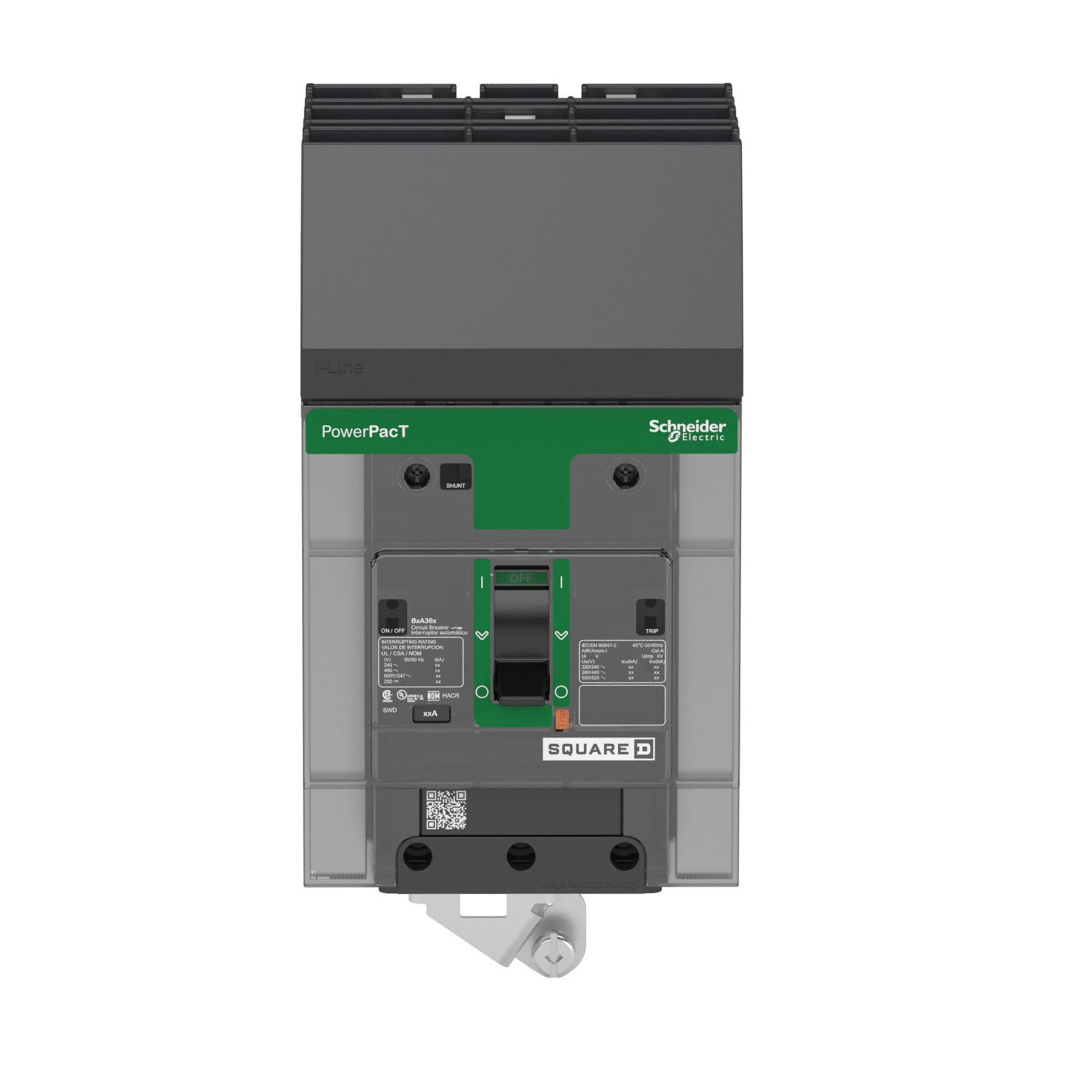

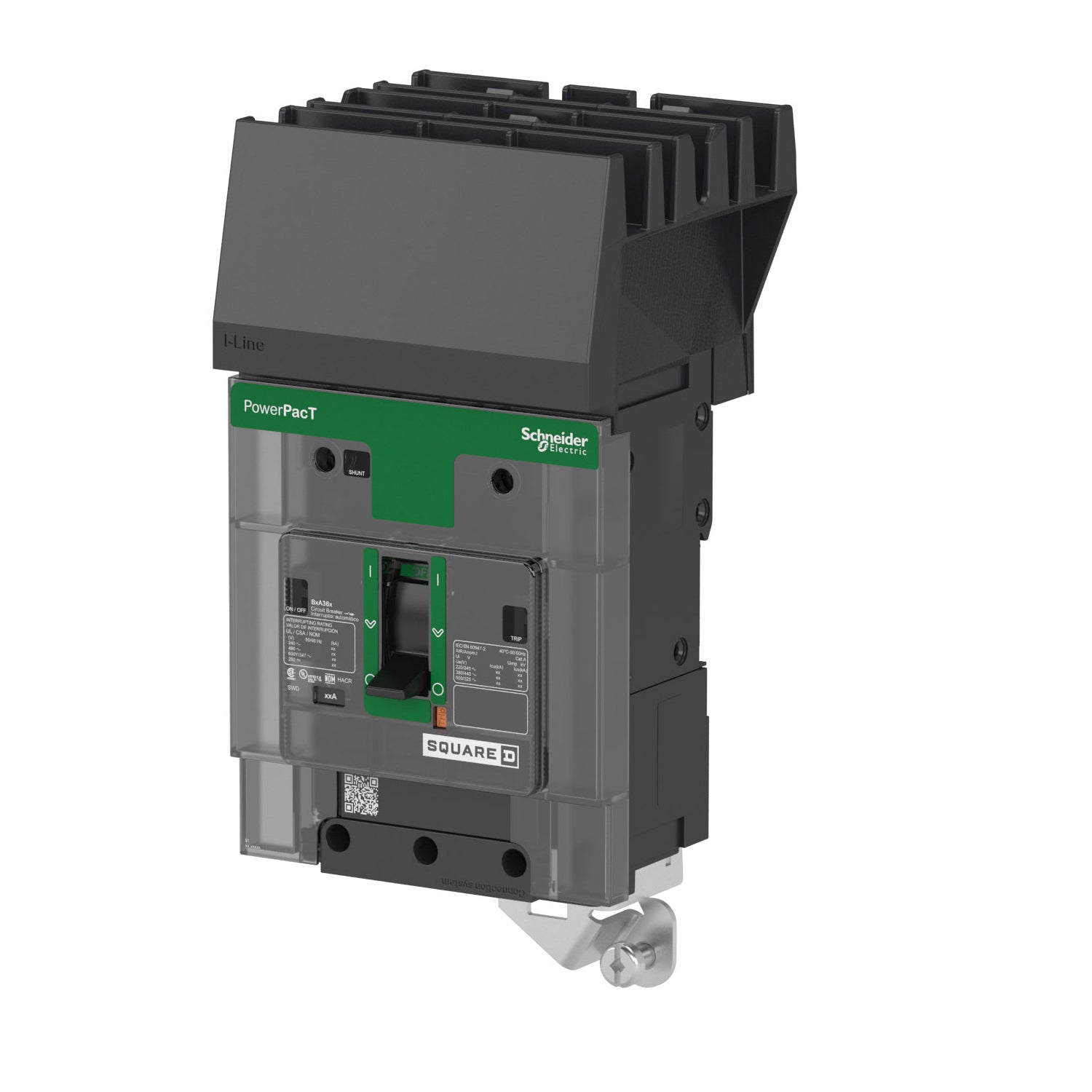

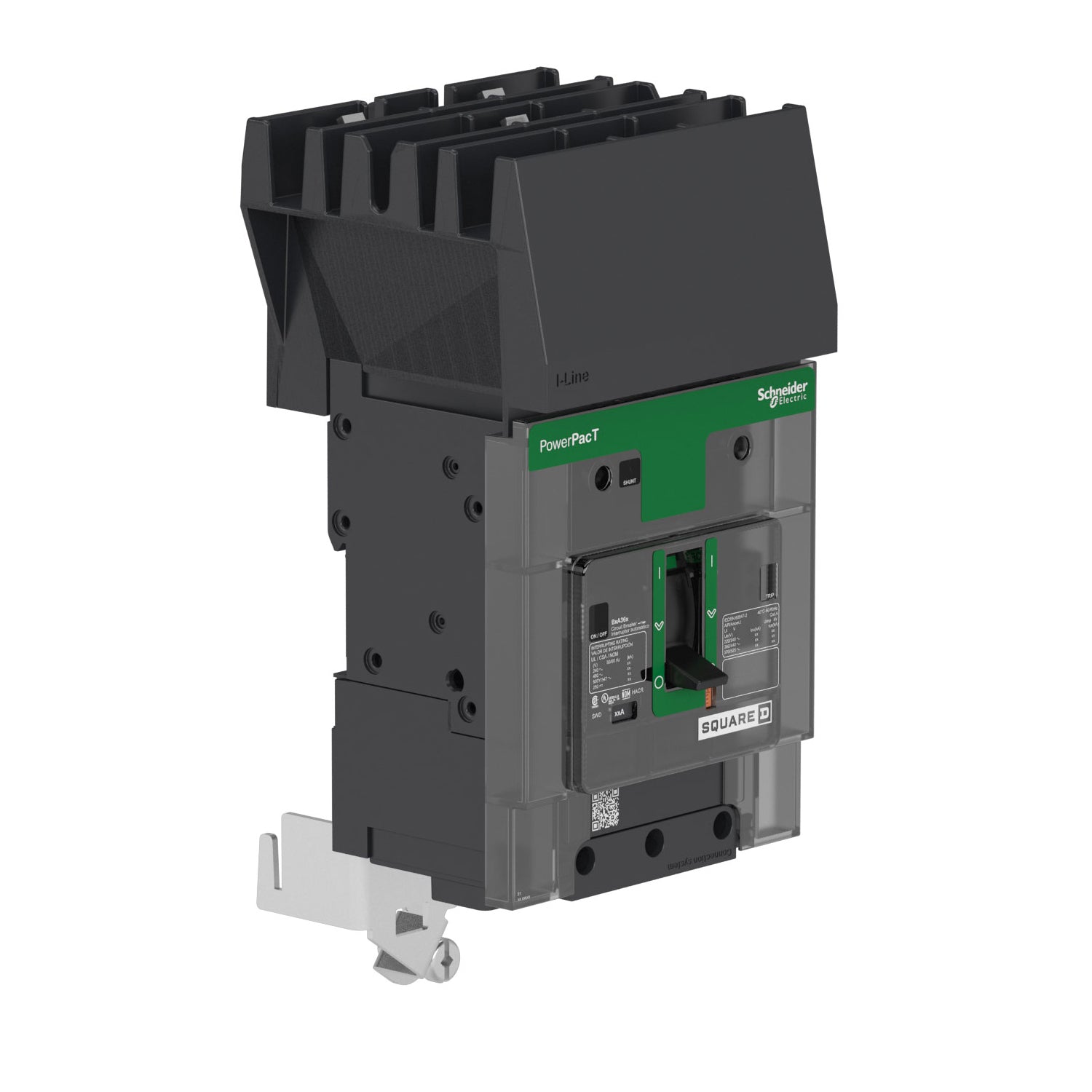

Schneider Electric BJA36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features an 80A current rating and a 600V AC voltage rating, housed within a compact 125A/BJ frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.17 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is engineered to comply with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and aluminum mechanical lugs facilitate installation in electrical distribution equipment and industrial control panels, supporting wire sizes from 14 AWG to 2/0 AWG for both aluminum and copper conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: 125A/BJ
  • Poles: 3
  • AIC Rating: 65kA at 480V

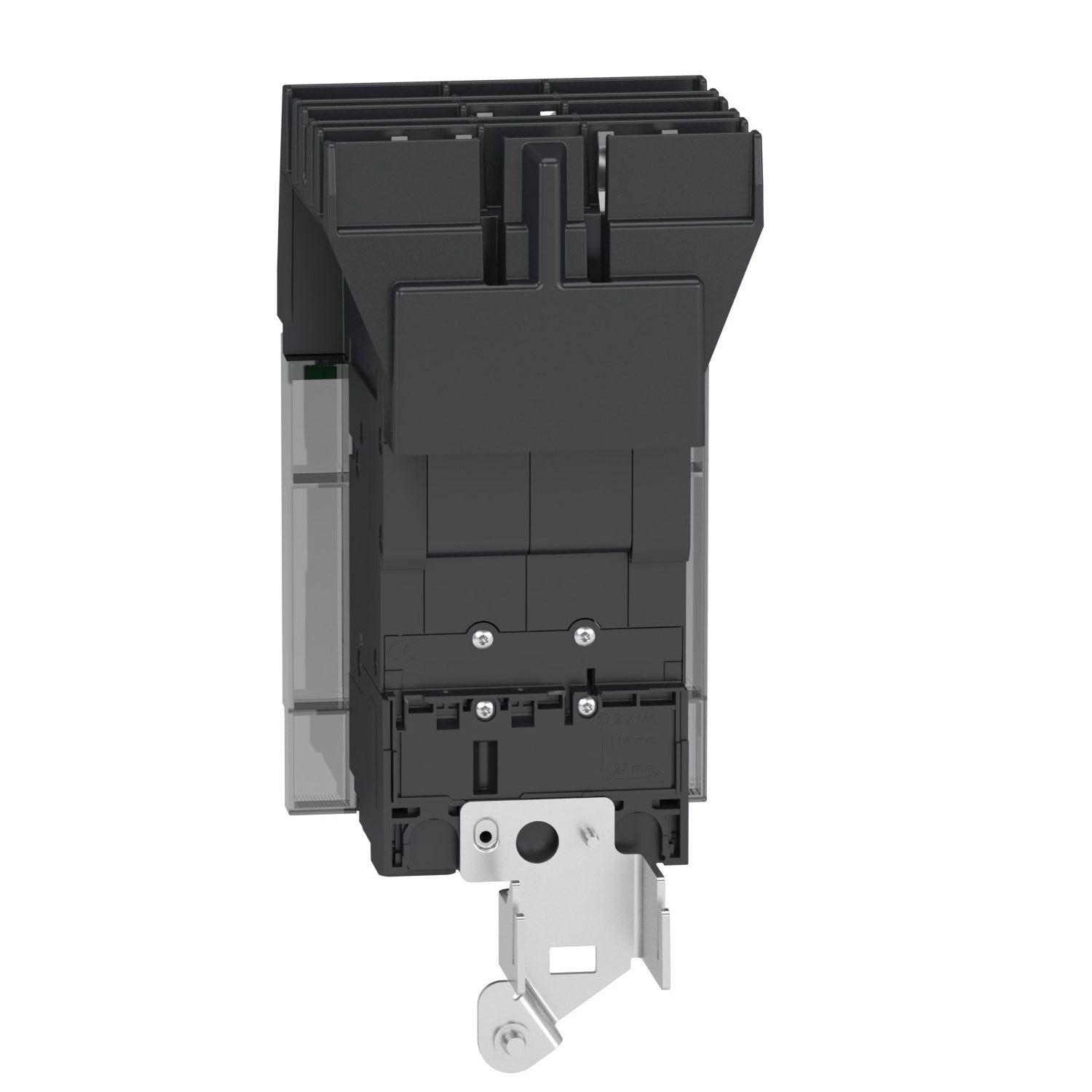

  • Connection: I-Line Style Plug-In; Terminal: Al Mechanical Lug (OFF End)
  • Phase Connection: ABC
  • Wire Size: 14 AWG to 2/0 AWG (Al/Cu)

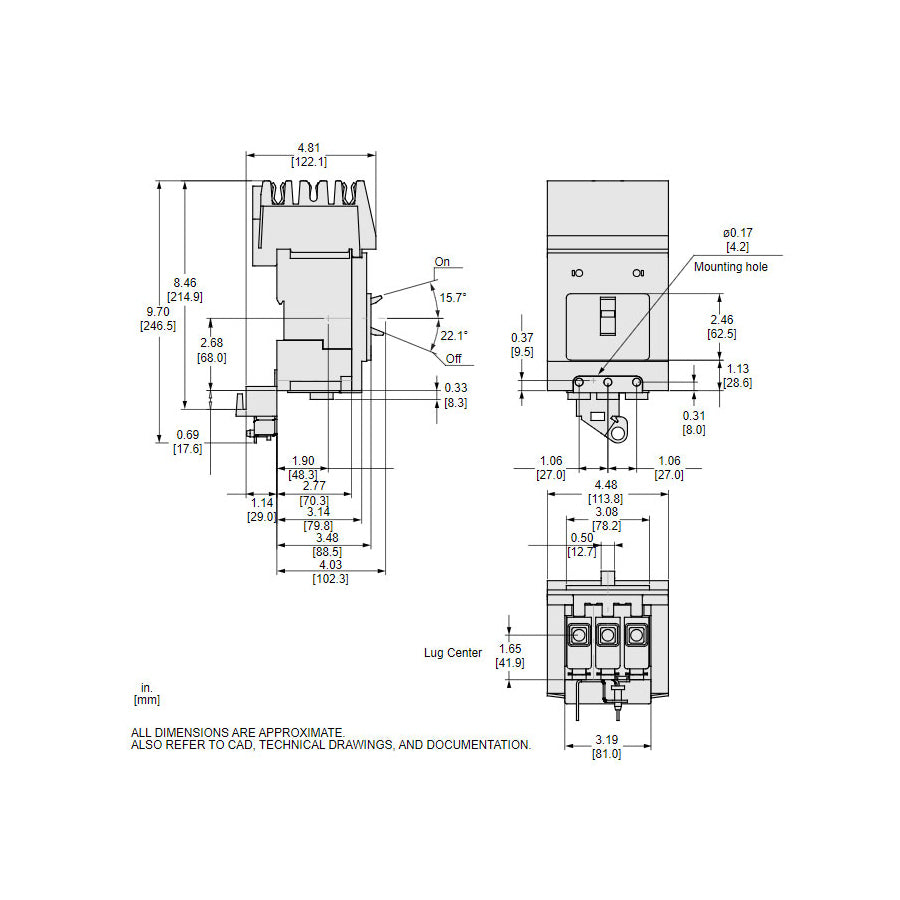

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.17 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481185907
