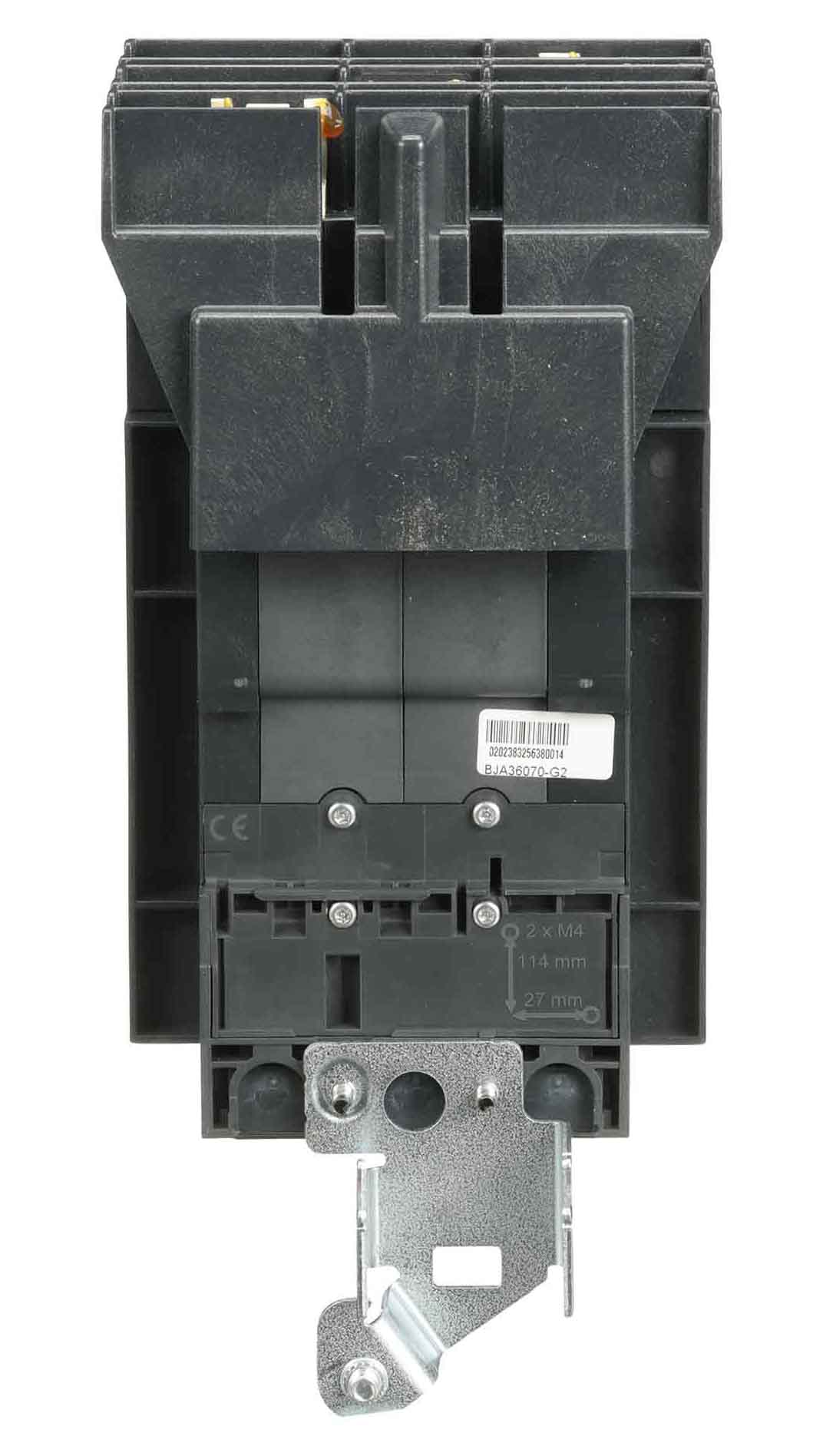

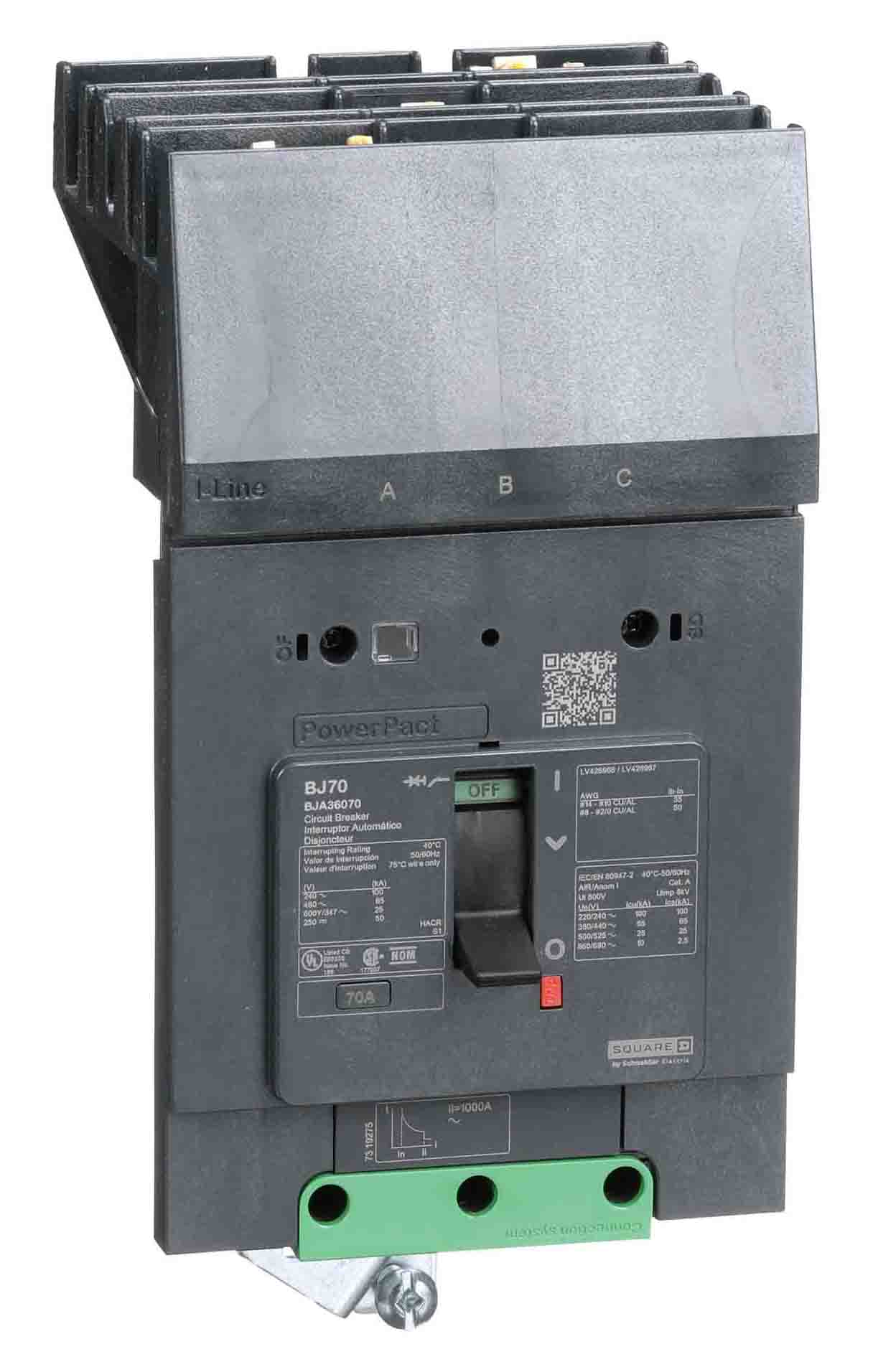

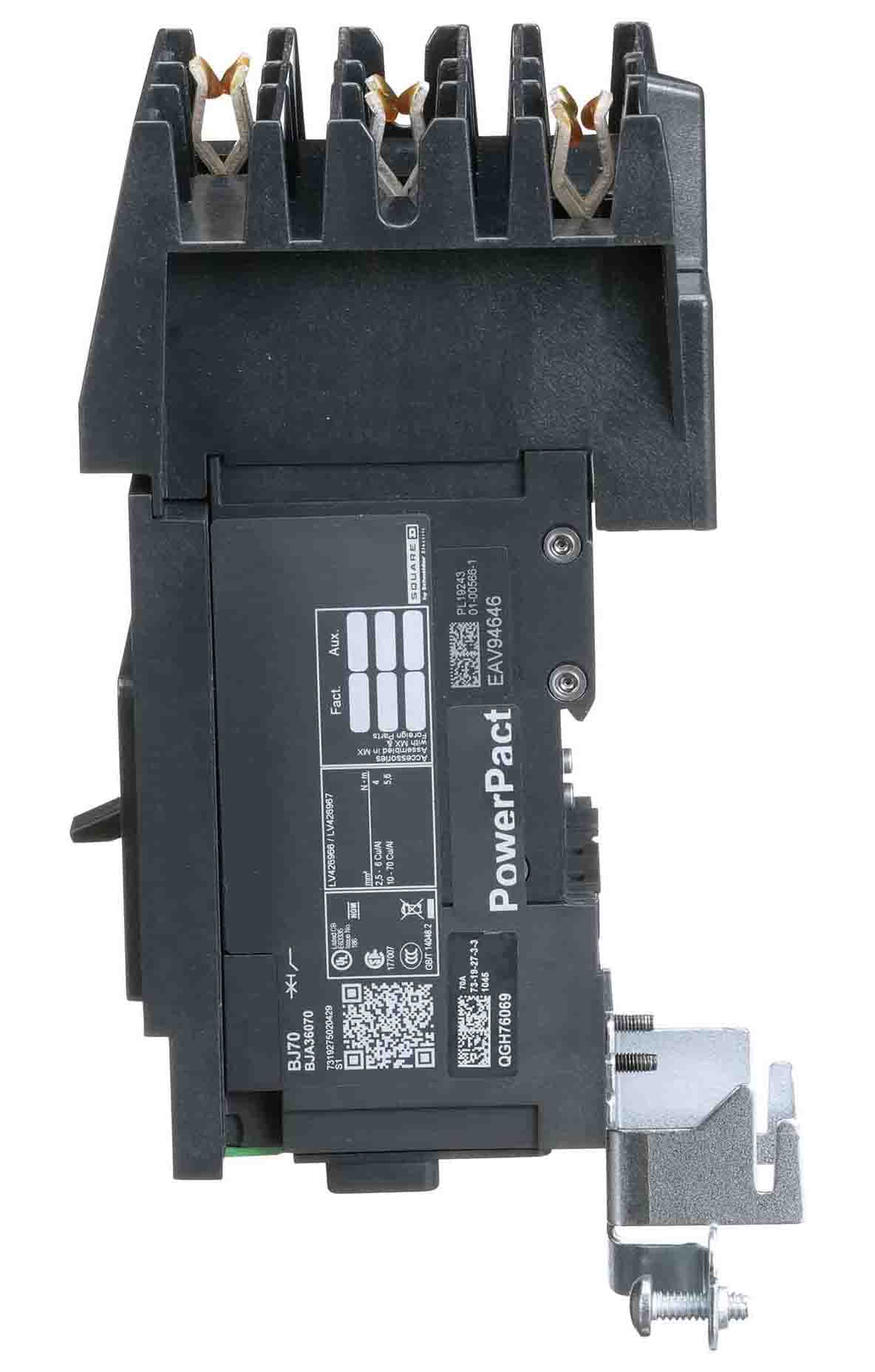

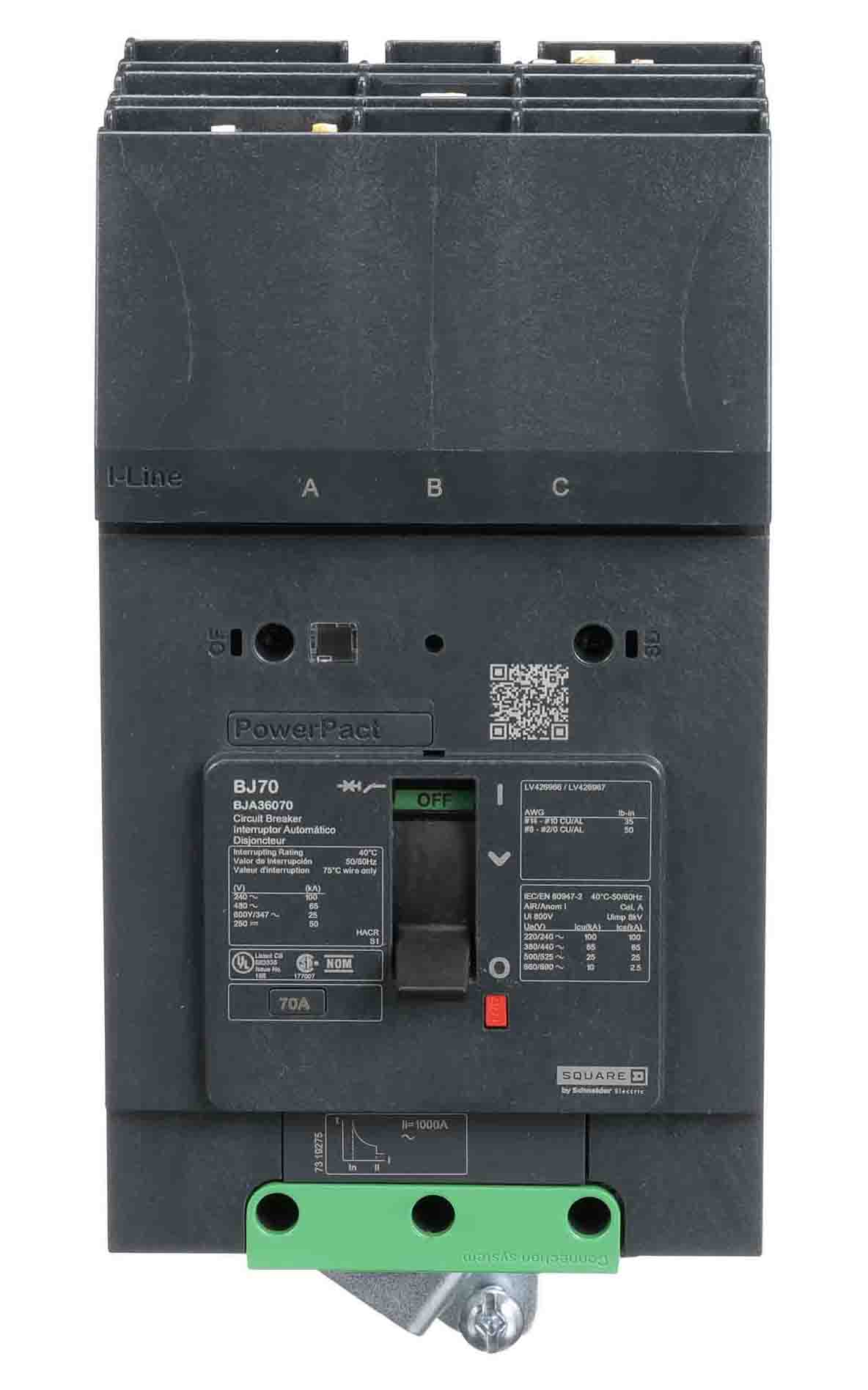

Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P
Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P

Schneider Electric BJA36070 - Molded Case Circuit Breaker 70A 600V 3P

Schneider Electric
Price
Save $1,516.10
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BJA36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 600V voltage rating, housed within a compact 125A/BJ frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.14 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is constructed for operation from -25 to 70 °C, and complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5. Its I-Line style plug-in connection and 65kA interrupting capacity at 480V make it suitable for installation in electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: BJA Standard Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, GB 14048.2, NMX J-266, NEMA AB1
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BJ
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: ABC
  • Weight: 4.14 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 060648118589
  • GTIN: 03606481185891
