Schneider Electric
Price
Save $1,076.67
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

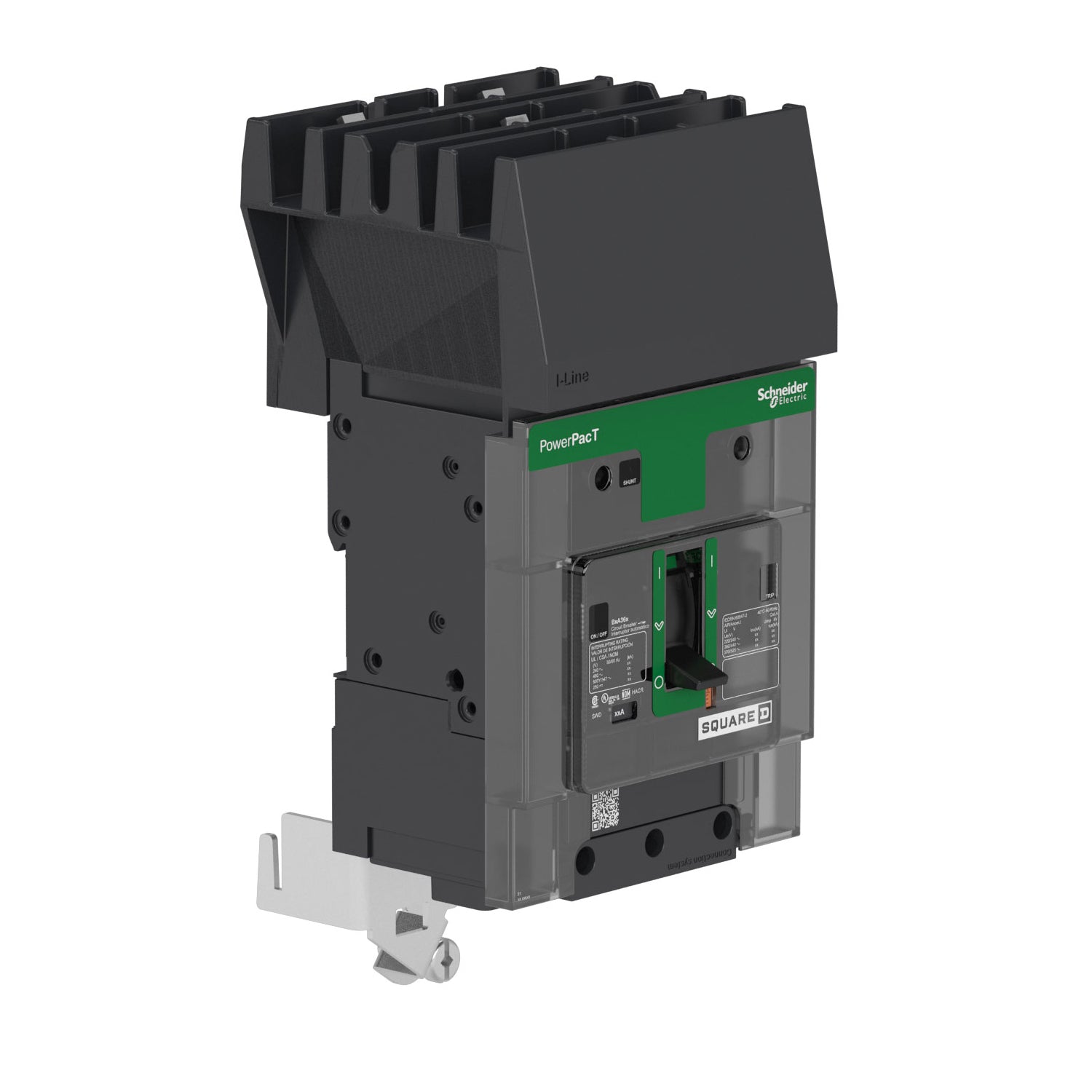

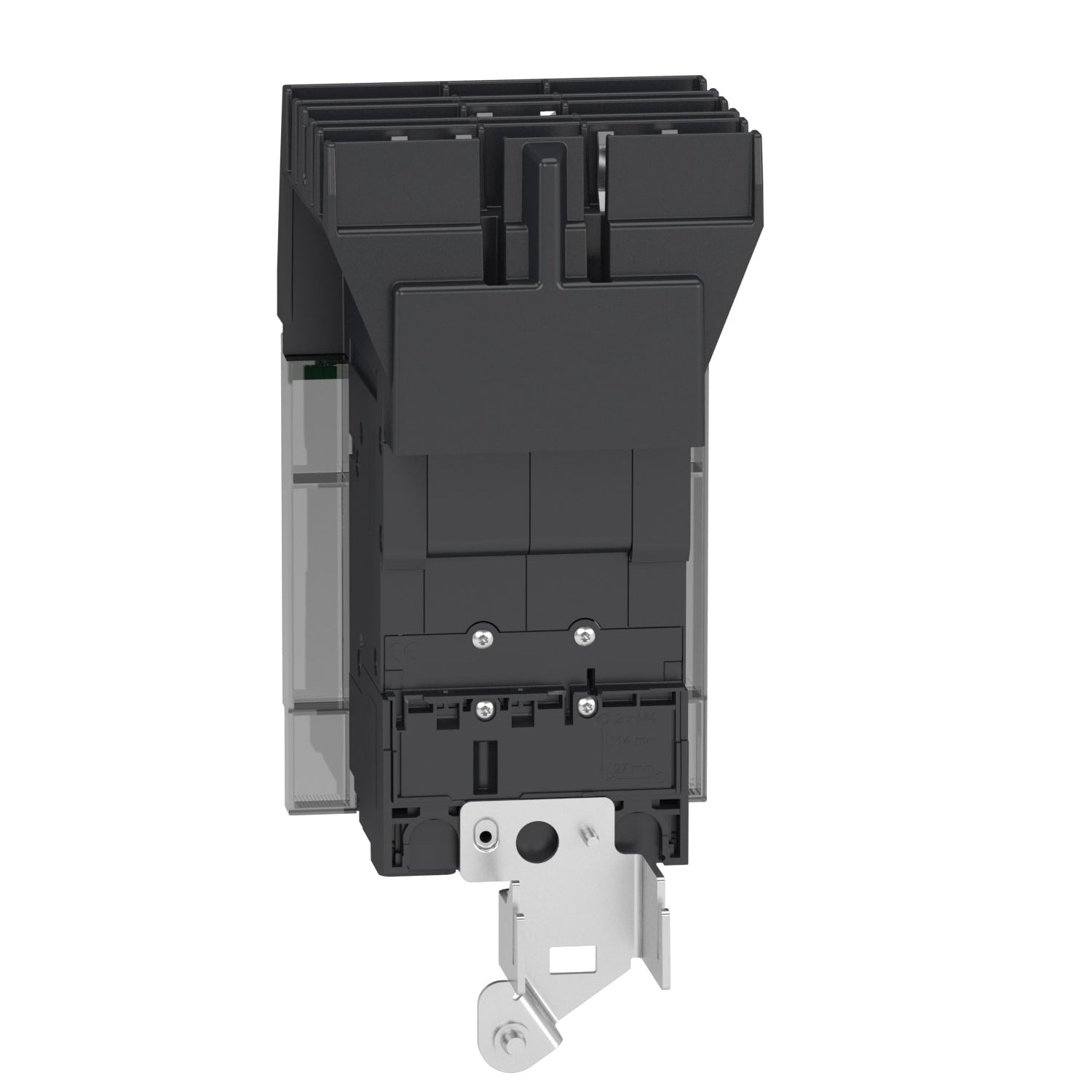

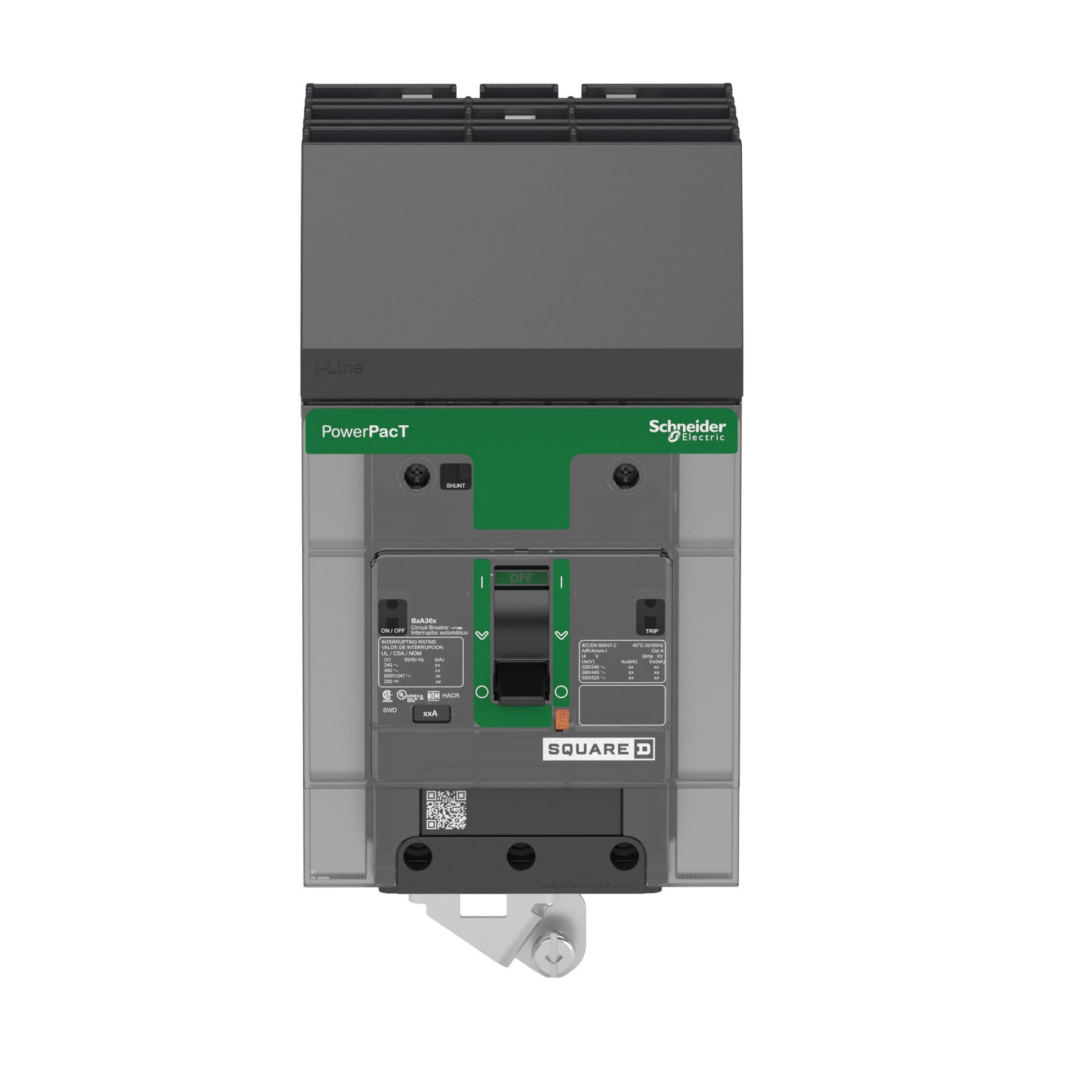

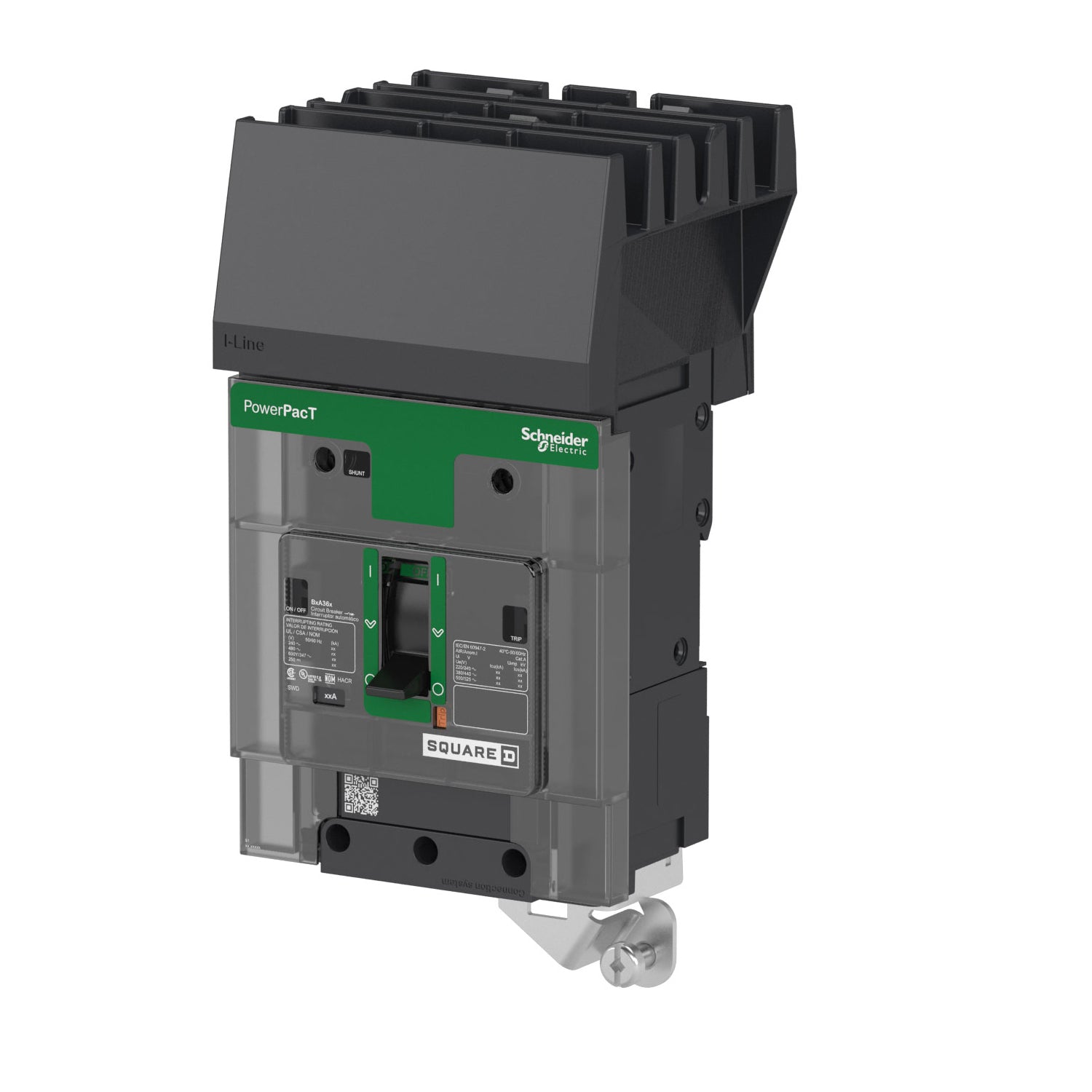

Schneider Electric BJA36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame that weighs 3.821 lb. This thermal-magnetic breaker is constructed for robust performance across an operating temperature range of -25 to 70 °C and complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and 65kA interrupting capacity at 480V make it suitable for integration into electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 60A

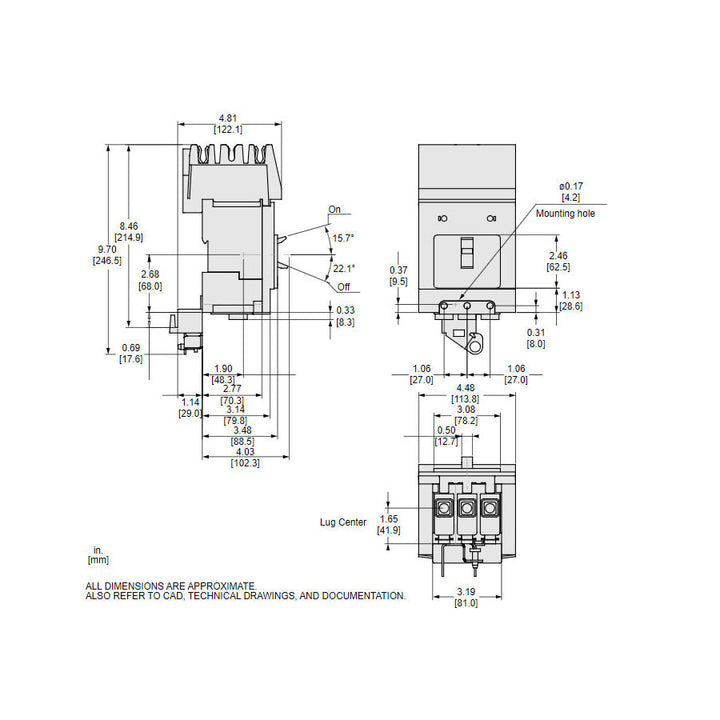

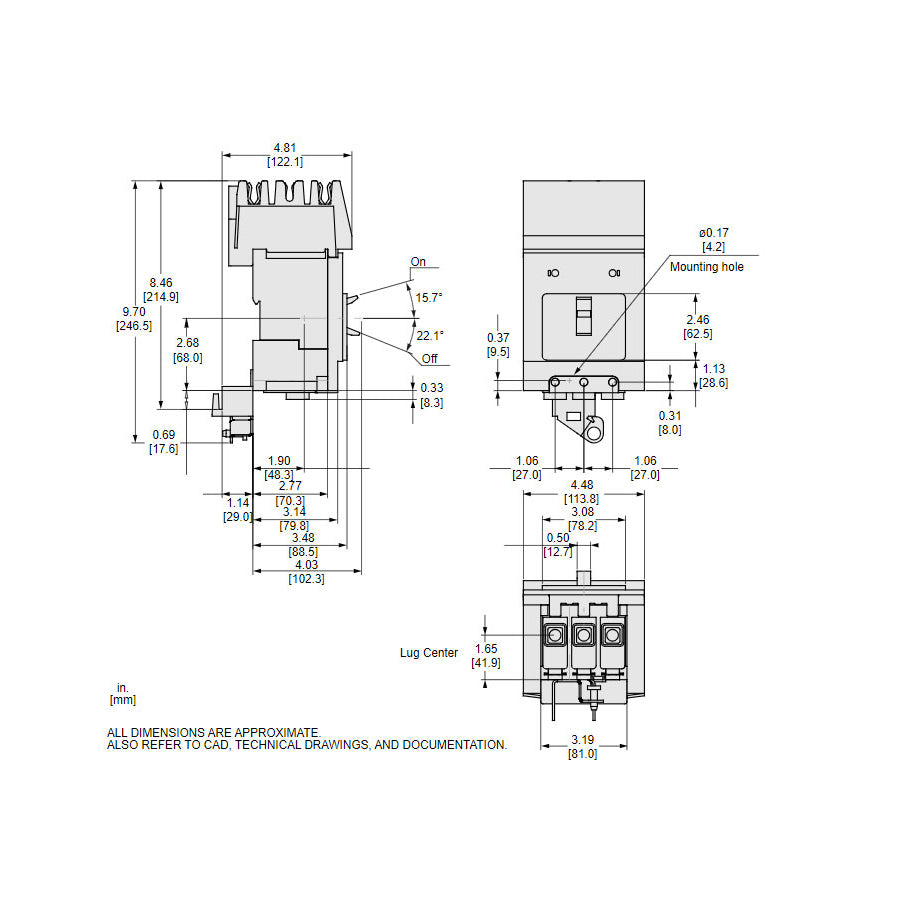

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, GB 14048.2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Shipping Dimensions: Not Specified
  • Phase: 3
  • Amperage: 60A
  • AIC rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BJ
  • Trip Type: Thermal-Magnetic
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Frequency Rating: 50/60 Hz
  • Phase Connection: ABC
  • Compatible Frames: Powerpact Family
  • Installation Type: Plug-In
  • Breaker Frame: 125A/BJ
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481185877
