Schneider Electric
Price
Save $1,132.33
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BJA36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V voltage rating, housed within a compact 125A/BJ frame measuring 137 mm x 81 mm x 89 mm (H x W x D) and weighing 4.21 lb. This thermal-magnetic breaker is constructed for robust performance across an operating temperature range of -25 to 70 °C and complies with key international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and 65kA interrupting capacity at 480V make it suitable for integration into electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Frame Size: 125A/BJ
  • Poles: 3
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Phase Connection: ABC
  • Functions: LI (Long-Time and Instantaneous)
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)

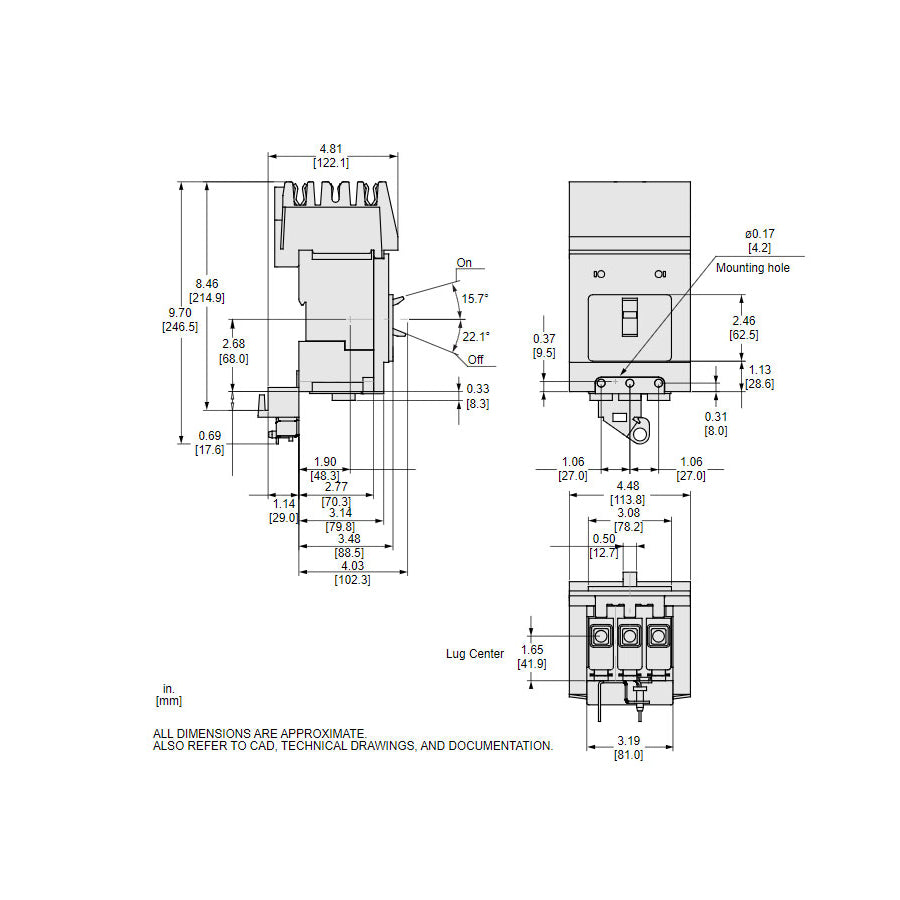

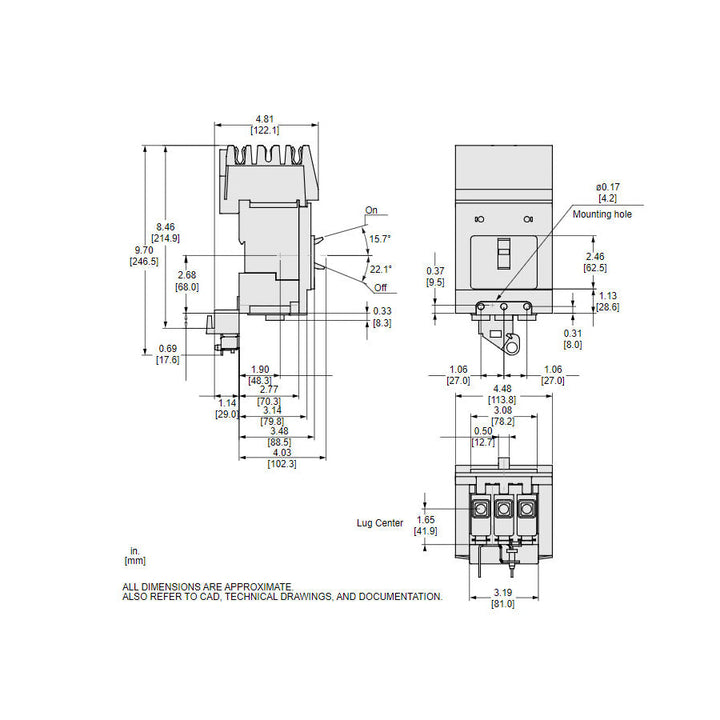

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.21 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards: UL 489, CSA C22.2 No 5, IEC/EN 60947-2, GB 14048.2, NMX J-266, NEMA AB1
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481185860
