Schneider Electric
Price
Save $1,156.06
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

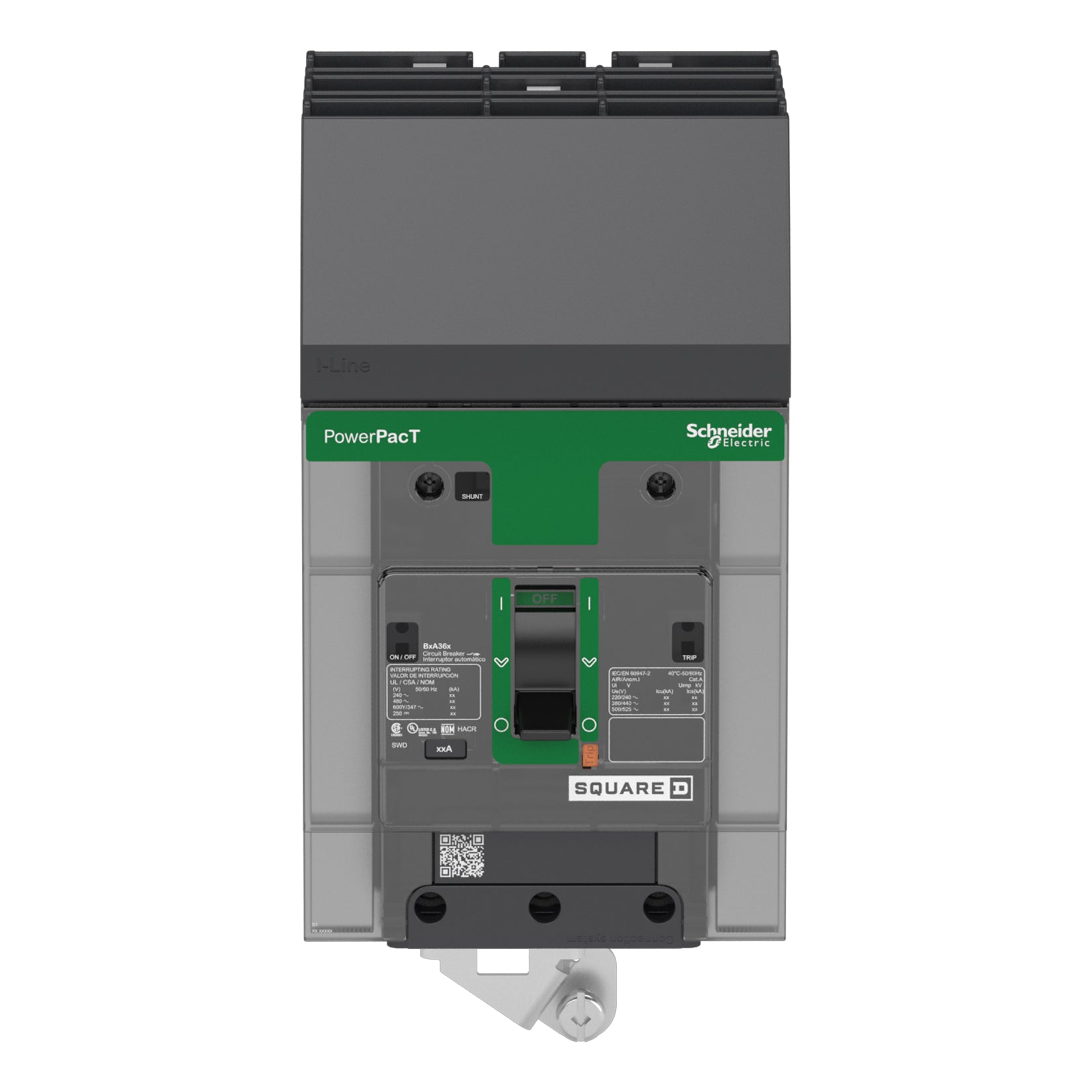

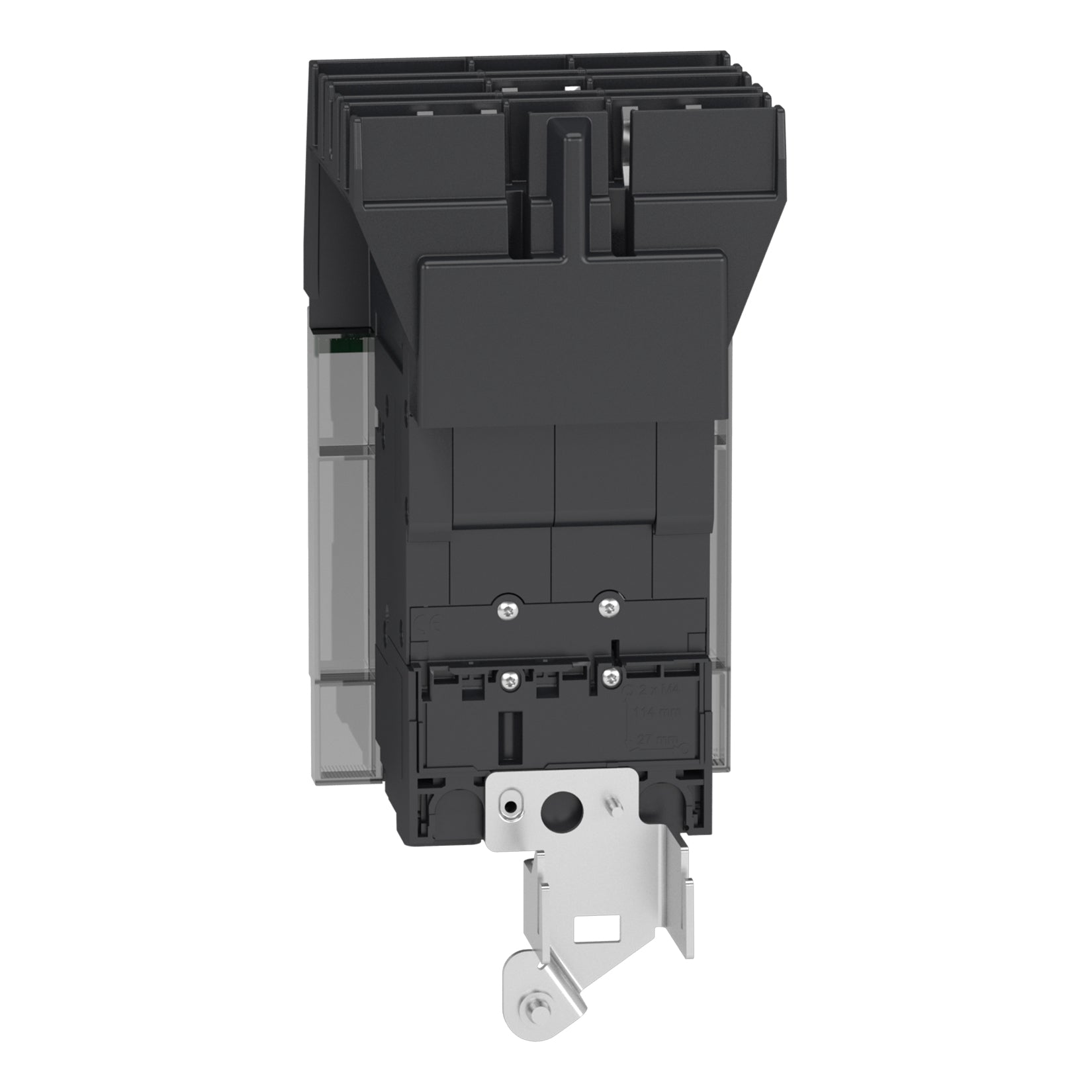

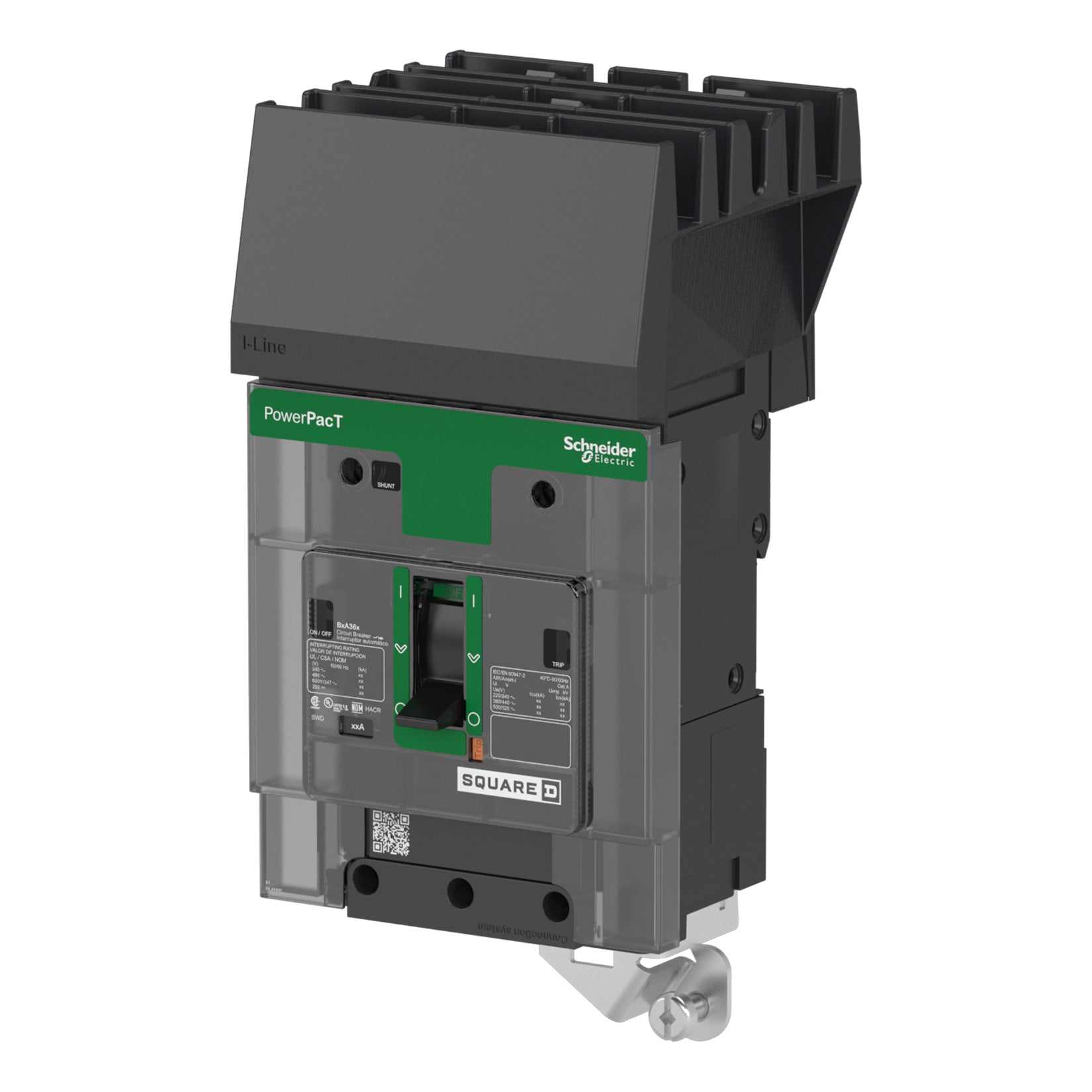

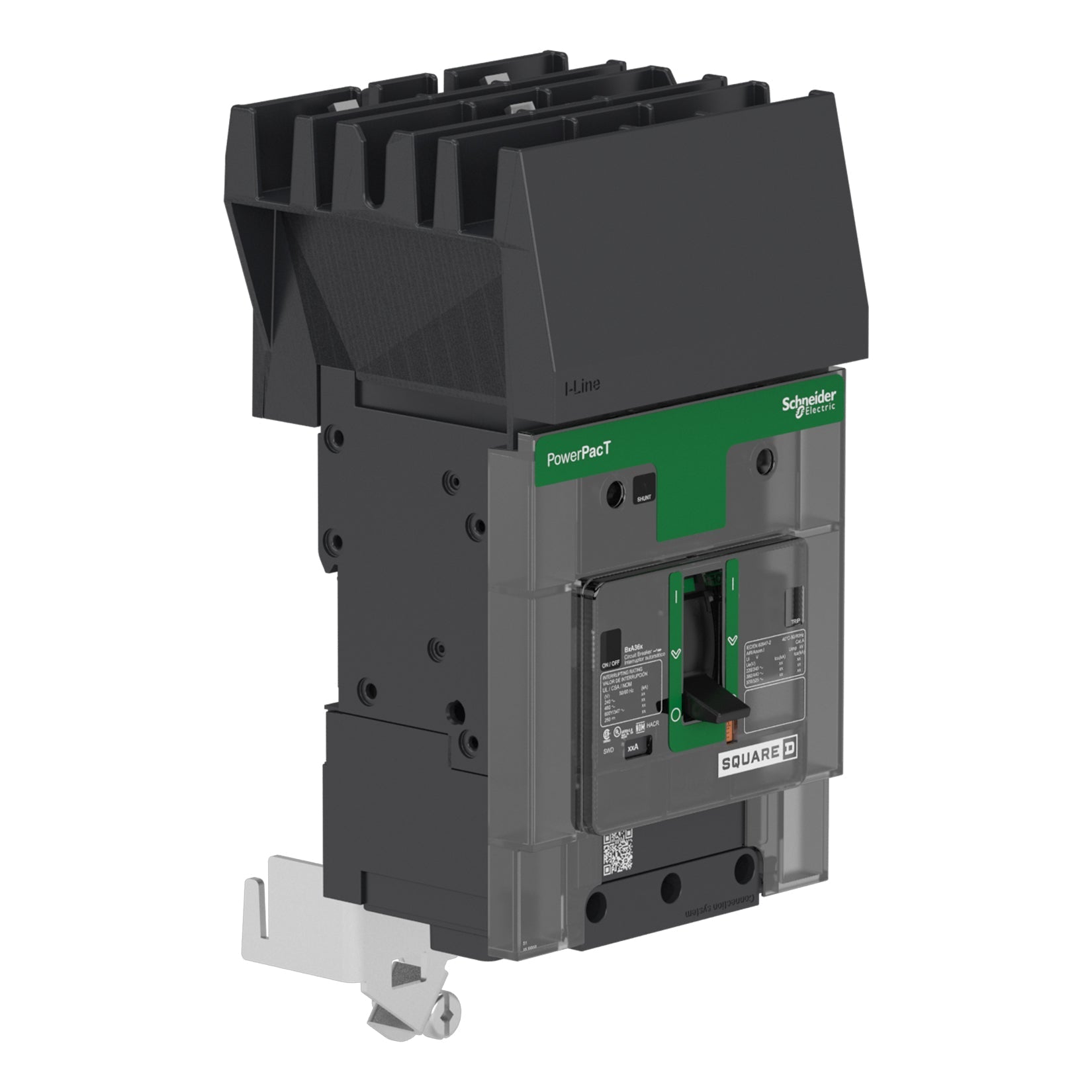

Schneider Electric BJA36040 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (H x W x D) frame that weighs 4.17 lb. The breaker is constructed with thermal-magnetic protection for long-time and instantaneous (LI) trip functions and complies with key industry standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line plug-in connection and 65kA interrupting capacity at 480V make it suitable for installation in electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Frame Size: 125A/BJ
  • Poles: 3
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Phase Connection: ABC
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.17 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NEMA AB1, NMX J-266, GB 14048.2
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481185846
