Schneider Electric
Price
Save $1,204.94
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

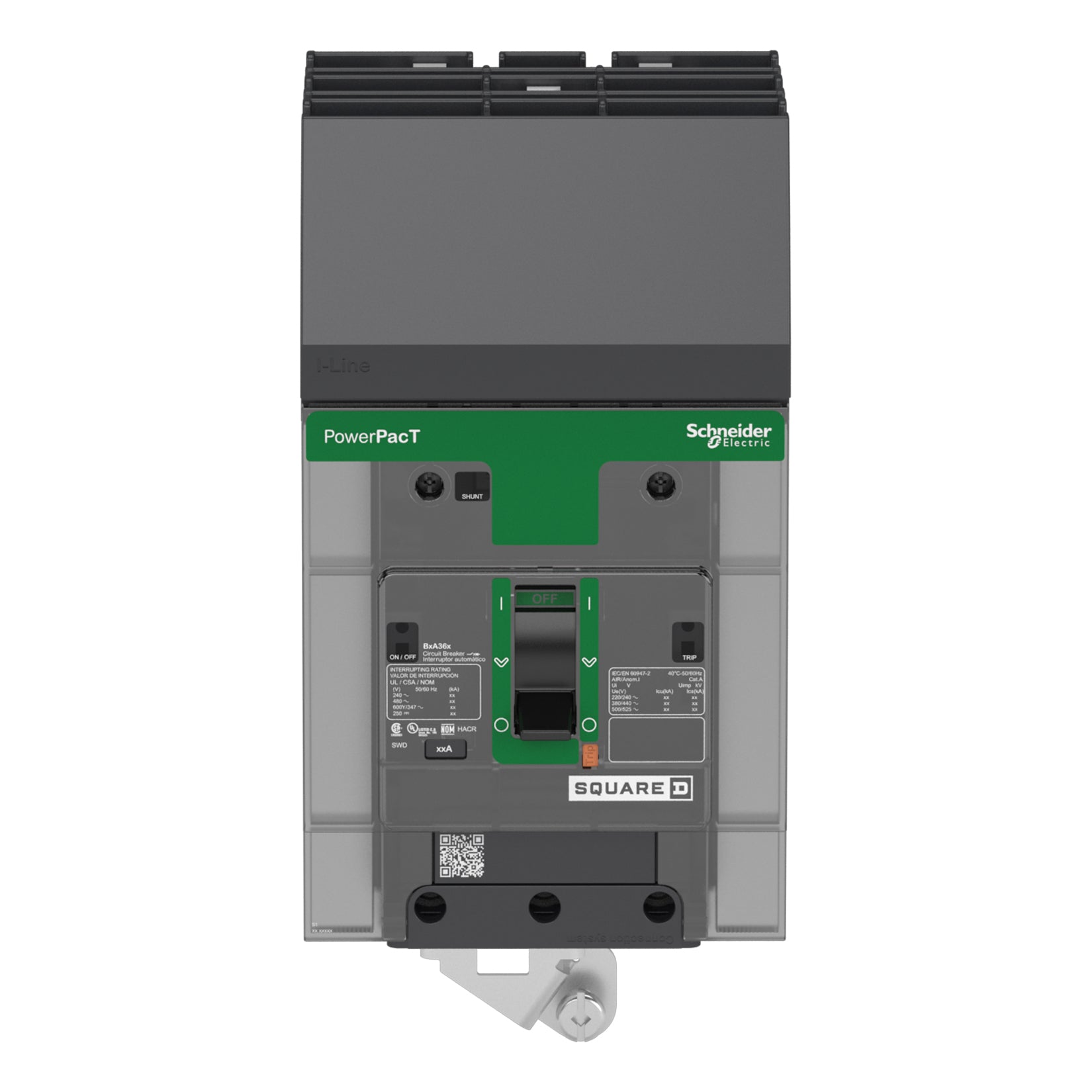

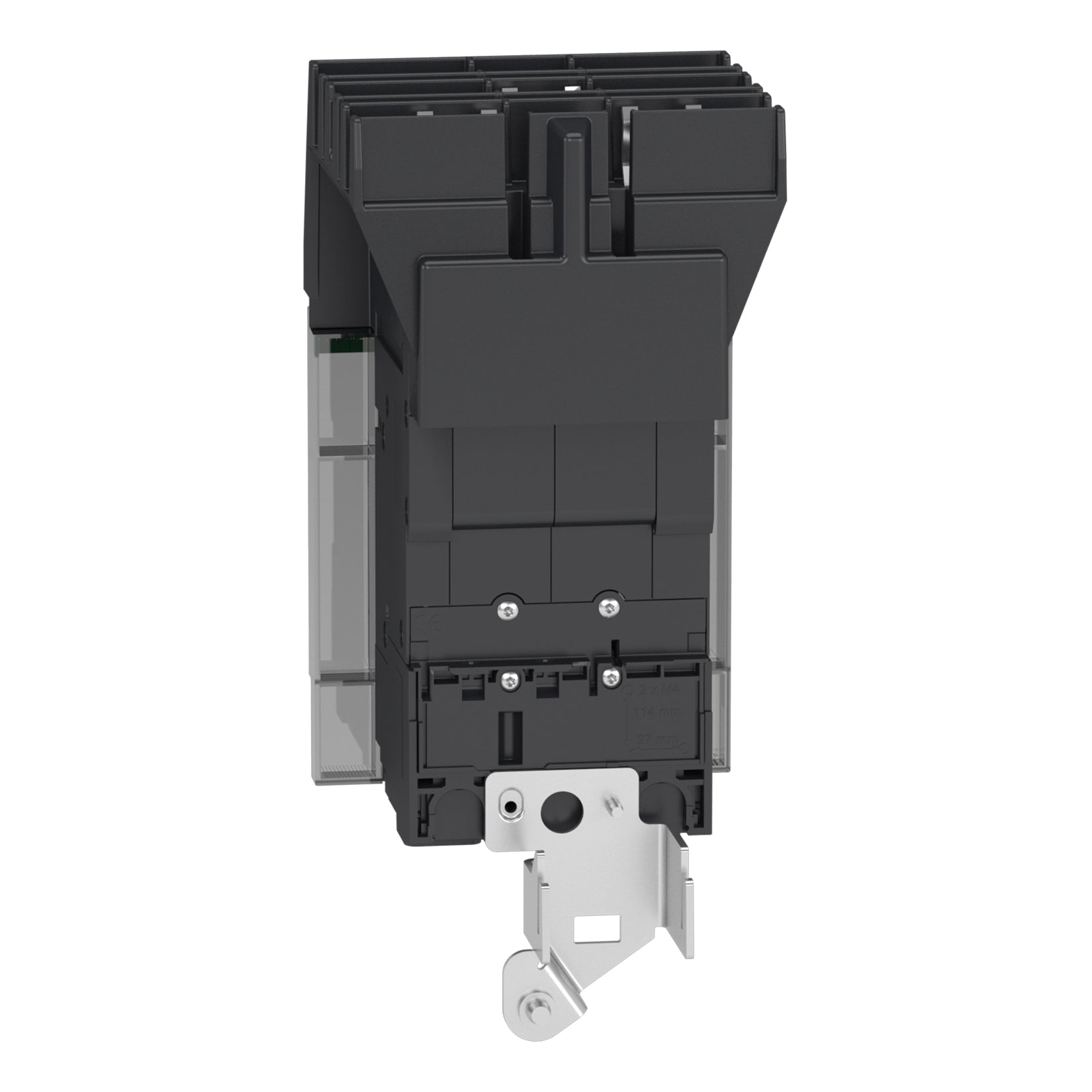

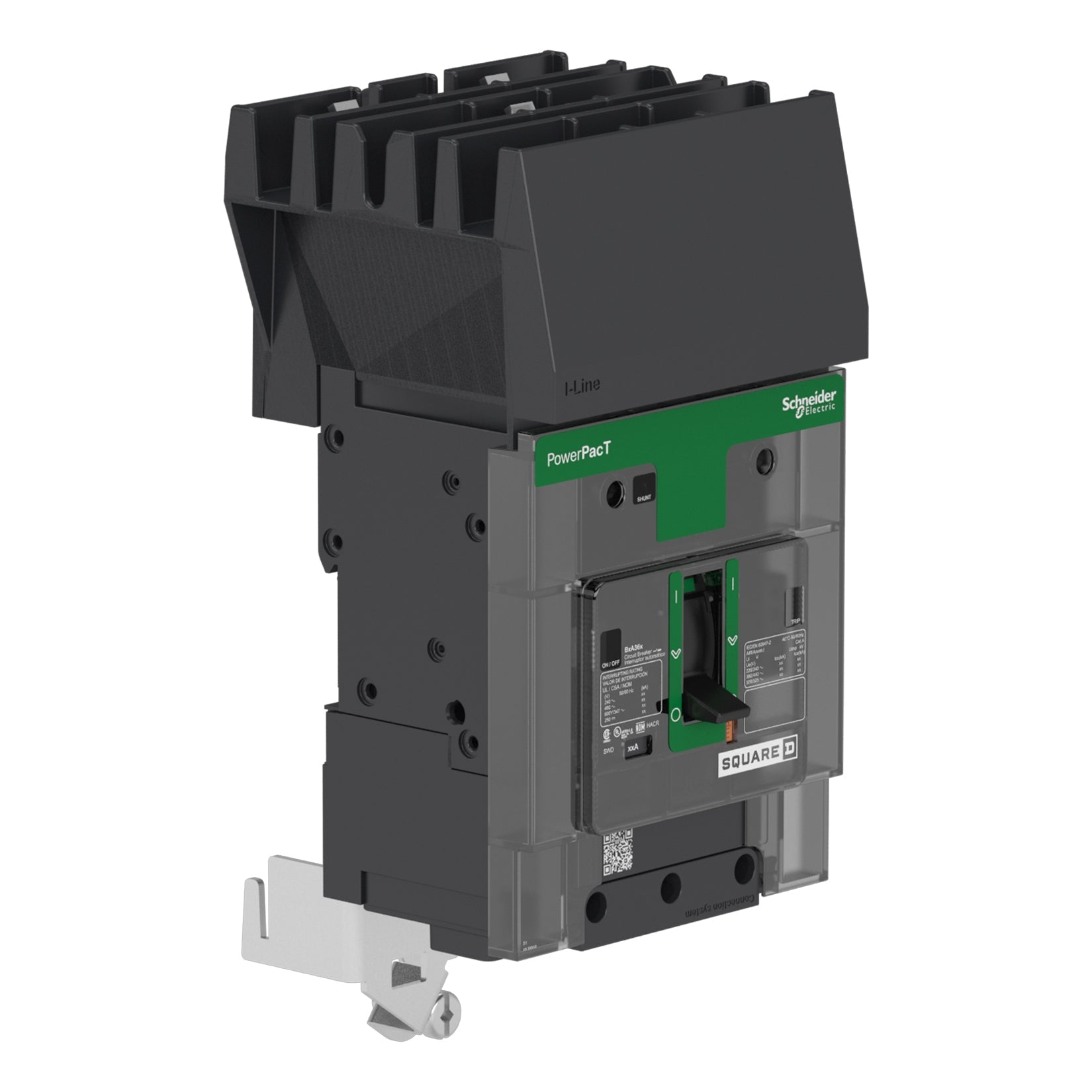

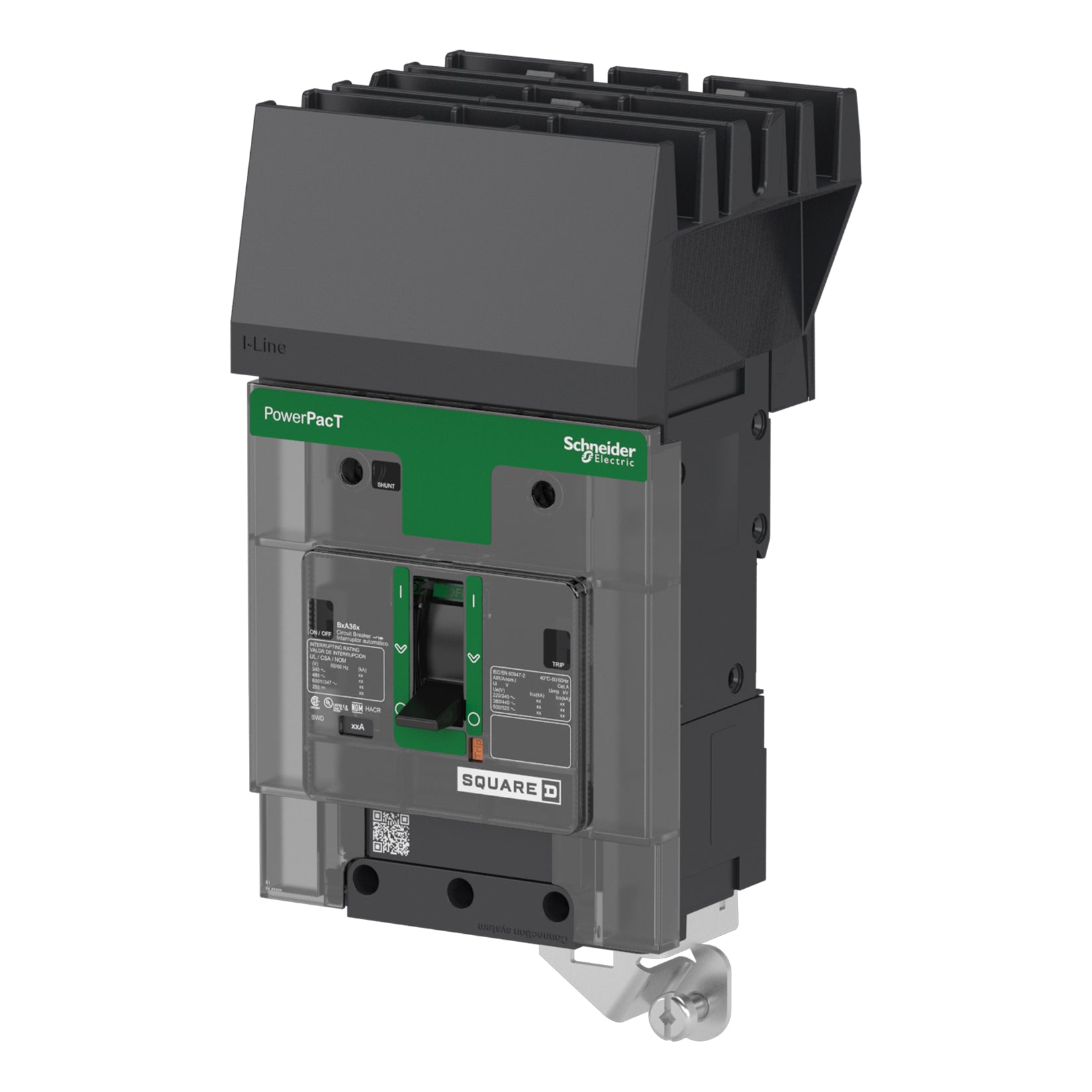

Schneider Electric BJA36030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 600V voltage rating, housed within a compact 125A/BJ frame measuring 137 mm x 81 mm x 89 mm (H x W x D) and weighing 4.17 lb. The breaker is constructed for compliance with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5, and utilizes a thermal-magnetic trip unit offering long-time and instantaneous (LI) protection functions. Its I-Line style plug-in connection and aluminum mechanical lug terminals facilitate installation in industrial control panels and electrical distribution equipment, supporting wire sizes from AWG 14 to AWG 2/0 and operating in temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.17 lb
  • Standards: UL 489, EN/IEC 60947-2, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266, EN/IEC 60947-5-1
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 65kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BJ
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: ABC
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481154309
