Schneider Electric
Price
Save $1,112.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

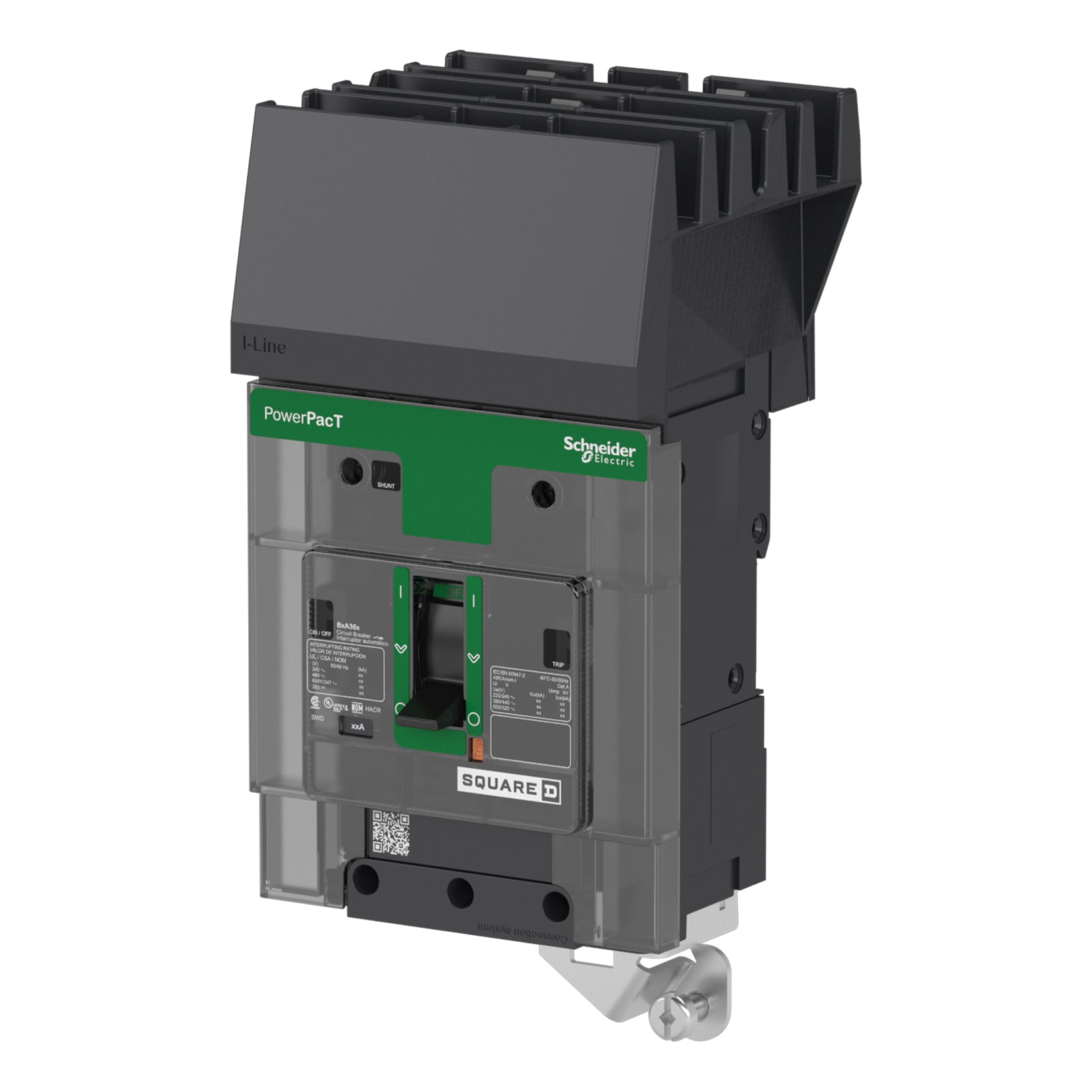

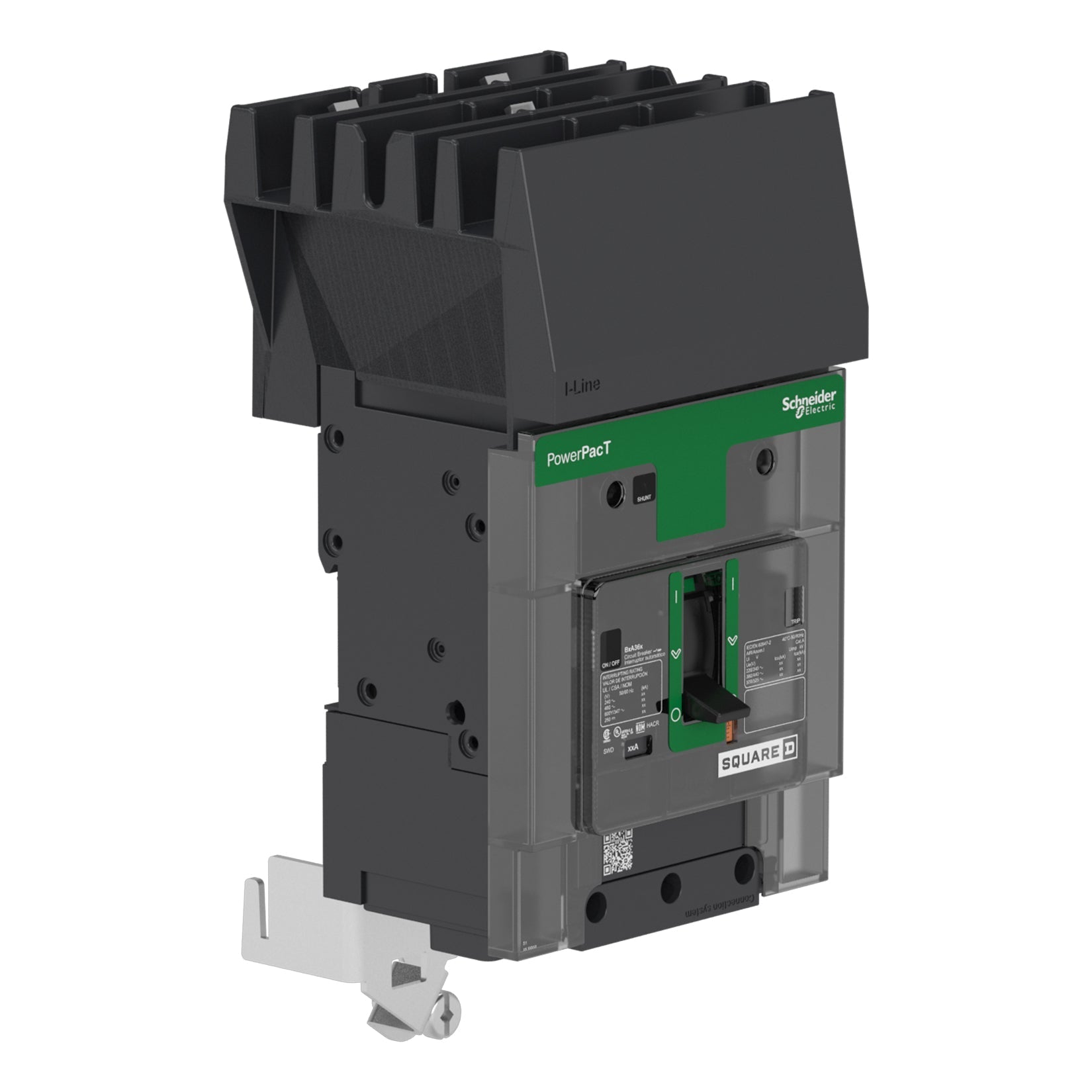

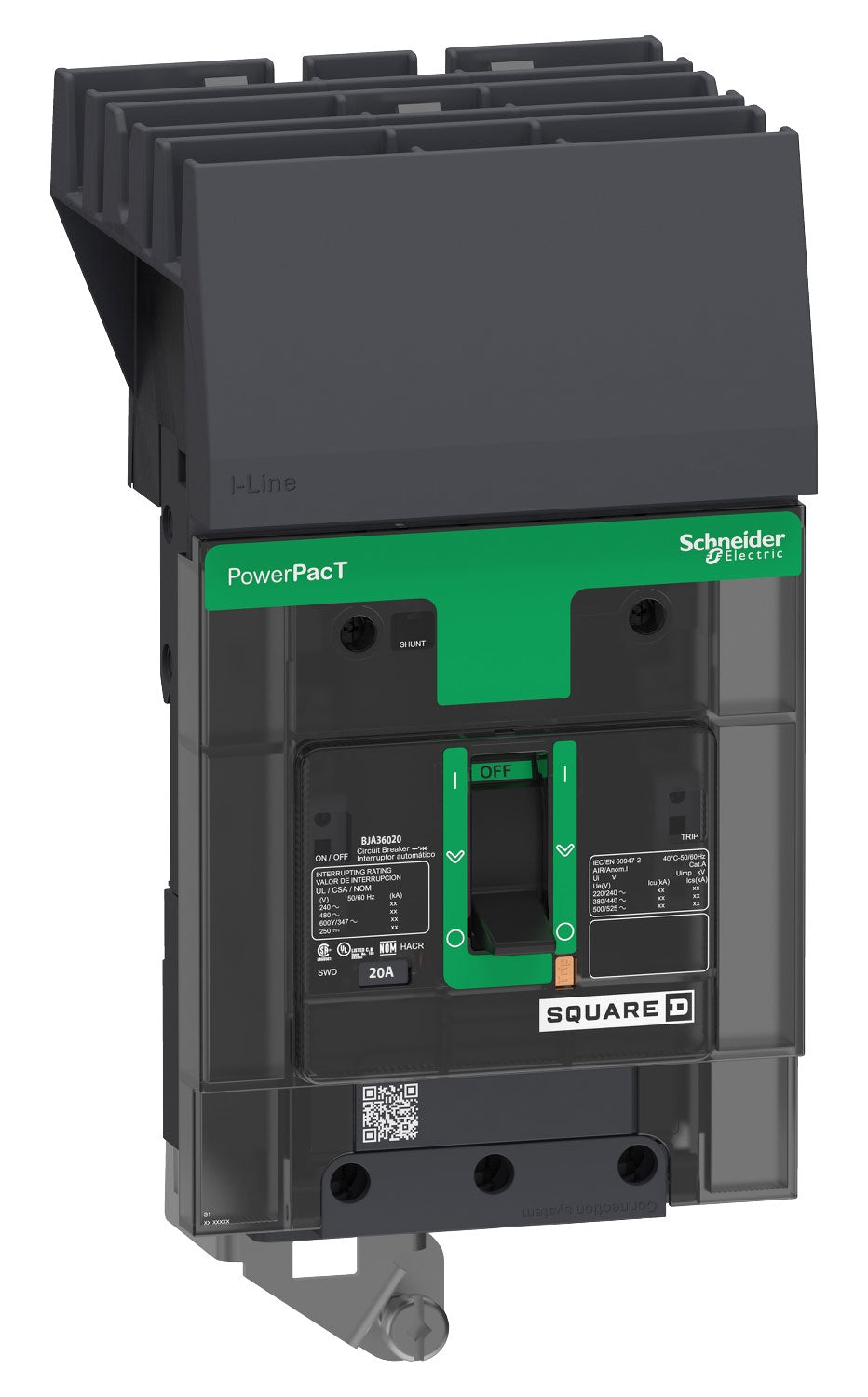

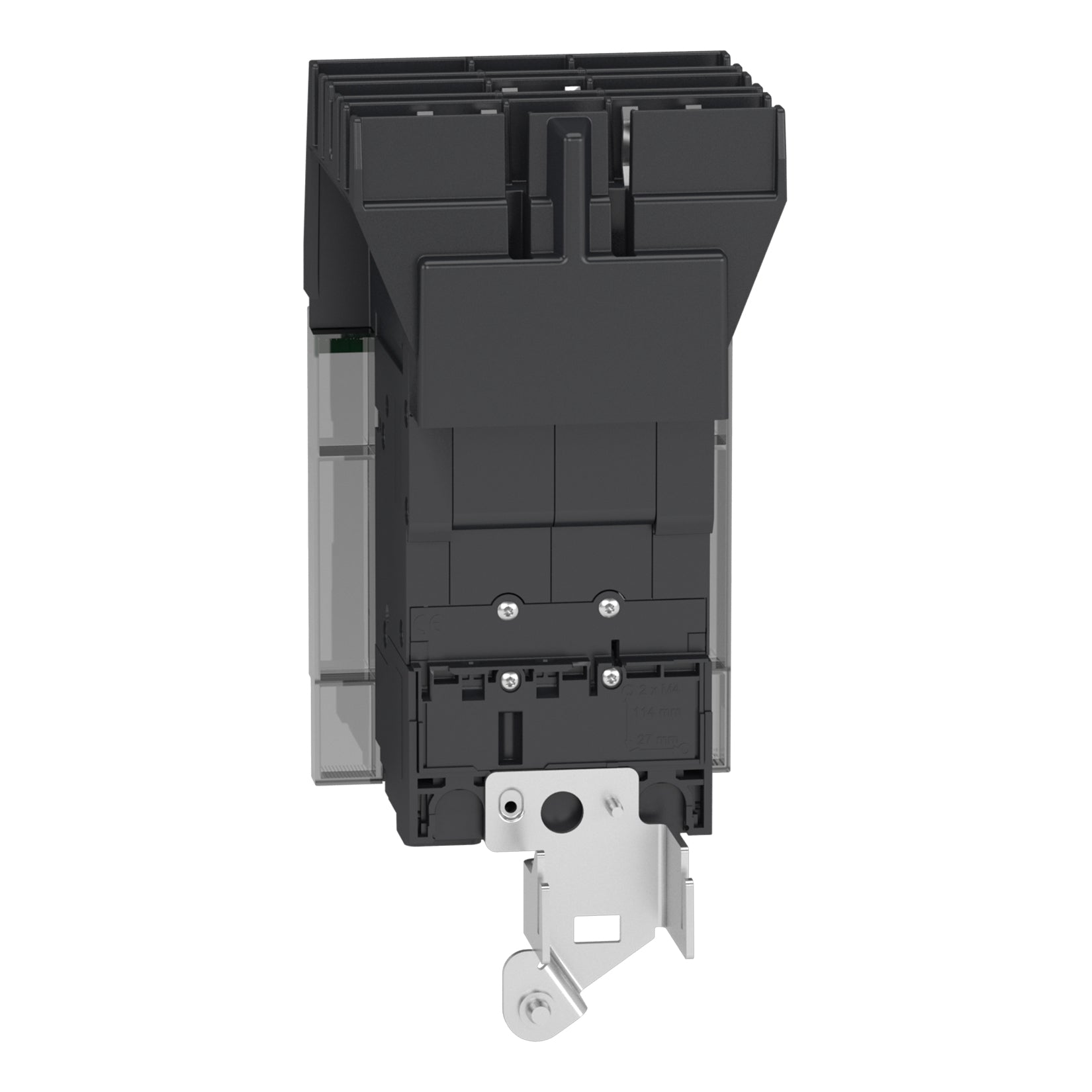

Schneider Electric BJA36020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 20A current rating and a 600V voltage rating, housed within a compact 125A/BJ frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.1 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is constructed for operation in temperatures from -25 to 70 °C. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, making it suitable for installation in industrial control panels and electrical distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Frame Size: 125A/BJ
  • Poles: 3
  • AIC Rating: 65kA at 480V
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Wire Size Range: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Phase Connection: ABC
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, NEMA AB1, GB 14048.2, NMX J-266
  • Certification: UL, CSA, IEC, CCC, EAC, NOM

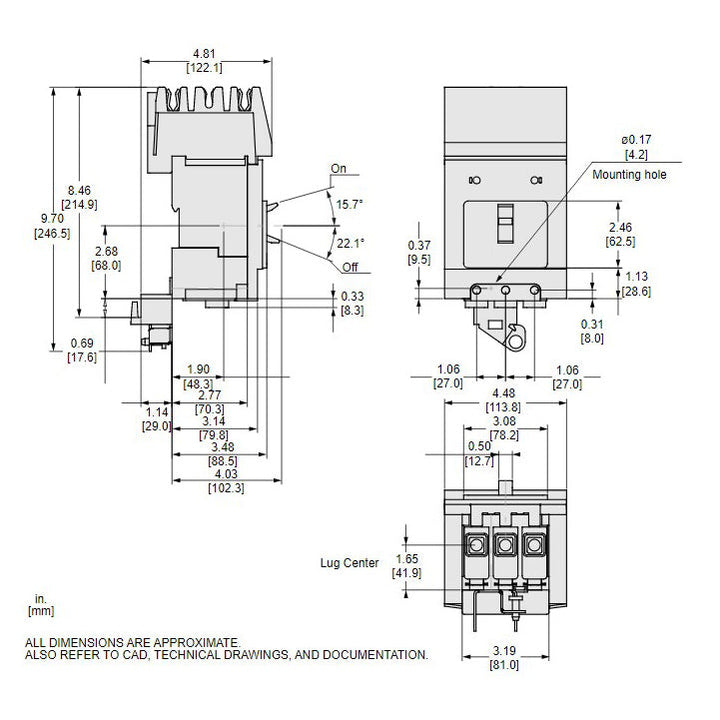

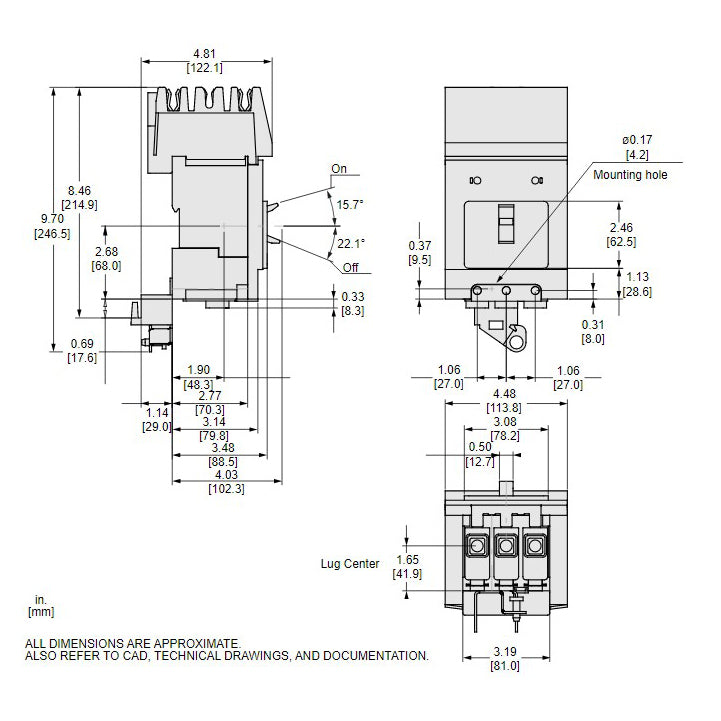

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.1 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481154248
