Schneider Electric
Price
Save $1,101.27
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

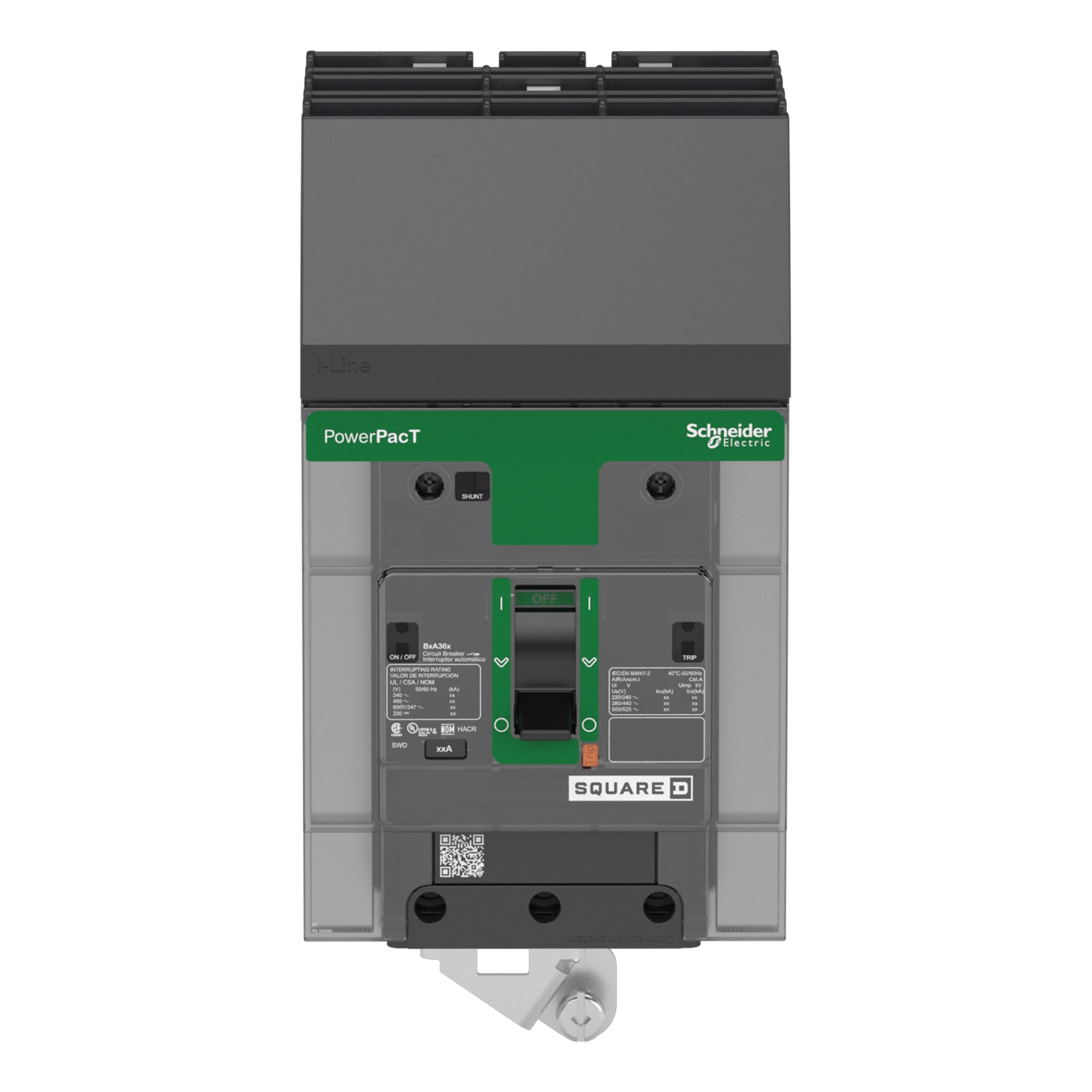

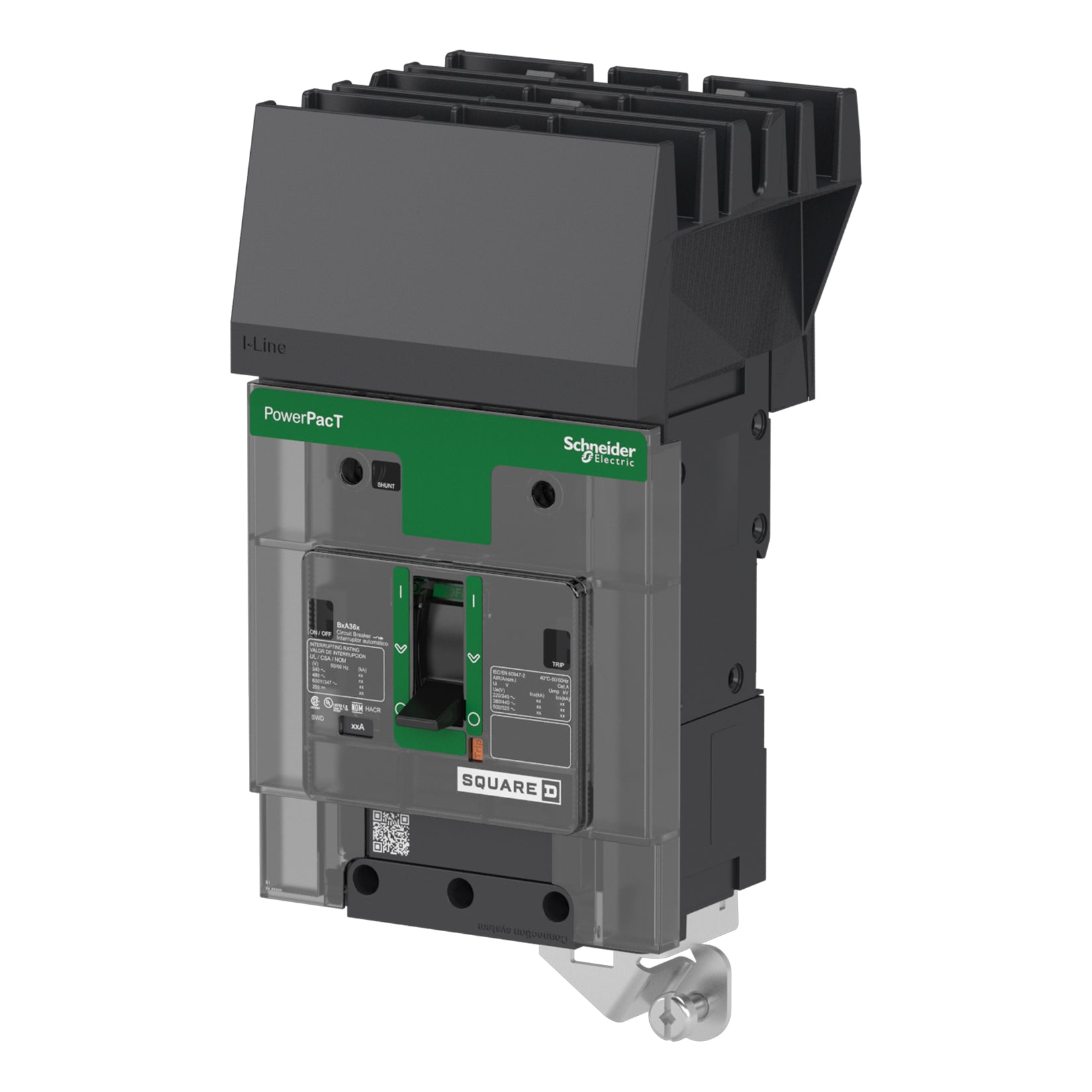

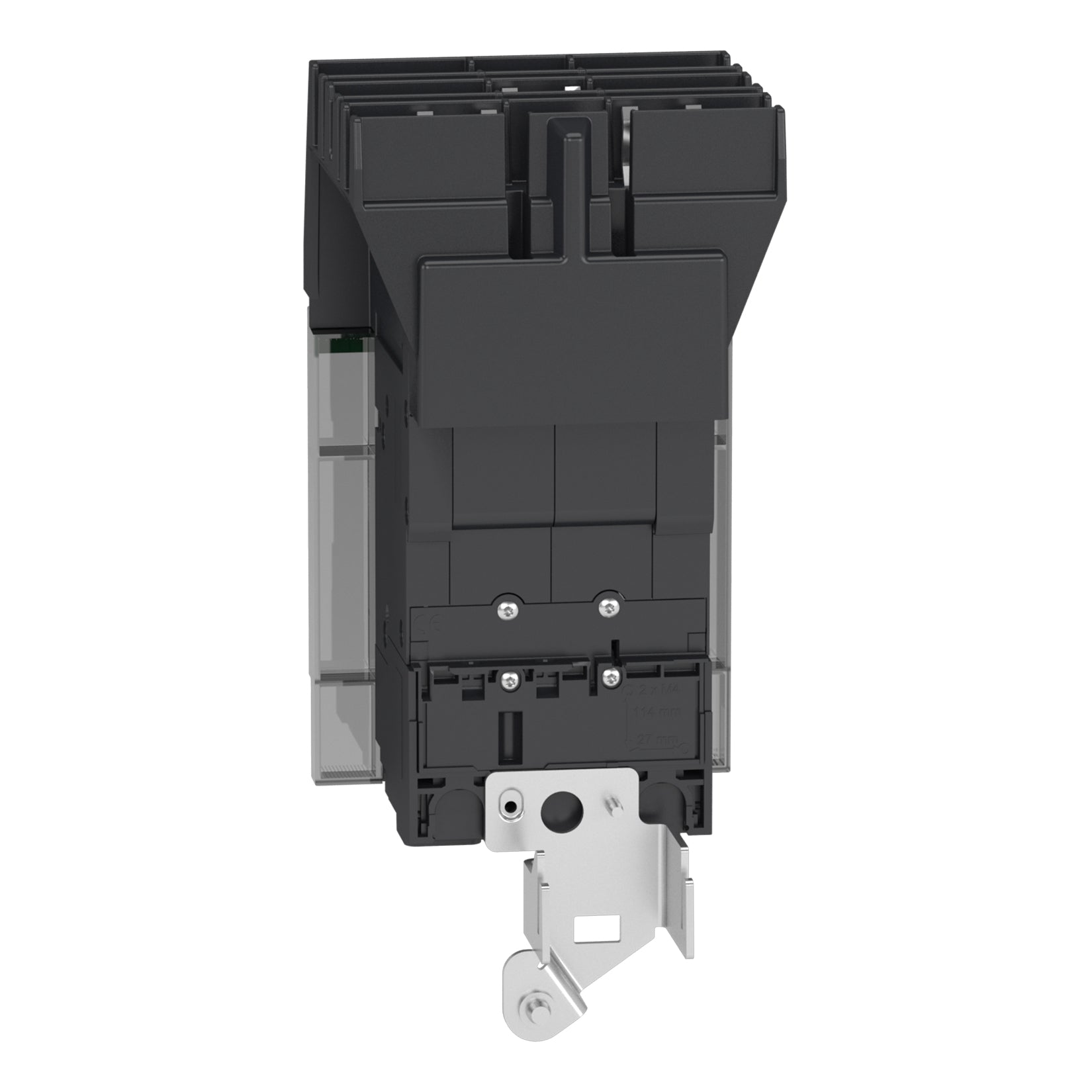

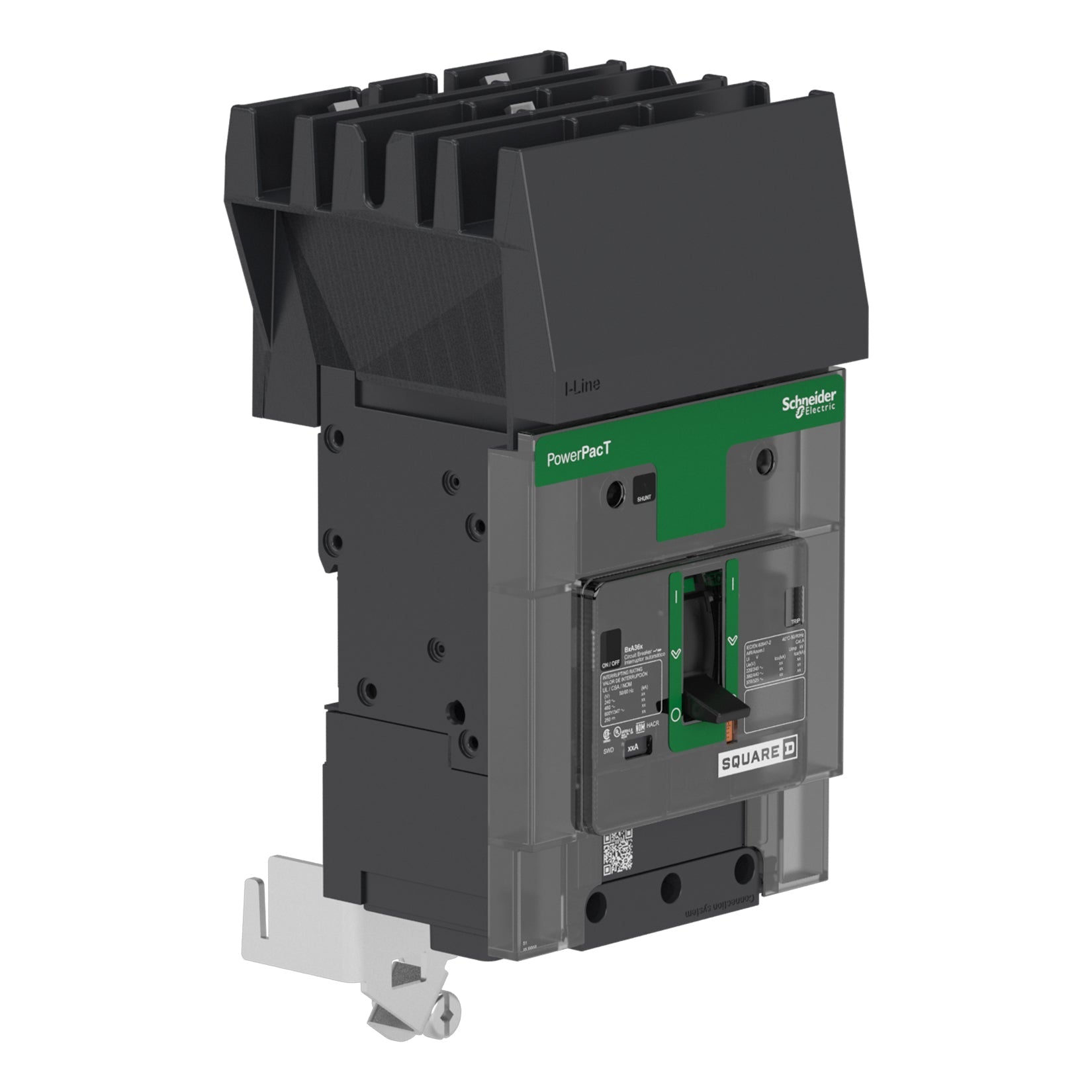

Schneider Electric BJA36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A thermal-magnetic trip unit with long-time and instantaneous functions, rated for 600V AC and capable of interrupting up to 65kA at 480V. The breaker is constructed with a compact 125A/BJ frame, measures 137 mm H x 81 mm W x 89 mm D, and utilizes an I-Line style plug-in connection with aluminum mechanical lugs on the OFF end for secure termination of wires from AWG 14 to 2/0. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, making it suitable for installation in industrial control panels and electrical distribution equipment within an operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Frame Size: 125A/BJ
  • Poles: 3
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In, Al Mechanical Lug OFF End
  • Wire Size Range: AWG 14 to AWG 2/0 (Aluminium/Copper)
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.23 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Phase Connection: ABC
  • Standards & Certification: UL 489, CSA C22.2 No. 5, IEC 60947-2, NMX J-266, GB 14048.2, CCC, EAC, NOM
  • Functions: Long Time and Instantaneous Trip


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481154217
