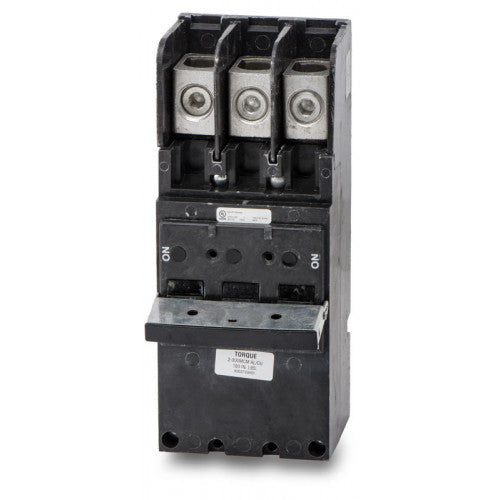

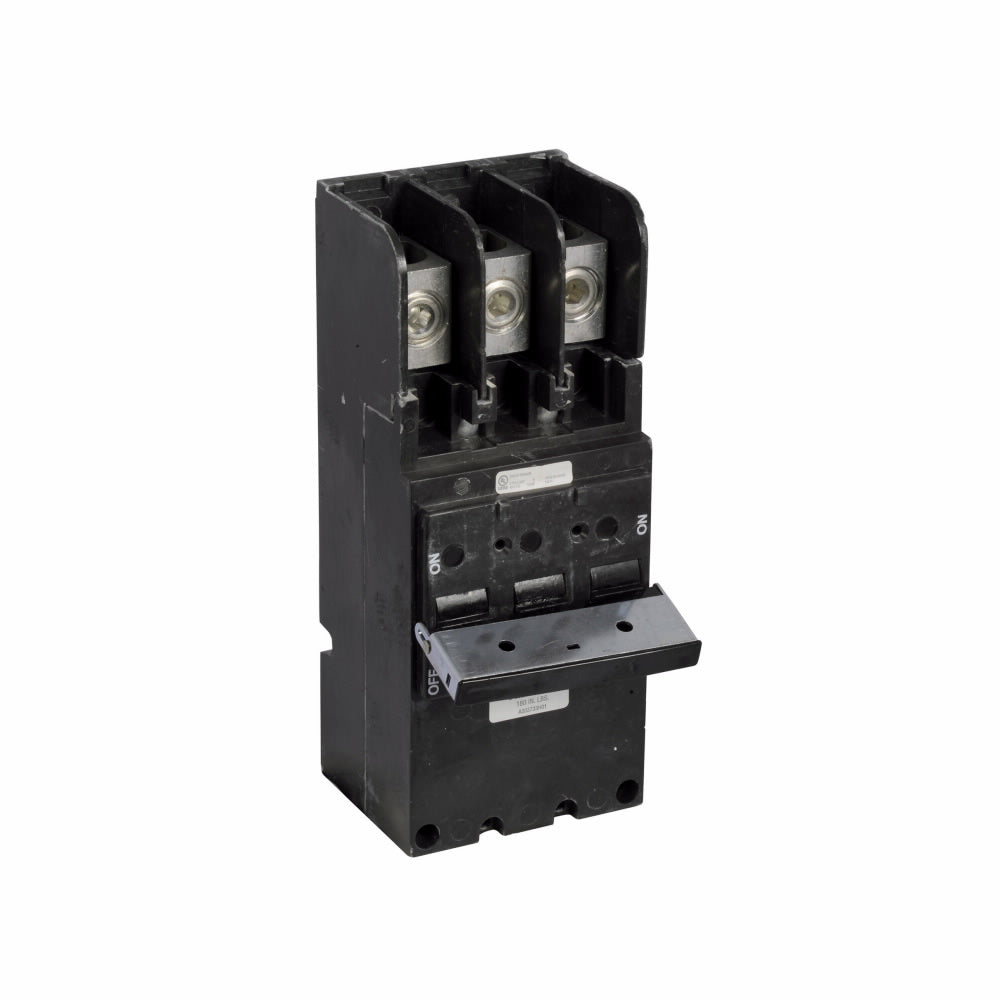

Cutler Hammer BJ3175 - Molded Case Circuit Breaker 175A 3P (10kA AIC)
Cutler Hammer BJ3175 - Molded Case Circuit Breaker 175A 3P (10kA AIC)
Cutler Hammer BJ3175 - Molded Case Circuit Breaker 175A 3P (10kA AIC)
Cutler Hammer BJ3175 - Molded Case Circuit Breaker 175A 3P (10kA AIC)

Cutler Hammer BJ3175 - Molded Case Circuit Breaker 175A 3P (10kA AIC)

Cutler Hammer
Price
Save $2,843.73
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer BJ3175 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial electrical systems. It features a 175A current rating and a 240V AC voltage rating, housed in a compact plug-in configuration measuring 8" x 3.5" x 3.5" and weighing 3.2 lb. The breaker is UL 489 listed and meets Federal Specification W-C375, ensuring compliance with stringent safety and performance standards for commercial and industrial power distribution panels, motor control centers, and switchgear. Its thermal-magnetic protection mechanism provides both long-time delay and instantaneous trip functions (LI) to safeguard against overloads and short circuits with an interrupting capacity of 10kA at 240V, and it accommodates conductors from 2 AWG to 300 kcmil.

Key Features & Specifications
  • Type: BJ Series Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 175A
  • Phase: 3
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Wire Size: 2 AWG to 300 kcmil (Aluminum/Copper)
  • Dimensions: 8 in (L) x 3.5 in (H) x 3.5 in (W)
  • Weight: 3.2 lb
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Frame: BJ Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676368407
  • GTIN: 00786676368407
