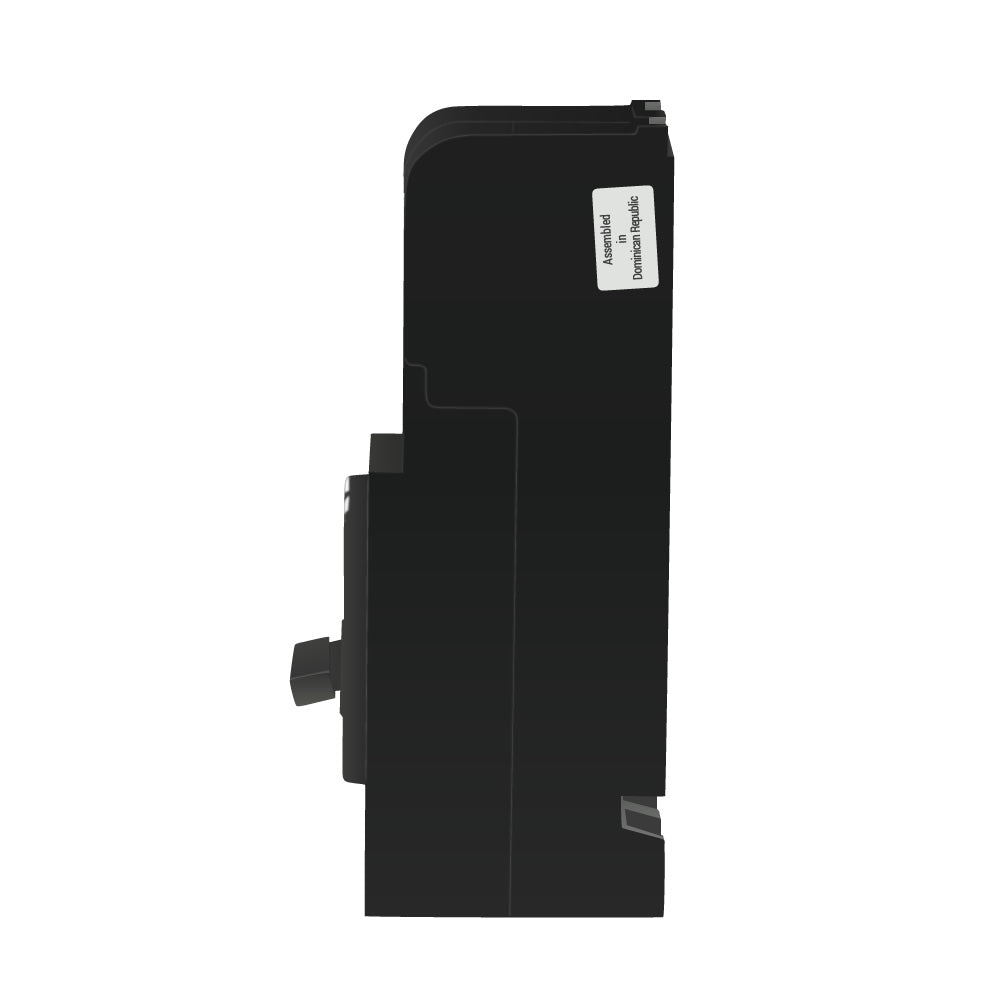

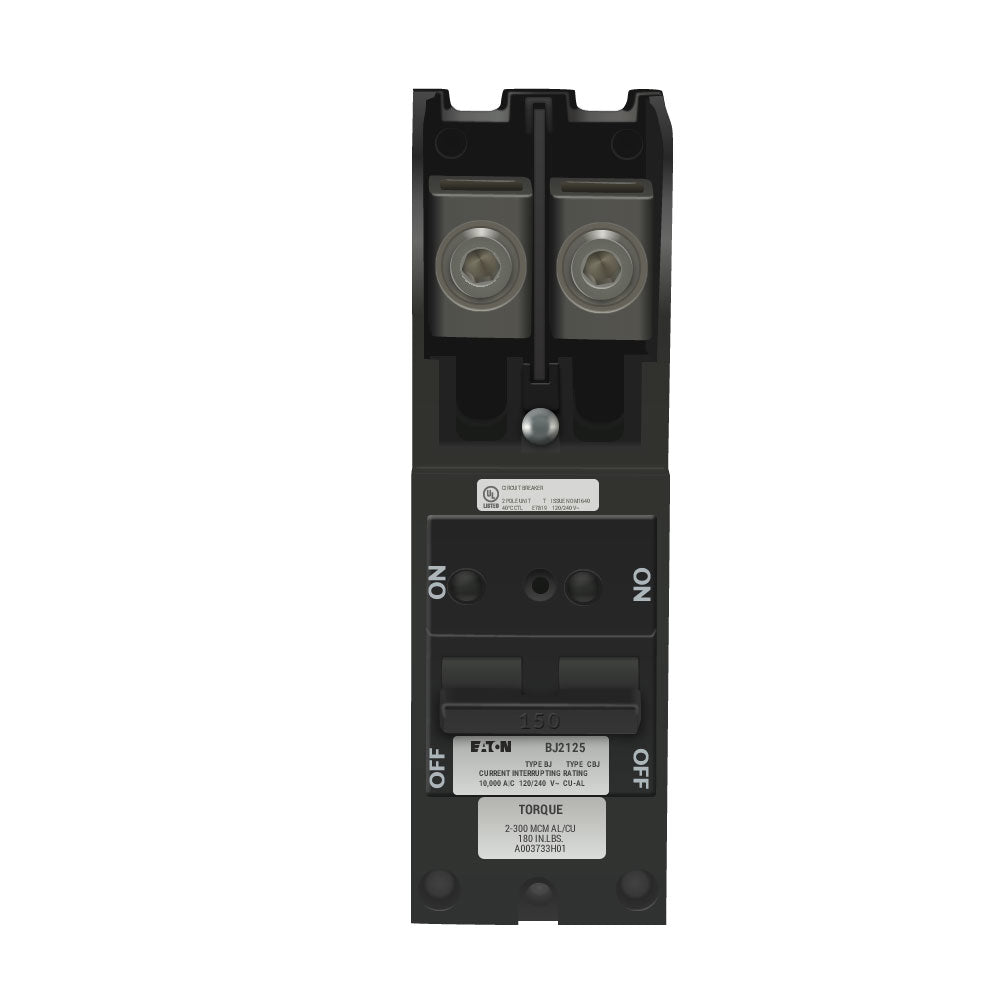

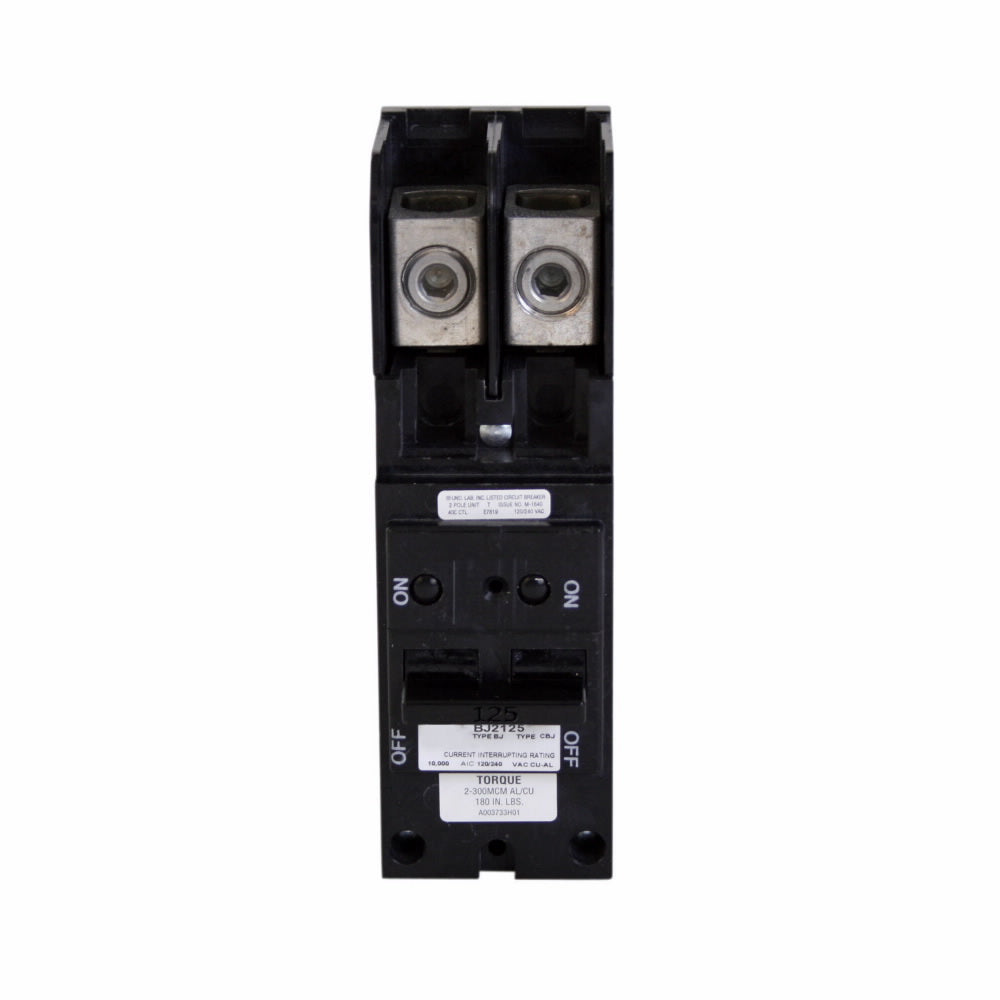

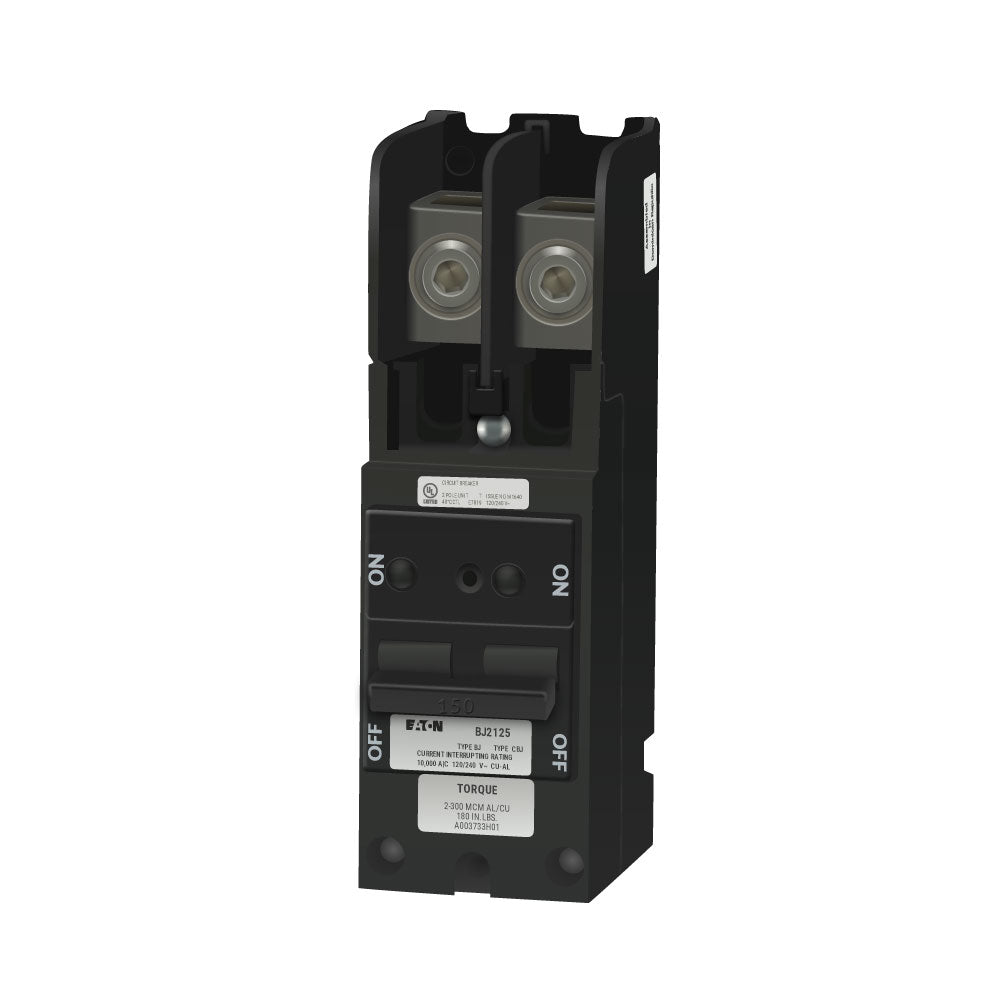

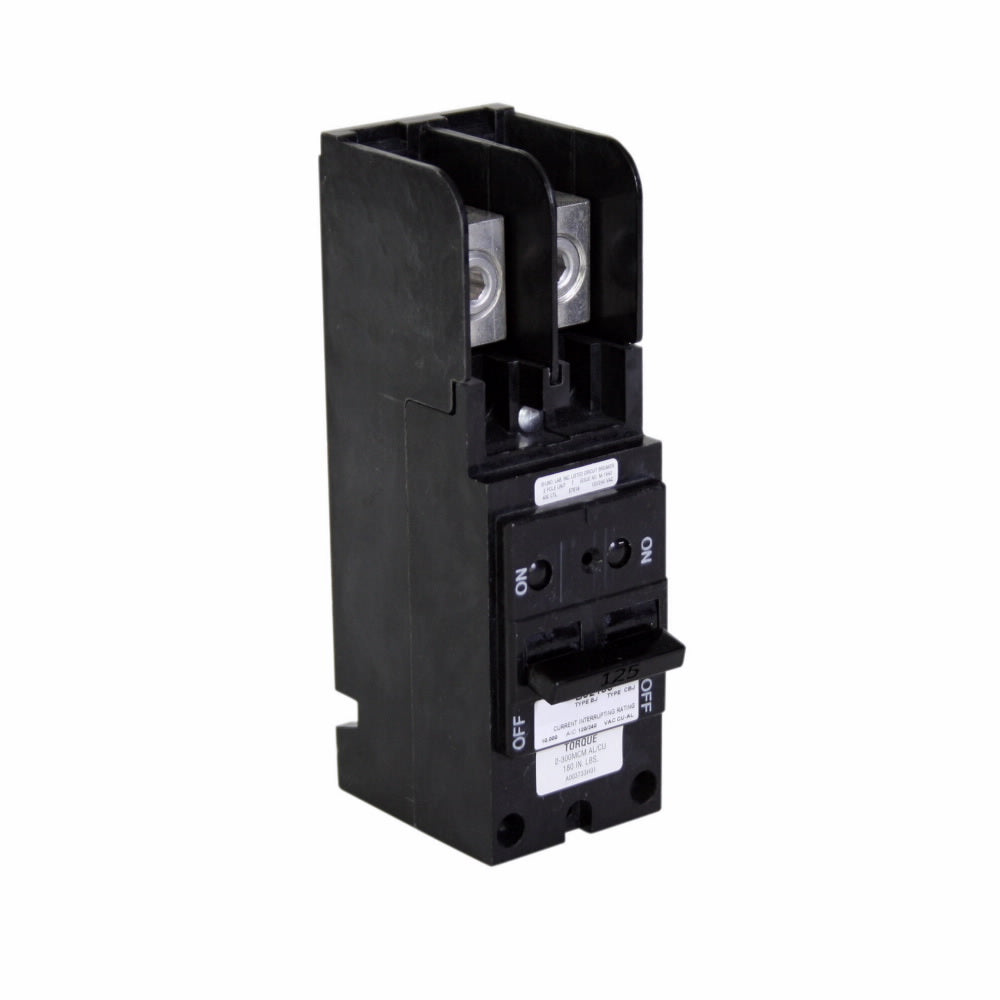

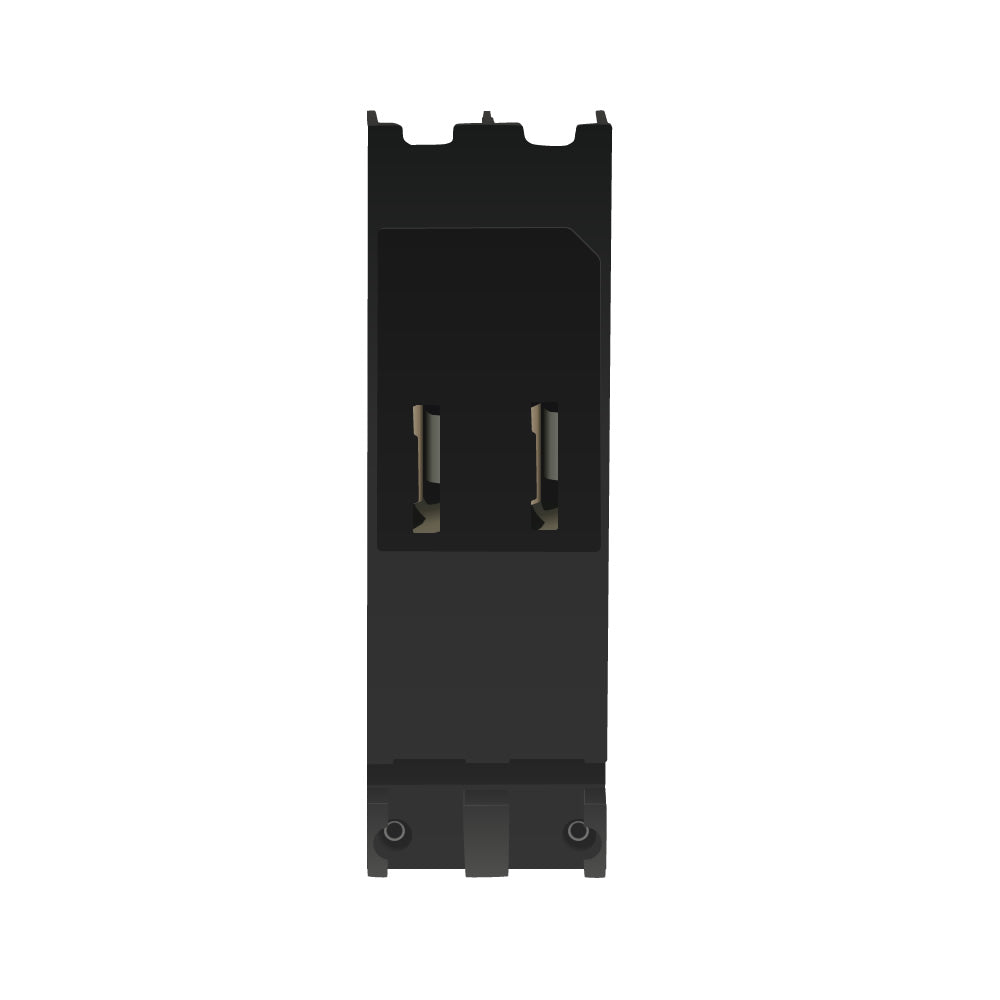

Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)
Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)

Cutler-Hammer BJ2125 - 125A Molded Case Breaker (240V, 10kA AIC)

Cutler Hammer
Price
Save $849.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer BJ2125 is a molded case circuit breaker designed to provide reliable overcurrent protection for industrial and commercial electrical systems. It features a 125A current rating and a 240V AC voltage rating, housed in a compact 6.5" x 2.5" x 3.5" plug-in unit weighing 1.8 lb. This two-pole breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is certified to UL 489 standards, and offers a 10kA interrupting capacity at 240V for robust fault protection. Its construction supports copper or aluminum conductors from AWG 2 to 300 kcmil and operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F), making it suitable for panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 125A
  • Dimensions: 6.5 in (Depth) x 2.5 in (Height) x 3.5 in (Width)
  • Weight: 1.8 lb
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Panelboards, Switchboards, Motor Control Centers
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Wire Size: AWG 2 to 300 kcmil, Copper or Aluminum
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: BJ Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676367004
  • GTIN: 00786676367004
