Eaton
Price
Save $757.33
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

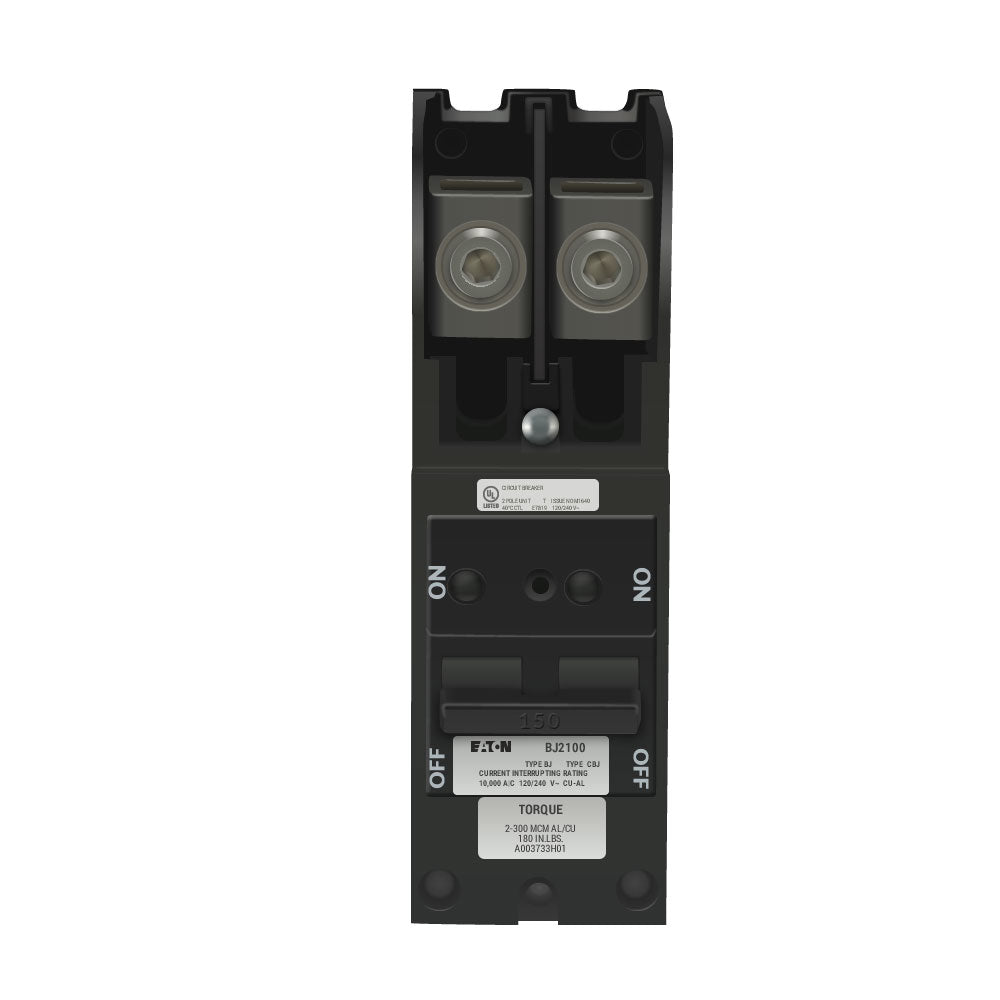

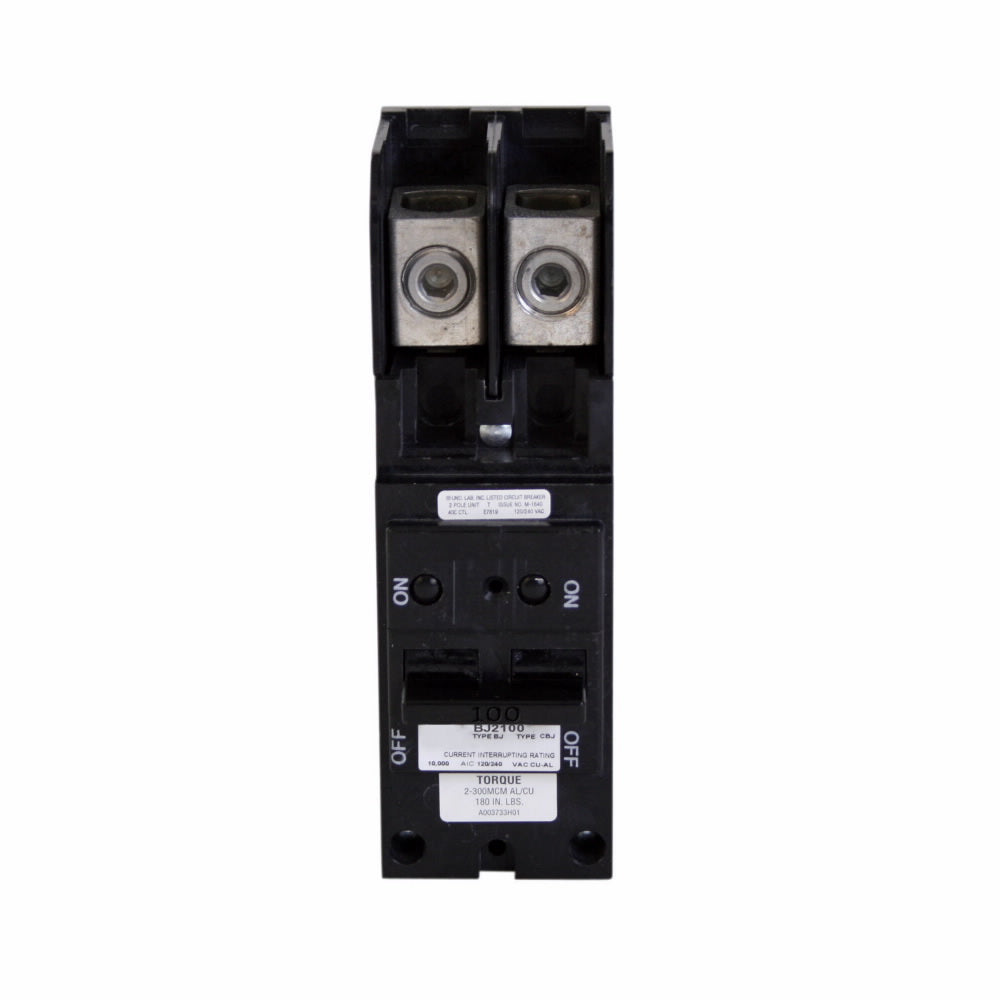

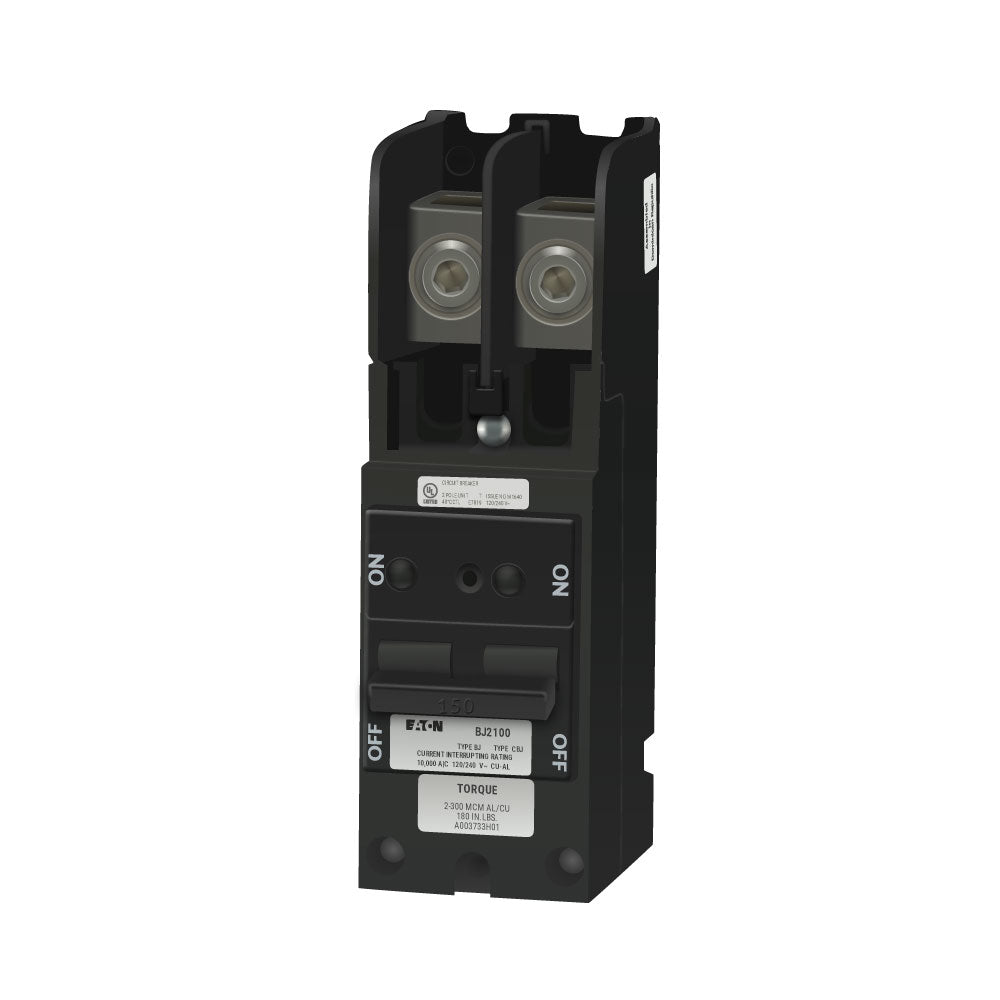

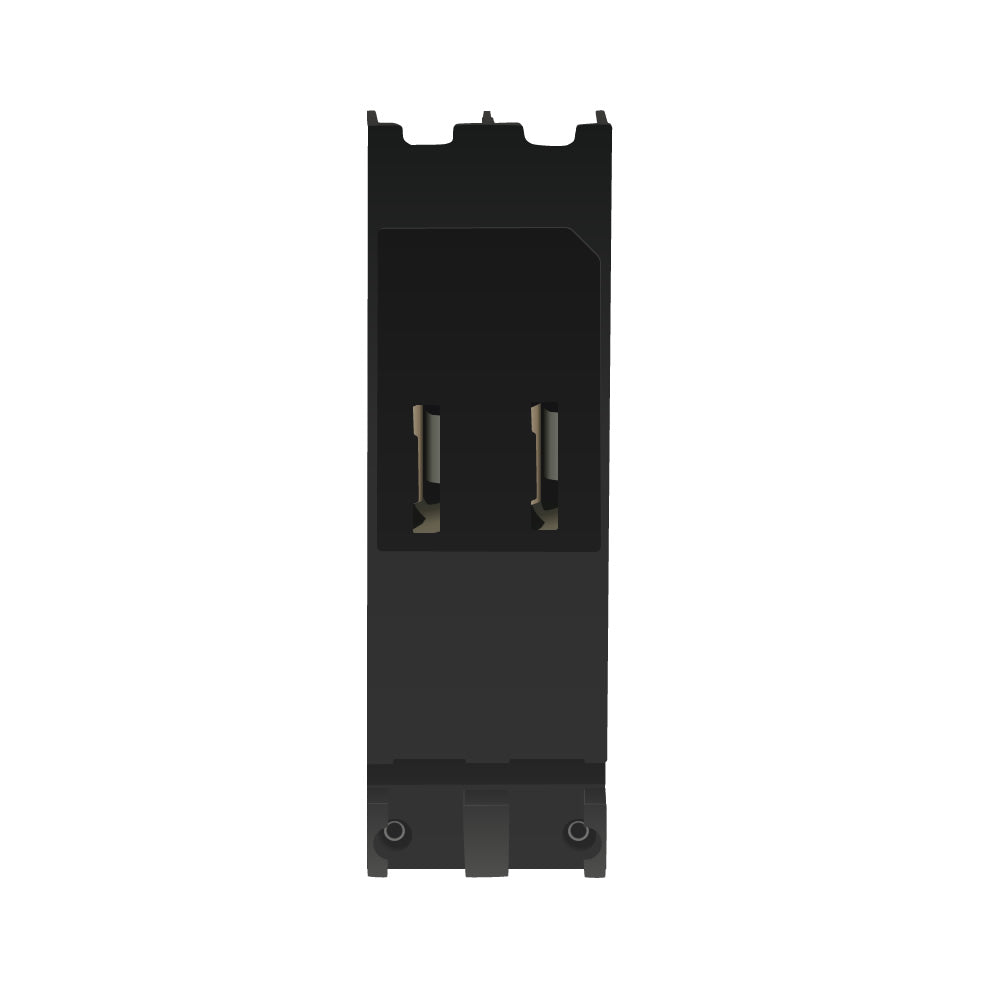

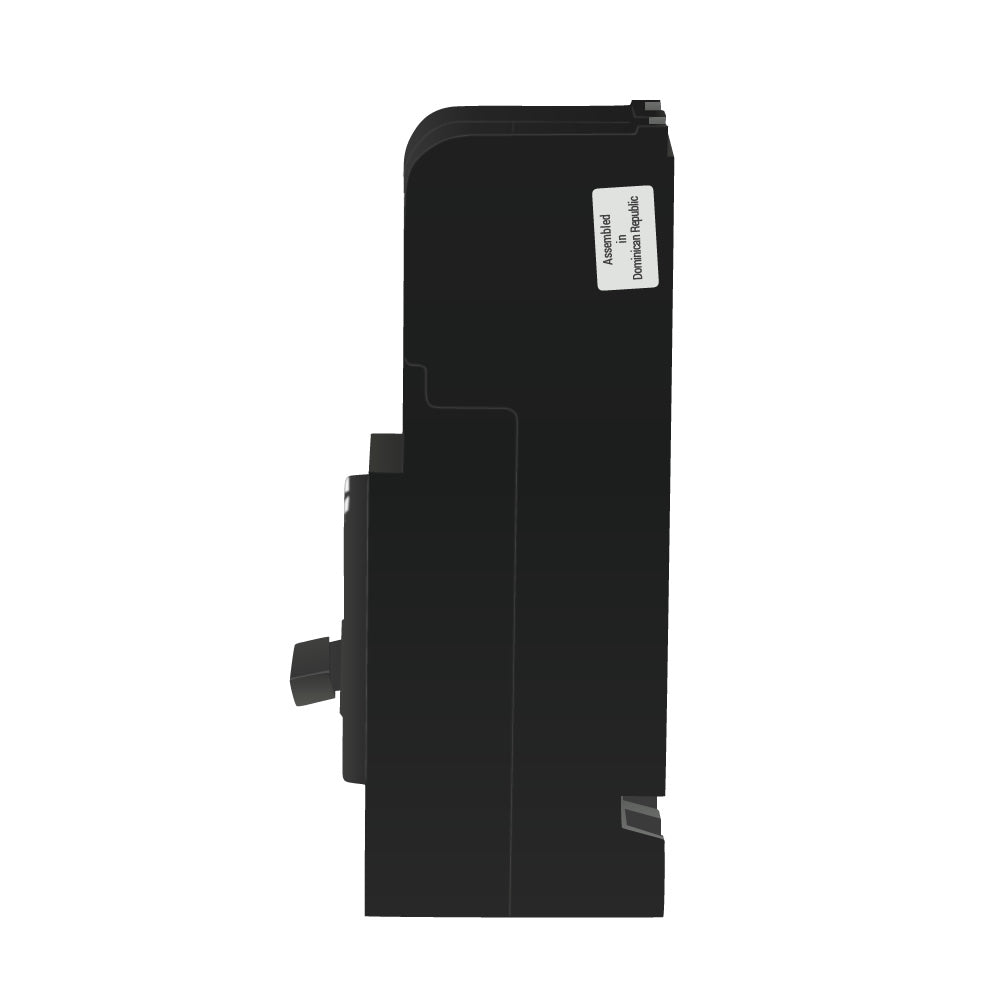

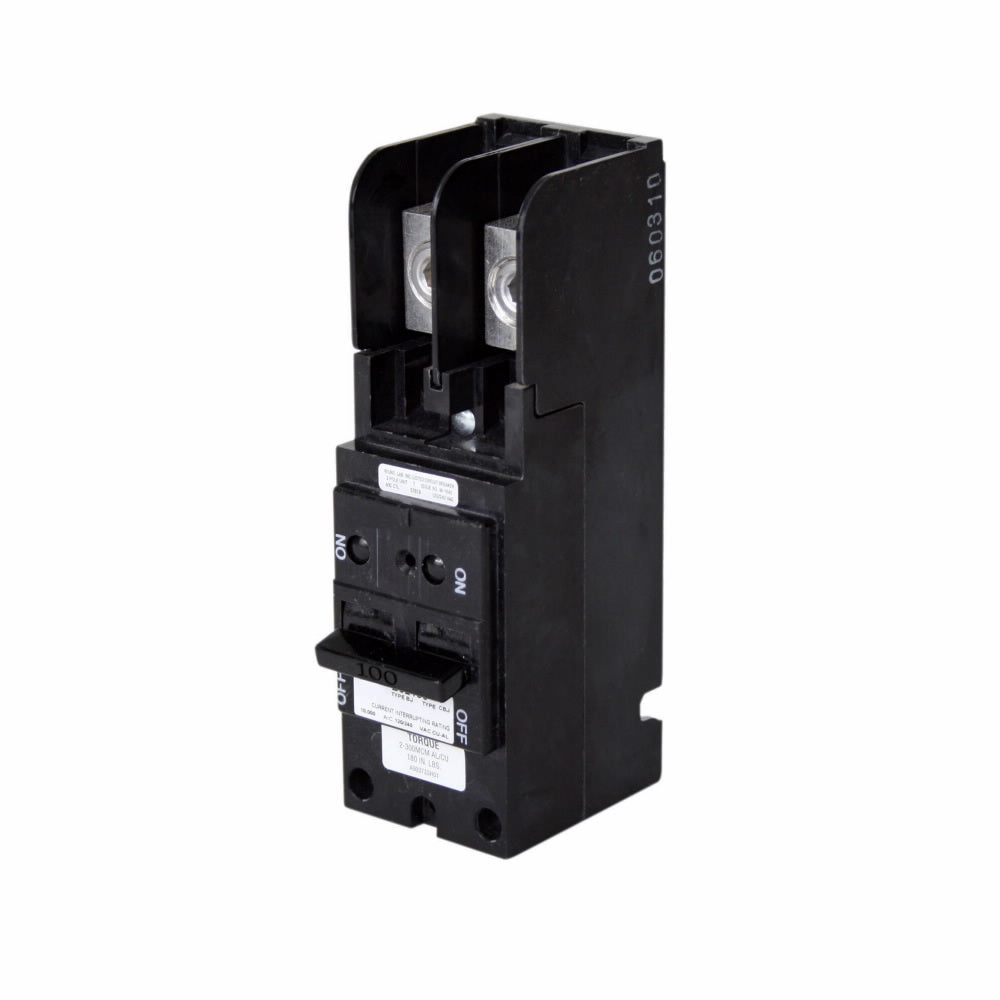

The Eaton Cutler-Hammer BJ2100 is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact plug-in configuration measuring 6.5" x 2.5" x 3.5" (L x H x W) and weighing 1.8 lb. This two-pole, single-phase unit complies with UL 489 and Federal Specification W-C375 standards, ensuring safe operation across a temperature range of -25°C to 70°C. Its thermal-magnetic protection with long-time and instantaneous trip functions and a 10kA interrupting rating at 240V makes it suitable for protecting feeders and branch circuits in panelboards and switchboards, accommodating copper or aluminum conductors from 2 AWG to 300 kcmil.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time & Instantaneous Trip
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 6.5 in (Depth) x 2.5 in (Height) x 3.5 in (Width)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: 2 AWG to 300 kcmil, Copper/Aluminum
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Family: BJ Series
  • Country of Origin: Dominican Republic
  • Weight: 1.8 lb


Product Identification
  • UPC: 782116484294
  • GTIN: 00782116484294
