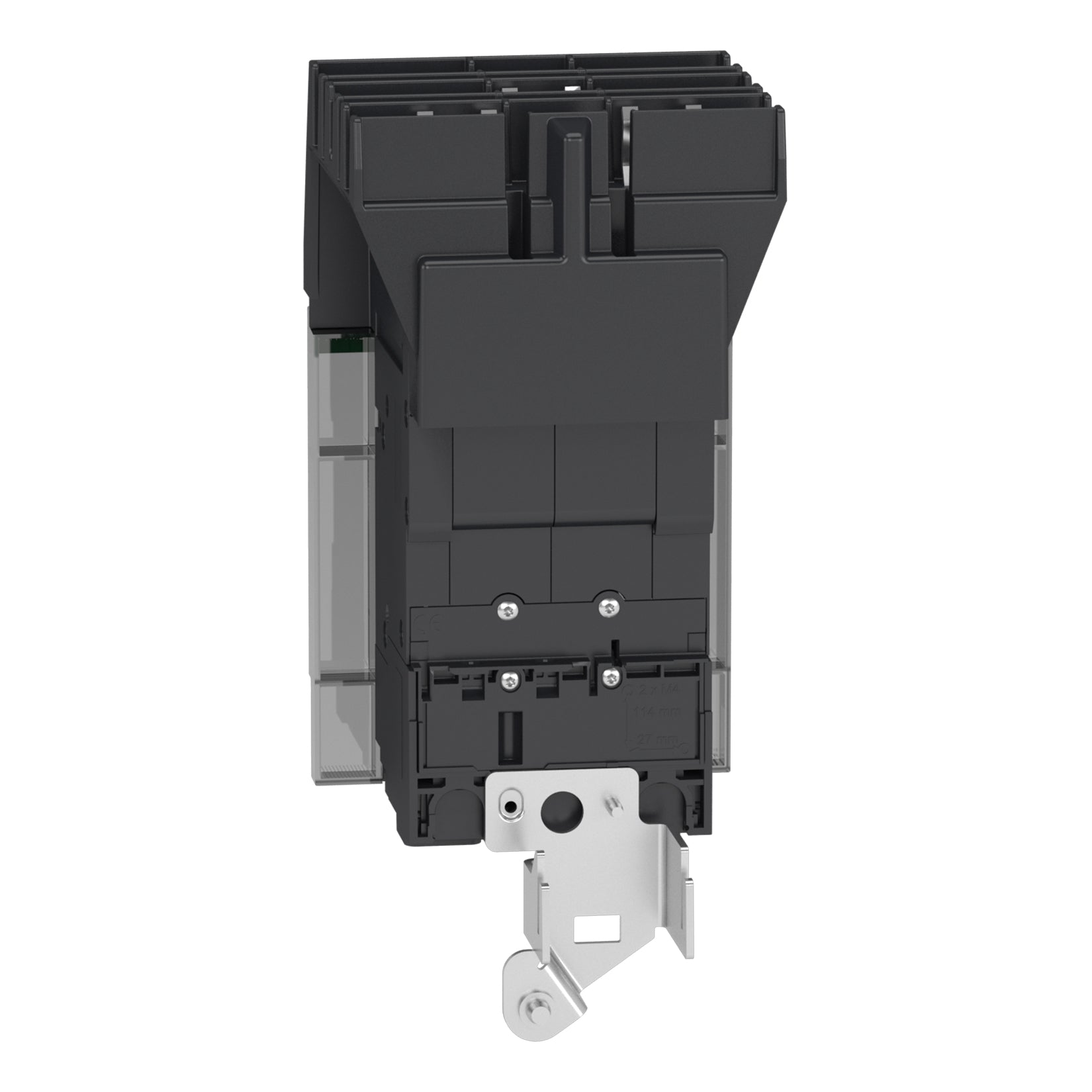

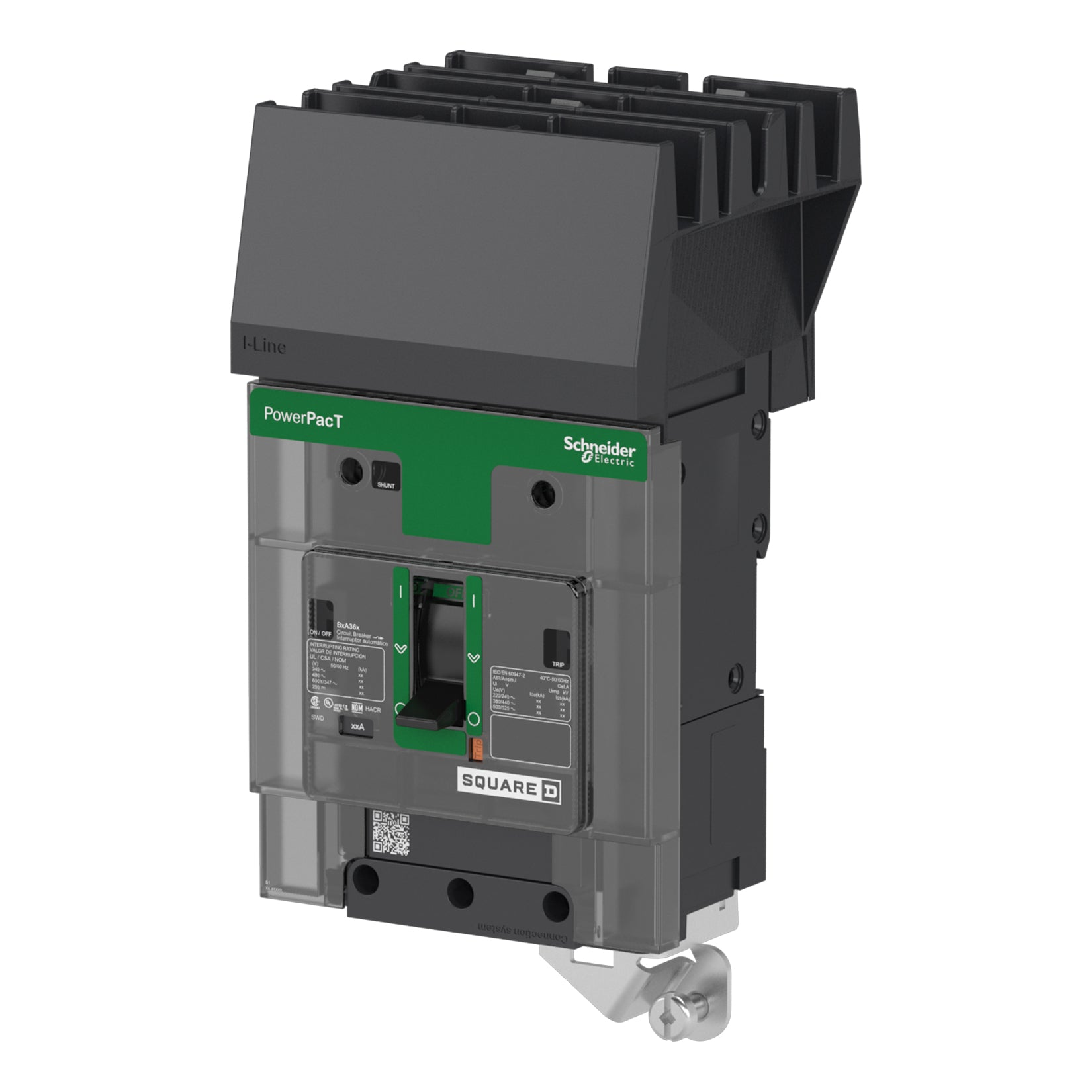

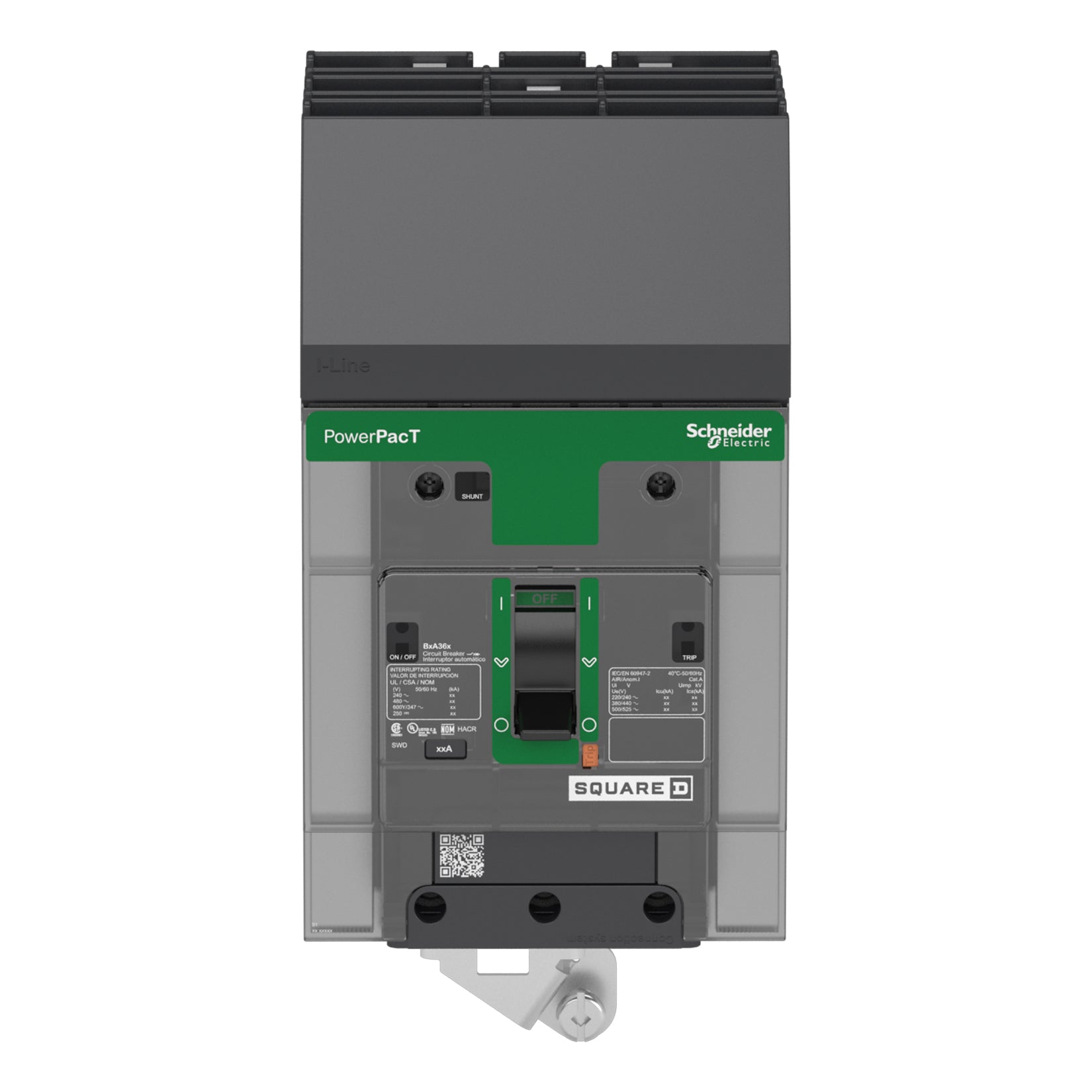

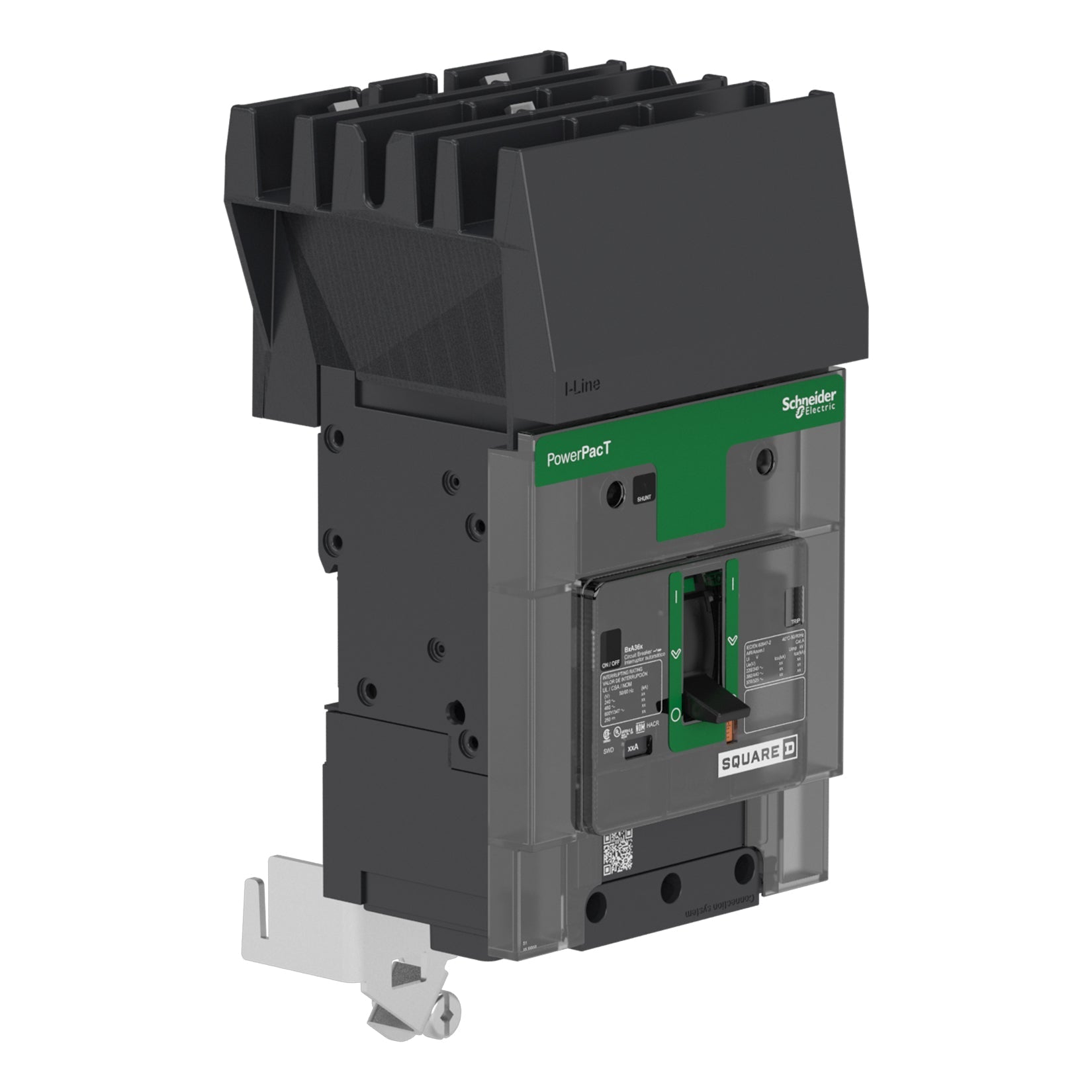

Square D BGA36125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A current rating and a 600V AC voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame that weighs 4.25 lb. The breaker is constructed for robust performance, complying with UL 489, IEC 60947-2, CSA C22.2 No 5, and other international standards for safety and interoperability. Its thermal-magnetic protection with long-time and instantaneous (LI) tripping functions makes it suitable for installation in electrical distribution equipment and industrial control panels, operating effectively in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: BGA Standard Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: 125A/BG
  • Poles: 3
  • AIC Rating: 35kA at 480V
  • Connection: I-Line Style Plug-In with Al Mechanical Lug OFF End
  • Phase Connection: ABC
  • Wire Size: AWG 14 to AWG 2/0 (Aluminium/Copper)

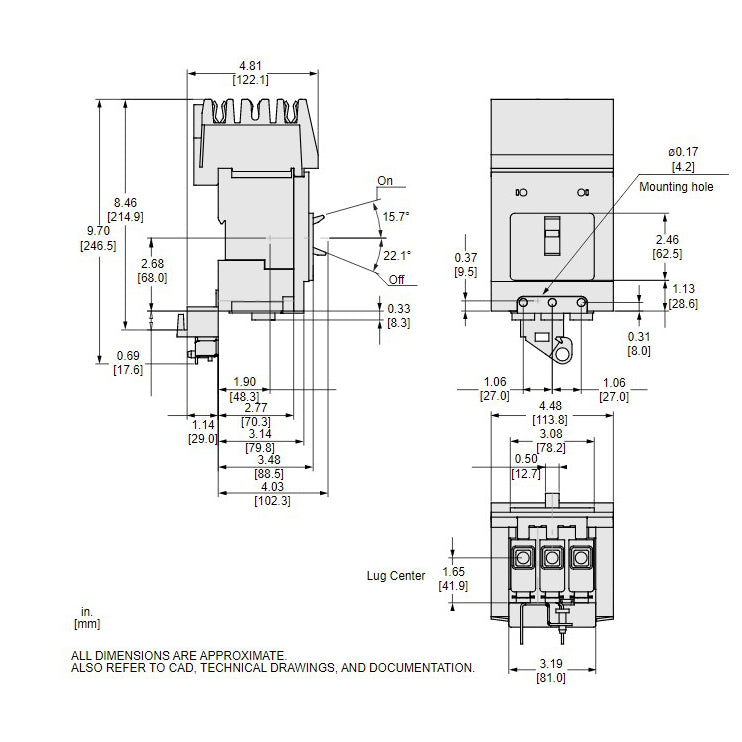

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.25 lb
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Functions: Long-Time and Instantaneous (LI) Tripping
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901031314
  • GTIN: 03606481153982
