Square D
Price
Save $896.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

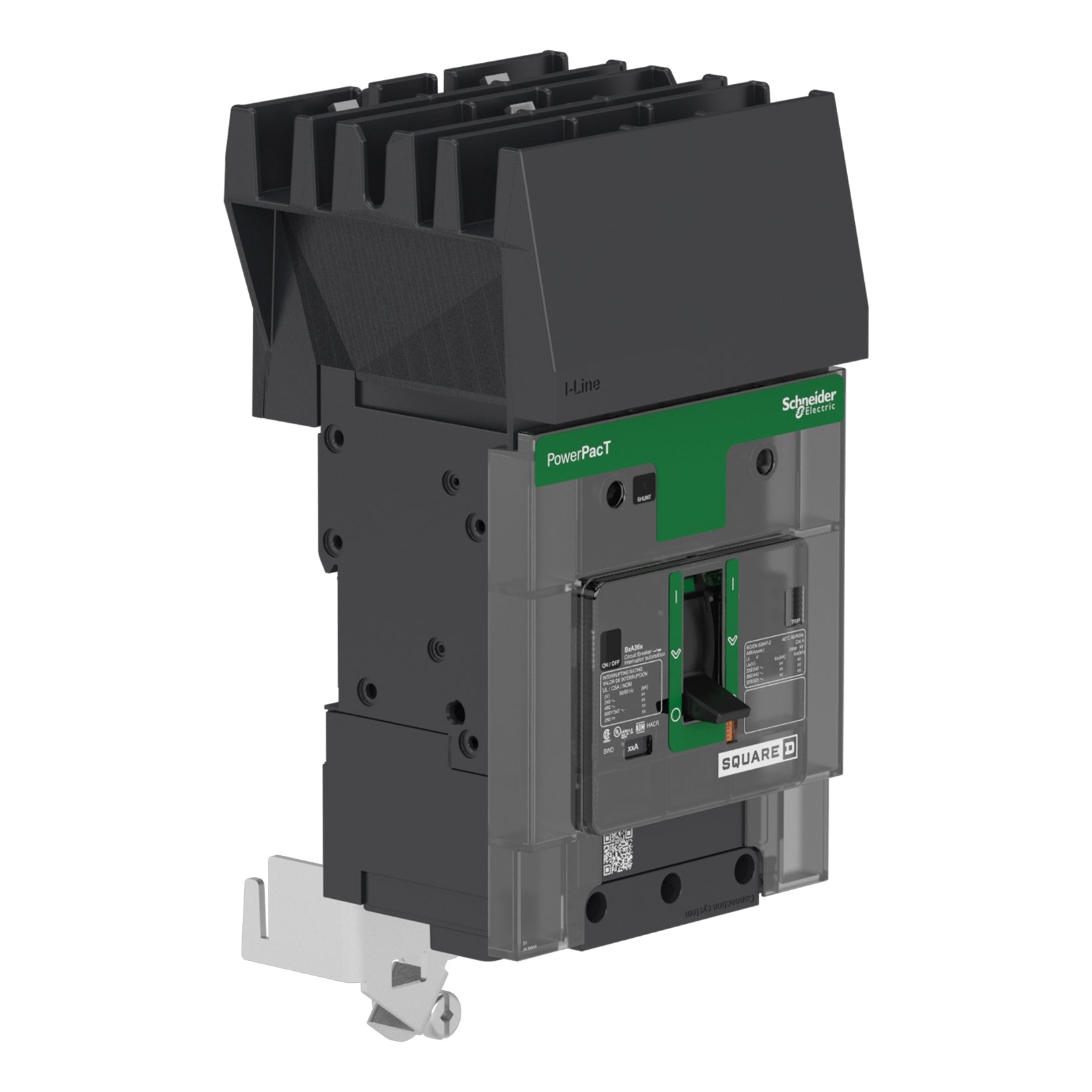

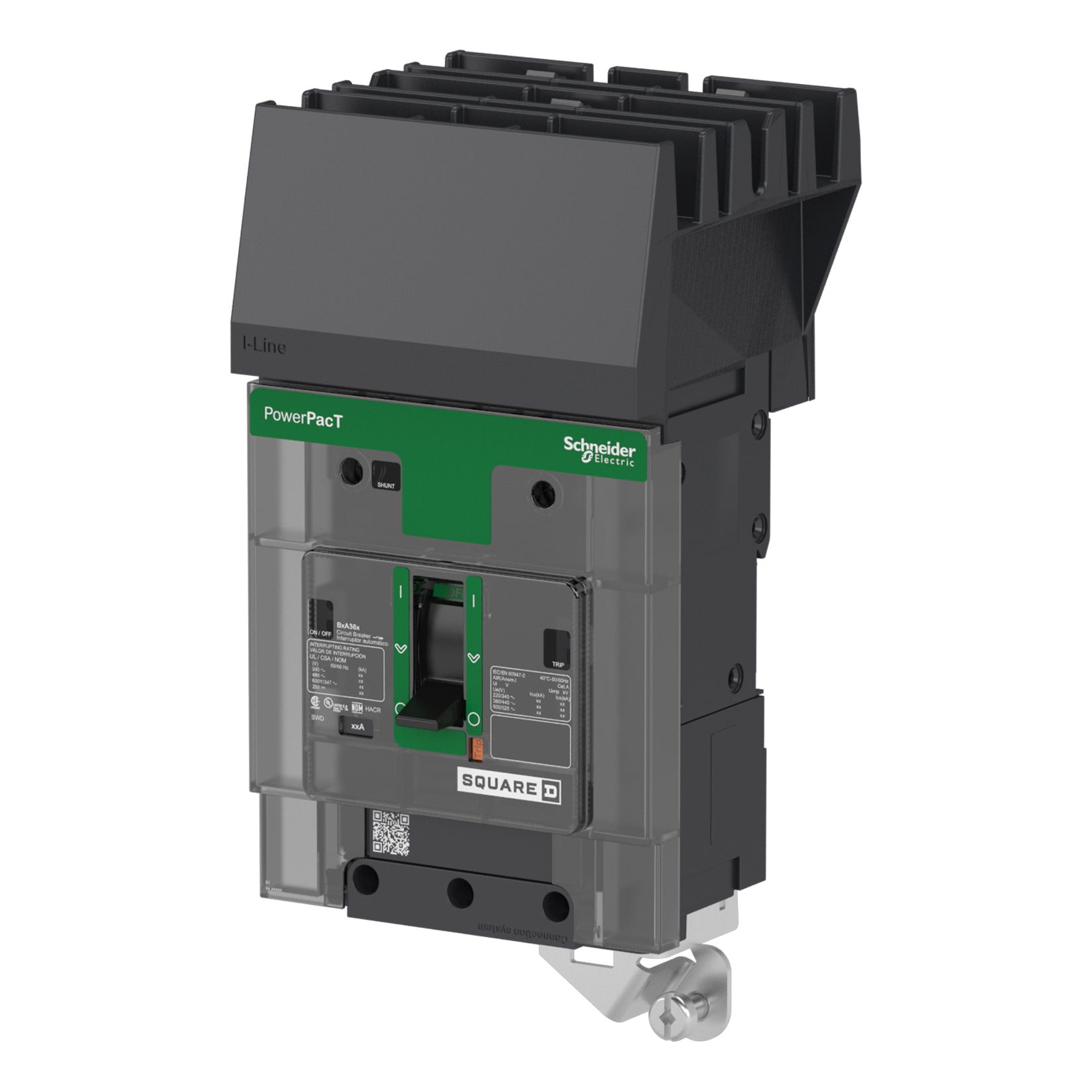

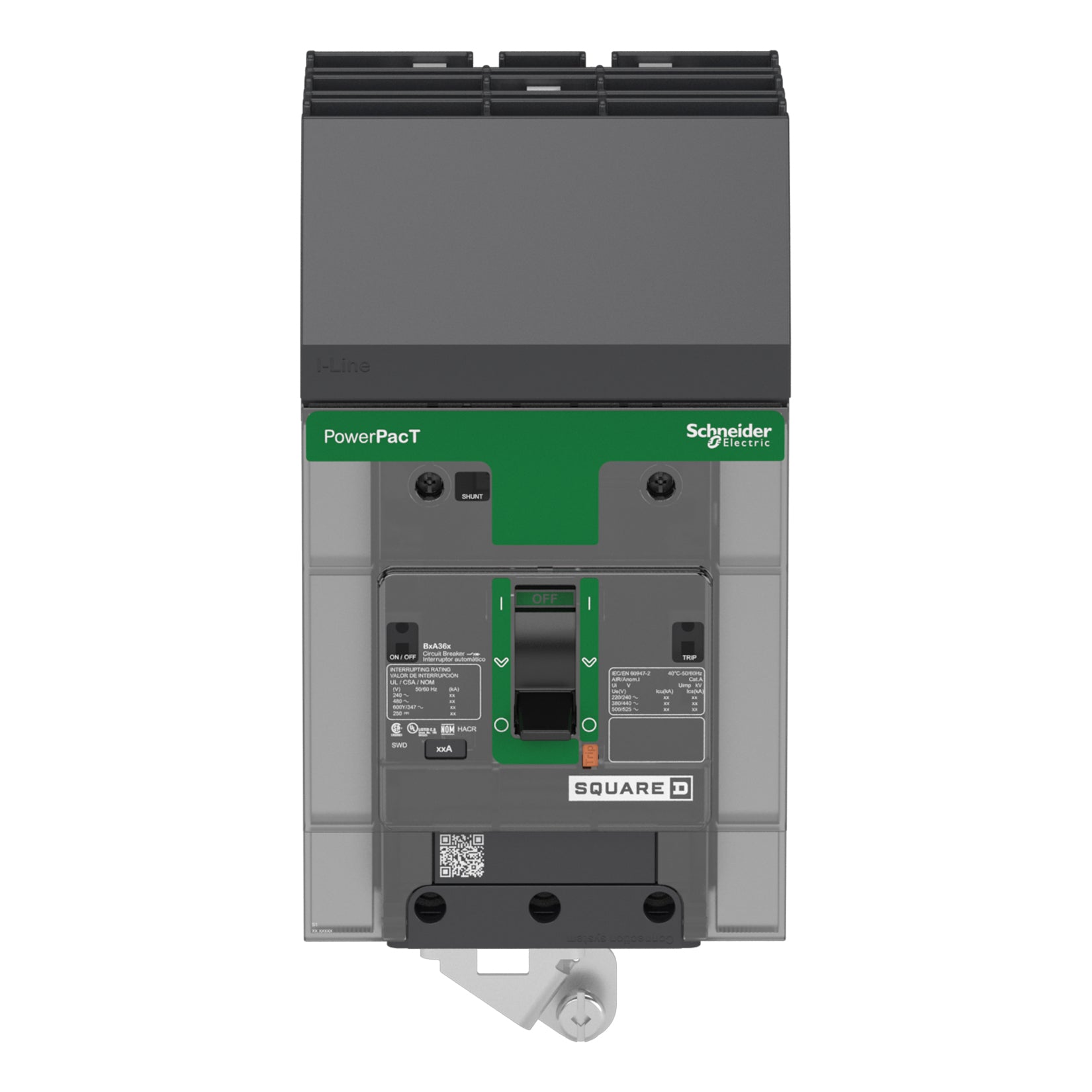

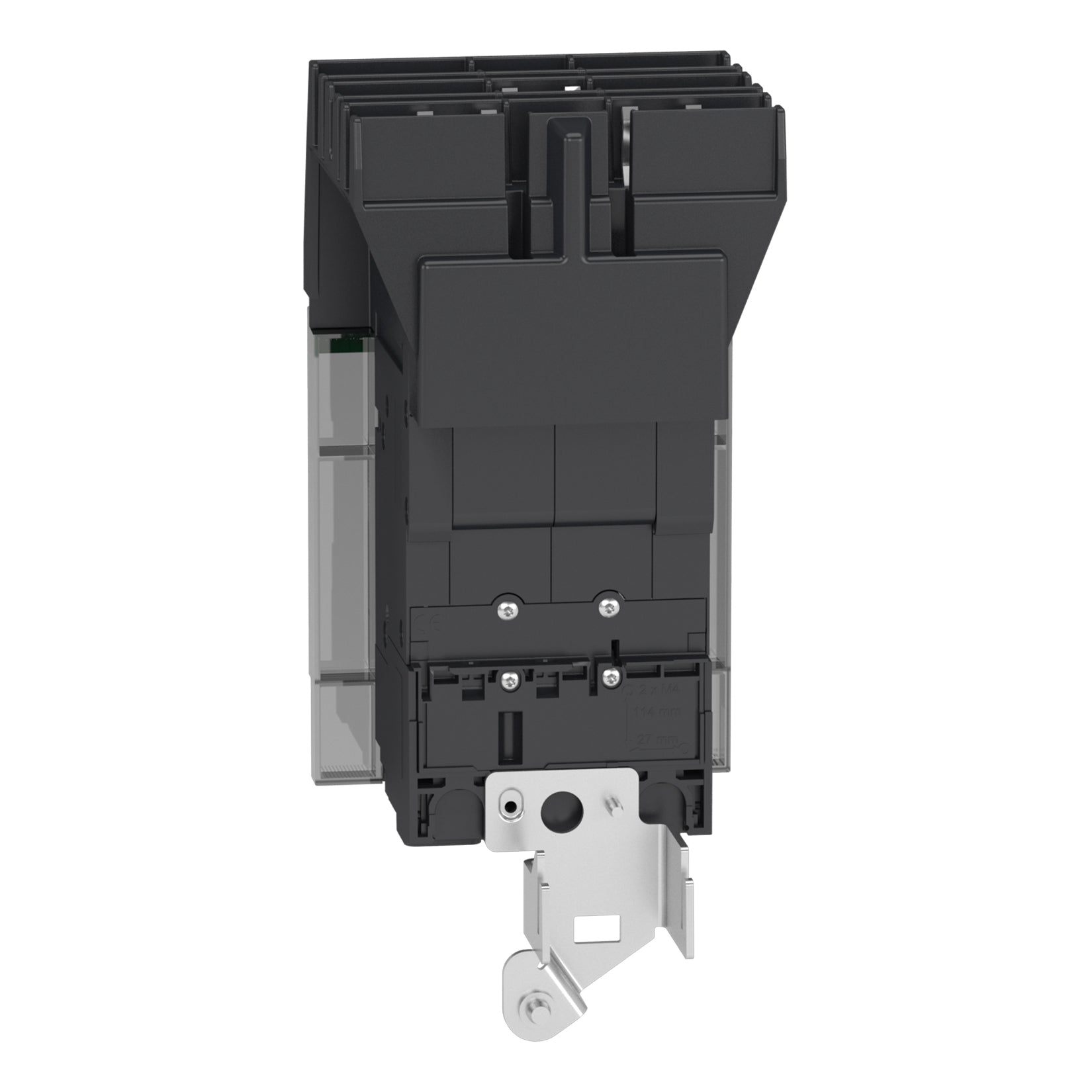

Square D BGA36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact 125A/BG frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.17 lb. The breaker is constructed with thermal-magnetic protection for long-time and instantaneous (LI) tripping functions and complies with major global standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and aluminum mechanical lugs facilitate installation in electrical distribution equipment and industrial control panels, supporting wire sizes from 14 AWG to 2/0 AWG for copper or aluminum conductors.

Key Features & Specifications
  • Type: BGA Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: 125A/BG
  • Poles: 3
  • AIC Rating: 35kA at 480V AC
  • Connection: I-Line Style Plug-In, Al Mechanical Lug OFF End
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.17 lb
  • Phase Connection: ABC


Product Identification
  • UPC: 785901021865
  • GTIN: 03606481153937
