Square D
Price
Save $896.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

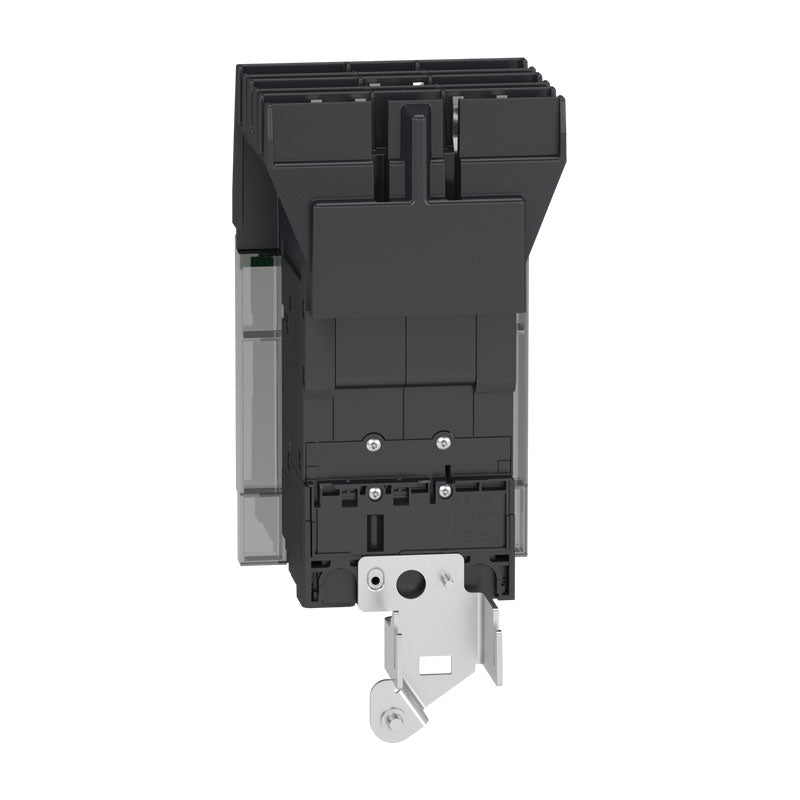

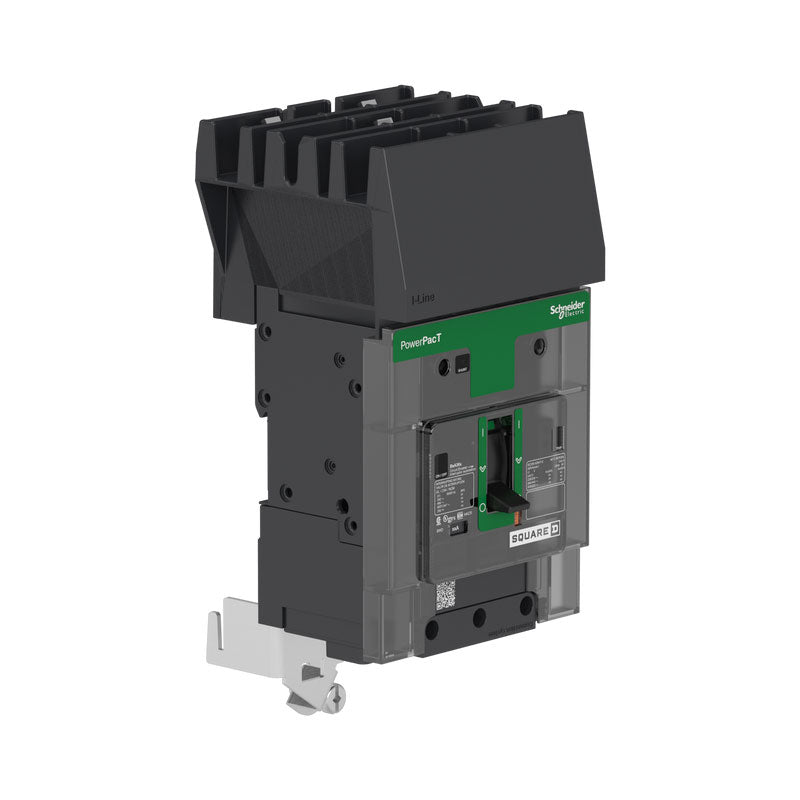

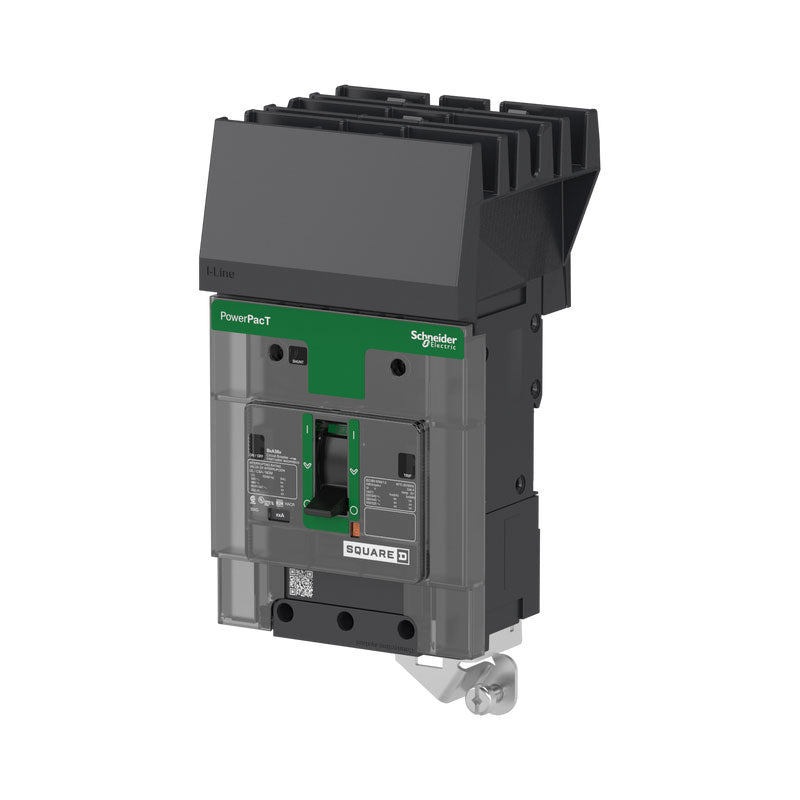

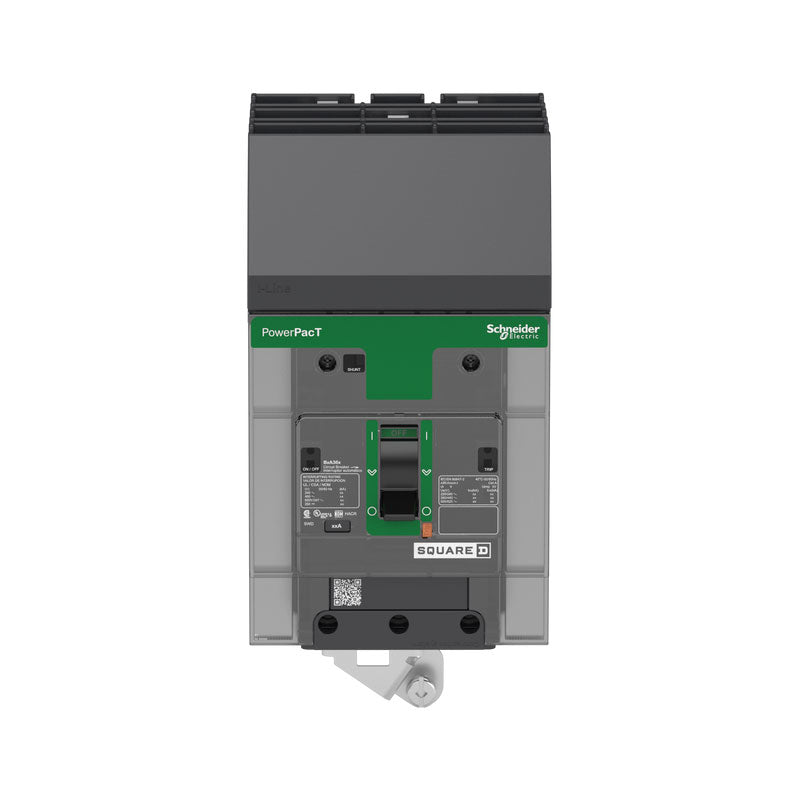

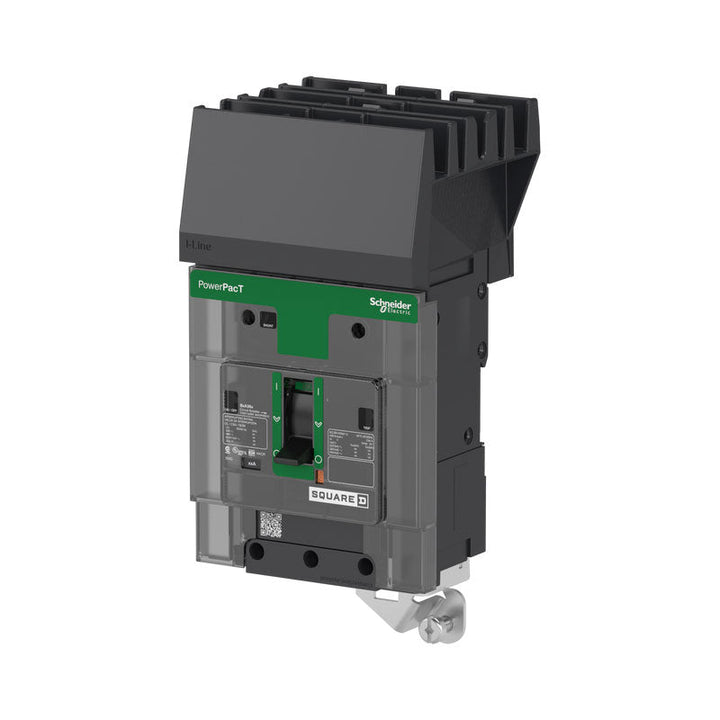

Square D BGA36090 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact 125A/BG frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.1 lb. The breaker utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection and is constructed for an operating temperature range of -25 to 70 °C. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, ensuring suitability for installation in electrical distribution equipment and industrial control panels. Its I-Line plug-in connection and 35kA interrupting capacity at 480V make it a robust component for three-phase ABC systems.

Key Features & Specifications
  • Type: BGA, Standard, Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 90A

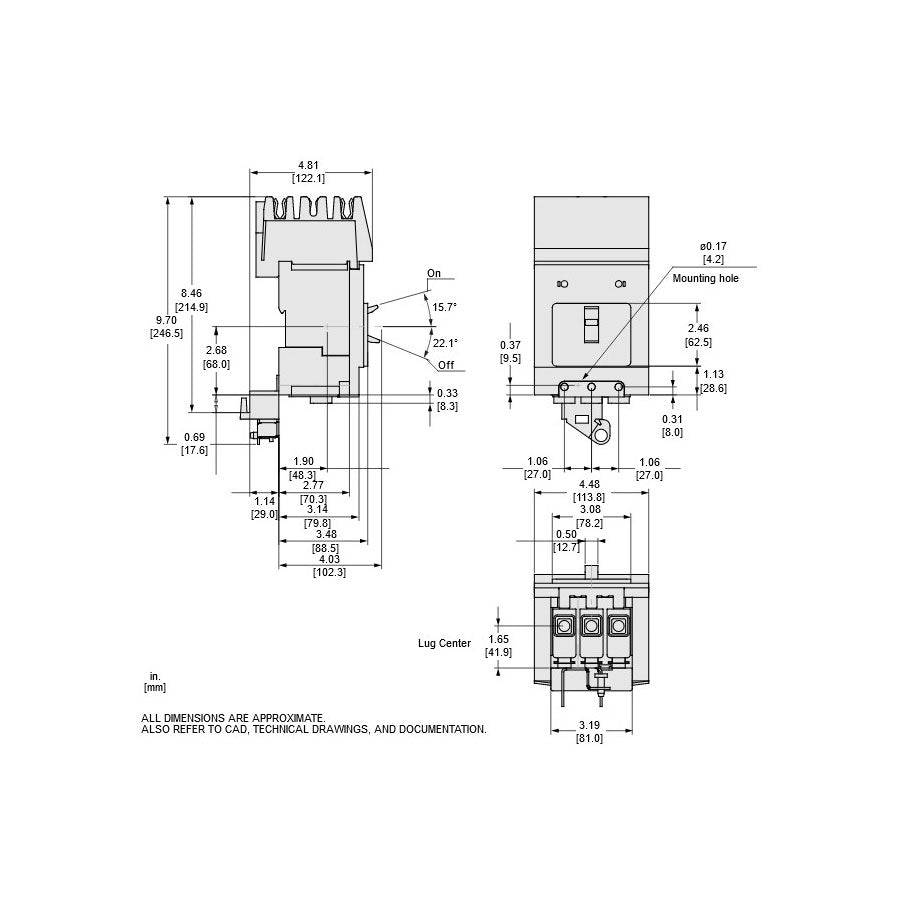

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, NEMA AB1, GB 14048.2, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Shipping Dimensions: As per product dimensions
  • Phase: 3
  • Amperage: 90A
  • AIC Rating: 35kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BG
  • Trip Type: Thermal-Magnetic
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 2/0 AWG
  • Panel Style: Industrial
  • Insulation Temperature: Rated for -25 to 70 °C
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Full Load Amps: 90A
  • Enclosure: Molded Case
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Amperage Maximum: 90A
  • Amperage Minimum: 90A
  • Nema Rating: As per NEMA AB1
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Frequency Rating: 50/60 Hz
  • Phase Connection: ABC
  • Compatible Frames: 125A/BG Frame
  • Installation Type: Plug-In
  • Breaker Frame: 125A/BG
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901000105
  • GTIN: 03606481153913
