Square D
Price
Save $896.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BGA36070 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 70A current rating and a 600V AC voltage rating, with a compact physical footprint of 137 mm H x 81 mm W x 89 mm D and a weight of 3.81 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5. Its I-Line plug-in connection and 125A/BG frame size make it suitable for integration into electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: BGA, Standard, Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 70A

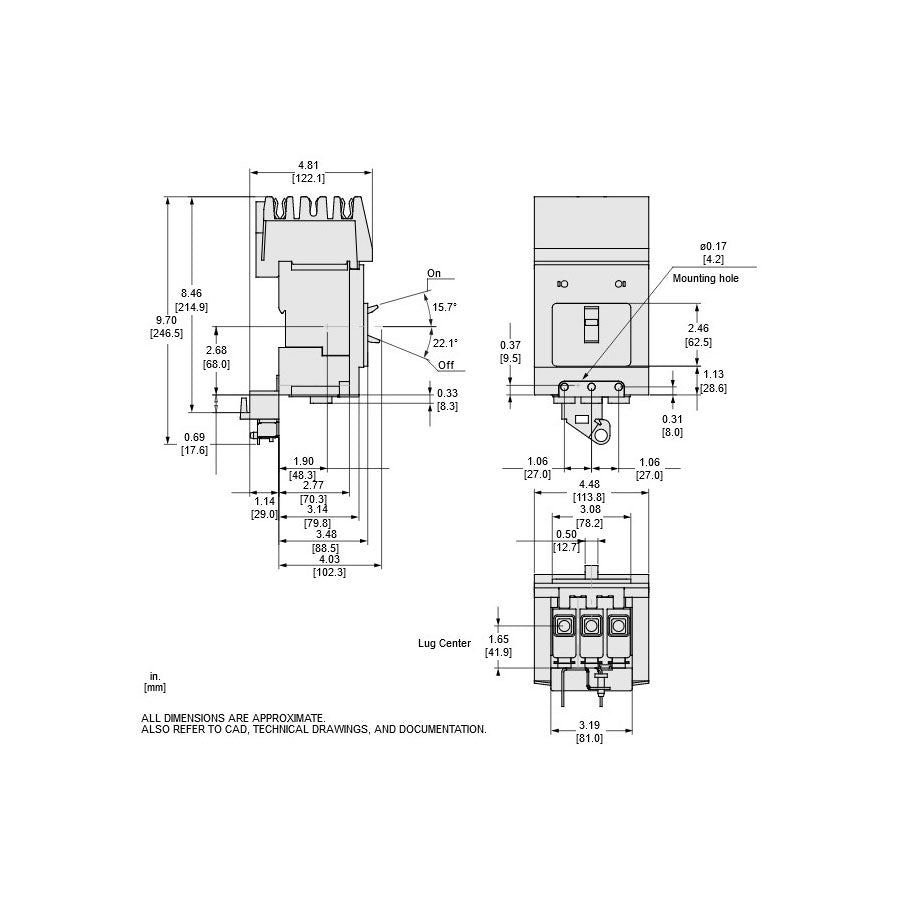

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, GB 14048.2, NEMA AB1, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BG
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 3.81 lb


Product Identification
  • UPC: 785901012856
  • GTIN: 03606481153852
