Square D
Price
Save $774.15
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BGA36060 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame with a weight of 4.21 lb. The breaker is constructed for compliance with UL 489, IEC 60947-2, and other international standards, and its thermal-magnetic trip unit provides both long-time and instantaneous (LI) protection functions. Typical applications include integration into electrical distribution equipment and industrial control panels, utilizing its I-Line style plug-in connection for efficient installation.

Key Features & Specifications
  • Type: BGA, Standard, Thermal Magnetic Protection, Molded Case
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Frame Size: 125A/BG
  • AIC Rating: 35kA at 480V AC
  • Poles: 3
  • Phase Connection: 3-Phase, ABC
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • MCM Size: 14 AWG to 2 AWG

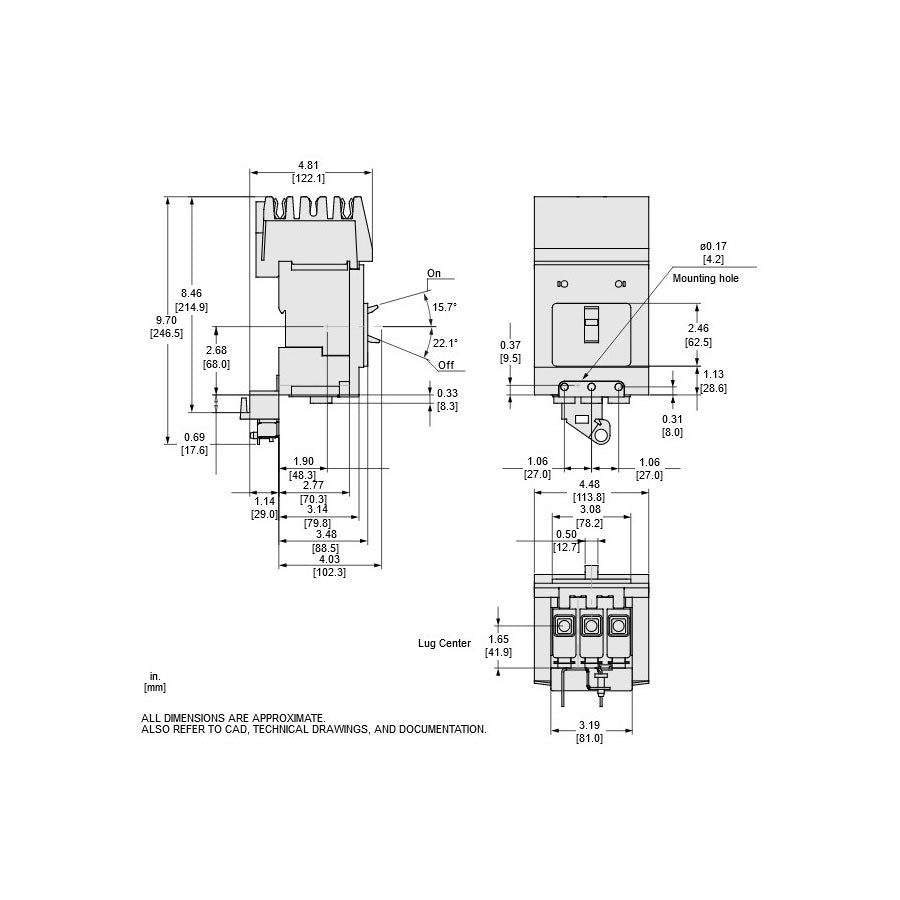

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.21 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Protection Functions: Long-Time and Instantaneous (LI)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, GB 14048.2, NMX J-266, NEMA AB1
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901002505
  • GTIN: 03606481153821
