Square D
Price
Save $919.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BGA36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame that weighs 3.849 lb. The breaker is constructed for robust performance, complying with UL 489, IEC 60947-2, CSA, and other international standards for safety and interoperability. Its thermal-magnetic trip unit provides both long-time and instantaneous (LI) protection, making it suitable for integration into industrial control panels and electrical distribution equipment where a 35kA interrupting capacity at 480V is required.

Key Features & Specifications
  • Type: BGA Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 50A

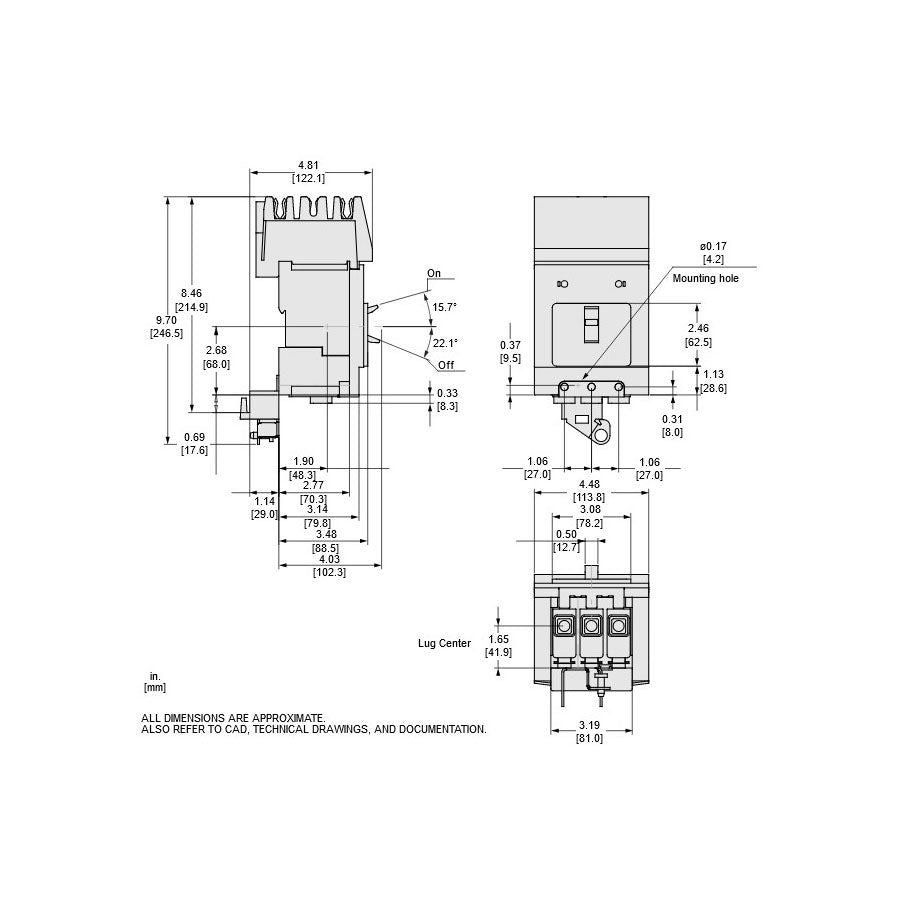

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266
  • Applications: Industrial Control Panels, Electrical Distribution Equipment
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 125A/BG
  • Breaker Type: Standard
  • Phase Connection: ABC
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 3.849 lb


Product Identification
  • UPC: 785901010432
  • GTIN: 03606481153784
